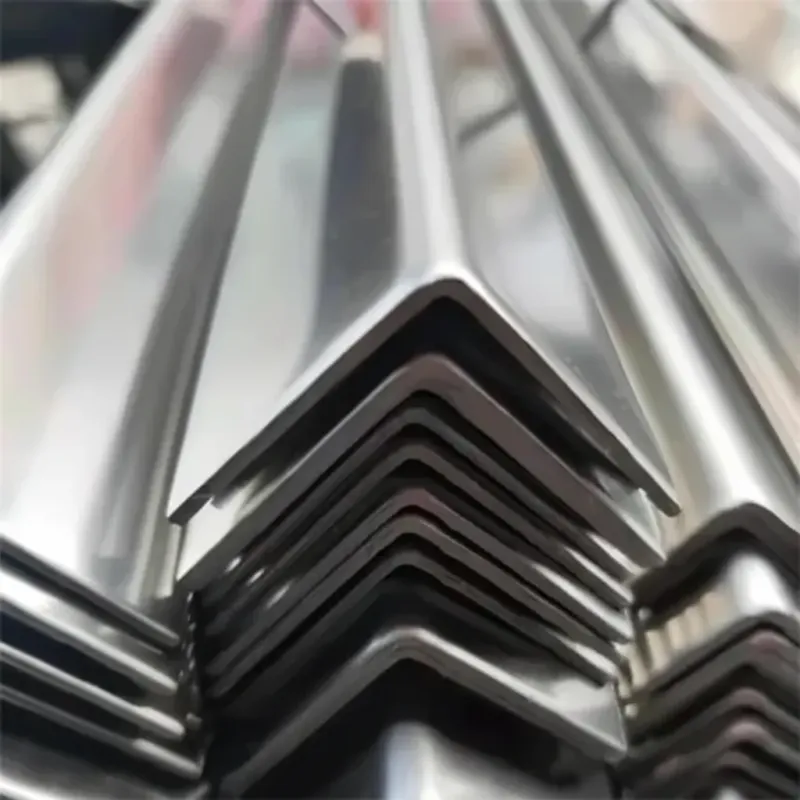

Custom Size Stainless Steel Profile For Industrial Use

Leihe Stainless Steel Co., Ltd.

Verified Custom manufacturer 8yrs

Technical Specifications of Custom Size Stainless Steel Profile

Property	Parameter	Description
Product Name	Custom Size Stainless Steel Profile	Tailor-made stainless steel structural profiles per customer drawings or specifications
Material Grade	304 / 304L / 316 / 316L / 430 / 201	304 ≈ EN 1.4301 / JIS SUS304; 316L ≈ EN 1.4404 / JIS SUS316L; 430 ≈ EN 1.4016
Standard Compliance	ASTM A276 / A484, EN 10088-3, JIS G4303, GB/T 1220	Covers hot-rolled, cold-drawn and extruded stainless steel long products and profiles
Chemical Composition (304)	C ≤0.08%, Mn ≤2.0%, Si ≤1.0%, Cr 18.0–20.0%, Ni 8.0–10.5%, P ≤0.045%, S ≤0.030%	Austenitic grade; 316L adds Mo 2.0–3.0%, C ≤0.03% for enhanced corrosion resistance
Tensile Strength	≥515 MPa (304/316L, ASTM A276)	Cold-worked or annealed condition; higher values available for work-hardened grades
Yield Strength	≥205 MPa (0.2% proof stress, annealed)	Per ASTM A276 / EN 10088-3; custom temper available upon request
Elongation	≥40% (304 annealed, gauge length 50 mm)	Ensures excellent formability and weldability for complex profile geometries
Hardness	≤201 HBW (304 annealed)	Brinell hardness per ASTM A276; Rockwell B ≤92 equivalent
Profile Types	Angle, Channel (U/C), T-bar, Flat bar, Round/Square/Hex bar, Custom section	Open and closed sections; special asymmetric or hollow profiles available via extrusion or roll-forming
Custom Size Range	Thickness: 0.5–50 mm; Width/Height: 5–500 mm; Length: up to 12,000 mm	Tolerances per EN 10278 or ASTM A484; tighter tolerances available on request
Dimensional Tolerance	±0.05 mm (precision cold-drawn); ±0.3 mm (hot-rolled standard)	Custom tight tolerances achievable for precision engineering applications
Surface Finish	No.1 / 2B / BA / No.4 / No.8 / Brushed / Electropolished / Pickled & Passivated	Surface finish selected based on aesthetic, hygienic or corrosion-resistance requirements
Application	Architecture, food processing, chemical equipment, marine, pharmaceutical, automotive, construction	Suitable for structural frameworks, handrails, conveyor systems, heat exchangers and decorative trim
Certification	ISO 9001:2015, Mill Test Certificate (EN 10204 3.1 / 3.2), PED 2014/68/EU	Full material traceability; third-party inspection (SGS, BV, TÜV) available on request
Packaging	Bundled with steel strapping; wooden pallet or crate; PVC/PE protective film	Export-standard seaworthy packaging; custom labeling and bar-coding available
MOQ	500 kg per grade/size (standard); 100 kg for sample orders	Mixed grades accepted to meet MOQ; lead time 7–25 days depending on complexity

Custom Size Stainless Steel Profile For Industrial Use

Custom size stainless steel profile is a precision-engineered structural component widely used across demanding industrial sectors where dimensional accuracy, corrosion resistance, and mechanical strength are non-negotiable requirements. Unlike standard off-the-shelf sections, custom-fabricated stainless steel profiles are tailored to exact project specifications, enabling engineers and procurement managers to optimize material usage, reduce fabrication waste, and meet stringent design tolerances. From food processing facilities to offshore platforms, these profiles deliver consistent performance in the most challenging environments.

What Is a Custom Size Stainless Steel Profile?

A stainless steel profile refers to any long, extruded, or roll-formed section manufactured from stainless steel alloy and shaped into a specific cross-sectional geometry. Common profile shapes include angles, channels (U-profiles), T-sections, flat bars, I-beams, H-beams, round tubes, square tubes, and special asymmetric sections. When produced to custom dimensions, these profiles can be fabricated with non-standard widths, thicknesses, leg lengths, radii, and tolerances that standard mill products cannot provide.

The customization process typically involves cold drawing, hot rolling, laser welding, or precision forming, depending on the required mechanical properties and surface finish. Manufacturers work directly from engineering drawings or CAD files to ensure every profile meets the buyer's exact specifications.

Available Grades for Custom Stainless Steel Profile

Selecting the correct material grade is critical when ordering a custom size stainless steel profile. Different grades offer varying levels of corrosion resistance, weldability, and tensile strength. Below are the most commonly specified grades:

Grade	Key Properties	Typical Applications
304 / 304L	Excellent corrosion resistance, good formability	Food equipment, architecture, general fabrication
316 / 316L	Superior resistance to chlorides and acids	Marine, chemical processing, medical devices
321	Stabilized against sensitization, high-temp resistant	Exhaust systems, heat exchangers
2205 Duplex	High strength, excellent stress corrosion resistance	Oil & gas, desalination plants
430	Ferritic, magnetic, cost-effective	Automotive trim, decorative panels

Standard Specifications and Custom Dimensions

One of the primary advantages of ordering a custom stainless steel profile is the freedom to define precise dimensional parameters. The following specification ranges are typically achievable:

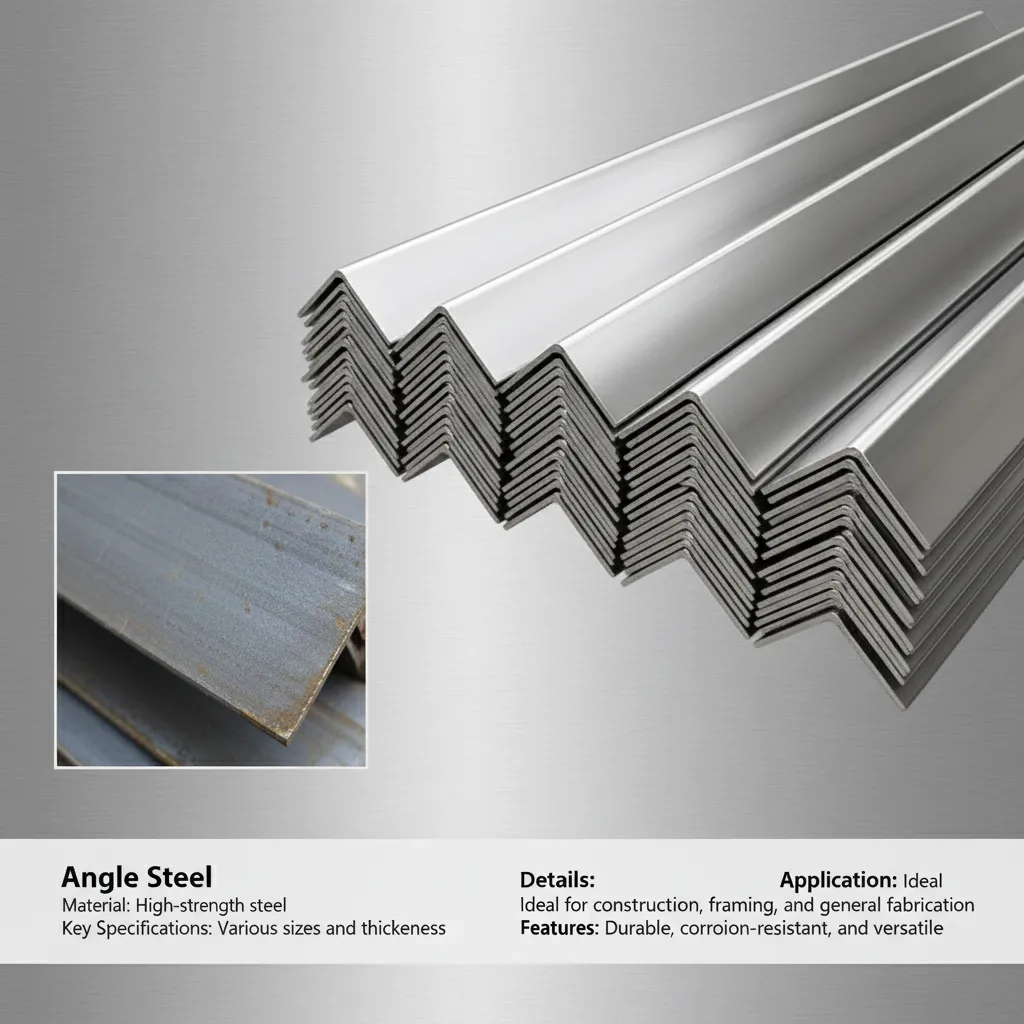

Custom size stainless steel profile manufacturer

Width / Leg Length: 5 mm – 500 mm (or beyond for special orders)
Wall Thickness: 0.5 mm – 30 mm
Length: Fixed lengths, random lengths, or cut-to-order (up to 12,000 mm)
Tolerance Class: EN 10278, ASTM A484, or customer-specified
Surface Finish: 2B, BA, No.4 brushed, mirror polished, or pickled

All custom profiles can be supplied with mill test certificates (MTC) complying with EN 10204 3.1 or 3.2, ensuring full material traceability for quality-critical projects.

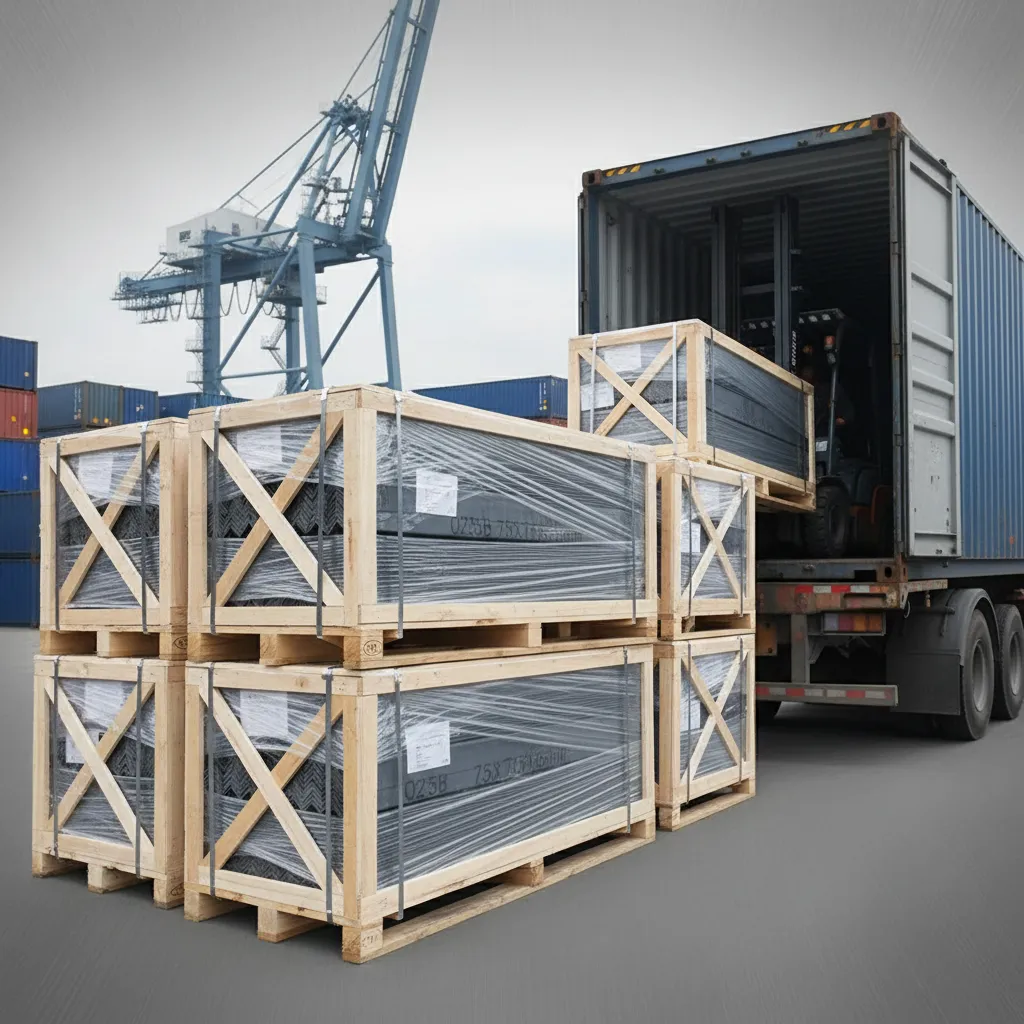

Custom size stainless steel profile supplier

Key Performance Advantages

        Corrosion Resistance: The chromium oxide passive layer inherent to stainless steel provides outstanding resistance to rust, oxidation, and chemical attack, dramatically extending service life in harsh environments.
High Strength-to-Weight Ratio: Stainless steel profiles offer excellent structural integrity while remaining relatively lightweight, reducing overall load on supporting structures.
Hygienic Surface: Non-porous, smooth surfaces are easy to clean and resistant to bacterial adhesion, making these profiles ideal for food, beverage, and pharmaceutical applications.
Temperature Resistance: Depending on the grade, stainless steel profiles maintain mechanical properties from cryogenic temperatures down to -196°C up to elevated service temperatures exceeding 800°C.
Dimensional Precision: Custom fabrication ensures tight tolerances, reducing on-site machining and assembly time, which lowers total project costs.
Aesthetic Appeal: Available in multiple surface finishes, stainless steel profiles are suitable for visible architectural and decorative installations.


Industries and Applications for Custom Size Stainless Steel Profiles

The versatility of custom size stainless steel profiles means they serve an exceptionally broad range of industries. Key sectors include:

Food & Beverage Processing: Conveyor frames, tank supports, hygienic structural channels, and equipment enclosures requiring FDA-compliant materials.
Oil, Gas & Petrochemical: Subsea structural members, platform gratings, pipe supports, and process equipment frames where duplex or super-duplex grades are specified.
Construction & Architecture: Curtain wall framing, handrails, façade cladding supports, and structural glazing systems demanding long-term aesthetic performance.
Pharmaceutical & Medical: Cleanroom framework, equipment rails, and sterile enclosures where contamination control is paramount.
Marine & Shipbuilding: Deck fittings, structural angles, and bulkhead stiffeners exposed to saltwater and high humidity.
Automotive & Transportation: Lightweight structural sections for rail carriages, bus bodies, and specialized vehicle frames.
Energy & Power Generation: Support structures for solar mounting systems, wind turbine components, and nuclear facility frameworks.

How to Order Custom Stainless Steel Profiles

Placing an order for a custom stainless steel profile is straightforward when you provide the following information to your supplier:

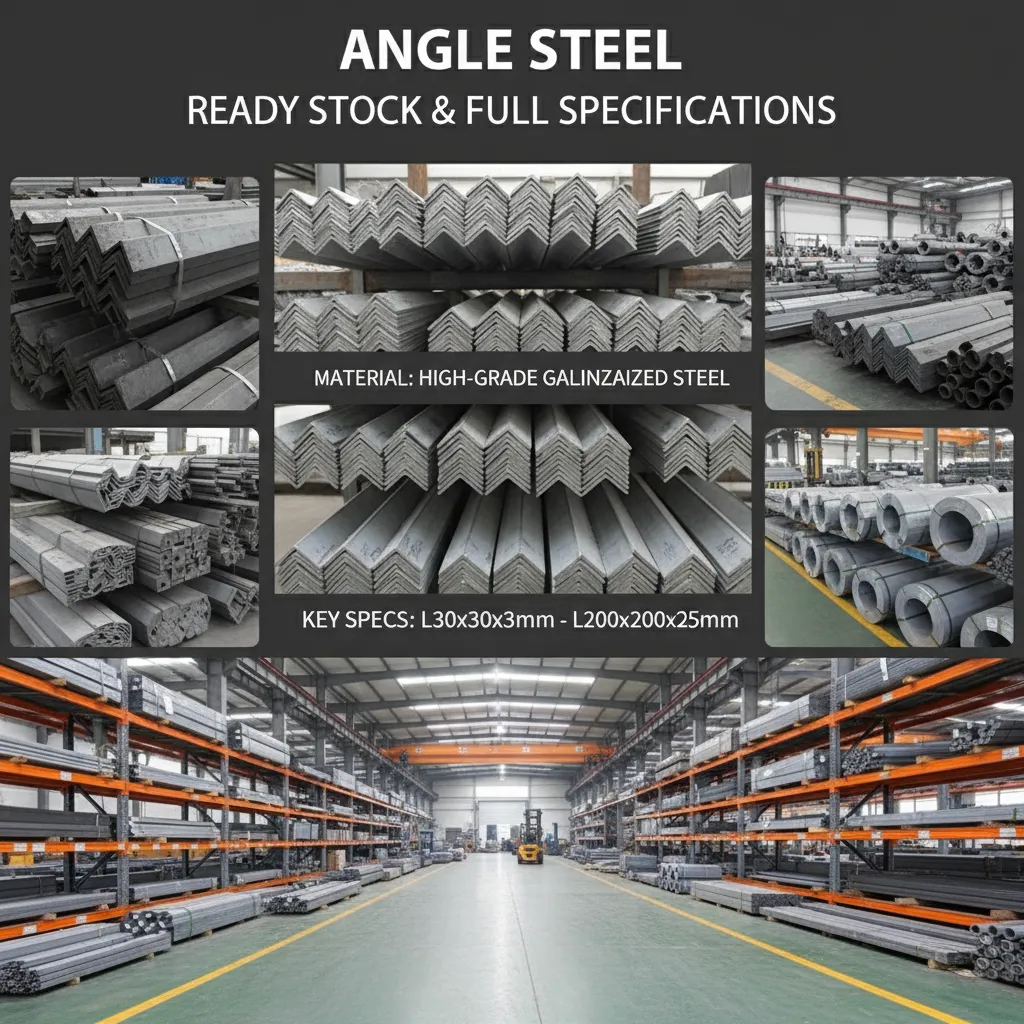

Custom size stainless steel profile factory

Profile shape and cross-sectional drawing or CAD file
Material grade and applicable standard (ASTM, EN, JIS, etc.)
Required dimensions and tolerances
Surface finish requirement
Required length and quantity
Certification and inspection requirements (MTC, third-party inspection, etc.)
Delivery timeline and packaging requirements

Experienced stainless steel profile suppliers will provide a detailed technical review, DFQ (design for quote) feedback, and a material sourcing plan to ensure on-time delivery and full compliance with your project specifications. Whether you need a single prototype section or large-volume production runs, partnering with a certified manufacturer guarantees both quality and competitive lead times.

Why Choose Us for Custom Size Stainless Steel Profile Supply

Our facility specializes in the production and export of custom size stainless steel profiles across all major grades and cross-sectional geometries. With advanced cold-drawing and roll-forming lines, rigorous in-process quality controls, and a dedicated technical sales team, we are equipped to handle complex, non-standard profile requirements for clients worldwide. All products are manufactured in compliance with international standards and backed by comprehensive material documentation, ensuring complete confidence from procurement through to final installation.

Contact our technical team today with your drawings or specifications to receive a competitive quotation and lead time for your next project.

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

Liam C.

United Kingdom

verified purchases

2025-02-02

Initial dimension issue on 316 channels — resolved promptly
Ordered custom 316 stainless U-channels, 30×15×2.5mm wall, for marine bulkhead stiffeners. First shipment had wall thickness measuring 2.3mm on roughly 15% of pieces, outside our agreed tolerance per EN 10278. I raised this with the technical team immediately. To their credit, they acknowledged the deviation quickly, issued a corrective action report, and dispatched replacement stock within 10 days at no additional cost. The replacement batch was fully within spec. Overall the issue was handled professionally. Would trial them again on a smaller order first.

Rachel M.

United States

verified purchases

2025-02-24

Solid 304 angle profiles — good value for standard food-grade work
Purchased 304 stainless equal-angle profiles, 60×60×6mm, 3,000mm cut lengths, for equipment enclosure framing in a meat processing facility. Quality was consistent and FDA-compliant material documentation was provided without extra charge. Lead time of 22 days was reasonable for our project schedule. Pricing was competitive but not the absolute lowest we received — we selected this supplier because of the documentation quality. One minor packaging issue meant a few pieces had light surface scratches, though nothing affecting function. Overall good value.

Thomas W.

Germany

verified purchases

2025-03-18

Good quality 321 profiles, pricing slightly above market but justified
Ordered custom 321-grade stainless I-sections, 100×50×6mm, for rail carriage exhaust support brackets operating at elevated temperatures. Profile geometry was accurate and EN 10278 tolerances were met. Price per meter was around 8% higher than a local competitor's quote, but the supplier's ability to provide EN 10204 3.1 MTC and confirmed heat-stabilized material for our 600°C application made the premium worthwhile. Delivery took 35 days, which was acceptable. Would consider this supplier for future high-specification thermal applications.

James O.

UAE

verified purchases

2025-04-09

2205 Duplex flat bars performed perfectly in desalination environment
Procured 1,800 meters of 2205 Duplex flat bar profiles, 80×12mm, for structural support frames in a desalination facility. Chloride stress corrosion resistance was the primary selection criterion, and this grade has delivered exactly as expected after six months in service. Supplier confirmed compliance with ASTM A276 and provided full chemical composition reports. Packaging was robust — no edge damage on arrival despite long-haul freight. Technical team was knowledgeable and guided us through grade selection for this specific application.

Fiona B.

United Kingdom

verified purchases

2025-05-01

Mirror-polished custom profiles delivered on spec for facade project
Sourced custom asymmetric stainless sections, 316 grade, mirror-polished finish, for a high-end commercial facade cladding system in central London. The profiles were produced to our proprietary cross-section drawing — something many suppliers declined to quote. Supplier provided DFQ feedback that actually improved our original design for easier roll-forming. EN 10204 3.2 certificates were provided, satisfying the architect's specification. Aesthetically, the finish is flawless. Highly recommend for architectural applications where appearance is critical.

Daniel H.

United States

verified purchases

2025-05-23

Reliable partner for repeat food processing equipment orders
This is our fourth consecutive order — 304 stainless T-sections, 50×50×5mm, cut to 6,000mm fixed lengths for conveyor frame assemblies. Consistency between batches is what keeps us coming back. ASTM A484 compliance is always confirmed, and the 2B surface finish is uniform throughout. Delivery to our Ohio facility has been on time every single run. Our fabrication team appreciates the clean cut ends, which reduce prep time noticeably. Already have the PO drafted for the next batch.

Priya S.

India

verified purchases

2025-06-14

Precision 304L channels for pharmaceutical cleanroom framework
We required custom U-channel profiles in 304L, 40×20×3mm wall thickness, No.4 brushed finish, for a GMP-compliant cleanroom build. The dimensional consistency across 500 pieces was outstanding — our in-house QC measured zero rejects. The non-porous surface finish passed our bacterial adhesion validation protocol. Technical team responded to our tolerance queries within hours and provided full material traceability documentation. This is exactly the kind of supplier relationship we need for regulated-industry projects.

Marcus T.

Australia

verified purchases

2025-06-29

Exceptional 316L duplex profiles for offshore platform project
Ordered 2,200 meters of custom 316L stainless steel angle profiles, 75×75×8mm, for a subsea platform support structure. Supplier worked directly from our CAD drawings and hit EN 10278 tolerances spot-on. Mill test certificates came as EN 10204 3.1, which satisfied our third-party inspector without any pushback. Lead time was 28 days for this volume, which we considered very competitive. Surface finish was pickled and passivated exactly as specified. Will be placing a follow-up order for the second phase next quarter.
