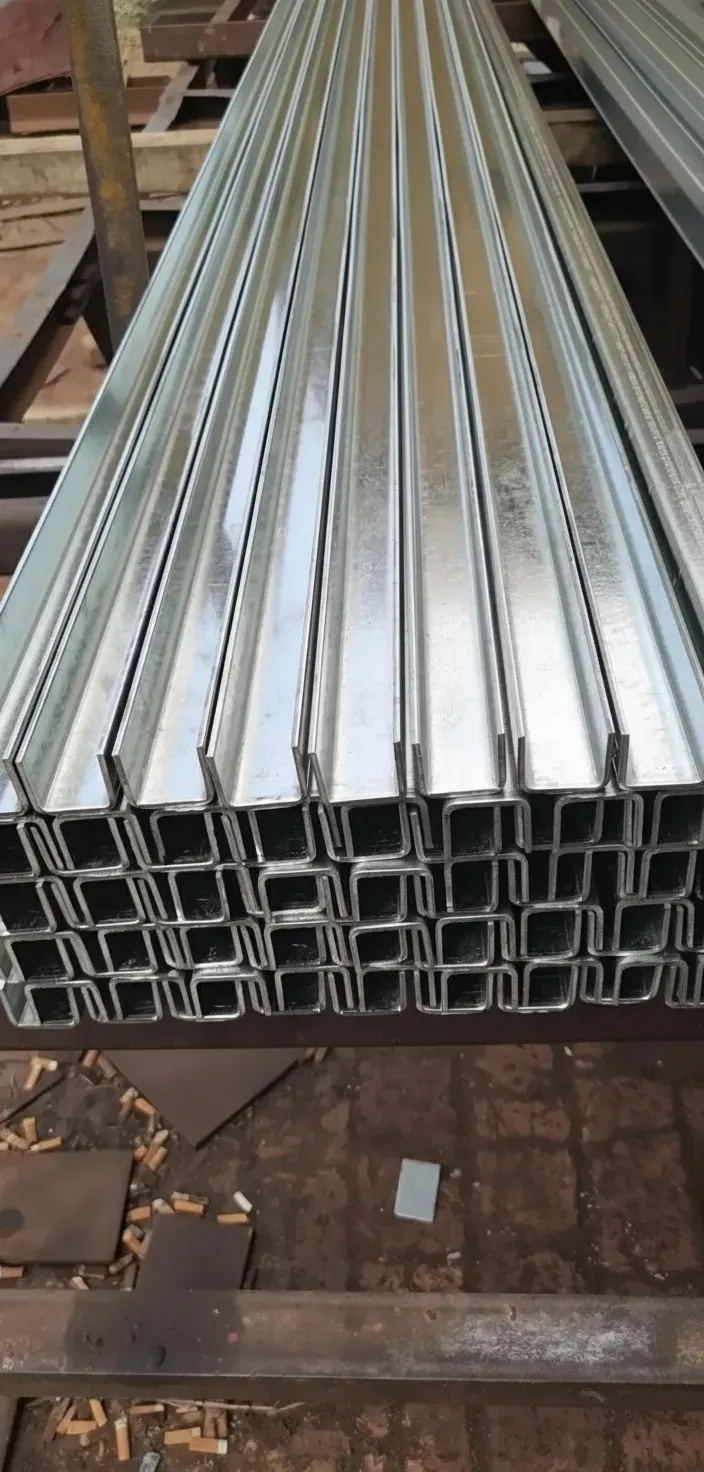

Stainless Steel U Channel Profile for Industrial Use

Leihe Stainless Steel Co., Ltd.

Verified Custom manufacturer · 8 yrs ·

China

Customizable Rock-bottom price

$2350 1-49 Ton Base price

$2247 50-99 Ton 4.4% off

$2195 ≥100 Ton 6.6% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 Ton

Shipping total: To be negotiated

Subtotal of goods US$ 2,350.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of Stainless Steel U Channel Profile

Property	Parameter	Description
Product Name	Stainless Steel U Channel Profile	Hot-rolled / cold-formed U-shaped structural channel section
Material Grade	304 / 304L / 316 / 316L / 321 / 430	EN: 1.4301 / 1.4307 / 1.4401 / 1.4404; JIS: SUS304 / SUS316L
Standard Compliance	ASTM A276 / A484; EN 10088-3; JIS G4303; GB/T 1220	Dimensional tolerances per EN 10279 / ASTM A484
Chemical Composition (304)	C ≤0.08%, Cr 18.0–20.0%, Ni 8.0–10.5%, Mn ≤2.0%, Si ≤1.0%, P ≤0.045%, S ≤0.030%	Per ASTM A276 / EN 10088-3 requirements
Chemical Composition (316L)	C ≤0.030%, Cr 16.0–18.0%, Ni 10.0–14.0%, Mo 2.0–3.0%, Mn ≤2.0%, Si ≤1.0%	Mo addition enhances pitting and crevice corrosion resistance
Tensile Strength	≥515 MPa (304); ≥485 MPa (316L)	Per ASTM A276; EN 10088-3: Rm ≥500 MPa (1.4301)
Yield Strength	≥205 MPa (304); ≥170 MPa (316L)	0.2% proof stress; per ASTM A276 / EN 10088-3
Elongation	≥40% (304); ≥40% (316L)	Measured on gauge length L0 = 5.65√S0; per ASTM A276
Hardness	≤201 HBW (304); ≤217 HBW (316L)	Brinell hardness; Rockwell B ≤92 (304)
Dimensional Range	Web Width: 20–300 mm; Flange Height: 10–150 mm; Wall Thickness: 1.5–20 mm; Length: 1,000–12,000 mm	Custom sizes available; tolerance per EN 10279 Class A/B
Profile Type	Equal / Unequal flange; parallel or tapered flange	Hot-rolled, cold-drawn, laser-fused or press-formed options
Surface Finish	No.1 / 2B / BA / No.4 / HL / Mirror (No.8)	Pickled & passivated standard; electropolishing available on request
Application	Construction framing, conveyor guides, food processing equipment, marine structures, handrails, architectural trim	Suitable for corrosive, hygienic and high-temperature environments
Certification	ISO 9001:2015; Mill Test Certificate EN 10204 3.1 / 3.2; PED 2014/68/EU	Third-party inspection (SGS / BV / TÜV) available
Packaging	Bundled with steel strapping; wooden pallet or wooden case; PVC end caps	Export seaworthy packaging; moisture-proof wrapping for sea freight
MOQ	1 Ton (standard grades); 500 kg (special grades / custom sizes)	Mixed grades accepted per order; stock items available for spot delivery

Stainless Steel U Channel Profile for Industrial Use

Stainless Steel U Channel Profile is a versatile structural component widely used across manufacturing, construction, and engineering industries. Characterized by its distinctive U-shaped cross-section, this profile delivers exceptional strength, corrosion resistance, and dimensional stability in demanding environments. Whether you are designing support frameworks, protective enclosures, or precision assemblies, the stainless steel U channel provides reliable performance that outlasts conventional carbon steel alternatives.

What Is a Stainless Steel U Channel Profile?

A stainless steel U channel, also referred to as a stainless U section or channel bar, features two parallel flanges connected by a perpendicular web, forming a U-shaped cross-section. This geometry allows the profile to distribute loads efficiently along its length while maintaining structural rigidity. Available in hot-rolled, cold-drawn, and laser-fused configurations, each production method offers distinct tolerances and surface quality to meet specific project requirements. Cold-drawn stainless U channels, in particular, are prized for their tight dimensional accuracy and smooth surface finish, making them ideal for precision engineering applications.

Material Grades and Specifications

Our Stainless Steel U Channel Profile is produced in a range of internationally recognized grades to suit diverse operating conditions:

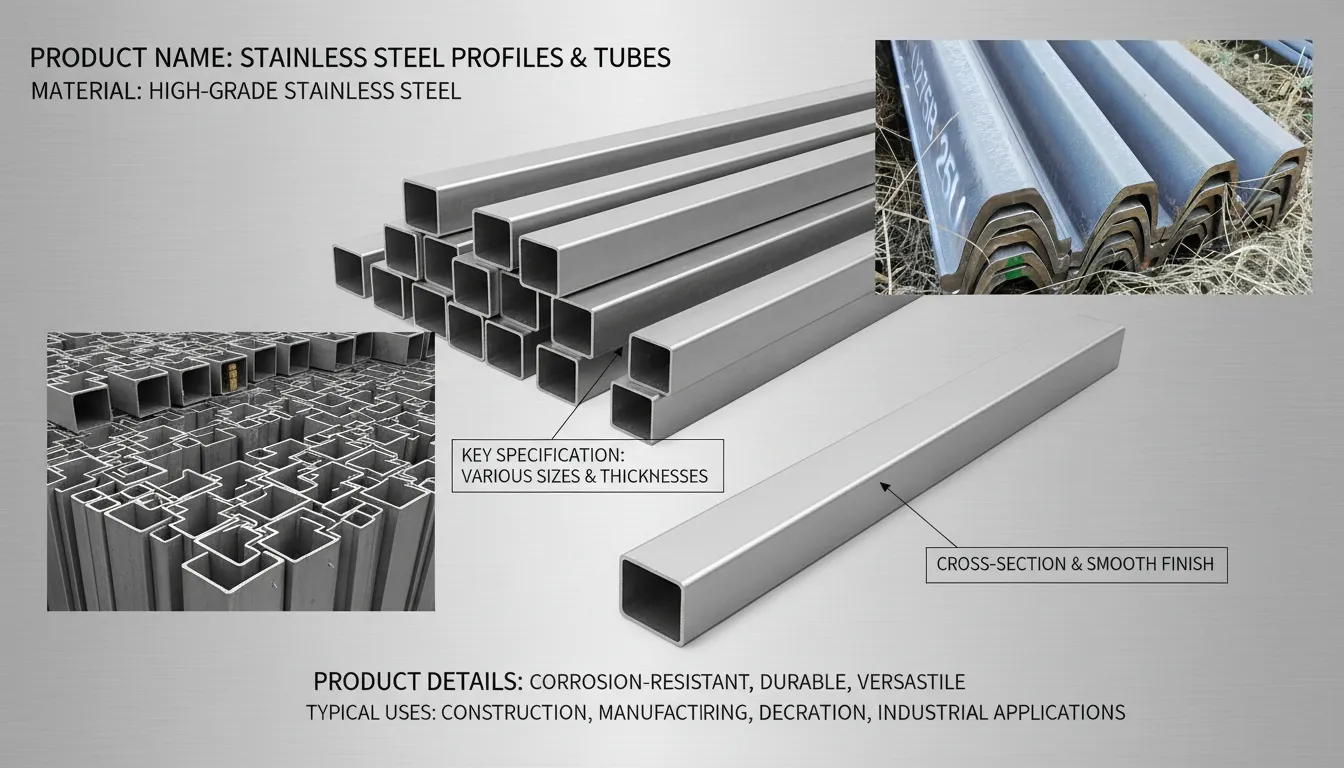

Stainless Steel U Channel Profile Manufacturer

Grade 304 / 304L: The most commonly specified grade, offering excellent corrosion resistance in atmospheric and mild chemical environments. Suitable for food processing equipment, architectural trim, and general fabrication.
Grade 316 / 316L: Enhanced molybdenum content provides superior resistance to chloride-induced corrosion, making this grade the preferred choice for marine, pharmaceutical, and chemical processing applications.
Grade 430: A ferritic grade with good oxidation resistance at elevated temperatures, often selected for decorative and heat-resistant applications where cost efficiency is a priority.
Duplex 2205: Combines high strength with outstanding resistance to stress corrosion cracking, ideal for offshore and heavy industrial environments.

Standard dimensions typically range from 20×10 mm to 200×80 mm in flange width and web height, with wall thicknesses from 1.5 mm to 10 mm. Custom sizes are available upon request to accommodate specific engineering drawings and project tolerances.

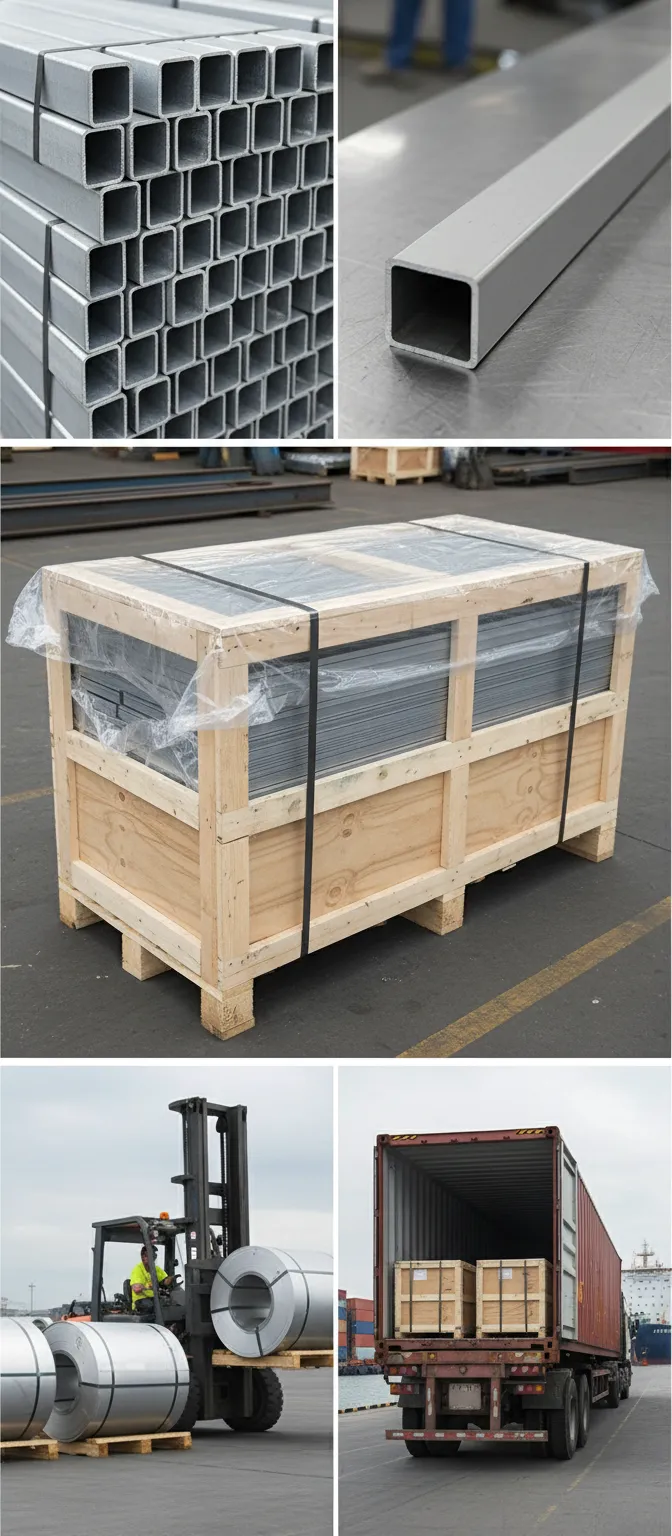

Stainless Steel U Channel Profile Supplier

Surface Finishes Available

Surface finish plays a critical role in both the functional performance and aesthetic appeal of the stainless U channel profile. Common finishes include:

No. 1 (Hot Rolled, Annealed and Pickled): Rough, matte finish suitable for industrial structural applications where appearance is secondary.
No. 2B (Cold Rolled): Smooth, reflective finish appropriate for general-purpose fabrication and light commercial use.
No. 4 (Brushed): Directional satin finish commonly specified for architectural, food-grade, and decorative installations.
BA (Bright Annealed): Mirror-like finish for high-end decorative and hygienic applications.

Key Performance Advantages

Choosing a stainless steel U channel over mild steel or aluminum alternatives delivers several measurable benefits. The inherent chromium oxide passive layer provides self-repairing corrosion protection without additional coatings, significantly reducing lifecycle maintenance costs. High tensile strength — typically 515 MPa minimum for Grade 304 — ensures structural integrity under heavy loads and dynamic stress. Furthermore, stainless steel maintains its mechanical properties across a broad temperature range, from cryogenic conditions to elevated service temperatures exceeding 800°C in heat-resistant grades.

Industry Applications of Stainless U Channel Profiles

The stainless steel U channel profile serves critical roles across numerous sectors:

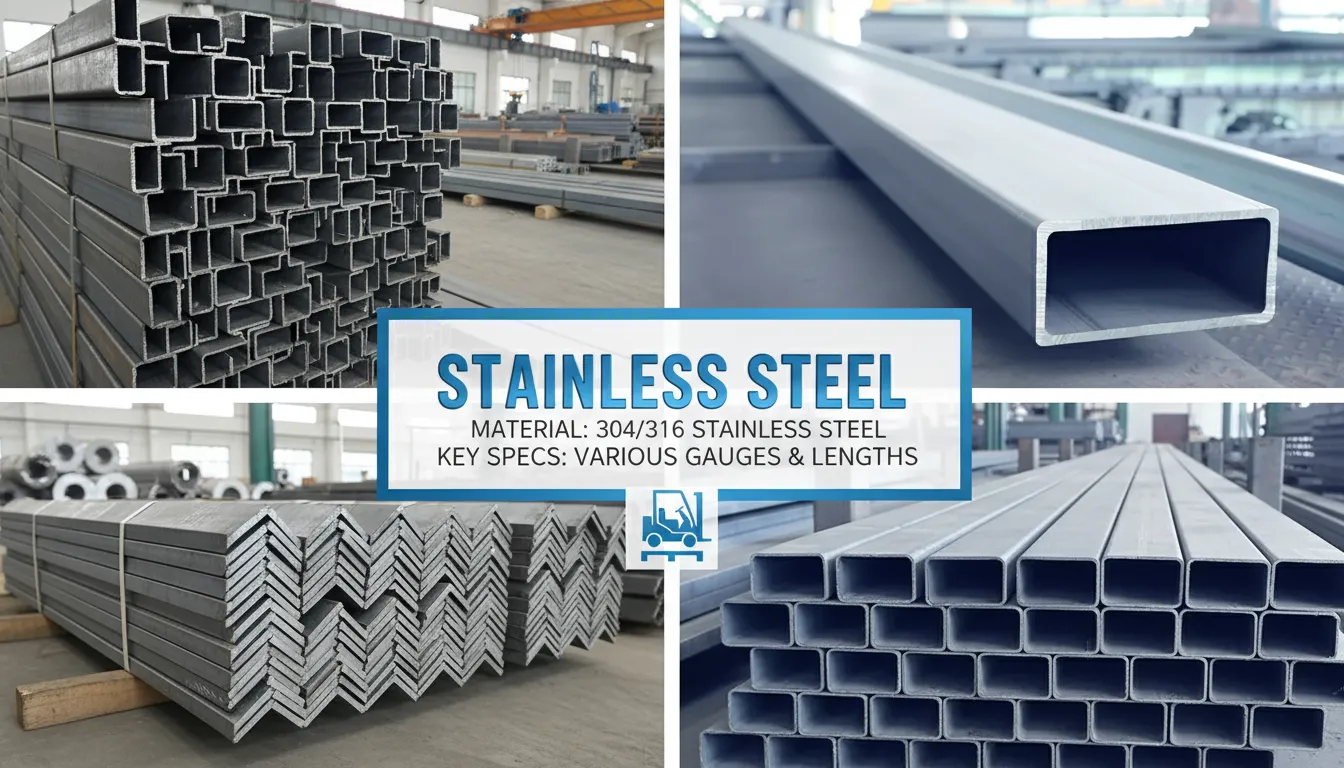

Stainless Steel U Channel Profile Wholesale

Construction & Architecture: Curtain wall framing, door and window surrounds, stair stringers, and structural support rails.
Food & Beverage Processing: Hygienic conveyor guides, equipment frames, and drainage channel liners compliant with FDA and EHEDG standards.
Marine & Offshore: Deck edging, cable management channels, and structural reinforcement in saltwater environments.
Pharmaceutical & Chemical: Clean-room framework, pipe supports, and chemical-resistant structural members.
Transportation: Railway carriage interiors, truck body framing, and shipbuilding structural components.
Electronics & Manufacturing: Precision equipment enclosures, cable trays, and machine guards.

Why Choose Our Stainless Steel U Channel Profile?

We supply mill-certified stainless steel U channel profiles with full material traceability, conforming to ASTM A276, EN 10088-3, and JIS G4303 standards. Each batch undergoes rigorous dimensional inspection, chemical composition verification, and mechanical property testing to ensure consistent quality. Our inventory covers a comprehensive range of grades, sizes, and finishes, with both standard stock lengths of 6 m and 12 m and custom-cut services available. Competitive lead times, flexible minimum order quantities, and dedicated technical support make us the trusted partner for procurement teams and engineering professionals worldwide.

Contact our sales team today to request a quotation, obtain material test reports, or discuss custom fabrication requirements for your next project.

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

James P.

Australia

2025-02-01

Initial dimension issue resolved promptly — quality now confirmed

First order of 316L stainless U channel, 70×35×4 mm, 1.2 tonnes for railway carriage interior framing. On arrival, we measured flange width variance of approximately 0.4 mm on roughly 8% of pieces — outside our EN 10088-3 tolerance requirement. Raised the issue immediately; supplier responded within 12 hours, acknowledged the deviation, and arranged replacement pieces at no additional cost within 10 days. Replacement batch was fully within spec. Communication throughout was professional and resolution was handled without dispute. Adjusted our rating upward from initial impression — would trial them again on smaller volume first.

Tyler W.

United States

2025-02-22

Solid value on 304 hot-rolled channels for structural framing

Purchased 3 tonnes of 304 hot-rolled stainless U channel, 120×60×8 mm, No. 1 finish, for heavy structural support frames in a manufacturing facility. Mechanical properties — tensile strength above 515 MPa minimum — confirmed on MTRs per ASTM A276. Material performed as expected under load testing. Lead time was 21 days, slightly longer than quoted but within acceptable range for our project schedule. Pricing was fair for the volume. Would rate five stars if lead time communication had been more proactive. Overall a dependable supplier for structural-grade material.

Omar A.

UAE

2025-03-16

Good quality 430 grade channels at competitive price point

Ordered 4 tonnes of Grade 430 stainless U channel, 30×15×2 mm, for decorative architectural trim on a commercial project in Dubai. Material quality and oxidation resistance checked out well against our specs. Price was noticeably better than local distributors — roughly 12% saving on equivalent volume. Only minor point: one pallet label was incorrectly marked with the wrong heat number, though the MTR itself was accurate. Supplier corrected the documentation within a day. Delivery to Jebel Ali took 19 days. Would order again for cost-sensitive decorative applications.
