| Property | Parameter | Description |
|---|---|---|
| Product Name | Hot Rolled Stainless Steel Plate | Flat-rolled stainless steel plate produced via hot rolling process |
| Material Grade | 304 / 304L / 316 / 316L / 321 / 310S / 430 | Equivalent: EN 1.4301 / 1.4307 / 1.4401 / 1.4404; JIS SUS304 / SUS316; GB 06Cr19Ni10 |
| Standard Compliance | ASTM A240 / A480; EN 10028-7; JIS G4304; GB/T 4237 | Meets international standards for hot rolled stainless flat products |
| Chemical Composition (304) | C ≤0.08%, Mn ≤2.0%, Si ≤0.75%, Cr 18.0–20.0%, Ni 8.0–10.5%, P ≤0.045%, S ≤0.030% | Typical composition per ASTM A240; Mo 2.0–3.0% for 316/316L grades |
| Tensile Strength | ≥515 MPa (304); ≥485 MPa (316L) | Per ASTM A240; actual values typically 550–750 MPa depending on grade |
| Yield Strength | ≥205 MPa (304); ≥170 MPa (316L) | 0.2% proof strength per ASTM A240 / EN 10028-7 |
| Elongation | ≥40% (304); ≥40% (316L) | Minimum elongation in 50 mm gauge length per ASTM A240 |
| Hardness | ≤201 HBW (304); ≤217 HBW (316) | Brinell hardness; Rockwell B ≤92 per ASTM A480 |
| Thickness Range | 3 mm – 100 mm | Plates ≥3 mm; thicker sections available upon request up to 150 mm |
| Width Range | 1000 mm – 3000 mm | Standard widths: 1219 mm, 1500 mm, 2000 mm; custom widths available |
| Length Range | 2000 mm – 12000 mm | Standard lengths: 2438 mm, 3000 mm, 6000 mm; cut-to-length available |
| Surface Finish | No.1 (Hot Rolled Annealed Pickled); 2D; 2B | No.1 finish standard for hot rolled plates; smooth matte appearance after pickling |
| Heat Treatment | Solution Annealed (1010–1120°C) + Water Quenched | Ensures optimal corrosion resistance and mechanical properties |
| Application | Chemical processing, pressure vessels, food equipment, marine, construction, oil & gas | Suitable for high-temperature and corrosive environments |
| Certification | Mill Test Certificate (MTC) per EN 10204 3.1 / 3.2; ISO 9001; PED 2014/68/EU | Third-party inspection available (SGS, BV, TÜV) |

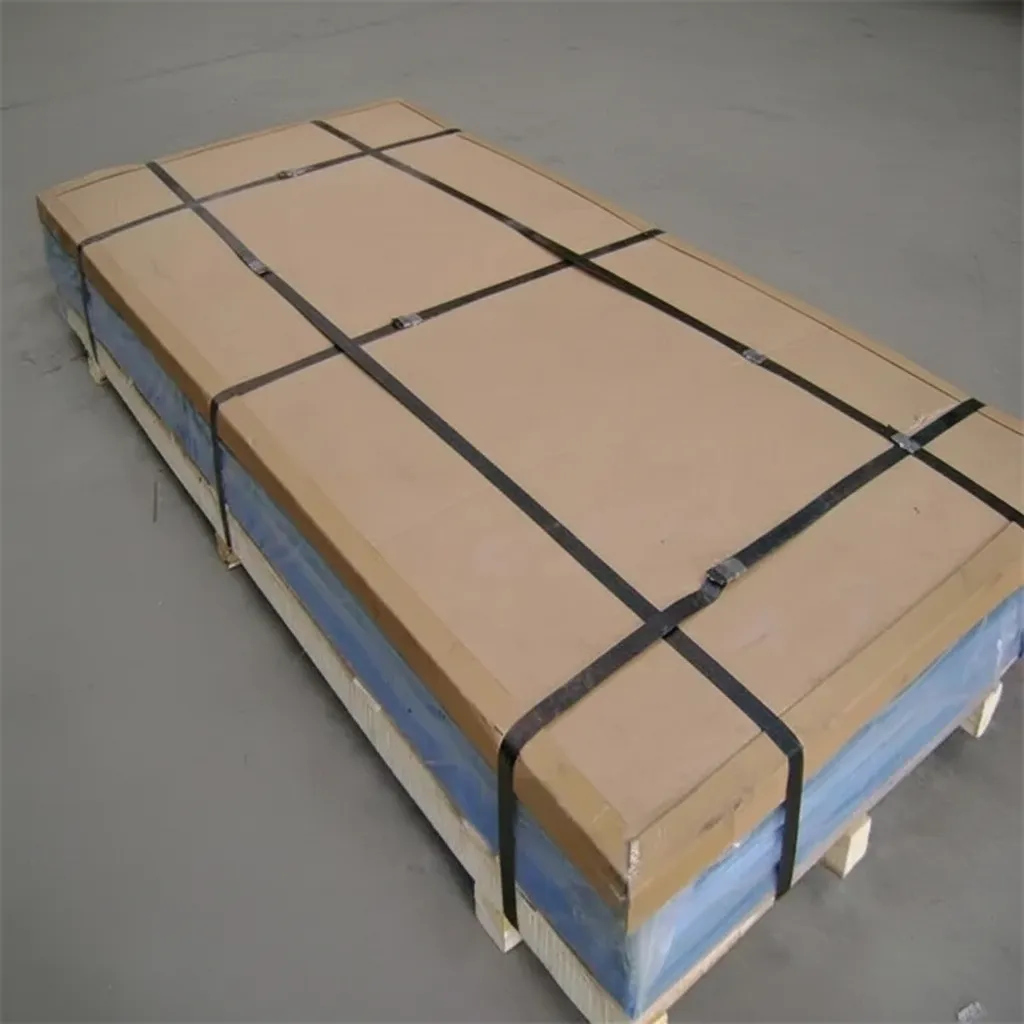

| Packaging | Wooden pallet with steel strapping; waterproof paper interleaving | Export seaworthy packaging; fumigation certificate available |
| MOQ | 1 Metric Ton (MT) | Stock items available; custom orders typically 5–10 MT minimum |
321 Plates Had Documentation Gap — Resolved After Follow-Up
We ordered 321 hot rolled stainless steel plates, 15mm thickness, JIS G4304 standard, for heat exchanger fabrication. The plates themselves were dimensionally accurate and material composition tested correctly in our lab. However, the initial shipment was missing the required stabilization heat treatment records in the MTC documentation, which our quality system mandates. We flagged this to the supplier and the complete documentation was emailed within 48 hours. No material issues — purely a paperwork oversight. Project proceeded without further delay. I'd recommend they improve documentation completeness on first shipment, but their responsiveness in resolving it was good. Likely to reorder.
