Color Coated Aluminum Coil For Durable Building Panels

Technical Specifications of Color Coated Aluminum Coil

Color Coated Aluminum Coil for Durable Building Panels

Color Coated Aluminum Coil is a pre-finished aluminum flat product designed for roofing, wall cladding, composite panels, ceilings, gutters, and other fabricated building components. It serves overseas panel manufacturers, construction-material distributors, roll-forming companies, and project contractors that require consistent color, corrosion resistance, and efficient processing. By combining an aluminum substrate with controlled pretreatment, primer, and protective paint layers, the coil reduces the need for post-fabrication painting. Buyers can specify alloy, temper, thickness, width, coating system, gloss, color, and surface protection according to the fabrication method and expected service environment.

Product Overview: Color Coated Aluminum Coil

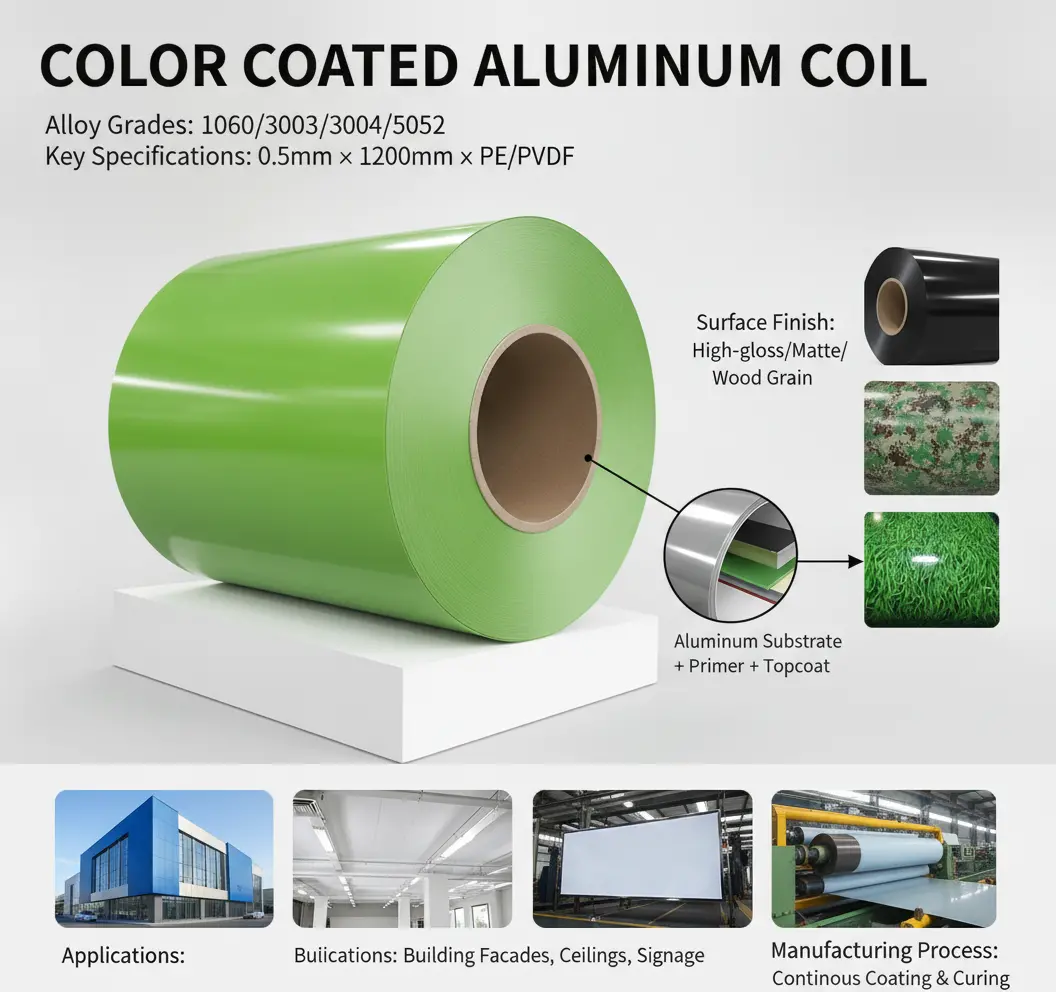

Color coated aluminum coil consists of an aluminum or aluminum-alloy substrate covered with one or more organic coating layers. Before coating, the metal is cleaned and chemically pretreated to improve paint adhesion and corrosion resistance. A typical system includes pretreatment, primer, topcoat, and an optional back coating. Protective film may be applied when required for profiling, cutting, or transportation.

Common substrate choices include 1000-series aluminum for formability, 3000-series alloys for a practical balance of strength and processing performance, and 5000-series alloys where higher strength or specific corrosion requirements are involved. Frequently requested grades include 1050, 1060, 1100, 3003, 3004, 3105, and 5052, but final selection should be based on the relevant material standard and fabrication process. See [[INTERNAL_LINK]] for related aluminum coil products.

Available coating technologies generally include polyester, silicone-modified polyester, high-durability polyester, and fluoropolymer systems such as PVDF. Polyester is commonly used for interior components and general exterior applications, while more weather-resistant systems are considered for façades, roofing, coastal projects, or locations with strong ultraviolet exposure. Performance depends on the complete coating specification rather than paint chemistry alone. Explore [[INTERNAL_LINK]] for additional pre-painted metal options.

• Low weight compared with many steel-based building materials
• Good formability for roll forming, bending, slitting, and stamping
• Broad selection of solid, metallic, matte, textured, and decorative finishes
• Corrosion-resistant aluminum substrate with an additional coating barrier
• Factory-controlled appearance suitable for repeat production
• Recyclable metal substrate and efficient material utilization

Color Coated Aluminum Coil Specifications & Standards

Purchase specifications should define both the aluminum substrate and the finished coating. Dimensions, tolerances, alloy, temper, surface finish, color reference, coating thickness, gloss, adhesion, and packaging must be stated in the contract or approved technical data sheet. The following ranges describe common sourcing categories rather than guaranteed stock dimensions.

Applicable international standards may include ASTM B209/B209M for aluminum and aluminum-alloy sheet and plate; EN 573-3 for chemical composition; EN 485-2 for mechanical properties; EN 485-4 for dimensional tolerances of cold-rolled products; EN 1396 for coil-coated aluminum sheet and strip; JIS H 4000 for aluminum and aluminum-alloy sheets and strips; and GB/T 3880 for wrought aluminum and aluminum-alloy plates, sheets, and strips. Relevant material guidance is also available through [[INTERNAL_LINK]].

Coating evaluation can reference ASTM D3359 for adhesion by tape test, ASTM D523 for specular gloss, ASTM D2244 for instrumental color differences, ASTM D2794 for resistance to rapid deformation by impact, and ASTM B117 for salt-spray testing. Test duration and acceptance criteria must be agreed separately because a test method does not itself establish product performance limits.

Applications of Color Coated Aluminum Coil

Roofing and wall cladding: Pre-painted coil can be roll formed into standing-seam roofing, corrugated sheets, wall panels, flashings, and trim. Lightweight aluminum is particularly useful where handling efficiency and corrosion resistance are important. Related roofing materials can be reviewed at [[INTERNAL_LINK]].

Aluminum composite panels: The material is used as facing skin for composite or honeycomb panels installed on façades, partitions, signage, and interior walls. Flatness, paint adhesion, and color consistency are key procurement criteria.

Ceilings and interior decoration: Coated aluminum is processed into ceiling tiles, linear strips, baffles, access panels, and decorative features. Polyester finishes are widely considered for controlled indoor environments. See [[INTERNAL_LINK]] for architectural aluminum products.

Rainwater and accessory systems: Gutters, downpipes, fascia, soffits, shutters, and window-related components benefit from formability and factory-applied color.

Industrial fabrication: Equipment housings, insulated panels, caravan components, appliance parts, and transportation interiors may use color coated aluminum coil where low weight and repeatable appearance are required.

How to Choose Color Coated Aluminum Coil: Buying Guide

Begin with the end-use environment. Interior panels, ordinary exterior cladding, industrial locations, and coastal buildings do not impose the same requirements. Provide the supplier with the installation location, expected exposure, fabrication method, target service life, and any mandatory project specification. This information helps determine whether polyester, HDP, PVDF, or another coating system is appropriate.

Specify the substrate grade and temper instead of ordering by color alone. A harder temper may offer higher strength but reduce formability, while softer material may be better for deep profiles or tight bends. Buyers should submit drawings showing thickness, width, bend radius, profile depth, and visible surface. For comparison with other façade materials, visit [[INTERNAL_LINK]].

Request documentation appropriate to the order, such as a mill test certificate for the substrate, coating inspection report, color sample, technical data sheet, packing list, and certificate of origin when applicable. Third-party inspection can be arranged if required by the purchase contract. Confirm that the quoted standard edition and test criteria match the destination market.

MOQ depends on alloy, width, color, coating system, and whether the specification is produced from an existing campaign. Custom colors and uncommon widths may require a larger production quantity than standard items. Lead time should be confirmed after sample approval and technical review rather than assumed from a general catalogue.

For logistics, state the destination, preferred shipment method, maximum package weight, coil orientation, and unloading capability. Export packaging may include moisture-resistant wrapping, edge protection, steel or wooden supports, and secure strapping. Buyers should also confirm whether wooden packaging must comply with ISPM 15. Packaging guidance is available at [[INTERNAL_LINK]].

Frequently Asked Questions About Color Coated Aluminum Coil

Q: What is the difference between color coated aluminum coil and painted steel coil?

A: Aluminum has lower density and develops a naturally protective oxide layer, while painted steel generally offers higher stiffness at comparable thickness. The appropriate choice depends on structural design, corrosion exposure, forming requirements, weight limits, and lifecycle expectations rather than color or initial cost alone.

Q: Which aluminum alloy is suitable for building panels?

A: Alloys such as 3003, 3004, and 3105 are commonly considered because they combine formability with useful strength. Other grades may be specified for particular processes. The correct alloy and temper should be verified against panel geometry, wind-load design, fastening method, and the applicable standard.

Q: Is PVDF coating always better than polyester?

A: Not in every application. PVDF systems are often selected for demanding exterior exposure and long-term color retention, while polyester can be suitable for interior work and less severe environments. Coating formulation, pretreatment, primer, film thickness, installation conditions, and maintenance all affect performance.

Q: Can the coil be supplied in a custom color?

A: Yes, colors may be matched to a recognized color reference or an approved physical sample, subject to production feasibility. Buyers should define acceptable color difference, gloss, texture, viewing conditions, and batch consistency. A pre-production sample is recommended for appearance-sensitive projects.

Q: What certifications and inspection documents are available?

A: Available documents depend on the producer, destination, and contract. They may include substrate test certificates, dimensional reports, coating test results, certificates of origin, and third-party inspection reports. State all mandatory documentation in the inquiry so its availability and cost can be confirmed before ordering.

Q: What is the minimum order quantity?

A: There is no universal MOQ. It varies with alloy, temper, width, thickness, coating type, color, and current production planning. Standard specifications may support smaller quantities, whereas custom shades or special coating systems usually require production-campaign review.

Q: What payment methods are normally accepted?

A: Payment terms are agreed commercially and may include bank transfer, letter of credit, or another mutually accepted method. The order value, buyer history, destination, production status, and credit arrangements can affect the final terms. Confirm bank details through verified company channels before payment.

Q: How long does production and delivery take?

A: Lead time depends on raw-material availability, color matching, coating scheduling, order quantity, testing, and packaging. Ocean or land transit must then be added to production time. Request a written schedule after technical specifications and samples are approved. Shipping information can be found through [[INTERNAL_LINK]].

Send your required alloy, temper, thickness, width, color reference, coating system, coil weight, annual demand, and destination to receive a technically matched Color Coated Aluminum Coil quotation. Drawings, samples, testing requirements, and packaging instructions are welcome for project-specific evaluation.
