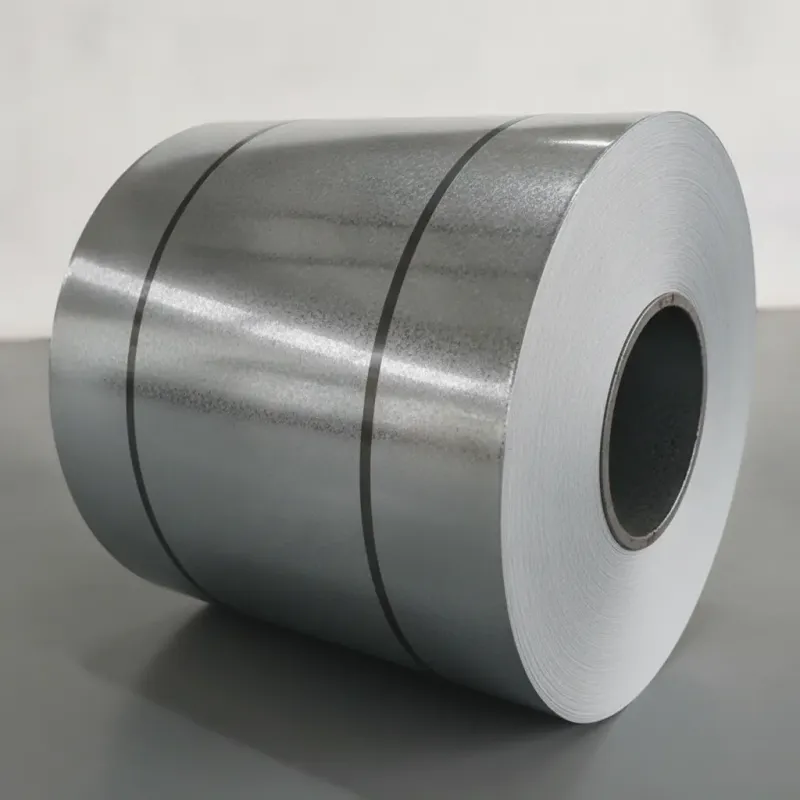

Small Spangle Galvanized Coil is a hot-dip zinc-coated steel product with a fine, controlled crystalline surface pattern. It is intended for overseas service centers, roll formers, fabricators, roofing manufacturers, appliance component producers, and distributors that require corrosion protection together with a more uniform appearance than conventional regular-spangle galvanized steel. The product can be ordered by substrate grade, thickness, width, zinc coating designation, surface treatment, coil weight, and applicable standard. Its balanced combination of formability, coating coverage, process compatibility, and visual consistency makes it suitable for both exposed components and parts that will be painted, formed, slit, or profiled after delivery.

Small Spangle Galvanized Coil Product Overview

Small Spangle Galvanized Coil is generally produced by passing a prepared steel strip through a molten zinc bath in a continuous hot-dip galvanizing line. The resulting zinc layer provides sacrificial corrosion protection: if the surface is locally scratched, the surrounding zinc can help protect the exposed steel substrate. The final performance depends on the base steel grade, coating mass, coating uniformity, fabrication method, exposure environment, and subsequent maintenance.

The term “small spangle” describes the fine zinc crystal pattern visible on the coated surface. Spangle size is a surface characteristic rather than a steel grade or a direct measure of coating mass. Compared with regular spangle, the smaller pattern provides a more visually consistent surface that may be preferred for roll-formed panels, housings, duct components, and other applications where appearance matters. Buyers comparing different galvanized finishes can review related options at [[INTERNAL_LINK]].

The substrate is commonly a cold-rolled steel strip selected according to the required forming or structural performance. Commercial, drawing, deep-drawing, and structural grades may be available under different standards, but the exact grade must be confirmed in the purchase specification. Small Spangle Galvanized Coil should therefore not be ordered by surface appearance alone. Yield strength, tensile strength, elongation, bend performance, and forming behavior are governed primarily by the selected substrate grade and product standard.

Key characteristics typically considered by importers include:

• A continuous hot-dip zinc coating for atmospheric corrosion protection.
• A fine spangle pattern with a more uniform visual texture than regular spangle.
• Suitability for slitting, cut-to-length processing, roll forming, bending, and stamping when the correct substrate grade is selected.
• Optional surface treatments, subject to supplier capability and the intended downstream process.
• Compatibility with painting or coating systems when surface preparation and pretreatment are properly specified.

Surface finish terminology can differ between mills and standards. A buyer should approve a representative sample or agreed reference image if visible spangle size is commercially important. Guidance on galvanized surface conditions and downstream processing is available through [[INTERNAL_LINK]].

Small Spangle Galvanized Coil Specifications & Standards

Small Spangle Galvanized Coil should be purchased against a complete technical specification rather than a general product name. Relevant standards may include ASTM A653/A653M for steel sheet, zinc-coated or zinc-iron alloy-coated by the hot-dip process; EN 10346 for continuously hot-dip coated steel flat products; JIS G 3302 for hot-dip zinc-coated steel sheet and strip; and GB/T 2518 for continuously hot-dip zinc-coated steel sheet and strip. The standard edition, grade, coating designation, dimensional tolerances, surface condition, and inspection requirements should be stated in the contract.

These standards use different grade systems and coating designations. Similar-looking designations are not automatically interchangeable, and equivalence should not be assumed without an engineering review. ASTM coating designations such as G-series values, EN Z designations, JIS coating symbols, and GB/T designations are defined according to their respective test and reporting rules. Buyers can consult [[INTERNAL_LINK]] when comparing galvanized steel standards for an international project.

Chemical composition and mechanical properties cannot be stated accurately without a nominated grade. For example, structural grades and drawing grades under ASTM A653/A653M or EN 10346 have different strength and elongation requirements. The supplier’s inspection certificate should report or confirm the values required by the ordered specification. A generic datasheet must not replace the contractual grade requirements.

Coating mass should be selected according to service conditions rather than appearance. More zinc generally provides a larger corrosion-protection reserve, but actual service life also depends on moisture, contaminants, cut edges, contact with incompatible materials, ventilation, and maintenance. For severe or unusual exposure, the purchaser should obtain project-specific corrosion advice. Additional coating-selection information is available at [[INTERNAL_LINK]].

Small Spangle Galvanized Coil Applications

Small Spangle Galvanized Coil is used where buyers need the processability of coated sheet together with zinc-based corrosion protection and a controlled surface pattern. The suitability of a specific coil must still be checked against loading, forming severity, exposure, fire requirements, and local building or product regulations.

• Building panels and roofing components: The material can be roll-formed into selected roofing sheets, wall cladding profiles, flashing, trim, and rainwater components. Coating designation and substrate strength should reflect the design life and local environment. Related profiled products can be reviewed at [[INTERNAL_LINK]].
• HVAC and ventilation fabrication: Galvanized coil is commonly processed into ducts, plenums, casings, and related sheet-metal parts. Thickness, coating condition, seam-forming behavior, and dimensional tolerance should match the fabrication equipment.
• Appliance and equipment components: Fine-spangle surfaces may be considered for internal panels, housings, brackets, and non-cosmetic components. Where painting is planned, pretreatment compatibility and paint adhesion trials should be completed before volume production.
• Light industrial fabrication: Small Spangle Galvanized Coil can be slit, blanked, bent, or roll-formed into cable-management components, cabinets, shelves, guards, and enclosures when an appropriate forming grade is ordered.

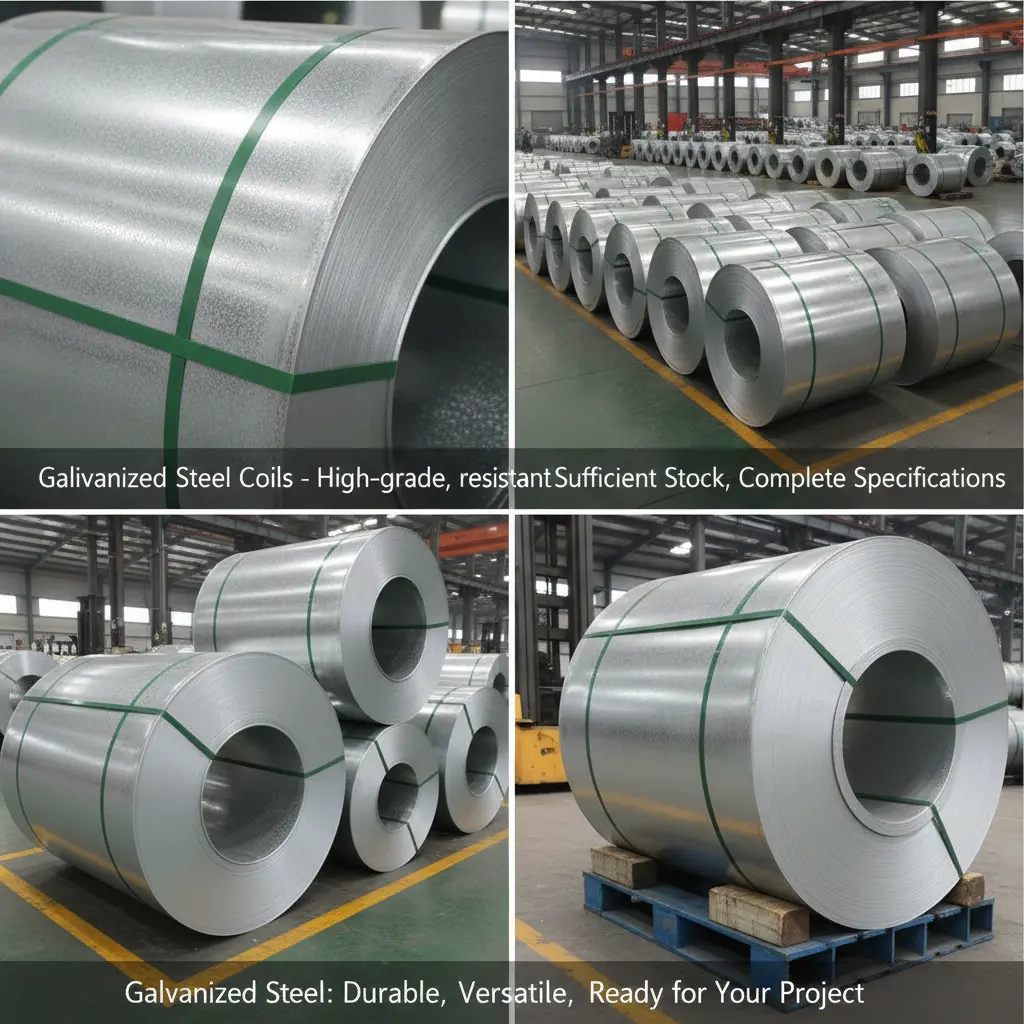

• Distribution and service-center processing: Steel distributors may stock master coils for slitting or cut-to-length conversion. Coil geometry, packing, identification, and traceability are particularly important when one shipment will be divided among several end users.

Galvanized steel is not automatically suitable for continuous immersion, aggressive chemical contact, high-temperature service, or every coastal application. Buyers facing such conditions should compare alternative metallic coatings or painted systems through [[INTERNAL_LINK]] and obtain approval from the responsible engineer.

How to Choose Small Spangle Galvanized Coil / Buying Guide

Procurement managers should begin with the finished component rather than selecting Small Spangle Galvanized Coil solely from a supplier’s standard stock list. A complete inquiry should include the governing standard, grade, nominal dimensions, coating designation, surface treatment, coil configuration, annual or shipment quantity, processing route, destination, and required documentation.

1. Confirm the forming requirement. State whether the coil will be roll-formed, bent, stamped, drawn, welded, painted, or laminated. A structural grade selected for strength may not provide the elongation needed for severe forming. Conversely, a general forming grade may not satisfy a load-bearing design.
2. Define the surface expectation. “Small spangle” can be interpreted differently across production lines. Specify whether the material will be exposed, painted, or hidden, and agree on visual acceptance criteria. For appearance-sensitive orders, request a sample before approving mass production.
3. Select the coating designation. Match zinc coating requirements to the environment and intended service life. Do not substitute one standard’s coating symbol for another without confirming coating mass, test method, and acceptance basis.
4. Check coil handling limits. Provide the maximum coil weight, inside diameter, outside diameter, unloading method, and line capacity. These details prevent receiving problems even when the steel itself meets the material specification.
5. Request appropriate certification. State whether a manufacturer’s test certificate, traceability records, coating test data, dimensional report, or third-party inspection is required. The exact certificate format should be agreed before order confirmation. See [[INTERNAL_LINK]] for general guidance on steel inspection documents.
6. Clarify MOQ and production status. Minimum order quantity depends on the requested grade, coating, width, treatment, coil size, and whether suitable feedstock or scheduled production is available. Ask the supplier to distinguish stock material from made-to-order material.
7. Evaluate lead time realistically. Lead time may include technical review, production scheduling, testing, packing, inland transport, export handling, and ocean or land freight. Buyers should also allow time for document approval and destination customs procedures.
8. Specify export packing and logistics. Packaging should be agreed according to transport mode and handling conditions. Confirm coil orientation, protective wrapping, edge protection, identification marks, container loading constraints, and any destination-specific wood-packaging rules. Shipping guidance can be found at [[INTERNAL_LINK]].

A useful request for quotation includes target quantity and shipment frequency, but price comparisons should also normalize coating designation, tolerances, certification, packing, and commercial terms. Two quotations based on different technical scopes are not directly comparable.

Small Spangle Galvanized Coil Frequently Asked Questions

Q: What is the difference between small spangle and regular spangle galvanized coil?

A: The principal difference is the visible zinc crystal pattern. Small Spangle Galvanized Coil has a finer and more uniform-looking pattern, while regular spangle displays larger zinc crystals. Spangle appearance does not by itself identify the substrate grade or coating mass. Those properties must be verified from the order specification and inspection documents.

Q: Is small spangle the same as zero spangle?

A: No. Small spangle generally retains a fine visible crystalline pattern, whereas zero-spangle or minimized-spangle products are processed to make the pattern substantially less visible. Terminology can vary between suppliers, so an approved sample and written surface description are advisable for appearance-critical components.

Q: Which standards can be used to order Small Spangle Galvanized Coil?

A: Commonly referenced specifications include ASTM A653/A653M, EN 10346, JIS G 3302, and GB/T 2518. The appropriate standard depends on the destination market, engineering specification, and end use. Buyers must also name the grade, coating designation, dimensions, surface condition, and required tolerances because the standard number alone does not define a complete order.

Q: Can a supplier provide material certification?

A: Certification may be available, but the required document type and reported test results should be stated in the inquiry. Ask whether the certificate identifies the heat or coil, grade, dimensions, coating designation, chemical composition, and mechanical test results applicable to the order. If independent inspection is mandatory, define the inspection scope and approval process before production.

Q: What is the minimum order quantity for Small Spangle Galvanized Coil?

A: There is no universal MOQ. It depends on whether the item is in stock, the required steel grade, width, thickness, zinc coating, surface treatment, coil weight, and production-line scheduling. A supplier can provide an accurate MOQ only after reviewing the complete specification. Mixed-size orders may also be subject to separate minimum quantities for each item.

Q: What payment methods are available for international orders?

A: Payment arrangements are supplier- and transaction-specific. Common international trade structures may include bank transfer or a letter of credit, subject to contract terms, credit review, destination, and order value. Buyers should confirm currency, deposit requirements, balance-payment trigger, bank charges, document conditions, and refund or claim procedures before signing the contract.

Q: How long does production and delivery take?

A: Lead time depends on material availability, technical requirements, order volume, production scheduling, inspection, packing, and transport. Made-to-order dimensions or coatings may require more time than stock specifications. The quotation should separate estimated production time from transit time and state when the schedule begins, such as after deposit receipt or technical approval.

Q: Can Small Spangle Galvanized Coil be painted?

A: It can be painted when the surface treatment, cleaning process, pretreatment, primer, and topcoat are compatible. Oil, passivation, storage contamination, and surface condition can affect adhesion. Buyers should disclose the planned paint system and conduct adhesion and forming trials on representative material before full-scale production. More information on prepainted alternatives is available at [[INTERNAL_LINK]].

Q: How should galvanized coils be stored after arrival?

A: Coils should be kept dry, protected from rain and condensation, and stored in a ventilated area using supports suitable for their weight and orientation. Wet storage conditions can cause staining on zinc-coated surfaces. Packaging should be inspected promptly after arrival, and any trapped moisture should be addressed according to an approved handling procedure.

Q: What information is needed for an accurate quotation?

A: Provide the product standard, steel grade, thickness, width, zinc coating designation, small-spangle requirement, surface treatment, edge condition, coil weight or diameter limits, quantity, inspection documents, packing method, destination, and requested trade term. Drawings or forming details are useful when the material will be used for a demanding component.

Send your Small Spangle Galvanized Coil specification, required quantity, destination, and intended application to request a technical review and itemized quotation. Including the applicable standard, grade, coating designation, dimensions, surface treatment, certification needs, and coil-handling limits will help the supplier confirm availability, MOQ, production lead time, packing, and logistics without avoidable revisions.
