Brick Pattern Printed Steel Coil | Durable Custom Color Coated Steel Supplier

彩图镀锌

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$820 5-24 ton Base price

$790 25-99 ton 3.7% off

$760 ≥100 ton 7.3% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 5 ton

Shipping total: To be negotiated

Subtotal of goods US$ 4,100.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

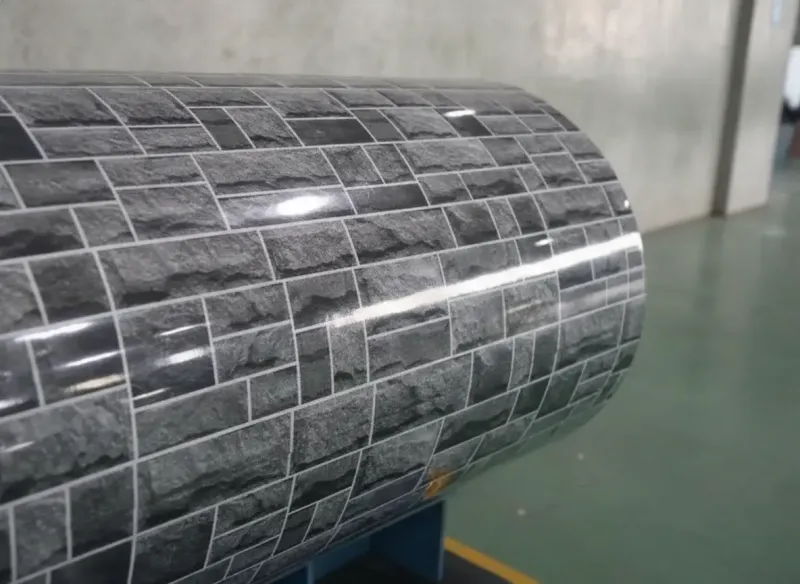

Brick Pattern Printed Steel Coil Specifications

Product Name	Brick Pattern Printed Steel Coil
Product Type	Decorative prepainted steel coil / printed PPGI coil
Base Metal	Cold-rolled steel, galvanized steel (GI), or galvalume steel (GL/AZ)
Steel Grade	DX51D+Z, SGCC, CGCC, S250GD+Z, S280GD+Z, or customized grade
Surface Pattern	Brick wall pattern, masonry texture, exposed brick design, or customized decorative print
Coating System	PE, SMP, HDP, PVDF, or customized protective coating
Top Paint Thickness	15-30 μm, customizable according to application requirements
Back Paint Thickness	5-15 μm, epoxy or polyester backing coat available
Metallic Coating	Z30-Z275 g/m² zinc coating or AZ30-AZ150 g/m² aluminum-zinc coating
Coil Thickness	0.20-1.20 mm
Coil Width	600-1,250 mm; slit widths available on request
Coil Inner Diameter	508 mm or 610 mm
Coil Weight	3-10 metric tons per coil, subject to thickness and width
Surface Finish	Glossy, matte, embossed, textured, or customized finish
Color	Red brick, gray brick, brown brick, white brick, multicolor brick, or customized RAL color combination
Pattern Printing Method	Continuous roll printing with protective clear topcoat
Hardness	Soft, medium, or hard; typically 50-70 HRB depending on substrate grade
Tensile Strength	270-550 MPa, depending on base steel grade
Yield Strength	180-350 MPa, depending on base steel grade
Corrosion Resistance	Suitable for interior and exterior architectural applications; coating system selectable by environmental conditions
Processing Performance	Suitable for roll forming, bending, stamping, slitting, and profiling
Typical Applications	Wall cladding, roofing panels, sandwich panels, garage doors, prefabricated houses, decorative ceilings, interior partitions, and building facade systems
Standards	EN 10169, EN 10346, ASTM A653/A792, JIS G3312, GB/T 12754, or equivalent
Packaging	Export seaworthy packaging with waterproof paper, steel sheet protection, metal strapping, and coil edge guards
