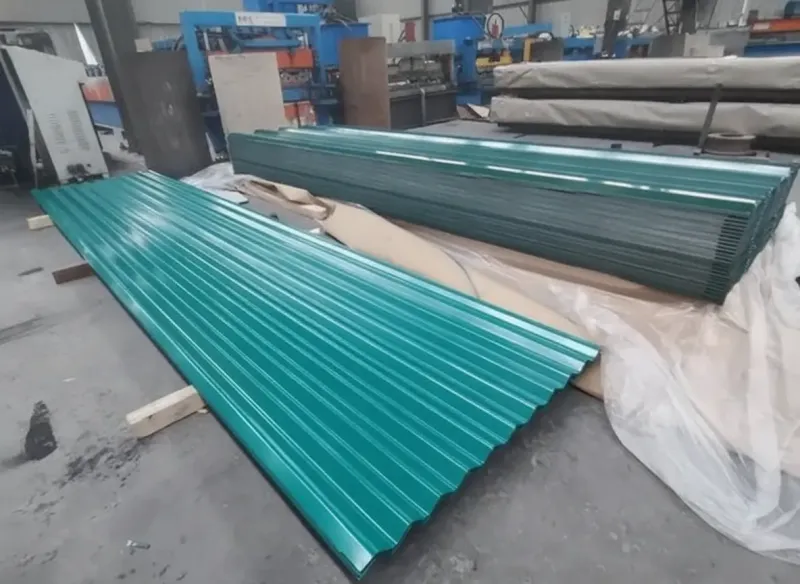

Color Coated Steel Sheet For Roofing And Wall Cladding

Technical Specifications of Color Coated Steel Sheet

Color Coated Steel Sheet For Roofing And Wall Cladding

Color Coated Steel Sheet is a factory-finished flat steel product designed for roofing, wall cladding, façades, ceilings, doors, and fabricated building components. It serves overseas contractors, roofing manufacturers, steel service centers, distributors, and project procurement teams that require consistent appearance, formability, and corrosion protection. By combining a metallic-coated steel substrate with primer and protective topcoat layers, the sheet reduces the need for post-installation painting and supports efficient roll forming. Buyers can specify substrate type, steel grade, thickness, width, coating system, surface finish, and color according to the intended environment and applicable project standard.

Color Coated Steel Sheet Product Overview

Color coated steel sheet, also called prepainted steel sheet or pre-coated steel, is produced by cleaning and chemically pretreating a metallic-coated steel substrate before applying primer, topcoat, and backing paint in a continuous coil-coating process. The finished material may be supplied as flat sheets or processed from prepainted steel coil to the dimensions required for fabrication.

Common substrates include hot-dip galvanized steel and aluminum-zinc alloy-coated steel. The metallic layer provides sacrificial or barrier corrosion protection, while the organic coating controls color, gloss, surface texture, weather resistance, and resistance to handling damage. Substrate selection should be based on the service environment rather than appearance alone.

Frequently specified paint systems include polyester, silicone-modified polyester, high-durability polyester, and polyvinylidene fluoride. Their performance varies in terms of ultraviolet resistance, flexibility, chalking, gloss retention, and cost. Standard polyester is widely used for general construction, while more weather-resistant systems may be considered for façades, industrial buildings, or projects with demanding exterior exposure.

Color coated steel sheet can be cut, bent, stamped, corrugated, or roll-formed into roofing sheets, wall panels, flashing, gutters, and sandwich panel facings. The coating must match the forming process: an unsuitable paint film or tight bending radius can cause cracking around formed edges.

Color Coated Steel Sheet Specifications & Standards

Color coated steel sheet specifications should identify both the steel substrate and the complete coating system. Thickness, width, metallic coating designation, paint type, color reference, gloss, surface finish, and dimensional tolerances should appear on the purchase order. Values are project-specific and must be confirmed against the relevant standard and approved technical data sheet.

International standards commonly used for prepainted steel products include:

Inspection may include coating mass, paint thickness, pencil hardness, adhesion, impact resistance, bend performance, gloss, and color difference. Required tests and acceptance limits should be agreed before production. Buyers may also request traceable mill documentation and reports for the relevant galvanized steel substrate.

Applications of Color Coated Steel Sheet

Roofing systems: The material is roll-formed into corrugated, trapezoidal, or standing-seam profiles for warehouses, factories, agricultural buildings, commercial facilities, and residential projects. Appropriate coating selection is important for long-term outdoor exposure.

Wall cladding and façades: Flat or profiled sheets provide lightweight exterior and interior wall surfaces. Architects may specify matte, textured, or low-gloss finishes to control visual appearance. Related wall cladding systems should use compatible fasteners, sealants, and flashings.

Sandwich panels: Color coated steel sheet is used as the outer and inner facing of insulated panels for cold storage, workshops, clean rooms, and modular structures. Adhesion to the selected insulation core must be verified.

Fabricated building components: Applications include doors, shutters, ceilings, partitions, rainwater goods, trims, and ventilation housings. Forming trials are advisable for deep profiles or tight bends.

Appliance and equipment panels: Selected grades and coating systems may be used for cabinets, casings, and equipment enclosures where a controlled decorative finish and repeatable fabrication are required.

How to Choose Color Coated Steel Sheet / Buying Guide

Procurement should begin with the end-use environment. Inland roofing, coastal cladding, humid industrial interiors, and insulated cold-room panels expose steel to different levels of moisture, salt, chemicals, ultraviolet radiation, and temperature cycling. Share the location and intended application with the supplier so that the substrate and paint system can be reviewed together.

Define the complete specification. State the applicable standard, substrate type, steel grade, thickness basis, width, sheet length, metallic coating designation, paint system, top and back coating requirements, color, gloss, and surface finish. For profiled products, provide a drawing that identifies cover width, pitch, rib height, and allowable tolerances. See related guidance for steel sheet thickness selection.

Confirm color correctly. A RAL number is useful for identification, but it does not replace an approved sample when visual consistency is critical. Color can be influenced by gloss, texture, viewing angle, and production batch. Material for one visible elevation is preferably planned with batch consistency in mind.

Review certification and inspection. Ask which documents are supplied, such as a certificate of conformity, substrate mill certificate, coating test report, or third-party inspection report. Do not assume that every certificate is included. Inspection scope, reporting format, and acceptance criteria should be written into the contract.

Check MOQ and production planning. Minimum order quantity depends on sheet dimensions, color, substrate, paint system, and whether the specification can be combined with an existing production campaign. Custom colors or uncommon coating systems may require different commercial arrangements. Request confirmation before finalizing the project quantity.

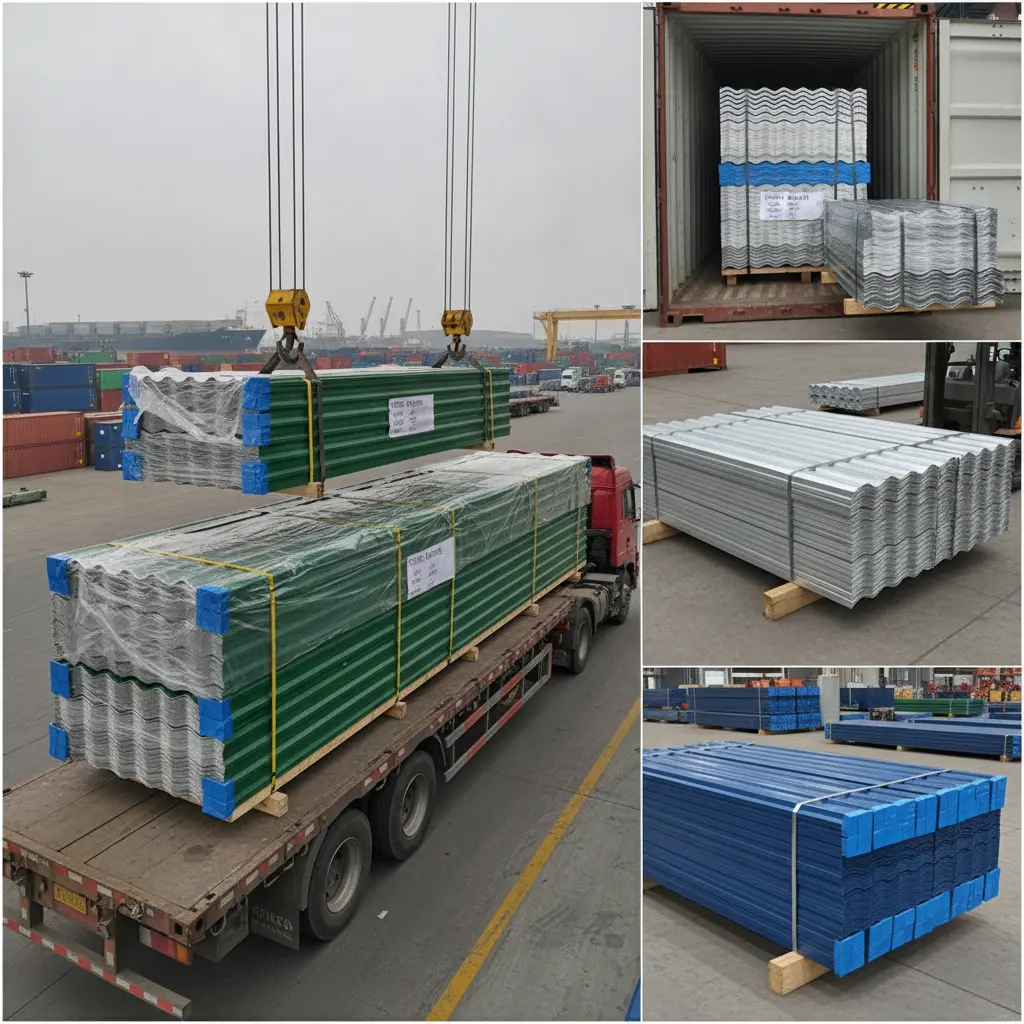

Evaluate lead time and logistics. Lead time should cover raw material availability, coating, slitting, cut-to-length processing, inspection, and export packing. For sea freight, sheets need moisture-resistant packaging, secure strapping, edge protection, and suitable supports. Discuss container loading limits and unloading methods for long sheets. Additional preparation guidance is available for steel export packaging.

Color Coated Steel Sheet Frequently Asked Questions

Q: What is the difference between color coated steel sheet and galvanized steel sheet?

A: Galvanized steel sheet has a zinc-based metallic coating but normally does not have a factory-applied decorative paint system. Color coated steel sheet adds pretreatment, primer, topcoat, and backing layers over a metallic-coated substrate. It therefore provides a finished color and additional barrier protection, although performance still depends on coating selection and installation.

Q: Is galvanized or aluminum-zinc coated substrate more suitable?

A: Neither substrate is universally suitable for every project. The decision depends on atmospheric exposure, cut-edge conditions, profile design, expected service life, compatibility requirements, and the governing standard. The complete roof or wall system should be evaluated rather than comparing substrate names alone.

Q: Which paint system should be selected for exterior roofing?

A: Selection depends on UV intensity, climate, desired color retention, forming severity, and budget. Polyester is common for general construction, while SMP, HDP, or PVDF may be evaluated where enhanced exterior durability is required. Buyers should compare tested coating performance and warranty conditions rather than relying only on paint abbreviations.

Q: Can color coated steel sheet be supplied with test certificates?

A: Certification can be arranged according to the agreed order scope. Available documents may include substrate certificates, dimensional inspection records, coating test data, and certificates of conformity. Specify the required standard, document type, inspection party, and traceability level in the inquiry.

Q: What is the minimum order quantity?

A: MOQ is supplier- and specification-dependent. Standard colors and commonly produced dimensions may allow more flexible quantities, while custom shades, special widths, or uncommon paint systems can require a larger production batch. Send the full specification and destination so the supplier can confirm the applicable MOQ.

Q: How long does production and delivery take?

A: Lead time varies with substrate availability, coating-line scheduling, color approval, sheet processing, testing, packaging, and shipping route. A reliable quotation should separate estimated production time from ocean or inland transit time. Urgent projects should also allow time for sample approval and import procedures.

Q: Which payment methods are normally available for export orders?

A: Payment terms are negotiated according to order value, transaction history, destination, and risk controls. Common international methods may include bank transfer or letter of credit, subject to supplier approval. The contract should clearly state payment milestones, banking charges, shipment documents, and release conditions.

Q: How should prepainted sheets be stored at the destination?

A: Store packages indoors in a dry, ventilated area and keep them off the ground on properly spaced supports. Avoid water ingress and prolonged contact with wet packaging, which can damage surfaces. Handle sheets with clean equipment, protect edges, and follow the supplier’s stacking limits and protective-film removal instructions.

Q: Can the material be roll-formed without damaging the paint?

A: Yes, provided the steel grade, paint flexibility, sheet thickness, tooling, and bending radius are compatible. Incorrect roll alignment, dirty tooling, or excessive forming strain can scratch or crack the coating. Buyers producing demanding profiles should request representative samples and conduct forming trials before volume production. More information can be found in the roll-forming steel guide.

Send your Color Coated Steel Sheet specification, drawings, required standard, color reference, quantity, destination, and certification needs to request a technical review and export quotation. Clear project details allow the supplier to confirm suitable material options, production feasibility, packing method, and estimated lead time.
