Color Coated Corrugated Roofing Sheet Manufacturer

Technical Specifications of Color Coated Corrugated Roofing Sheet

Color Coated Corrugated Roofing Sheet Manufacturer

Color Coated Corrugated Roofing Sheet is a profiled steel roofing and cladding product made from metallic-coated steel with a factory-applied paint system. It is specified by importers, roofing contractors, distributors, and building-material manufacturers seeking a lightweight, weather-resistant covering in defined colors and profiles. The combination of a formed steel substrate and protective coatings can support efficient installation and a coordinated exterior finish, while the corrugation helps the sheet span between structural supports as designed. Buyers can configure material grade, coating, thickness, profile, length, and packaging to suit project requirements. [[INTERNAL_LINK]]

Product Overview: Color Coated Corrugated Roofing Sheet

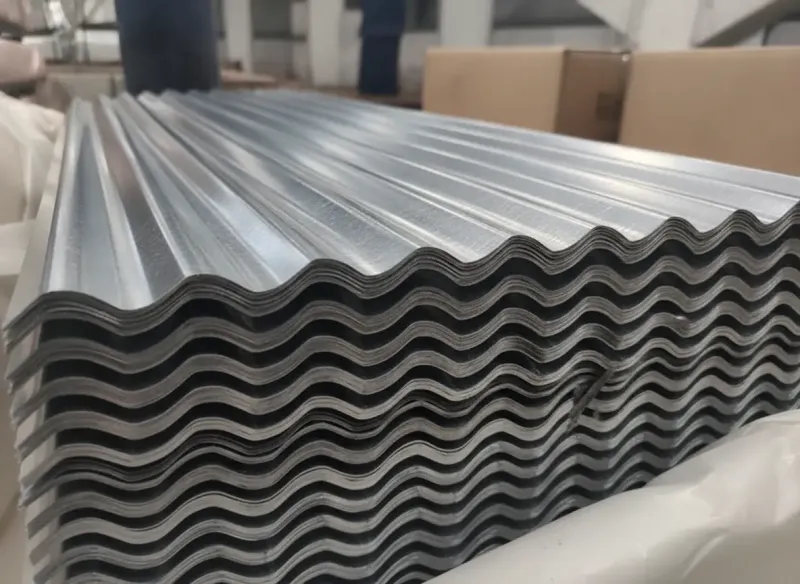

A Color Coated Corrugated Roofing Sheet is produced by roll-forming prepainted steel into a corrugated profile. The substrate is commonly galvanized or aluminum-zinc-coated steel, with a primer and topcoat applied before profiling. The metallic coating protects the steel substrate, while the paint system provides color and an additional barrier against exposure. Exact coating type, paint chemistry, and finish should be confirmed against the supplier’s product specification.

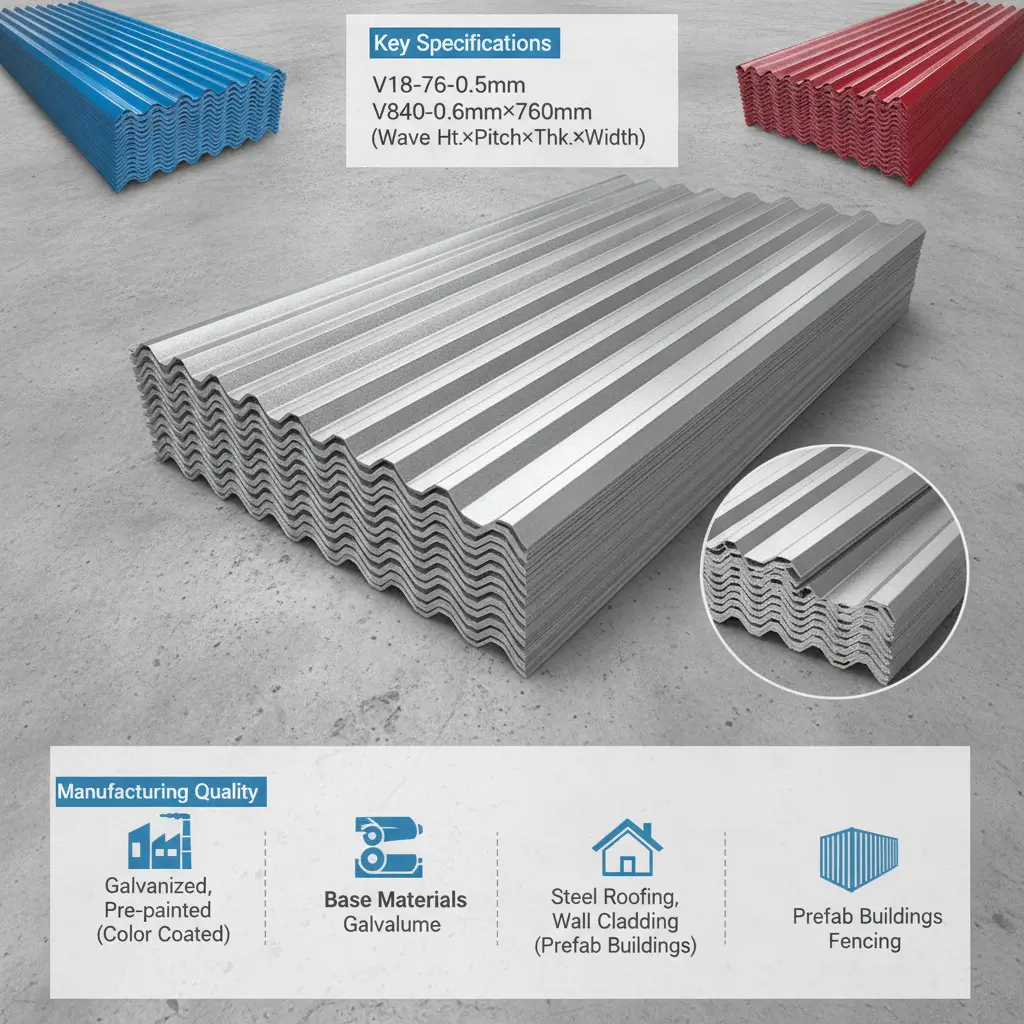

Corrugation gives the sheet its characteristic ridged shape and contributes to its stiffness. The profile, steel thickness, support spacing, fastening pattern, and installation details together affect the performance of a roof or wall assembly; the sheet should not be selected by thickness alone. Buyers comparing profiles can request drawings, effective cover width, crest dimensions, and installation guidance. [[INTERNAL_LINK]]

Available configurations may include different base-metal coating types, paint finishes, colors, and cut lengths, subject to the manufacturer’s production range. A project specification should clearly distinguish base-metal thickness from total coated thickness and state which measurement is required. For related material options, see [[INTERNAL_LINK]].

Specifications & Standards for Color Coated Corrugated Roofing Sheet

Specifications vary by substrate, coating system, profile, and destination-market requirements. The following standards are relevant references, but their applicability depends on the ordered product and the project specification. Buyers should identify the required edition and acceptance criteria before production.

Because no single grade, thickness, metallic coating mass, or paint system is universal, these values should be agreed in the purchase order rather than assumed. A typical inquiry should state the required base-metal thickness, steel grade, coating designation, paint system or performance requirement, color reference, profile drawing, sheet length, and applicable test or inspection requirements. Where structural performance matters, obtain design values and verify that the selected product meets local code and project calculations.

Request a material test certificate and product inspection documents appropriate to the order. If a project requires third-party inspection, color tolerance, coating tests, or specific warranty terms, define these before placing the order. More on coated steel options: [[INTERNAL_LINK]].

Applications of Color Coated Corrugated Roofing Sheet

• Industrial buildings: Roofs and wall cladding for factories, workshops, and storage facilities, subject to the project’s structural and environmental requirements.
• Warehouses and logistics facilities: Large roof areas where defined sheet lengths, profile geometry, and coordinated colors can simplify material planning.
• Agricultural buildings: Farm structures and equipment shelters, with coating selection matched to local exposure and any chemical or moisture conditions.
• Commercial and retail buildings: Exterior roofing and façade applications where appearance, color consistency, and maintenance expectations influence specification.
• Residential and modular construction: Roofing for houses, extensions, and prefabricated buildings when the profile and appearance meet local design requirements.

In corrosive, coastal, or highly exposed environments, confirm that the metallic coating and paint system are suitable for the site conditions. Product selection should also account for cut-edge exposure, drainage, ventilation, and compatibility with fasteners and adjacent materials. [[INTERNAL_LINK]]

How to Choose / Buying Guide for Color Coated Corrugated Roofing Sheet

Start with the building design and local requirements. Provide the intended use, roof pitch, support spacing, exposure conditions, and any required structural calculations. Ask the supplier for the profile drawing, effective cover width, and installation recommendations so that the design team can verify sheet suitability. Do not treat a general product description as a substitute for project-specific engineering.

Specify the substrate and coating separately. State whether galvanized or aluminum-zinc-coated steel is required, then identify the relevant grade and coating designation. Define base-metal thickness rather than relying on an ambiguous total-thickness figure. For the paint system, confirm the required finish, color reference, exposure conditions, and any project-specific durability or warranty criteria. Color samples or an agreed reference can help prevent disputes over appearance.

Before order confirmation, align the profile, dimensions, tolerances, sheet lengths, quantity, packaging, and marking with the supplier. Establish the inspection scope and documents required, such as a material test certificate or agreed inspection report. If a certificate or test is mandatory for import clearance or project approval, list it in the purchase order and confirm its availability before production. [[INTERNAL_LINK]]

MOQ and lead time depend on the manufacturer’s available substrate, paint color, production schedule, order volume, and any special requirements. Ask for a written quotation stating the minimum order quantity, production lead time, validity period, and whether samples or trial orders are possible. Do not assume that a standard color or custom profile is available without confirmation.

For logistics, confirm bundle dimensions and weight, protective packaging, loading method, shipping marks, and destination handling requirements. Agree the delivery term and destination with the supplier, and check that the packaging is suitable for the planned transport and storage conditions. Also clarify payment terms directly during quotation and contract negotiation; they can vary by supplier, order, and buyer relationship. Compare offers on equivalent specifications, documentation, packing, and delivery scope. Related roofing products: [[INTERNAL_LINK]].

Frequently Asked Questions About Color Coated Corrugated Roofing Sheet

Q: What is the difference between galvanized and aluminum-zinc-coated roofing sheet?

A: They use different metallic coatings on the steel substrate. The appropriate choice depends on the project specification, exposure conditions, and applicable standard. Ask the supplier to identify the coating type and designation in the quotation and order documents.

Q: Which standards can apply to prepainted corrugated roofing sheet?

A: Relevant references can include ASTM A755/A755M for prepainted metallic-coated steel, ASTM A653/A653M for galvanized substrate, ASTM A792/A792M for aluminum-zinc-coated substrate, EN 10169 for organic-coated steel, EN 10346 for metallic-coated substrate, and EN 14782 for self-supporting metal sheet applications. Confirm the exact standard, edition, and product requirements for the destination market.

Q: What information should I provide to receive an accurate quotation?

A: Provide the substrate type, steel grade, base-metal thickness, coating designation, paint or finish requirement, color, profile drawing or dimensions, sheet length, quantity, destination, required certificates, packaging needs, and delivery term.

Q: What is the minimum order quantity?

A: MOQ is supplier- and specification-dependent. It may vary with material availability, color, profile, and production setup. Request the MOQ for the exact configuration and ask whether samples or a smaller trial quantity can be supplied.

Q: Can I request a specific color and sheet length?

A: Color and cut length can often be specified, subject to the supplier’s production range and order conditions. Confirm the color reference, acceptable color tolerance, available length range, and any effect on MOQ or lead time before placing the order.

Q: What certificates or inspection documents can be supplied?

A: Available documentation depends on the supplier and purchase agreement. Buyers commonly request material test documentation and may agree on additional inspection records or third-party inspection. List all required documents in the inquiry and confirm them before order acceptance.

Q: How long is the production lead time, and what payment terms are available?

A: Lead time and payment terms depend on the supplier, order details, production schedule, and commercial agreement. Request a written quotation with the expected production and dispatch schedule, payment milestones, and delivery terms; avoid relying on general estimates for a specific shipment.

Send your required profile, substrate, coating, color, dimensions, quantity, destination, and documentation needs to request a tailored quotation for Color Coated Corrugated Roofing Sheet. The sales team can confirm product availability, applicable standards, MOQ, lead time, packaging, and shipping arrangements for your order. [[INTERNAL_LINK]]
