Galvanized Roofing Sheet Manufacturer | Durable Corrugated Metal Roofing Panels

彩图镀锌

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$780 1-49 ton Base price

$750 50-199 ton 3.8% off

$720 ≥200 ton 7.7% off

Price validity: subject to market conditions

Quantity

Minimum order quantity: 1 ton

Shipping total: To be negotiated

Subtotal of goods US$ 780.00

Start order request

Payment and delivery

Product details

Parameter	Specification

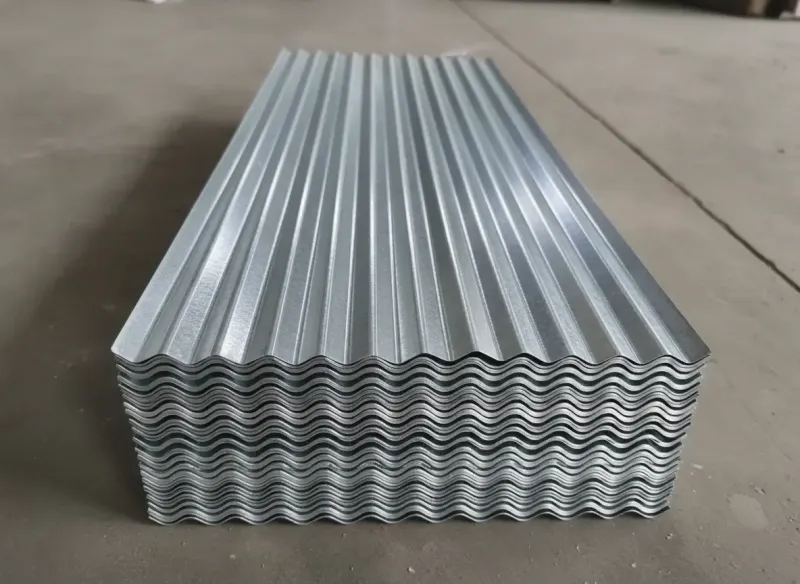

Product Name	Galvanized Roofing Sheet
Product Type	Hot-Dip Galvanized Corrugated Roofing Sheet
Base Metal	Cold-Rolled Steel or Hot-Rolled Steel
Steel Grade	DX51D+Z, DX52D+Z, S250GD+Z, S280GD+Z, S350GD+Z
Applicable Standards	EN 10346, ASTM A653/A653M, JIS G3302, GB/T 2518
Thickness	0.12–1.20 mm
Effective Width	750–1100 mm, customizable according to profile
Overall Width	800–1200 mm
Length	1000–6000 mm, customizable
Zinc Coating	30–275 g/m², available in Z40–Z275
Surface Treatment	Regular Spangle, Zero Spangle, Chromated, Oiled or Passivated
Roofing Profile	Corrugated, Trapezoidal or Ribbed Profile
Corrugation Height	15–120 mm, depending on profile design
Surface Finish	Bright Metallic Zinc Surface with Uniform Coating
Mechanical Properties	Tensile Strength: 270–550 MPa; Yield Strength: 140–350 MPa
Formability	Suitable for Roll Forming, Bending, Cutting and Punching
Corrosion Resistance	Enhanced atmospheric corrosion resistance through hot-dip zinc coating
Manufacturing Process	Steel Coil Uncoiling, Leveling, Roll Forming, Cutting and Inspection
Packaging	Export Standard Waterproof Packaging with Steel Straps and Edge Protection
Applications	Residential Roofing, Commercial Buildings, Industrial Warehouses, Agricultural Buildings, Fences and Wall Cladding
