Corrugated Steel Plate For Industrial Roofing And Cladding

Technical Specifications of Corrugated Steel Plate

Corrugated Steel Plate for Industrial Roofing and Cladding

Corrugated steel plate is a profiled metal sheet designed to provide rigid, lightweight, and weather-resistant coverage for industrial roofs, exterior walls, warehouses, workshops, and agricultural buildings. It serves contractors, roofing distributors, steel fabricators, modular-building manufacturers, and overseas project procurement teams that require efficient installation and reliable structural performance. Depending on the service environment, the plate can be supplied with galvanized, aluminum-zinc alloy-coated, or prepainted surfaces. Buyers can specify the substrate grade, profile geometry, thickness, coating mass, color, dimensions, and applicable international standard to match project drawings and local building requirements.

Corrugated Steel Plate Product Overview

Corrugated steel plate is manufactured by roll-forming flat coated steel into repeating waves, ribs, or trapezoidal profiles. The corrugations increase section stiffness without requiring the weight of a solid plate of comparable rigidity. This geometry makes the material suitable for large roof and wall areas where installation speed, transport efficiency, and resistance to wind or service loads are important.

The base material is normally cold-rolled structural or commercial-quality steel. Metallic-coated options may include hot-dip galvanized steel and aluminum-zinc alloy-coated steel, while prepainted products add primer and organic topcoat systems for appearance and additional environmental protection. The appropriate substrate and coating should be selected according to humidity, airborne pollutants, temperature, expected service life, and maintenance conditions. Related coating options can be compared through [[INTERNAL_LINK]].

Common product advantages include a favorable strength-to-weight ratio, easy overlapping, reduced installation time, and compatibility with standard purlin and cladding systems. Corrugated steel plate can also be cut to project length, reducing transverse joints and site waste. Actual span capacity depends on steel grade, thickness, profile depth, support spacing, fastening arrangement, and design load; it should therefore be verified using engineering calculations rather than profile appearance alone.

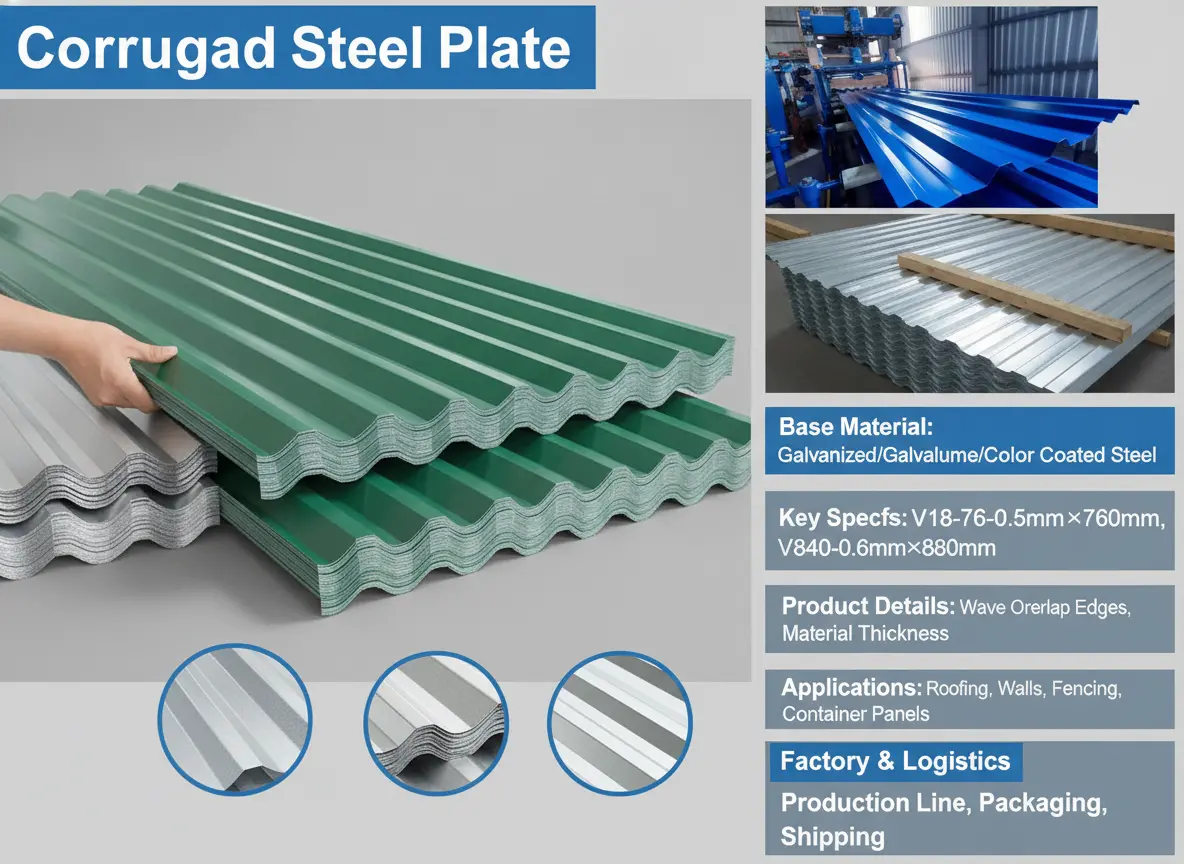

• Profile choices: sinusoidal corrugations, trapezoidal ribs, and project-specific forming patterns.
• Surface choices: galvanized, aluminum-zinc alloy-coated, or prepainted finishes.
• Supply forms: sheets cut to length or formed according to agreed drawings.
• Key benefits: low dead load, stackable transport, rapid installation, and replaceable panels.

Corrugated Steel Plate Specifications & Standards

Corrugated steel plate specifications are not universal. Purchasers should provide the profile drawing or identify the rib height, pitch, effective cover width, total width, thickness, length, and edge-lap arrangement. Nominal thickness should be clearly distinguished from any tolerance-defined minimum thickness. For prepainted material, orders should also state the metallic coating, paint system, topcoat color, gloss range, and whether a protective film is required.

Applicable standards depend on the ordered substrate and market. ASTM A653/A653M covers steel sheet, zinc-coated or zinc-iron alloy-coated by the hot-dip process. ASTM A792/A792M applies to steel sheet with a 55% aluminum-zinc alloy coating. EN 10346 specifies continuously hot-dip-coated steel flat products for cold forming, while JIS G 3302 covers hot-dip zinc-coated steel sheets and coils. GB/T 2518 is commonly referenced for continuously hot-dip zinc-coated steel sheet and strip. Prepainted products may be ordered to ASTM A755/A755M, EN 10169, JIS G 3312, or GB/T 12754, subject to market and contract requirements. More information on coated substrates is available at [[INTERNAL_LINK]].

Chemical composition and mechanical properties vary by grade and standard. A purchase specification should not use one generic strength value for every corrugated steel plate. The mill test certificate should identify the actual grade and report required results such as yield strength, tensile strength, and elongation where applicable. Coating mass, adhesion, dimensions, and paint properties may also be inspected under the agreed standard and inspection plan. Guidance on mill certificates and inspections can be found at [[INTERNAL_LINK]].

Corrugated Steel Plate Applications

Industrial roofing: Corrugated steel plate is widely used on factories, logistics centers, warehouses, maintenance facilities, and production workshops. Long sheets can reduce end laps, while profiled sections help transfer service loads to purlins. Roof design must include suitable fasteners, sealing washers, flashings, and drainage details. See related industrial roofing solutions at [[INTERNAL_LINK]].

Wall cladding: The material provides an economical external skin for steel structures, equipment enclosures, and commercial buildings. Panels may be installed vertically or horizontally depending on the profile and architectural design. Prepainted finishes allow color coordination with trims, doors, and roof systems.

Agricultural buildings: Corrugated sheets are used for barns, machinery shelters, storage sheds, and other rural structures. Buyers should assess exposure to fertilizers, animal waste, condensation, and cleaning chemicals because these factors can require a more resistant coating system or additional interior protection.

Modular and prefabricated construction: Lightweight profiled panels are suitable for site offices, temporary facilities, cabins, and prefabricated building envelopes. Consistent effective width and accurate cut length support repeatable factory assembly. Complementary prefabricated-building materials are listed at [[INTERNAL_LINK]].

Renovation and over-cladding: Corrugated steel plate may be used to replace damaged sheets or upgrade an existing façade. Before ordering, installers should verify the old profile, support condition, load capacity, fastening pattern, and compatibility between existing and new metals.

How to Choose Corrugated Steel Plate: Buying Guide

Start with the project drawing rather than selecting only by price per tonne. Confirm profile pitch, rib depth, effective cover width, base metal thickness, steel grade, sheet length, side-lap direction, and support spacing. A lower-thickness sheet may reduce initial cost but may not provide the required span performance or resistance to handling damage.

Next, match the coating to the environment. Galvanized material is used in many general roofing and cladding projects, while aluminum-zinc alloy coatings or suitable prepainted systems may be considered for more demanding exposure. Coastal, industrial, high-humidity, and chemically aggressive locations require project-specific evaluation. Cut edges, fastener compatibility, drainage, and contact with dissimilar metals also affect corrosion performance. Consult [[INTERNAL_LINK]] when comparing coating systems.

Request documentation before shipment. Depending on the contract, this may include a mill test certificate, coating test report, dimensional inspection, color record, packing list, certificate of origin, or third-party inspection report. Confirm whether the certificate is issued by the substrate mill, coating line, or forming factory, because each document covers different production stages.

MOQ and production lead time depend on the profile tooling, substrate availability, color, length combination, and total order volume. Standard profiles and colors may be easier to schedule, while custom profiles or small color batches can require additional setup. Buyers should obtain written confirmation of the MOQ, production period, sample approval procedure, and tolerance agreement before placing an order.

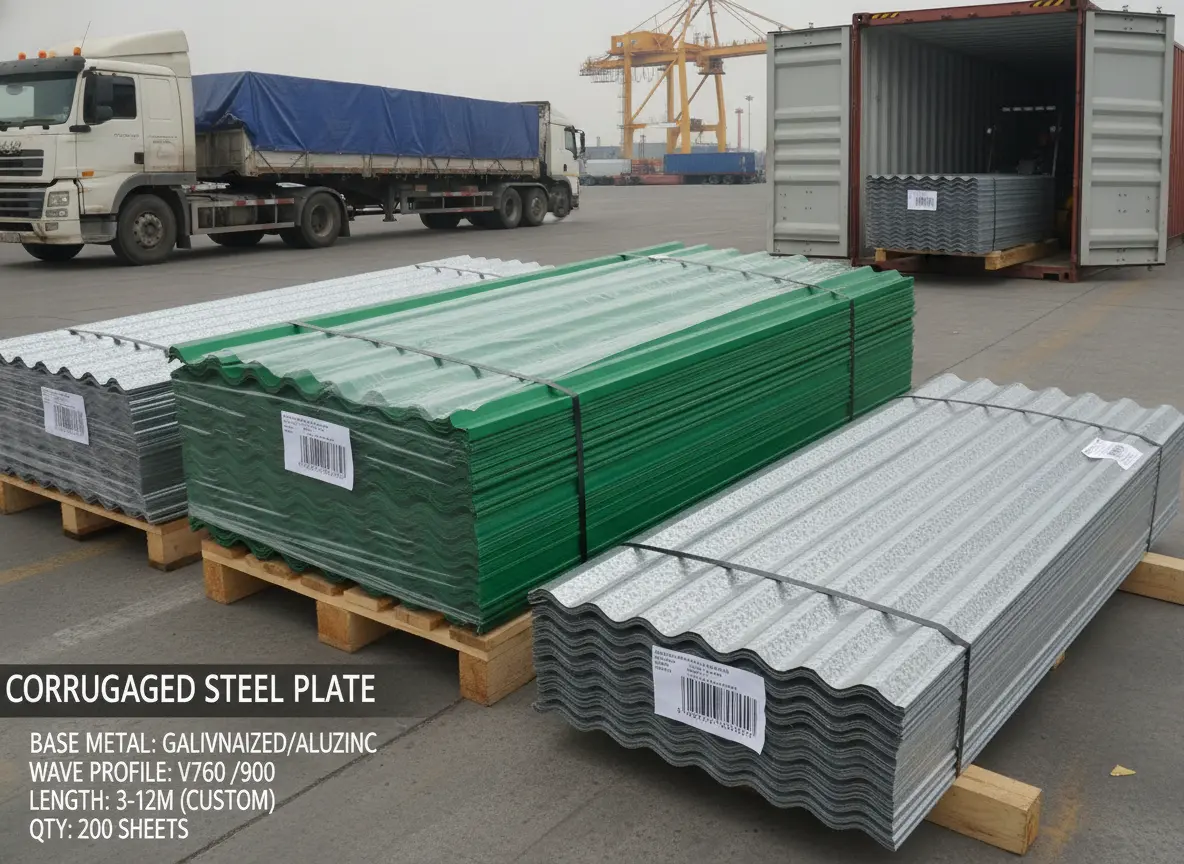

For international logistics, specify maximum bundle weight, loading method, container restrictions, moisture protection, and unloading equipment. Long sheets may create container-loading limitations, so sheet length should be coordinated with the shipping plan. Seaworthy packaging should include secure strapping, edge protection, identification labels, and measures to reduce water ingress during transit. Refer to [[INTERNAL_LINK]] for steel export packing considerations.

Frequently Asked Questions About Corrugated Steel Plate

Q: What is the difference between corrugated steel plate and flat steel sheet?

A: Flat sheet has a level surface, while corrugated steel plate is roll-formed into waves or ribs. The formed geometry increases section stiffness and allows the sheet to span between supports more effectively. The precise load capacity still depends on profile dimensions, steel grade, thickness, and fastening design.

Q: Should I choose galvanized or prepainted corrugated steel plate?

A: Galvanized material provides a metallic zinc coating and is often selected where a plain metallic appearance is acceptable. Prepainted material adds an organic coating for color and added surface protection. The correct option depends on exposure conditions, appearance, maintenance expectations, and project specifications.

Q: Which certificates can be supplied with an export order?

A: Available documents vary by manufacturer and contract. Buyers commonly request mill test certificates, coating reports, dimensional inspection records, packing lists, and certificates of origin. Third-party inspection can be arranged when agreed before production, but the inspection scope and acceptance criteria must be stated in the purchase order.

Q: What is the minimum order quantity for corrugated steel plate?

A: There is no universal MOQ. It depends on coil availability, profile setup, color, thickness, dimensions, and factory scheduling. Standard specifications may support smaller production lots than custom profiles or non-standard paint colors. Request an MOQ based on the complete specification rather than the product name alone.

Q: How long does production and delivery take?

A: Lead time depends on raw-material stock, coating requirements, forming capacity, order quantity, packaging, and inspection arrangements. Ocean transit time is separate from factory production time. Buyers should request a written schedule covering material preparation, manufacturing, inspection, shipment, and estimated arrival.

Q: What payment methods are normally available?

A: Payment terms are supplier- and order-specific. International transactions may use bank transfer or a letter of credit, subject to commercial agreement, order value, destination, and credit assessment. Buyers should confirm the deposit, balance-payment trigger, banking charges, and required shipping documents before signing the contract.

Q: Can corrugated steel plate be produced to a custom profile or length?

A: Custom lengths are generally possible within manufacturing, handling, and transport limits. A custom profile requires technical review of the drawing and available roll-forming tooling. Tooling costs, minimum production volume, dimensional tolerances, and sample approval should be agreed before mass production.

Q: How should corrugated sheets be stored after delivery?

A: Store bundles under cover in a dry, ventilated location and keep them raised above the ground. Avoid prolonged contact with standing water or trapped condensation. If sheets become wet, separate and dry them promptly. Follow the coating supplier’s handling guidance to prevent scratches, staining, and premature corrosion.

Send your corrugated steel plate profile drawing, required standard, substrate grade, thickness, coating, color, dimensions, order quantity, destination, and documentation needs to request a technical review and export quotation. For additional roofing and cladding procurement resources, visit [[INTERNAL_LINK]].
