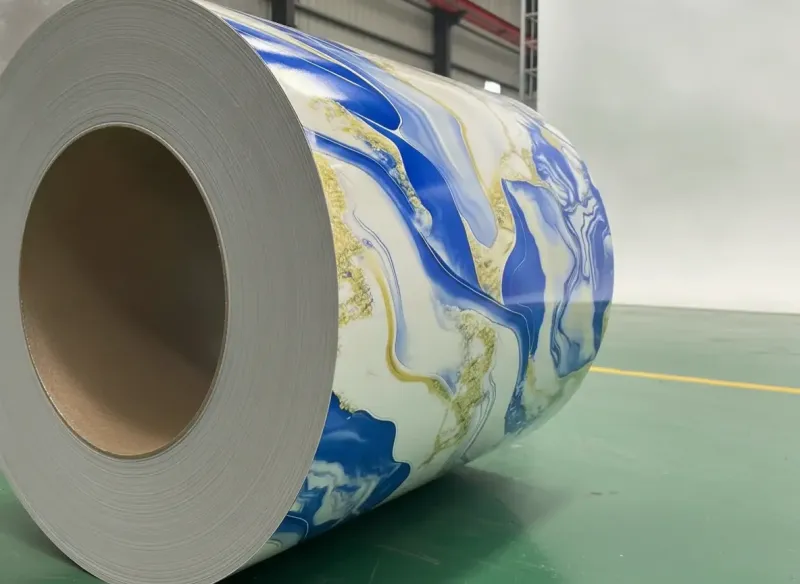

Printed Steel Coil Manufacturer | Custom Colors & Patterns

彩图镀锌

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$680 5-19 ton Base price

$640 20-49 ton 5.9% off

$610 ≥50 ton 10.3% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 5 ton

Shipping total: To be negotiated

Subtotal of goods US$ 3,400.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Printed Steel Coil Technical Specifications

Parameter	Specification
Product Name	Printed Steel Coil
Base Material	Pre-painted galvanized steel, galvalume steel, or cold rolled steel
Steel Grade	Commercial quality, drawing quality, structural grade, or as required
Coil Thickness	0.20–1.20 mm, customizable according to application requirements
Coil Width	600–1,250 mm, with customized widths available
Printing Method	Roller printing, digital pattern printing, or customized surface printing
Pattern Options	Wood grain, marble, brick, stone, camouflage, geometric, solid color, and custom designs
Surface Coating	Printed polyester, SMP, HDP, PVDF, or other specified coating systems
Top Paint Thickness	Typically 15–35 μm, customizable for different durability requirements
Back Paint Thickness	Typically 5–15 μm, or according to customer specifications
Coating Color	RAL colors, wood-effect colors, stone-effect colors, and custom color matching
Gloss	Low gloss, matte, or high gloss surface finish
Surface Treatment	Chromated or environmentally friendly passivated surface, with protective film available
Coil Inner Diameter	508 mm or 610 mm
Maximum Coil Weight	Up to approximately 3–8 metric tons, subject to production line capability
Dimensional Tolerance	Conforms to applicable ASTM, EN, JIS, or customer-specific standards
Application	Roofing panels, wall cladding, interior decoration, doors, ceilings, sandwich panels, and architectural components
Packaging	Standard seaworthy export packaging with waterproof paper, galvanized steel sheet, steel straps, and edge protection
Quality Standards	ASTM, EN, JIS, GB, or other international standards available upon request
Customization	Customized thickness, width, coating, color, printed pattern, coil weight, and packaging are available
