Galvanized Steel Strip for Industrial Manufacturing Supply

Galvanized Steel Strip is a zinc-coated flat steel product supplied in narrow coils for stamping, roll forming, fabrication, and continuous production lines. It is intended for overseas manufacturers, component producers, distributors, and project procurement teams that require consistent dimensions, controlled surface condition, and practical corrosion protection. Compared with uncoated carbon steel strip, the zinc layer helps protect exposed surfaces during storage and service while retaining the formability of the selected steel substrate. Buyers can specify the base grade, strip width, thickness, coating designation, edge condition, coil configuration, and applicable standard to match their processing equipment and end-use requirements.

Galvanized Steel Strip Product Overview

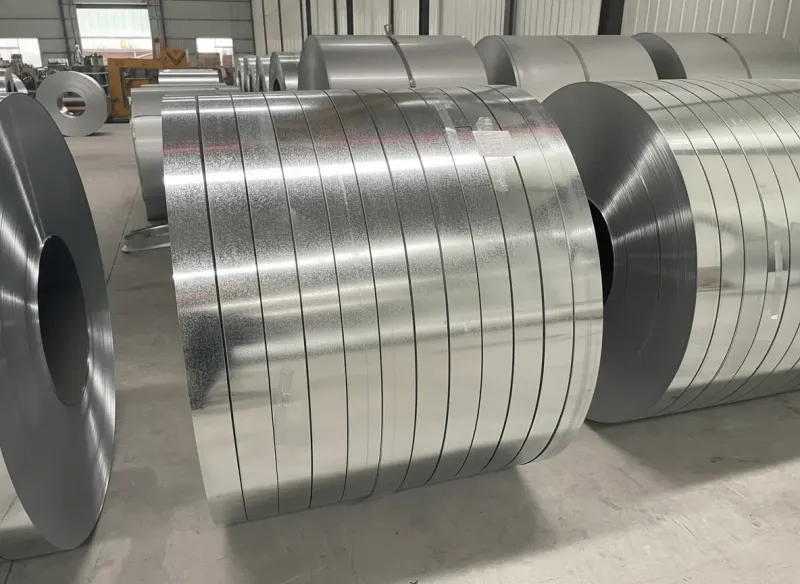

Galvanized steel strip consists of a cold-rolled or hot-rolled steel substrate with a protective zinc coating. The coating is normally applied by a continuous hot-dip galvanizing process, although the exact production route should be confirmed in the purchase specification. After coating, the material is slit from a wider galvanized coil into narrower widths suited to automated manufacturing, profiling, pressing, and assembly operations.

The substrate determines the strip’s strength, elongation, bendability, and forming response. Commercial-quality material may be suitable for general fabrication, while drawing, structural, or higher-strength grades are selected for more demanding components. Because grade terminology differs among ASTM, EN, JIS, and GB/T systems, purchasers should identify the governing standard instead of relying only on a general description such as “soft,” “hard,” or “structural.” See related [[INTERNAL_LINK]] guidance for comparing steel grade designations.

The zinc coating provides sacrificial corrosion protection: zinc preferentially corrodes when minor scratches expose the underlying steel. Coating performance depends on coating mass or thickness, atmospheric exposure, forming severity, cut-edge area, storage conditions, and maintenance. Surface options can include different spangle appearances, skin-passed finishes, oiling, passivation, or other post-treatments where permitted by the selected standard. These options should be agreed before production because they affect appearance, handling, paint compatibility, welding, and downstream forming. Additional finish information is available at [[INTERNAL_LINK]].

Typical supply features include tight width control, uniform coil winding, selectable slit or mill edges, and packaging designed to reduce moisture exposure and edge damage. Actual tolerances, coil weight, inside diameter, outside diameter, and strip orientation remain subject to the mill’s production capability and the confirmed order specification.

Galvanized Steel Strip Specifications & Standards

Galvanized Steel Strip should be ordered to a recognized product standard and a clearly identified substrate grade. Applicable standards include ASTM A653/A653M for hot-dip zinc-coated or zinc-iron alloy-coated steel sheet, EN 10346 for continuously hot-dip coated steel flat products, JIS G 3302 for hot-dip zinc-coated steel sheet and strip, and GB/T 2518 for continuously hot-dip zinc-coated steel sheet and strip. The current edition and any project-specific amendments should be stated in the contract.

Chemical composition and mechanical properties are not universal for all galvanized strip. They are governed primarily by the ordered base-steel grade, product thickness, manufacturing route, and referenced standard. Procurement documents should therefore request certified values for the exact grade rather than applying one generic property set.

A complete inquiry should state thickness, width, ordered quantity, coil inside diameter, preferred coil weight, maximum outside diameter, edge type, surface treatment, coating designation, and intended fabrication process. Buyers requiring painted, welded, adhesive-bonded, or deeply formed parts should disclose those operations because the finish and grade selection may change. For dimensional terminology and coil configuration examples, consult [[INTERNAL_LINK]].

Galvanized Steel Strip Applications

Galvanized Steel Strip is used where narrow, continuously processed steel must combine manufacturability with corrosion resistance. Representative applications include:

• Roll-formed profiles: channels, brackets, framing members, reinforcement sections, and light structural profiles produced on continuous forming lines.
• Electrical and mechanical components: cabinet parts, clips, supports, cable-management components, enclosures, and stamped hardware, subject to the required conductivity, finish, and fabrication method.
• HVAC and ventilation: narrow sections for ducts, supports, collars, dampers, and associated formed components used in controlled indoor or sheltered environments.
• Automotive and transport supply chains: brackets, reinforcements, retainers, and non-exposed parts where the approved grade, coating system, traceability, and customer specification are satisfied.
• General industrial manufacturing: strapping components, shelving parts, appliance components, packaging hardware, and fabricated assemblies made by punching, bending, welding, or profiling.

Suitability must be evaluated against actual exposure and processing conditions. Standard zinc-coated strip is not automatically appropriate for every marine, chemical, high-temperature, or food-contact environment. Severe service may require a heavier coating, an additional paint system, a different metallic coating, or another material altogether. Compare alternative coated products at [[INTERNAL_LINK]].

How to Choose Galvanized Steel Strip: Buying Guide

Procurement managers should begin with the finished component rather than selecting material solely by price per tonne. The expected bend radius, draw depth, load, welding method, appearance, corrosion exposure, and service life determine the appropriate substrate grade and coating designation.

Confirm specifications: Define thickness and width tolerances that match the feeding, tooling, and forming equipment. Overly broad tolerances may disrupt production, while unnecessarily restrictive tolerances can increase sourcing difficulty and cost. State whether slit edges, deburred edges, or another edge condition are required, and identify any camber limitation critical to the line. A strip selection checklist is available through [[INTERNAL_LINK]].

Verify compliance and certification: Request the applicable ASTM, EN, JIS, or GB/T designation in the quotation. Where traceability is necessary, specify the required inspection document, heat or coil identification, test results, and any third-party inspection before order confirmation. An EN 10204 type of inspection document should only be requested where applicable and contractually agreed; it does not replace the product standard.

Agree on MOQ and production route: Minimum order quantity depends on grade, coating, strip dimensions, master-coil availability, and slitting arrangements. Stock dimensions may support smaller orders, whereas custom grades or narrow tolerances may require a production-based quantity. Ask the supplier to distinguish trial orders, regular production orders, and mixed-size loading options rather than assuming one universal MOQ.

Review lead time: Lead time varies according to raw-material availability, galvanizing schedule, slitting capacity, testing, and packaging. The purchase order should define the required shipment window and whether partial shipment is acceptable. Custom approvals or third-party inspection should be included in the schedule. See [[INTERNAL_LINK]] for practical pre-shipment inspection points.

Plan logistics and packaging: Confirm coil orientation, eye-to-sky or eye-to-side loading where relevant, lifting method, pallet or skid requirements, corrosion-resistant wrapping, and container weight restrictions. Packaging should protect edges and reduce contact with condensation, but proper dry storage after arrival remains essential. Shipping marks and traceability labels should match the packing list and purchase order.

Frequently Asked Questions About Galvanized Steel Strip

Q: What is the difference between galvanized steel strip and cold-rolled steel strip?

A: Galvanized strip has a zinc-based protective coating, while conventional cold-rolled strip is supplied without that metallic corrosion barrier. Cold-rolled material may offer a suitable surface for later coating, but it requires protection against rust during storage and service. The correct choice depends on forming, welding, painting, appearance, and exposure requirements.

Q: Which galvanized steel standard should an overseas buyer specify?

A: Specify the standard used by the drawing, market, or end customer. Common references are ASTM A653/A653M, EN 10346, JIS G 3302, and GB/T 2518. These standards use different grade and coating designation systems, so equivalent substitutions should be reviewed technically and approved in writing.

Q: Can galvanized steel strip be supplied with material certification?

A: Certification can generally be requested, but its content and format must be agreed during quotation. State whether you need a mill test certificate, coating test results, dimensional inspection, traceability information, or third-party verification. Review sample certification requirements at [[INTERNAL_LINK]].

Q: What is the minimum order quantity for galvanized steel strip?

A: There is no universal MOQ. It depends on whether the material is available from stock, can be slit from an existing master coil, or requires a dedicated production campaign. Provide the complete size, grade, coating, and quantity so the supplier can confirm a commercially workable MOQ.

Q: What payment methods are available for international orders?

A: Payment terms vary by supplier, destination, order value, credit assessment, and trading history. Common international methods may include bank transfer or letter of credit, subject to mutual agreement. Buyers should confirm currency, deposit requirements, banking charges, document conditions, and payment milestones before signing the contract.

Q: How long does production and delivery take?

A: Timing depends on material availability, production scheduling, slitting, inspection, packing, vessel or transport availability, and destination clearance. Request separate estimates for production lead time and transit time. A confirmed schedule should be issued after technical specifications and commercial terms are finalized.

Q: Can galvanized steel strip be welded, painted, or formed?

A: It can be processed by these methods when the substrate, coating, surface treatment, and process controls are compatible. Welding requires suitable procedures and ventilation; painting may require cleaning or pretreatment; severe forming requires an appropriate grade and coating behavior. Trials are advisable before full-scale production.

Q: How should galvanized steel strip coils be stored?

A: Store coils indoors in a dry, ventilated area, away from rain, standing water, corrosive chemicals, and rapid temperature changes that cause condensation. Keep packaging intact until use where practical, inspect wet packages promptly, and use handling equipment that will not damage edges or coil surfaces.

Send your required Galvanized Steel Strip standard, grade, thickness, width, coating designation, coil configuration, quantity, destination, and certification needs to request a technical review and quotation. Drawings, forming details, and end-use information will help identify a suitable supply specification and realistic production schedule.
