DX51D Galvanized Steel Coil - High-Quality Hot-Dip Zinc Coated Steel for Construction

Baiqu Steel Coil Manufacturing Co., Ltd.

Verified Custom manufacturer 4yrs

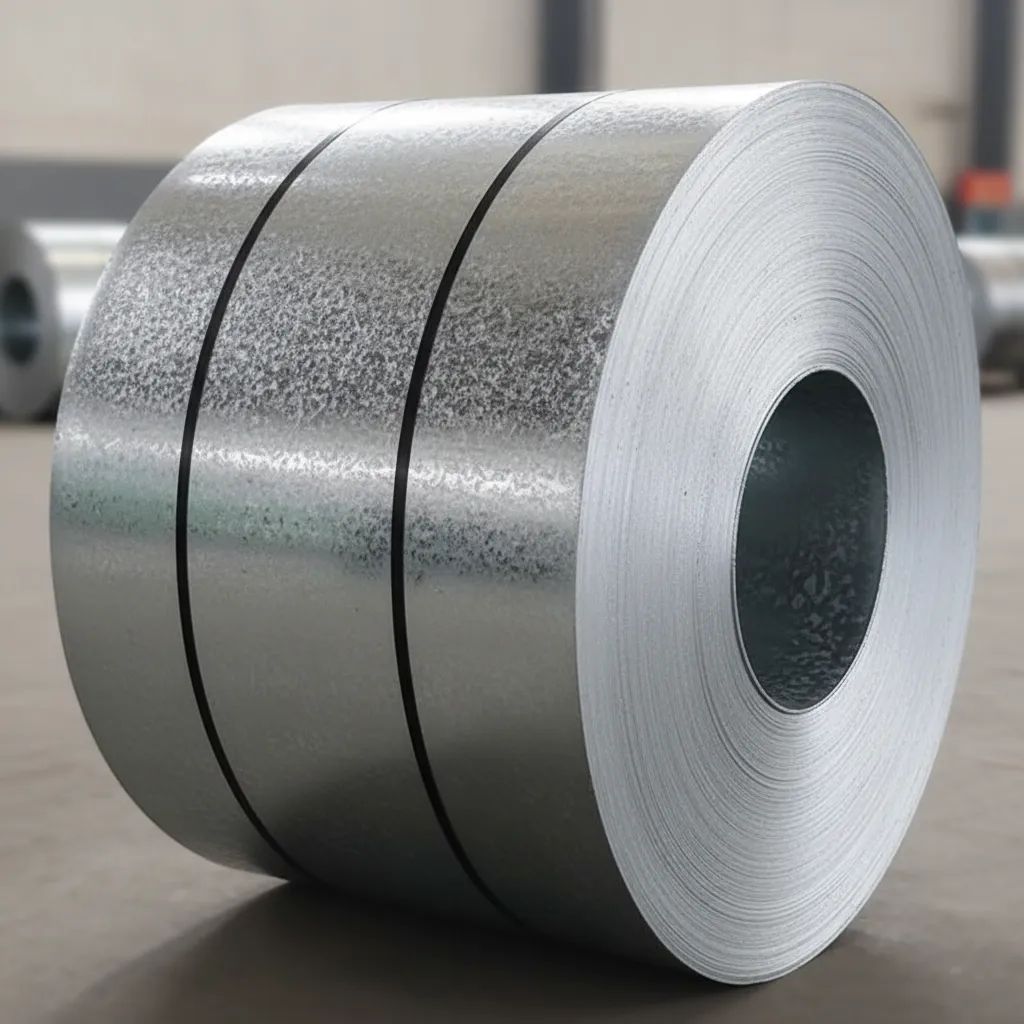

DX51D galvanized steel coil image thumbnail

Technical Specifications of DX51D Galvanized Steel Coil

Property	Parameter	Description
Product Name	DX51D Galvanized Steel Coil	Hot-dip galvanized low carbon steel coil
Material Grade	DX51D / S220GD / SGCC	International grade equivalents
Standard Compliance	EN 10346, ASTM A653, JIS G3302	Meets major international standards
Manufacturing Process	Hot-Dip Galvanizing (Continuous)	Sendzimir or inline annealing process
Carbon (C)	≤0.12%	Low carbon for excellent formability
Manganese (Mn)	≤0.60%	Improves strength and hardness
Phosphorus (P)	≤0.10%	Controlled for ductility
Sulfur (S)	≤0.045%	Low sulfur for improved weldability
Silicon (Si)	≤0.50%	Deoxidizer in steelmaking
Yield Strength	140 - 300 MPa	Typical range per EN 10346
Tensile Strength	270 - 500 MPa	Minimum tensile strength per standard
Elongation	≥22%	Ductility in 80mm gauge length
Zinc Coating Weight	Z60 - Z275 (60-275 g/m²)	Double-sided total coating mass
Thickness Range	0.12 - 3.0 mm	Available substrate thickness options
Width Range	600 - 1500 mm	Standard and custom widths
Spangle Type	Regular / Minimized / Zero Spangle	Surface crystallization pattern options
Surface Treatment	Chromated, Oiled, Passivated, Dry	Anti-fingerprint and corrosion protection
Application	Construction, HVAC, Automotive, Appliances	Typical application industries
Certification	EN 10204 3.1, ISO 9001, CE Marking	Quality certifications provided
MOQ	5 tons	Minimum order quantity

DX51D Galvanized Steel Coil - High-Quality Hot-Dip Zinc Coated Steel for Construction

DX51D galvanized steel coil is a premium-grade hot-dip zinc coated flat steel product engineered for superior corrosion protection and exceptional formability. Manufactured in compliance with EN 10346:2015, this versatile coil serves critical roles in construction cladding, roofing systems, HVAC ductwork, and general structural applications. As a trusted steel supplier with over a decade of export experience, we deliver mill-direct DX51D coils to contractors, fabricators, and distributors across global markets.

What Is DX51D Galvanized Steel Coil?

DX51D refers to a specific grade of continuously hot-dip zinc coated low-carbon steel defined under European standard EN 10346. The "D" designation indicates the product is intended for cold forming operations, while "X51" specifies the base material's mechanical properties. This grade offers a guaranteed minimum yield strength and outstanding zinc adhesion, making it the preferred choice for applications demanding both corrosion resistance and workability.

DX51D galvanized steel coil supplier

DX51D Galvanized Steel Coil Technical Specifications

Each DX51D galvanized steel coil we supply is produced according to EN 10346:2015 with the following parameters:

DX51D galvanized steel coil wholesale

Property	Value
Standard	EN 10346:2015
Base Material	Low-carbon steel (C ≤ 0.12%)
Yield Strength	140–300 MPa
Tensile Strength	270–500 MPa
Elongation (A80)	≥ 22%
Zinc Coating	Z60–Z275 (60–275 g/m²)
Thickness Range	0.15–3.0 mm
Width Range	600–1500 mm
Coil Weight	3–8 MT per coil
Surface Treatment	Regular spangle, minimized spangle, chromate-free passivation, oiled

Key Applications of DX51D Zinc Coated Steel Coil

Building & Construction: Corrugated roofing sheets, wall cladding panels, purlins, and light-gauge steel framing
HVAC Systems: Air conditioning ducts, ventilation channels, and spiral pipe fabrication
Automotive Components: Non-structural body panels, underbody shields, and heat shields
Home Appliances: Washing machine housings, refrigerator back panels, and microwave enclosures
Agricultural Equipment: Grain silos, greenhouse frames, and livestock enclosures

Why Choose Our DX51D Galvanized Steel Coil?

Certified Quality: Every coil ships with an EN 10204 3.1 Mill Test Certificate verifying chemical composition, mechanical properties, and zinc coating mass
Flexible Coating Options: Available in Z60, Z80, Z100, Z120, Z150, Z180, Z200, and Z275 to match your project's anti-corrosion requirements
Precision Tolerances: Thickness tolerance controlled within ±0.02 mm per EN 10143:2006
Value-Driven Pricing: Direct partnerships with major steel mills enable factory-competitive rates without compromising traceability

Frequently Asked Questions

What is the minimum order quantity (MOQ) for DX51D galvanized coil?

Our standard MOQ is 25 metric tons per specification. For mixed container orders combining multiple thicknesses or zinc coatings, we accept a minimum of 10 MT total.

Do you provide material test certificates with each shipment?

Yes. Every DX51D galvanized steel coil is accompanied by an EN 10204 Type 3.1 Mill Test Certificate detailing chemical analysis, mechanical test results, and zinc coating weight per square meter.

What is the typical delivery time?

Stock items ship within 7–10 days from order confirmation. Custom-produced coils with specific zinc coating weights or non-standard widths require approximately 25–35 days from production scheduling.

DX51D galvanized steel coil China

Can you slit or cut DX51D coils to custom dimensions?

Absolutely. Our processing center offers precision slitting from 20 mm to 1500 mm width, cut-to-length sheets, and blanking services. All processing maintains the original zinc coating integrity per EN 10346 requirements.

Get a Competitive Quote for DX51D Galvanized Steel Coil

Ready to source reliable DX51D galvanized steel coil for your next project? Share your required thickness, width, zinc coating weight, and annual volume, and our technical sales team will respond with a detailed quotation within 24 hours. Contact us today to discuss your specifications and delivery schedule.
