Regular Spangle Galvanized Coil Manufacturer and GI Steel Coil Supplier

Regular Spangle Galvanized Coil is a hot-dip zinc-coated steel product distinguished by its visible, naturally formed crystalline surface pattern. It is intended for overseas distributors, roll formers, roofing manufacturers, ductwork producers, appliance component factories, and general metal fabricators that require corrosion protection together with a recognizable galvanized appearance. The product combines a formable steel substrate with a metallurgically bonded zinc coating, helping extend service life in suitable indoor and outdoor environments. Buyers can specify the substrate grade, dimensions, coating designation, surface treatment, coil weight, and inspection requirements according to the intended fabrication process and destination-market standard.

Regular Spangle Galvanized Coil Product Overview

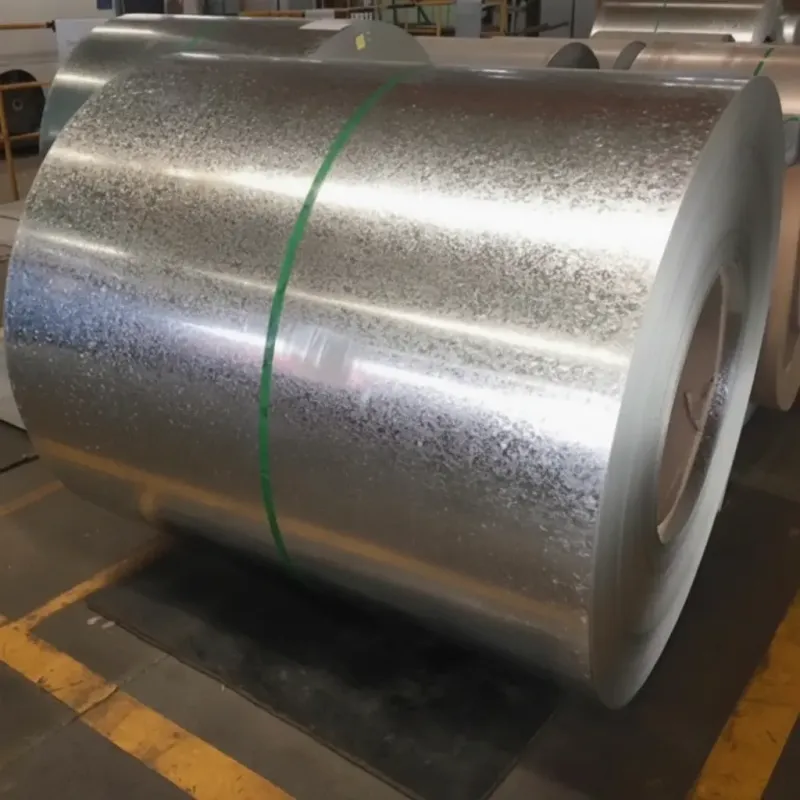

Regular Spangle Galvanized Coil is manufactured by passing a prepared carbon steel strip through a molten zinc bath in a continuous hot-dip galvanizing line. As the zinc coating cools and solidifies, zinc crystals develop into the visible pattern known as spangle. The size, contrast, and uniformity of this pattern may vary with steel chemistry, bath composition, cooling conditions, coating mass, line technology, and any subsequent skin-pass operation.

The term “regular spangle” describes surface appearance rather than a specific steel grade or guaranteed corrosion-resistance level. Structural performance is determined primarily by the base steel grade, while corrosion protection depends on coating type, coating mass or thickness, environmental exposure, fabrication damage, and maintenance. Procurement documents should therefore state both the required spangle appearance and the technical grade. Buyers comparing galvanized surfaces can review [[INTERNAL_LINK]] for related coating and finish options.

A Regular Spangle Galvanized Coil normally uses a low-carbon or structural steel substrate selected for forming, profiling, stamping, or load-bearing applications. The exact material must be agreed against the relevant specification. Commercial forming grades are commonly considered for roofing, ventilation, and light fabrication, while structural grades are selected when minimum yield strength is a design requirement. The suitability of any grade for deep drawing, severe bending, welding, or structural use must be verified before ordering.

Key product characteristics include a continuous zinc layer, visible crystalline texture, compatibility with common roll-forming operations, and availability with order-specific surface protection. Depending on the purchasing specification and production route, treatments may include passivation, oiling, passivation plus oiling, or another agreed protective system. These treatments can reduce storage staining or improve handling, but their compatibility with painting, bonding, welding, and local environmental regulations should be checked. Further fabrication guidance is available through [[INTERNAL_LINK]].

Regular Spangle Galvanized Coil Specifications & Standards

Regular Spangle Galvanized Coil should be ordered against a recognized product standard rather than by appearance alone. Applicable specifications may include ASTM A653/A653M for hot-dip zinc-coated or zinc-iron alloy-coated steel sheet, EN 10346 for continuously hot-dip coated steel flat products, JIS G 3302 for hot-dip zinc-coated steel sheet and strip, and GB/T 2518 for continuously hot-dip zinc-coated steel sheet and strip. The selected standard, grade, coating designation, dimensional tolerances, and inspection document must appear consistently on the purchase order, commercial invoice, packing list, and mill documentation.

Standard designations are not automatically interchangeable. ASTM, EN, JIS, and GB/T systems use different grade names, coating classifications, test methods, and acceptance rules. A commercial-quality grade under one system should not be substituted for a forming or structural grade under another without written technical approval. The following table provides a procurement framework; final values must follow the specified edition of the governing standard and the confirmed mill data sheet.

The following standards are commonly relevant to international Regular Spangle Galvanized Coil procurement:

• ASTM A653/A653M: covers steel sheet, zinc-coated or zinc-iron alloy-coated by the hot-dip process, including commercial, forming, drawing, and structural categories.
• EN 10346: specifies requirements for continuously hot-dip coated steel flat products, including zinc-coated products and several substrate categories.
• JIS G 3302: applies to hot-dip zinc-coated steel sheet and strip and defines relevant Japanese grade and coating designations.
• GB/T 2518: covers continuously hot-dip zinc-coated steel sheet and strip within the Chinese standard system.
• ISO 1460: provides a gravimetric method for determining the mass per unit area of hot-dip galvanized coatings on ferrous materials and may be relevant when an agreed coating-mass test is required.
• EN 10204: defines types of inspection documents for metallic products and can be specified contractually when buyers require documented test results.

Chemical composition and mechanical properties vary by grade and cannot be inferred from the spangle pattern. They should be reported and evaluated under the chosen product standard. A buyer should request the following controlled data rather than relying on a generic galvanized coil certificate:

Dimensional tolerance, flatness, camber, coil telescoping, surface defects, and coating adhesion should also be addressed in the purchase specification. For projects requiring narrower feedstock, Regular Spangle Galvanized Coil may be slit to agreed widths, subject to production capability and edge requirements. Related slit-coil information can be found at [[INTERNAL_LINK]], while guidance on coating designations is available at [[INTERNAL_LINK]].

Regular Spangle Galvanized Coil Applications

Regular Spangle Galvanized Coil is used where zinc corrosion protection, economical coil processing, and a traditional galvanized appearance are appropriate. Product suitability depends on exposure conditions, design life, grade, coating designation, forming severity, and maintenance rather than spangle visibility alone.

• Roofing and wall cladding: Roll formers use galvanized coil to produce corrugated sheets, roof panels, flashing, and non-prepainted cladding components. Outdoor use requires careful selection of coating mass, detailing, drainage, cut-edge protection, and local corrosion category. See [[INTERNAL_LINK]] for related roofing steel products.
• HVAC and ventilation systems: Ducts, plenums, fittings, and equipment housings can be fabricated from formable zinc-coated sheet. Buyers should specify forming performance, thickness tolerance, surface treatment, and whether the product will be painted, sealed, or welded.
• General fabrication: Workshops process Regular Spangle Galvanized Coil into channels, brackets, cable-management components, cabinets, partitions, and light-gauge profiles. Grade selection should reflect the required bending radius, hole-making process, stiffness, and service environment.
• Appliance and equipment components: Galvanized steel may be used for internal panels, backing parts, housings, and non-decorative components. Visible consumer surfaces often require tighter appearance controls or a different finish, so an approved sample is advisable.
• Agricultural and storage products: Suitable grades may be formed into bins, enclosures, ventilation parts, and supporting sheet-metal components. Exposure to fertilizers, animal waste, persistent condensation, or aggressive chemicals requires a project-specific corrosion assessment.

Regular spangle is generally chosen when the crystalline galvanized pattern is acceptable or intentionally visible. For painted, tightly controlled decorative, or highly uniform exposed surfaces, another galvanized finish or prepainted product may be more appropriate. Buyers can compare alternatives through [[INTERNAL_LINK]].

How to Choose Regular Spangle Galvanized Coil / Buying Guide

A procurement manager should begin with the finished component rather than selecting Regular Spangle Galvanized Coil solely from a price list. Provide a drawing, forming description, exposure environment, applicable standard, and annual or shipment quantity where possible. This gives the supplier enough information to confirm grade, coating, tolerance, and production route.

1. Define the governing specification. State ASTM A653/A653M, EN 10346, JIS G 3302, GB/T 2518, or another applicable specification, including the required edition if the contract demands it. Add the exact substrate grade and coating designation. Avoid mixing a grade from one standard with tolerances from another unless the requirements are explicitly reconciled.
2. Confirm dimensions and tolerances. Specify nominal thickness, width, edge condition, coil inside diameter, maximum or target coil weight, and permissible dimensional tolerances. Tell the supplier whether the material will run on a roll former, stamping press, slitter, or cut-to-length line. Equipment limits can be as important as product dimensions.
3. Set realistic appearance criteria. Regular spangle can vary in crystal size and contrast between coils or production lots. If the finished product depends on visual consistency, agree on reference samples, inspection lighting, viewing distance, and acceptance criteria before production. “Regular spangle” by itself does not guarantee an identical pattern.
4. Specify certification and testing. Request the required inspection document at the inquiry stage. Where EN 10204 documentation is needed, state the inspection document type contractually and confirm that the proposed supply route can provide it. Also list any third-party inspection, coating-mass test, dimensional report, or destination-country compliance document required.
5. Discuss MOQ and production quantity. Minimum order quantity depends on grade, coating, dimensions, line scheduling, coil splitting, packaging, and whether material is produced to order or available from stock. Request an item-by-item MOQ instead of assuming that one threshold applies to every specification.
6. Verify lead time. Lead time can include technical review, raw-material allocation, galvanizing, slitting, inspection, packing, inland transport, and export handling. Ask the supplier to separate estimated production time from shipping transit time and to confirm timing again after technical approval and payment conditions are settled.
7. Plan export packaging and logistics. Packaging should address moisture, handling, coil movement, edge protection, and the chosen transport mode. Confirm coil orientation, lifting method, package weight, container payload considerations, and discharge capability with the freight provider. Storage recommendations are discussed at [[INTERNAL_LINK]].

Payment terms should be agreed in the sales contract and aligned with order value, credit review, banking requirements, and trade practice. The quotation should clearly identify currency, Incoterms rule and named place, validity period, tax treatment where relevant, packaging basis, inspection responsibility, and the documents included. A technically complete inquiry reduces the risk of receiving quotations that appear comparable but cover different materials.

Regular Spangle Galvanized Coil Frequently Asked Questions

Q: What is Regular Spangle Galvanized Coil?

A: Regular Spangle Galvanized Coil is continuously hot-dip zinc-coated steel with a visible crystalline pattern formed as the molten zinc layer solidifies. “Regular spangle” identifies the surface appearance; it does not independently define the steel grade, coating mass, strength, or corrosion performance.

Q: What is the difference between regular spangle and zero spangle galvanized coil?

A: Regular spangle has clearly visible zinc crystals, while zero-spangle material has a visually minimized pattern and a more uniform-looking surface. The finish should be selected according to appearance, painting requirements, end use, and customer specification. Spangle size alone should not be used to compare zinc coating mass or service life.

Q: Which standards can be specified for Regular Spangle Galvanized Coil?

A: Common product standards include ASTM A653/A653M, EN 10346, JIS G 3302, and GB/T 2518. The correct choice depends on the destination market, engineering documents, product application, and contractual requirements. Buyers should specify the exact grade and coating designation within the selected standard.

Q: Can a supplier provide a material test certificate?

A: Certification can be arranged according to the contract and the supplier’s documented capability. State the required inspection document during the inquiry. If EN 10204 applies, identify the required document type rather than requesting a generic “MTC.” Confirm that heat or coil identification, mechanical test data, chemical composition, coating results, and dimensions are traceable as required.

Q: What is the minimum order quantity for Regular Spangle Galvanized Coil?

A: There is no universal MOQ. It varies with grade, thickness, width, coating designation, surface treatment, coil weight, production schedule, and stock availability. Standard stock dimensions may support a different quantity from custom-made or slit specifications. Submit a detailed item list to receive an applicable MOQ for each size.

Q: What payment methods are available for international orders?

A: Payment methods are subject to commercial agreement, banking arrangements, order value, customer credit assessment, and destination risk. Common international trade structures may be discussed during quotation, but the final method, deposit requirement, document release conditions, bank charges, and payment deadline should be written into the sales contract.

Q: How long does production and delivery take?

A: The schedule depends on specification approval, material availability, production planning, order volume, testing, packing, and transport. Production lead time and ocean or land transit time should be quoted separately. Custom grades, unusual widths, special packaging, or third-party inspection may require additional time.

Q: Can Regular Spangle Galvanized Coil be painted or powder coated?

A: It can be coated in suitable systems, but successful adhesion depends on surface treatment, cleanliness, pretreatment, coating chemistry, and process control. Some passivation or oil systems may require removal or may be incompatible with a chosen paint. Buyers should disclose the intended coating process and conduct representative adhesion trials before volume production. More information is available at [[INTERNAL_LINK]].

Q: Is regular spangle suitable for deep drawing?

A: Suitability for deep drawing depends on the substrate grade, mechanical properties, thickness, coating behavior, tool design, lubrication, and drawing severity. The visible spangle pattern does not establish formability. Specify a drawing-grade product under the chosen standard and complete a forming trial when the component has demanding geometry.

Q: How should galvanized coils be stored after arrival?

A: Coils should be kept dry, protected from condensation, and stored in stable conditions that prevent water from remaining between adjacent surfaces. Packaging should be inspected promptly after delivery. If moisture enters a package, the material should be separated, dried, and assessed without delay because prolonged trapped moisture can cause wet-storage staining.

Q: Does a larger spangle mean a heavier zinc coating?

A: No. Spangle appearance is influenced by solidification and production conditions and is not a reliable measurement of coating mass. Zinc coating compliance should be verified using the designation and test method required by ASTM A653/A653M, EN 10346, JIS G 3302, GB/T 2518, or the applicable contract.

Q: What information is needed for an accurate quotation?

A: Provide the product standard, substrate grade, coating designation, thickness, width, edge condition, surface treatment, required coil weight or inside diameter, quantity, packaging, inspection documentation, destination, and requested Incoterms rule. Include the application and forming process when technical confirmation is needed.

Send your Regular Spangle Galvanized Coil specification, required quantity, destination, certification needs, and intended application to request a technical review and itemized quotation. Detailed inquiries allow the supplier to confirm standards, dimensions, coating requirements, production feasibility, packaging, and estimated delivery schedule before an order is placed.
