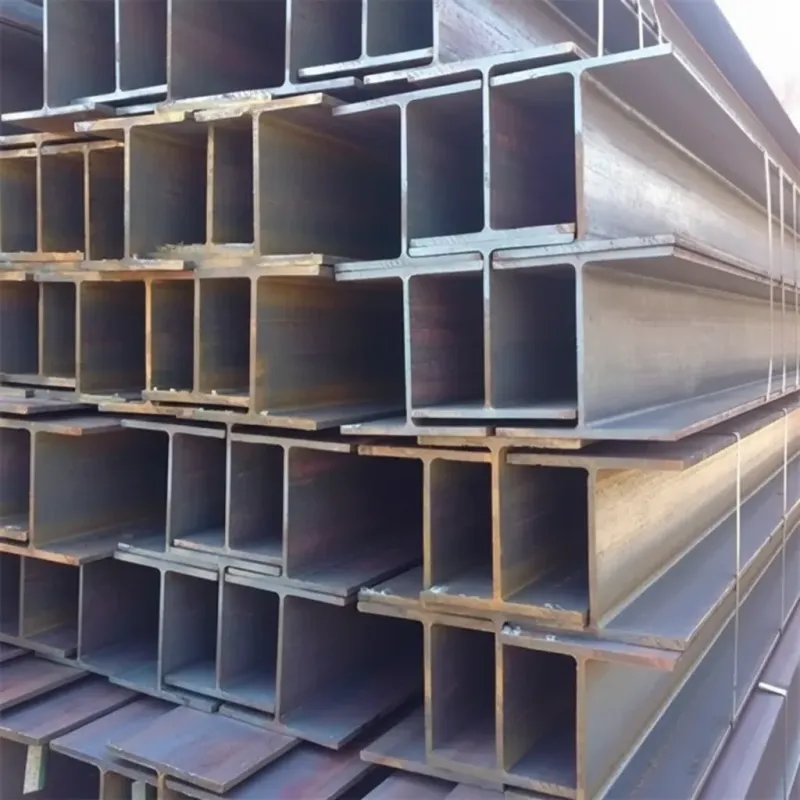

H Beam Steel Sizes - ASTM Certified Mill Direct Supplier
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 ton
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of H Beam Steel Sizes
| Property | Parameter | Description |
|---|---|---|
| Product Name | H Beam Steel | Hot-rolled wide flange H-shaped structural steel beam |
| Material Grade | A36 / SS400 / S235JR / Q235B / S355JR / A992 | International equivalent grades: ASTM A36 ≈ SS400 ≈ S235JR ≈ Q235B; ASTM A992 ≈ S355JR ≈ Q345B |
| Standard Compliance | ASTM A6/A6M, EN 10034, JIS G3192, GB/T 11263 | Dimensional and mass tolerances per respective national and international standards |
| Chemical Composition (C) | ≤ 0.26% (A36) / ≤ 0.23% (S355JR) | Carbon content controlling weldability and hardness |
| Chemical Composition (Mn, Si, P, S) | Mn ≤ 1.60%, Si ≤ 0.50%, P ≤ 0.035%, S ≤ 0.035% | Manganese enhances strength; P and S strictly limited to ensure toughness |
| Tensile Strength | 400–550 MPa (S235JR); 470–630 MPa (S355JR); 400–550 MPa (A36) | Per EN 10025-2 and ASTM A6; higher grades available upon request |
| Yield Strength | ≥ 235 MPa (S235JR / A36); ≥ 345 MPa (S355JR / Q345B) | Minimum yield strength for structural design calculations per EN/ASTM/GB standards |
| Elongation | ≥ 20% (S235JR); ≥ 22% (A36); ≥ 20% (S355JR) | Measured on gauge length L₀ = 5.65√S₀; ensures ductility for seismic and dynamic loads |
| H Beam Size Range (Height × Flange Width) | 100×100 mm to 900×300 mm (HW/HM/HN series) | HW (wide flange): H=B; HM (medium): H≈1.33B; HN (narrow): H≈2B; custom sizes available |
| Web Thickness / Flange Thickness | Web: 5.5–16 mm; Flange: 8–28 mm | Varies by section designation; heavier sections available for high-load applications |
| Standard Length | 6 m, 9 m, 12 m (standard); up to 18 m (custom) | Fixed lengths per mill standard; cut-to-length service available with ±50 mm tolerance |
| Surface Finish | Black (as-rolled), Shot Blasted, Primer Painted, Hot-Dip Galvanized | Standard mill finish is black; galvanized coating ≥ 85 μm per ISO 1461 for corrosion protection |
| Application | Building frames, bridges, industrial plants, columns, crane runways, offshore structures | Widely used in multi-story buildings, heavy machinery bases, and civil engineering projects |
| Certification | ISO 9001:2015, CE Marking (EN 10025), Mill Test Certificate (EN 10204 3.1/3.2) | Third-party inspection by SGS, BV, TÜV available; full traceability documentation provided |
| Packaging | Bundle with steel wire/strip; 2–5 MT per bundle | Bundled with dunnage and end caps; sea-worthy export packing with moisture-proof wrapping available |
| MOQ | 25 MT per size/grade | Mixed container orders accepted; spot stock available for standard sizes (100×100 to 400×200 mm) |
H Beam Steel Sizes - ASTM Certified Mill Direct Supplier
H beam steel sizes are a critical specification factor for engineers, procurement managers, and construction professionals seeking structural reliability and load-bearing precision. As an ASTM-certified mill direct supplier, we offer a comprehensive range of H beam dimensions engineered to meet the most demanding structural applications — from high-rise building frameworks and industrial warehouses to bridge girders and heavy equipment platforms. Our H beams are manufactured under rigorous quality control protocols, ensuring dimensional accuracy within ±0.5 mm tolerances and consistent mechanical properties across every production batch. Whether you require standard wide flange sections or custom-cut lengths, our mill-direct supply chain eliminates intermediary markups, delivering superior quality structural steel at cost-effective rates. With in-house metallurgical testing, certified mill test reports (MTRs), and global logistics support, we are your trusted partner for sourcing H beam steel in any size, grade, or quantity.
What is H Beam Steel Sizes?
H beam steel sizes refer to the standardized dimensional classifications of H-shaped structural steel sections, defined by flange width, web height, and wall thickness. Conforming to ASTM A6, EN 10034, and GB/T 11263 standards, these sections are designated by depth × flange width × weight per meter — for example, W8×31 or HW200×200. The symmetrical H-profile distributes stress evenly, making it the preferred choice for load-bearing columns and beams in structural engineering applications worldwide.
H Beam Steel Sizes Technical Specifications
Our H beam steel inventory covers a broad dimensional range to accommodate diverse structural requirements:
| Section Designation | Depth (mm) | Flange Width (mm) | Web Thickness (mm) | Flange Thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| HW100×100 | 100 | 100 | 6.0 | 8.0 | 17.2 |
| HW150×150 | 150 | 150 | 7.0 | 10.0 | 31.5 |
| HW200×200 | 200 | 200 | 8.0 | 12.0 | 50.5 |
| HW250×250 | 250 | 250 | 9.0 | 14.0 | 72.4 |
| HW300×300 | 300 | 300 | 10.0 | 15.0 | 94.0 |
| HW350×350 | 350 | 350 | 12.0 | 19.0 | 137.0 |
| HW400×400 | 400 | 400 | 13.0 | 21.0 | 172.0 |
All sections are produced from Grade Q235B, Q345B, A36, or A572 Gr.50 steel, achieving a minimum yield strength of 345 MPa and tensile strength ranging from 470–630 MPa per ASTM A992 requirements. Standard mill lengths are 6 m, 9 m, and 12 m, with custom cutting available. Surface finish options include bare mill scale, shot blasting to Sa2.5, or hot-dip galvanizing for outstanding anti-corrosion properties in corrosive environments.
Get a Competitive Quote for H Beam Steel Sizes
Ready to source H beam steel sizes at mill-direct rates? Our technical team is on hand to match the precise section, grade, and length to your project specifications — ensuring zero material waste and on-time delivery to your job site or port of destination.
- 24/7 customer support available
- Free samples for quality evaluation
- Competitive pricing for bulk orders
- Professional technical consultation
Contact us today to get your free quote within 24 hours!
