Cold Formed C Channel - ASTM Certified Steel Manufacturer
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 ton
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
Technical Specifications of Cold Formed C Channel
| Property | Parameter | Description |
|---|---|---|
| Product Name | Cold Formed C Channel | Cold formed steel C channel section for structural and general construction use |
| Material Grade | Q235B / Q345B / SS400 / S235JR / S355JR / ASTM A36 | Multiple international equivalent grades available upon request |
| Standard Compliance | GB/T 6725, ASTM A1011, EN 10162, JIS G 3350 | Manufactured in accordance with international cold forming standards |
| Carbon (C) | ≤ 0.20% | Typical value for Q235B/A36 grade; ensures good weldability |
| Manganese (Mn) | ≤ 1.40% | Enhances strength and hardness of the steel matrix |
| Phosphorus (P) | ≤ 0.035% | Controlled to minimize brittleness |
| Sulfur (S) | ≤ 0.035% | Kept low to improve ductility and toughness |
| Silicon (Si) | ≤ 0.35% | Acts as deoxidizer during steelmaking process |
| Tensile Strength | 370 – 510 MPa | Per ASTM A36 / GB/T 700 standard requirements |
| Yield Strength | 235 – 345 MPa | Varies by material grade; Q345B ≥ 345 MPa, Q235B ≥ 235 MPa |
| Elongation | ≥ 20% | Measured on standard gauge length specimen per applicable standard |
| Dimensions | Height: 50 – 300 mm; Flange: 30 – 100 mm; Thickness: 1.5 – 6.0 mm; Length: 6 – 12 m | Custom sizes available; tolerances per GB/T 6725 or EN 10162 |
| Surface Finish | Hot-dip galvanized / Painted / Black (mill finish) | Galvanized coating thickness typically 40 – 275 g/m² per ASTM A653 |
| Application | Steel structures, purlins, wall girts, framing systems, solar mounting brackets, warehouse construction | Widely used in prefabricated buildings and light steel frame systems |
| Certification | ISO 9001, SGS, BV, CE, Mill Test Certificate EN 10204 3.1 | Third-party inspection and testing reports available on request |
| Packaging | Bundled with steel strips, waterproof paper or plastic wrap, tagged for identification | Seaworthy export packaging; customized packing per buyer requirements |
| MOQ | 5 Metric Tons | Smaller trial orders negotiable; lead time varies by quantity |
Cold Formed C Channel - ASTM Certified Steel Manufacturer
Cold formed C channel is a versatile structural steel section manufactured through precision roll forming or press braking of flat steel coils at ambient temperature. Unlike hot-rolled channels, the cold forming process preserves tighter dimensional tolerances, produces cleaner surface finishes, and achieves enhanced mechanical properties through strain hardening. As a leading steel manufacturer with over 15 years of production experience, we supply premium-grade cold formed C channels to construction firms, solar racking installers, and industrial fabricators across 40+ countries. Our products conform to ASTM A1011, ASTM A572, and EN 10162 standards, ensuring consistent quality for structural framing, curtain wall support systems, cable trays, and purlins in pre-engineered metal buildings.
What Is Cold Formed C Channel?

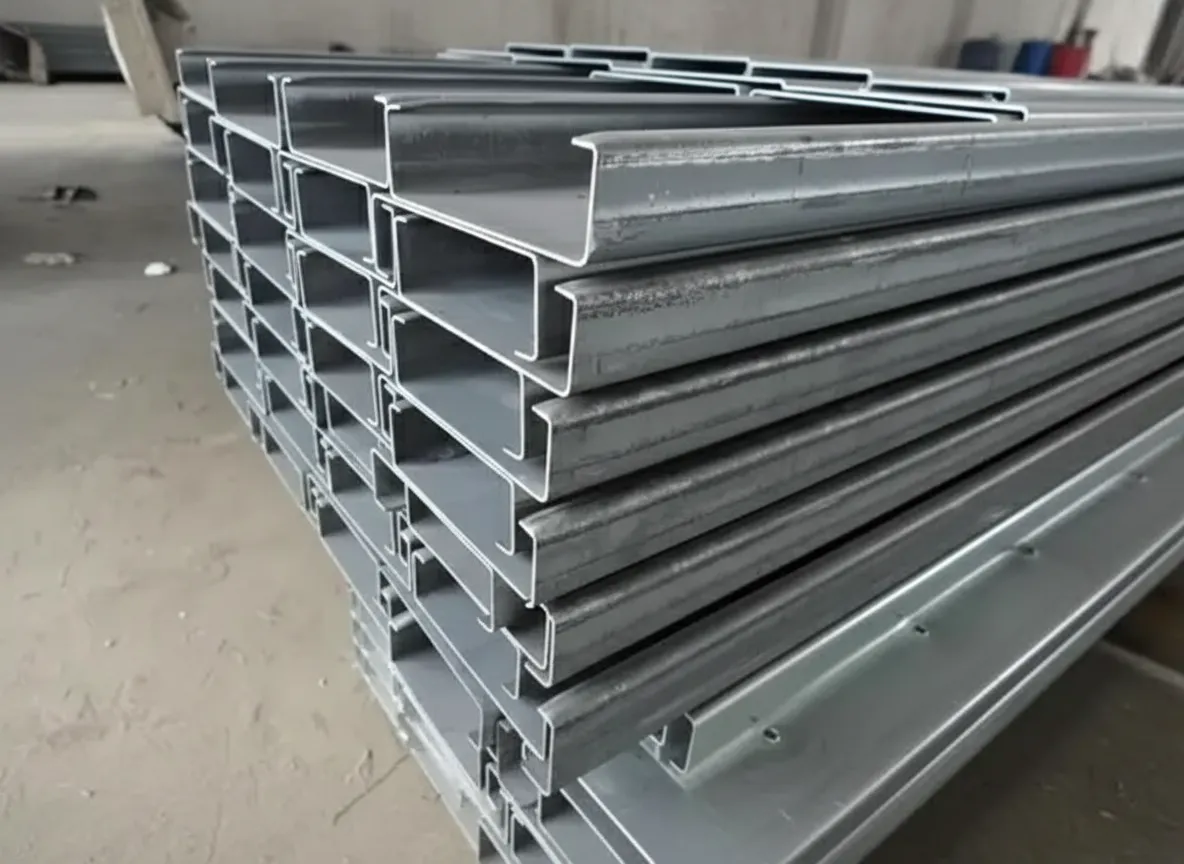

A cold formed C channel is a structural steel profile with a distinctive C-shaped cross section consisting of a web, two flanges, and optional lip stiffeners. It is produced by progressively bending steel strip or sheet—typically ASTM A36, A572 Grade 50, or galvanized G90 coil—through a series of roll forming dies without applying heat. This cold working process increases the yield strength by approximately 15%–20% over the base material, resulting in a minimum yield strength of 345 MPa (50 ksi) for Grade 50 material and a tensile strength of 450 MPa (65 ksi) minimum. The finished section features sharp corners with inside bend radii as tight as 1.0t–2.0t (where t = material thickness), delivering a high strength-to-weight ratio that reduces overall structural dead load.
Cold Formed C Channel Technical Specifications
Our cold formed C channel product line covers a comprehensive range of dimensions to meet diverse engineering requirements. Below are the key technical parameters:
- Web depth: 75 mm to 300 mm (3″ to 12″)
- Flange width: 35 mm to 100 mm (1.375″ to 4″)
- Material thickness: 1.2 mm to 6.0 mm (18 gauge to 4 gauge)
- Lip depth: 10 mm to 25 mm for lipped configurations
- Standard length: 6,000 mm, 9,000 mm, or 12,000 mm; custom lengths available
- Steel grades: ASTM A36 (Fy = 250 MPa), ASTM A572 Gr.50 (Fy = 345 MPa), S350GD+Z per EN 10346
- Surface treatment: Hot-dip galvanized (Z120–Z275 coating), pre-galvanized, or mill finish
- Dimensional tolerance: Web depth ±1.0 mm, flange width ±0.8 mm per ASTM A1011
- Section properties: Moment of inertia from 28 cm⁴ (C75×35×1.5) up to 1,520 cm⁴ (C300×100×6.0)
All products undergo in-house quality inspection including dimensional verification, tensile coupon testing per ASTM A370, and zinc coating thickness measurement via magnetic induction method. Mill test certificates (MTC) conforming to EN 10204 Type 3.1 are provided with every shipment.
Applications of Cold Formed C Channels in Modern Construction
Cold formed C channels serve critical roles across a wide spectrum of structural and non-structural applications. In pre-engineered metal buildings, they function as roof purlins and wall girts, spanning distances up to 9 meters between primary frames. The solar energy sector relies on galvanized C channels as mounting rails for photovoltaic panel support structures, where the G90 zinc coating (275 g/m² minimum) delivers outstanding anti-corrosion properties for 25+ year service life. Additional applications include mezzanine floor framing, drywall stud partitions, electrical cable tray systems, greenhouse frameworks, and modular storage rack uprights. The lightweight profile—typically 40%–60% lighter than equivalent hot-rolled sections—reduces transportation costs and simplifies on-site handling without sacrificing load-bearing capacity.
Get a Competitive Quote for Cold Formed C Channel
Partner with a certified manufacturer offering mill-direct rates and flexible order quantities from 5 metric tons. Whether you need standard catalog sizes or custom-designed profiles, our engineering team provides full technical consultation to optimize your project specifications.
- 24/7 customer support available
- Free samples for quality evaluation
- Competitive pricing for bulk orders
- Professional technical consultation
Contact us today to get your free quote within 24 hours!
Ratings & Reviews
Know your supplier
Factory Introduction
Hongji Profiles Co., Ltd. is a professional manufacturer and supplier specializing in the R&D, production and sales of high-quality steel profiles. With years of experience in the metallurgical industry, we have earned a solid reputation for reliability, precision and customer-centric service, providing global clients with premium steel profile solutions for diverse industrial and architectural needs.
Our core business covers a full range of steel profiles, including angle steel, channel steel, I-beams, H-beams, C-section steel, Z-section steel, flat steel and custom special steel profiles. These products are widely applied in building structures, bridges, transmission towers, industrial machinery, automotive components and shipping. We strictly control material selection, adopting high-quality steel grades such as S235JR, S355JR, SS400, A36 and Q355 series to ensure excellent mechanical properties, durability and corrosion resistance.
