| Property | Parameter | Description |
|---|---|---|

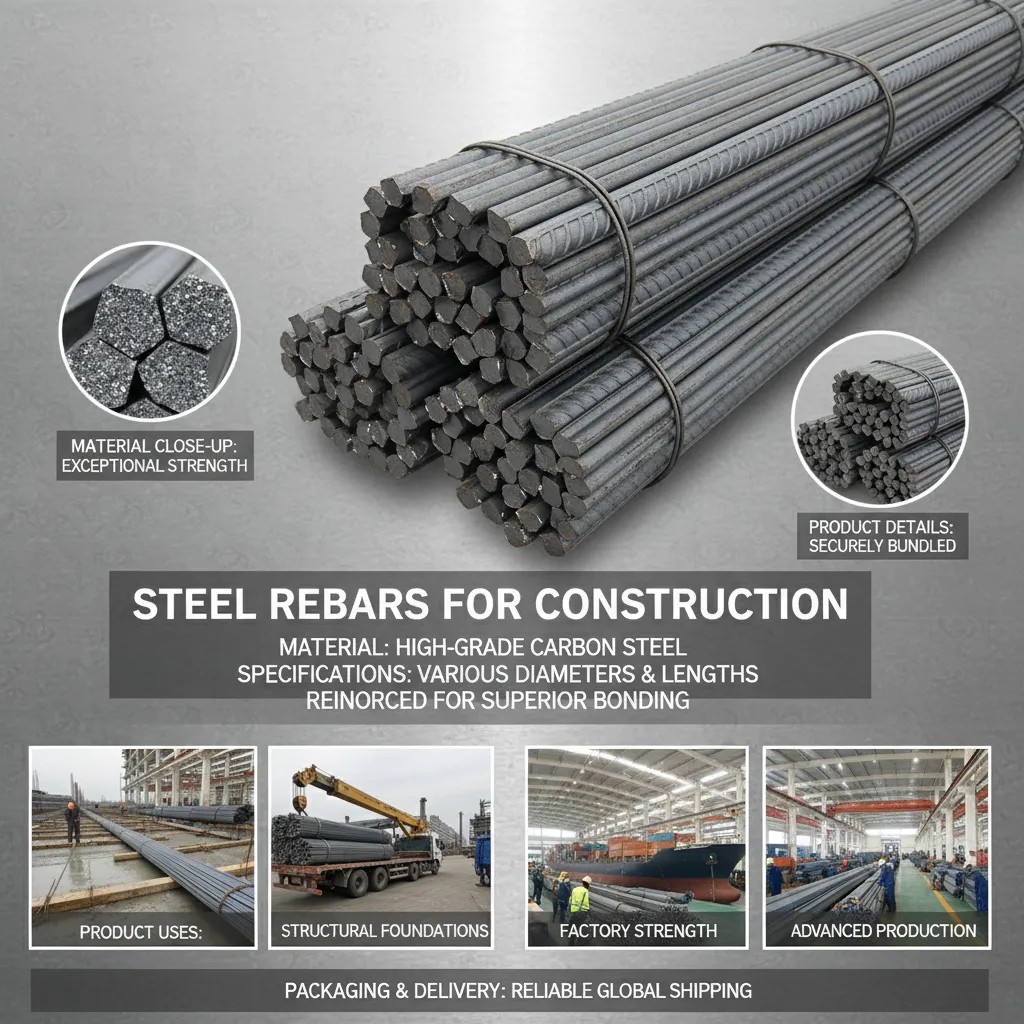

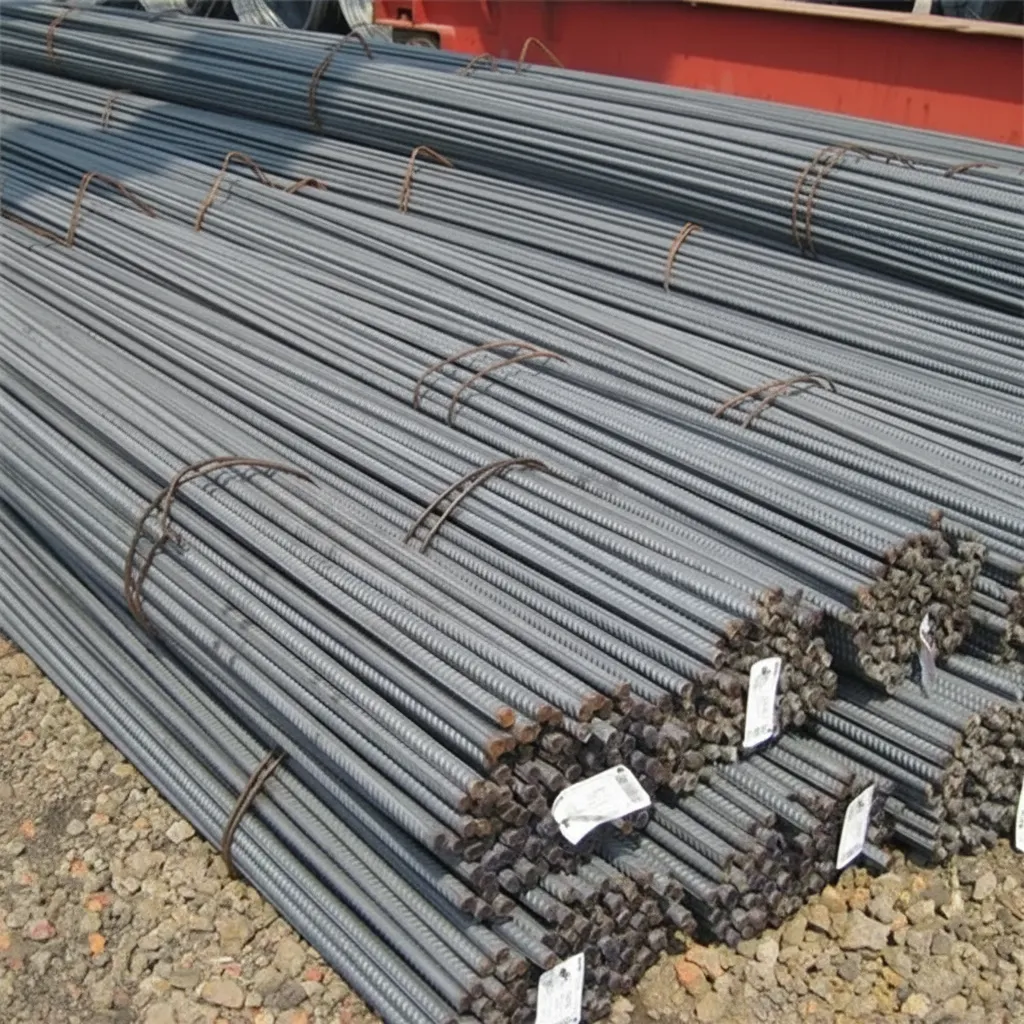

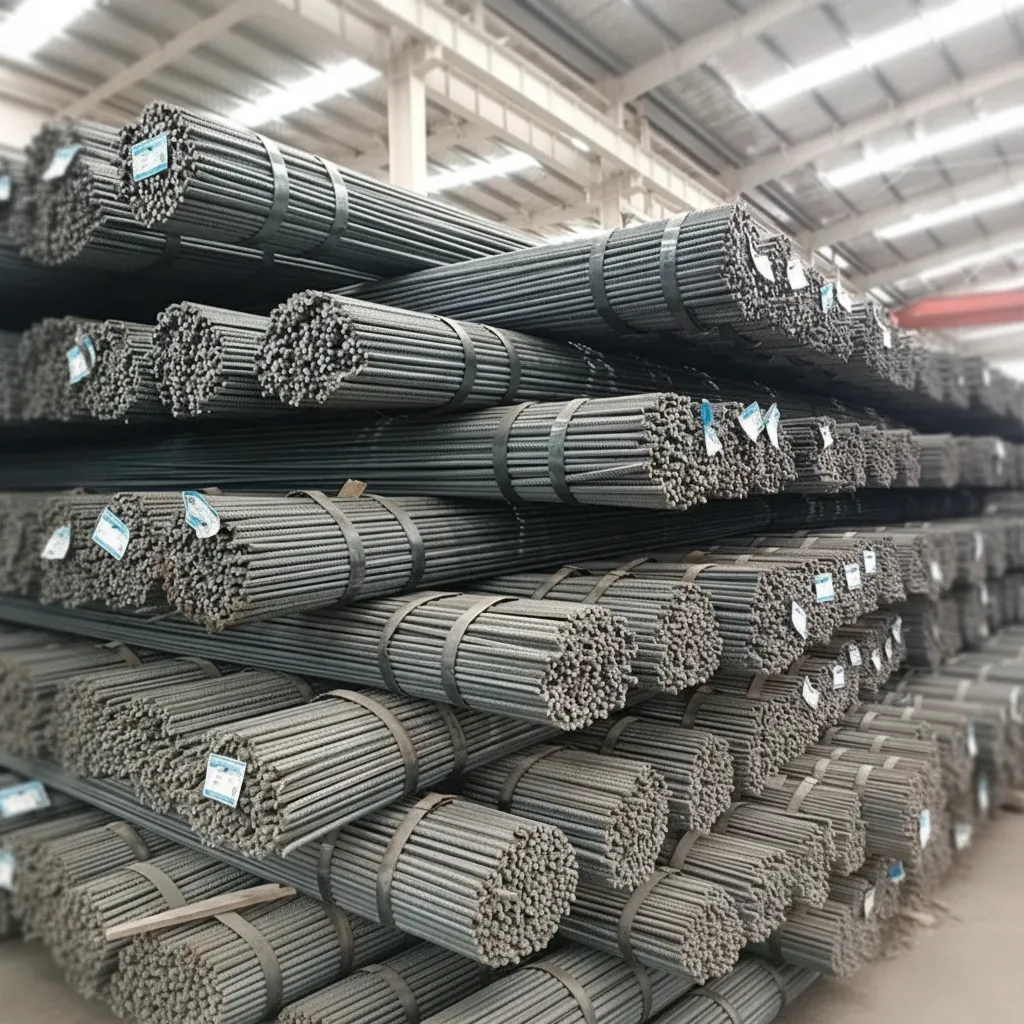

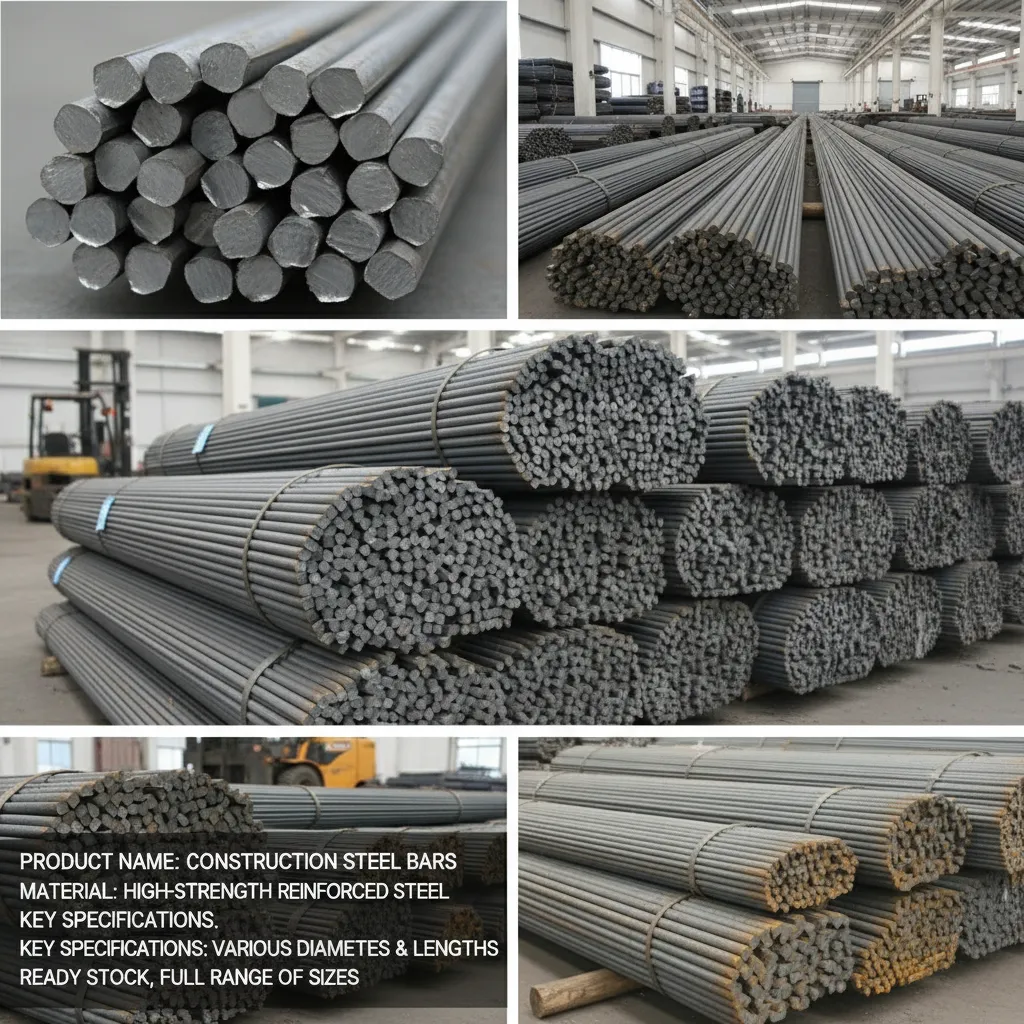

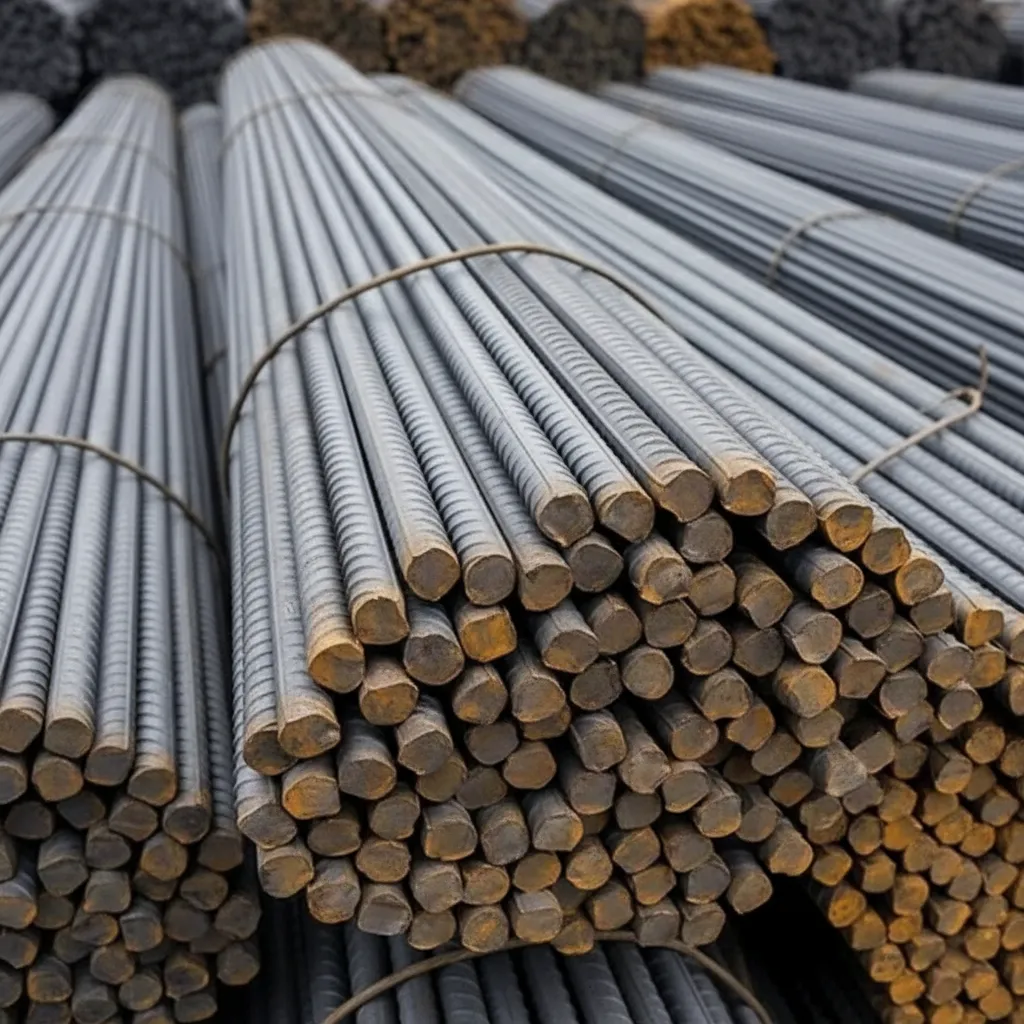

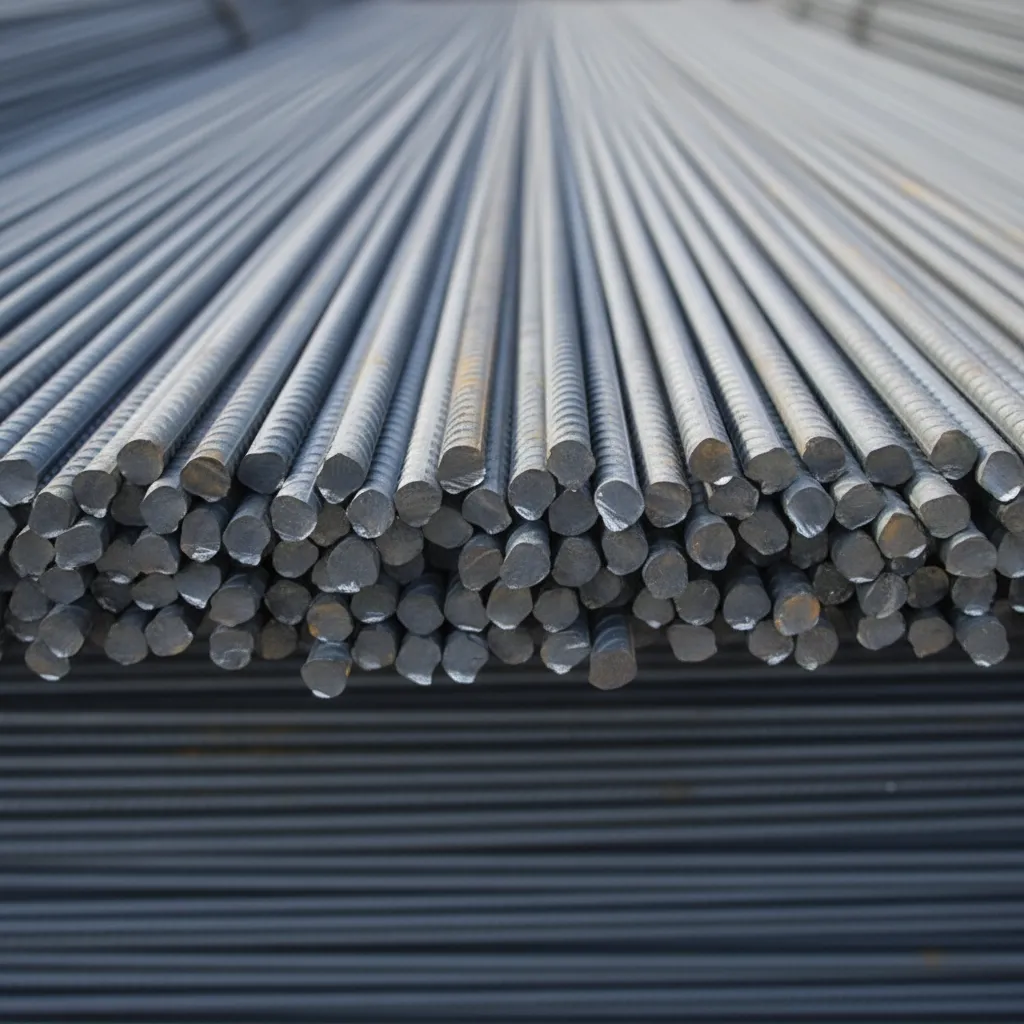

| Product Name | Reinforcing Steel Bars for Construction | Deformed and plain steel rebars used for concrete reinforcement in structural applications |
| Material Grade | HRB400 / HRB500 / Grade 60 / B500B | Equivalent grades: ASTM A615 Gr.60, EN 10080 B500B, GB/T 1499.2 HRB400/HRB500, JIS G3112 SD390 |
| Standard Compliance | ASTM A615 / EN 10080 / GB/T 1499.2 / JIS G3112 | Manufactured and tested in accordance with international construction and structural standards |
| Chemical Composition (C) | ≤ 0.25% | Carbon content controlled to ensure weldability and ductility |
| Chemical Composition (Mn) | ≤ 1.60% | Manganese enhances strength and hardenability |
| Chemical Composition (P) | ≤ 0.045% | Phosphorus limited to prevent brittleness |
| Chemical Composition (S) | ≤ 0.045% | Sulfur controlled to maintain toughness and ductility |
| Chemical Composition (Si) | ≤ 0.80% | Silicon acts as a deoxidizer and strengthening element |
| Tensile Strength | ≥ 570 MPa (HRB400) / ≥ 630 MPa (HRB500) | Per GB/T 1499.2; ASTM A615 Gr.60: ≥ 620 MPa; EN B500B: ≥ 540 MPa |
| Yield Strength | ≥ 400 MPa (HRB400) / ≥ 500 MPa (HRB500) | Per GB/T 1499.2; ASTM A615 Gr.60: ≥ 420 MPa; EN B500B: ≥ 500 MPa |
| Elongation | ≥ 16% (HRB400) / ≥ 15% (HRB500) | Minimum elongation at fracture ensuring structural ductility and seismic performance |
| Diameter Range | 6 mm – 50 mm | Common sizes: Φ6, Φ8, Φ10, Φ12, Φ16, Φ20, Φ25, Φ32, Φ40, Φ50 mm |
| Length | 6 m / 9 m / 12 m or custom | Standard mill lengths; custom cutting available per project requirement |

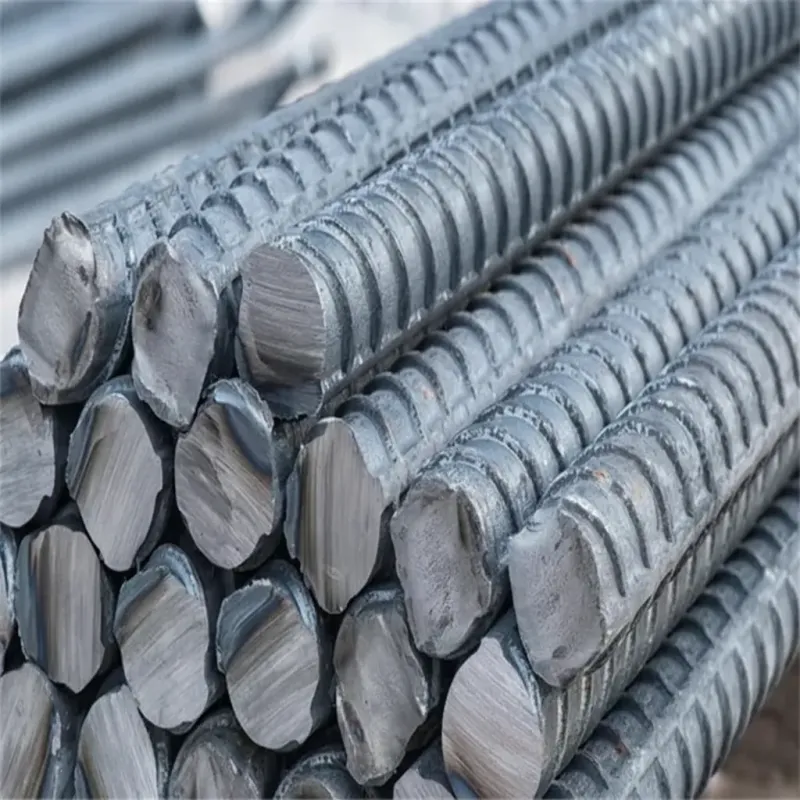

| Surface Finish | Deformed (ribbed) / Plain (smooth) | Deformed bars with transverse ribs for superior concrete bond; plain bars for specific structural uses |
| Application | Buildings, bridges, tunnels, foundations, retaining walls | Widely used in reinforced concrete (RC) and prestressed concrete structures in civil and infrastructure projects |
| Certification | ISO 9001, CE Marking, Mill Test Certificate (MTC) | Third-party inspection available; certificates per EN 10204 Type 3.1 upon request |

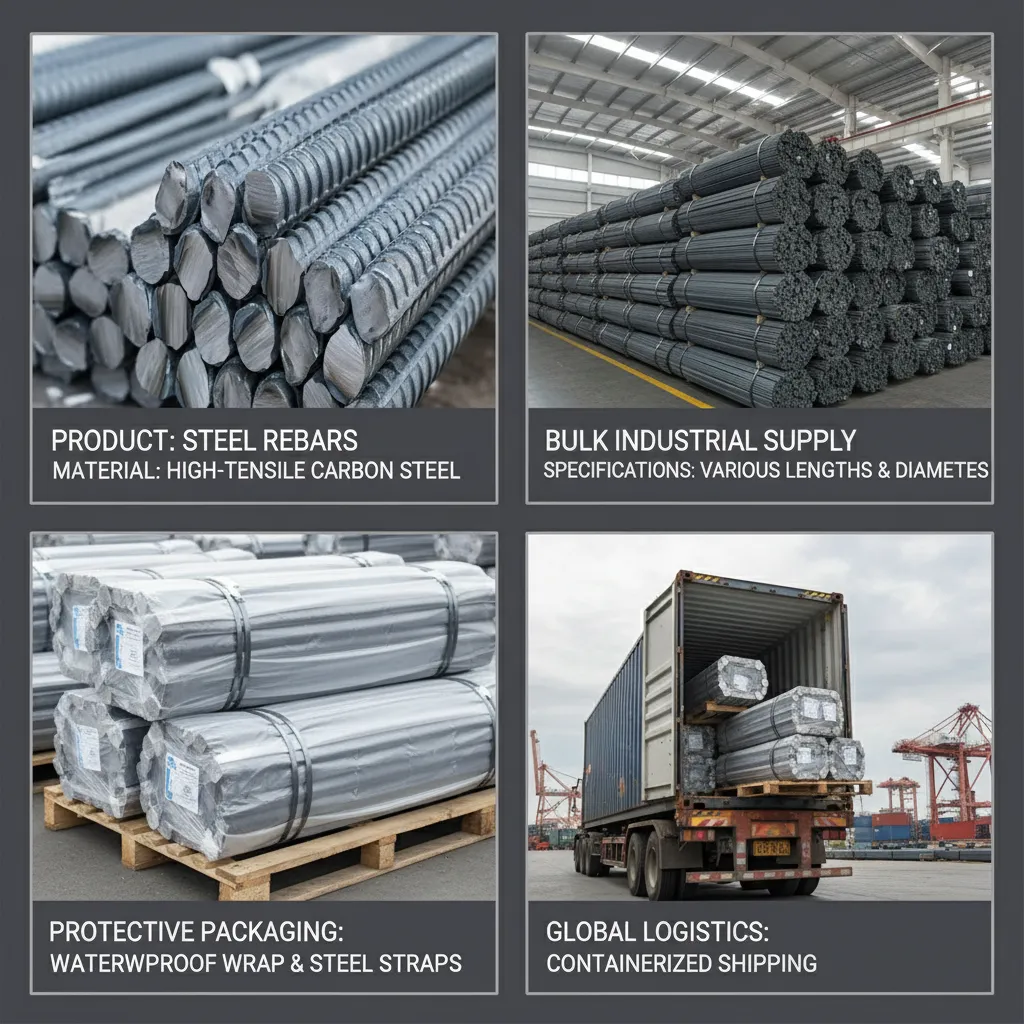

| Packaging | Bundled in 2–5 MT bundles with steel wire binding | Bundles tagged with heat number, grade, and standard; seaworthy packing available for export |
| MOQ | 25 MT per size/grade | Mixed container orders accepted; bulk shipment available for large construction projects |
Initial shipment had surface rust on outer bundles — issue resolved satisfactorily
Our first order of 180 MT of ASTM A615 Grade 60 #5 and #8 bars arrived with moderate surface rust on the outermost bundles, likely from extended port storage during transit delays. We raised the issue immediately. The supplier's QC team reviewed our photos within 12 hours, confirmed the rust was superficial and within ASTM permissible limits, and provided a written technical clarification for our project engineer. They also arranged additional protective wrapping at no cost for our follow-up order. The rebar itself tested fine — yield 431 MPa, elongation 10.1%. Issue handled professionally; will reorder with improved packaging agreed.
