| Property | Parameter | Description |
|---|---|---|

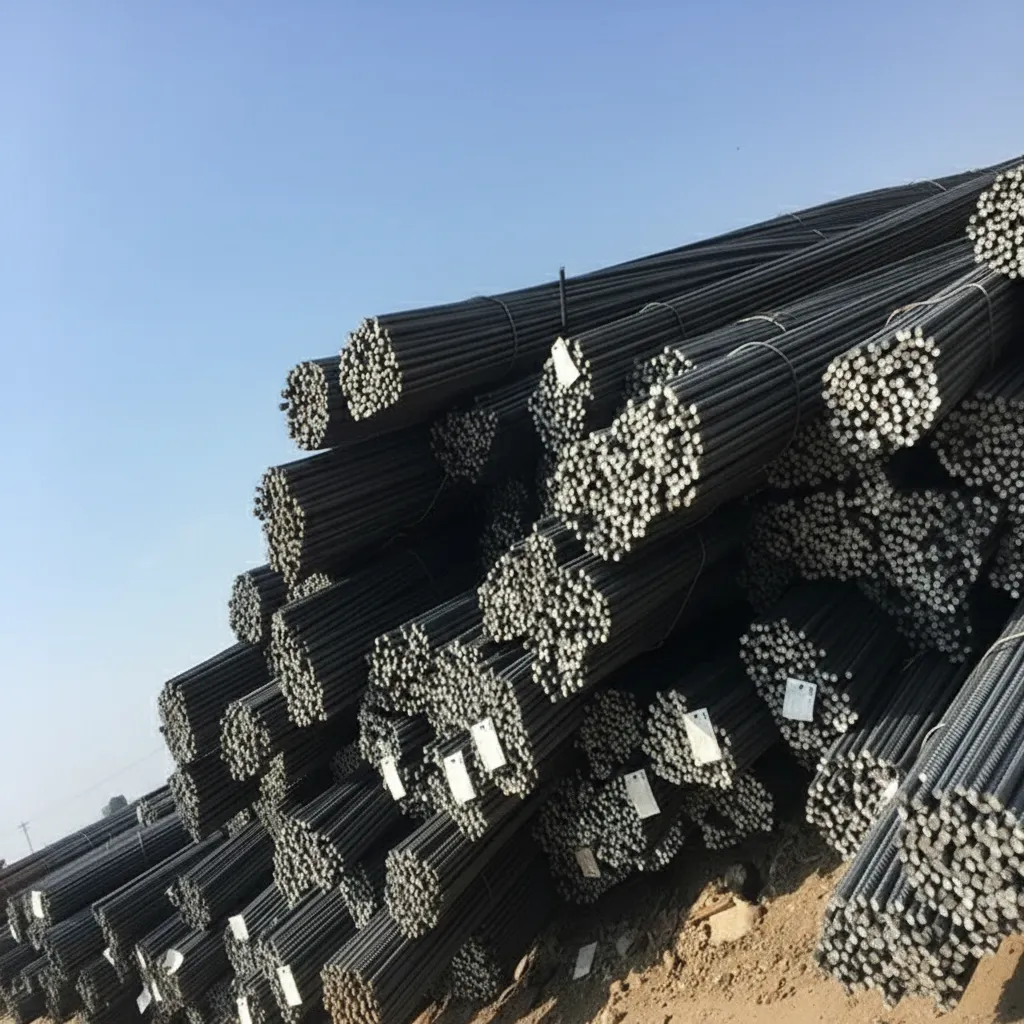

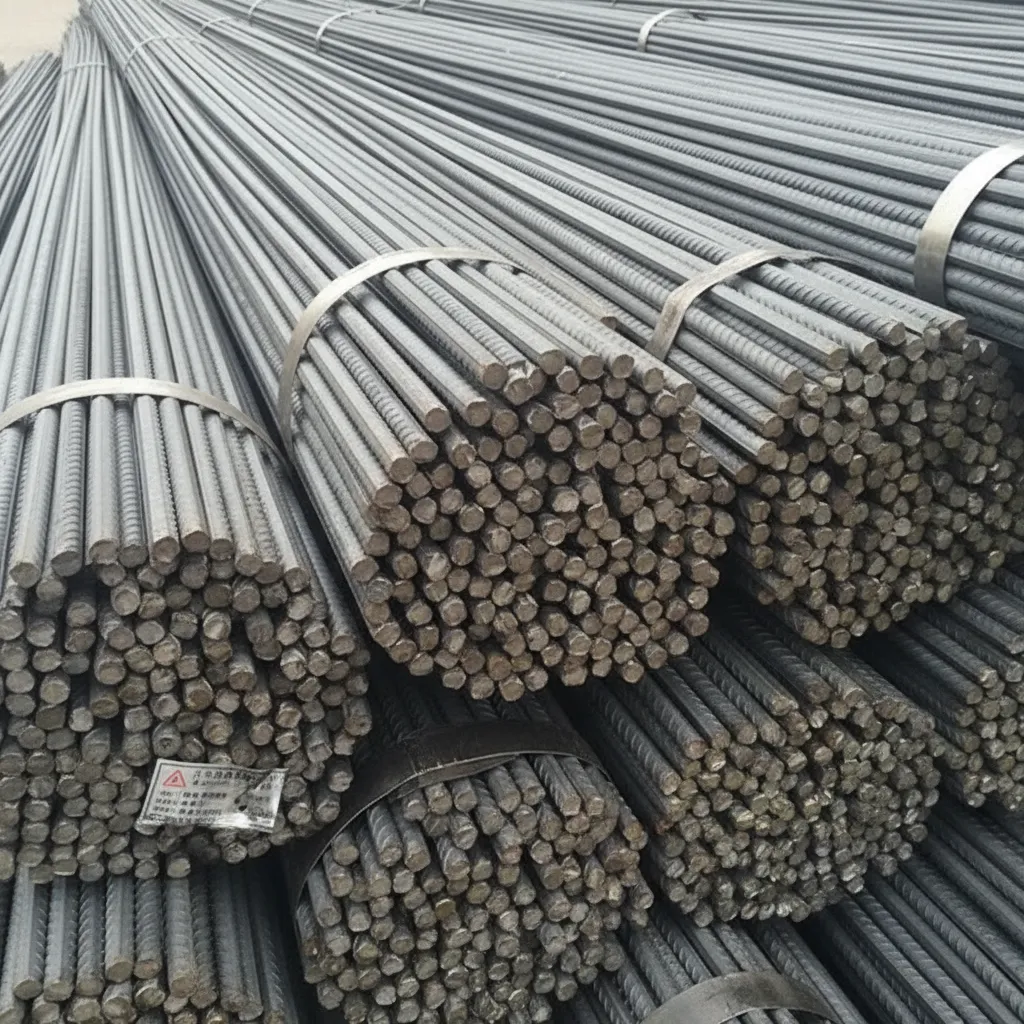

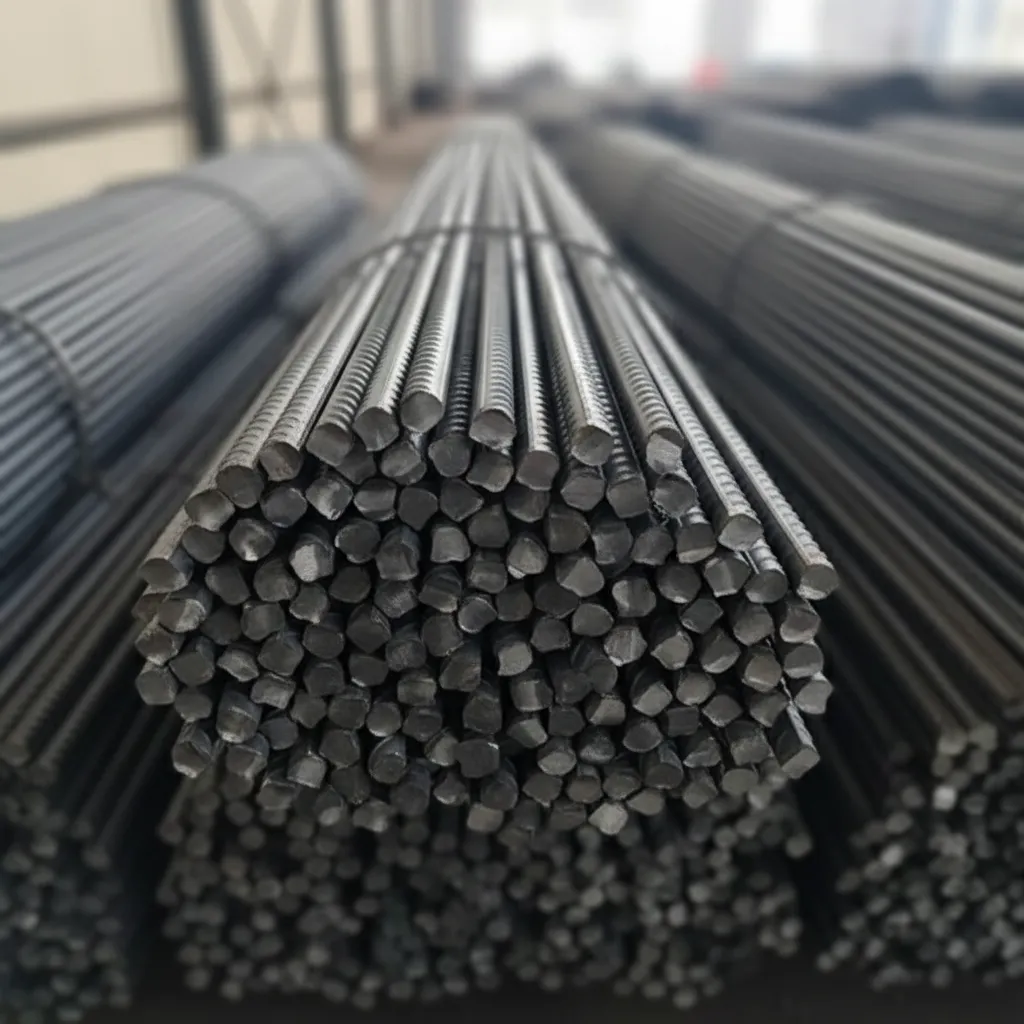

| Product Name | Construction Steel Rebar Bars | Deformed steel reinforcing bars for concrete structures |
| Material Grade | HRB400 / HRB500 / SD400 / Grade 60 | Equivalent to BS4449 B500B, ASTM A615 Gr.60, EN 10080 B500 |
| Standard Compliance | ASTM A615 / A706, EN 10080, GB/T 1499.2, JIS G3112 | Meets international structural reinforcement standards |
| Chemical Composition (C) | ≤ 0.25% | Carbon content controlling weldability and hardness |
| Chemical Composition (Mn) | ≤ 1.60% | Manganese enhances tensile strength and toughness |
| Chemical Composition (P / S) | P ≤ 0.045% / S ≤ 0.045% | Phosphorus and sulfur limits per ASTM A615 / EN 10080 |
| Chemical Composition (Si) | ≤ 0.80% | Silicon improves strength and deoxidation |
| Tensile Strength | ≥ 540 MPa (HRB400) / ≥ 630 MPa (HRB500) | Per GB/T 1499.2; ASTM A615 Gr.60: ≥ 620 MPa |
| Yield Strength | ≥ 400 MPa (HRB400) / ≥ 500 MPa (HRB500) | Per GB/T 1499.2; ASTM A615 Gr.60: ≥ 420 MPa |
| Elongation | ≥ 16% (HRB400) / ≥ 15% (HRB500) | Minimum elongation at fracture per GB/T 1499.2 |
| Diameter Range | 6 mm – 50 mm | Common sizes: 8, 10, 12, 16, 20, 25, 32, 40 mm |
| Length | 6 m / 9 m / 12 m or custom | Standard mill lengths; custom cutting available |

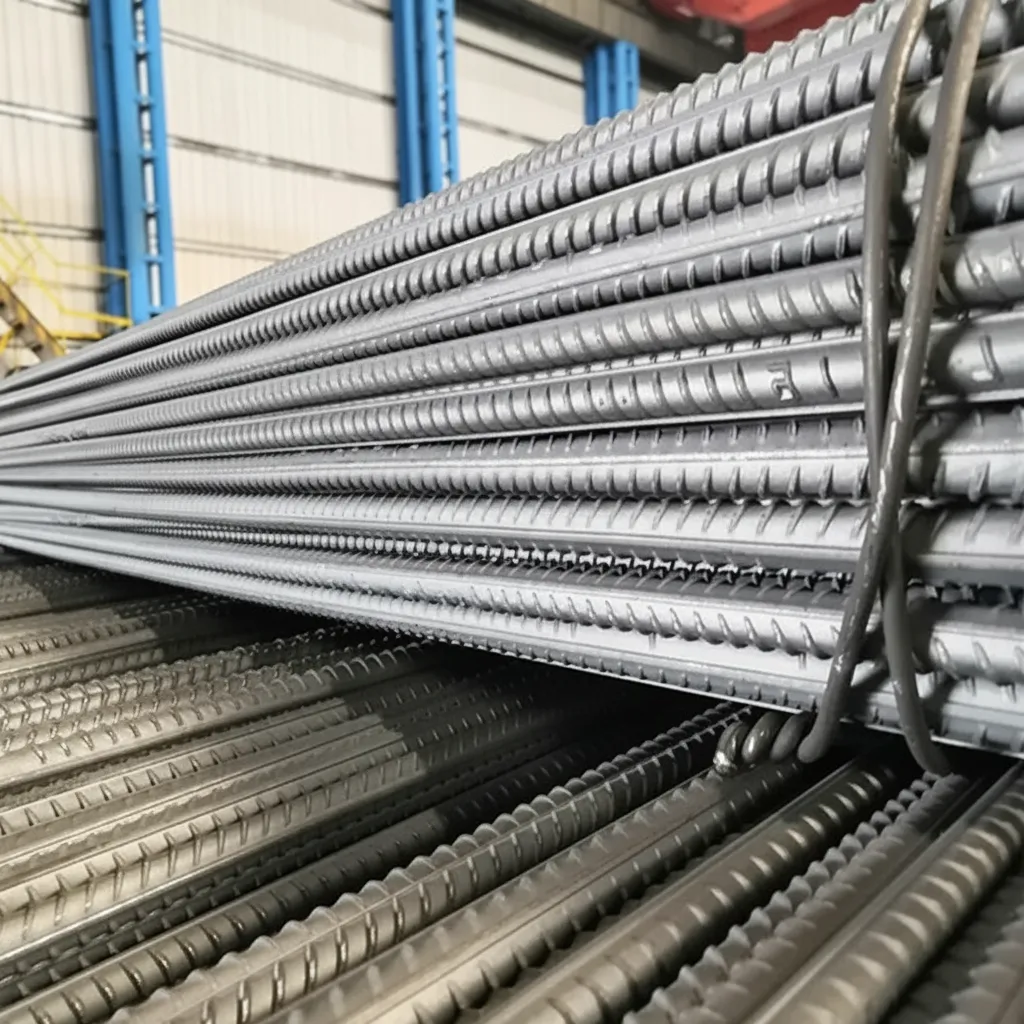

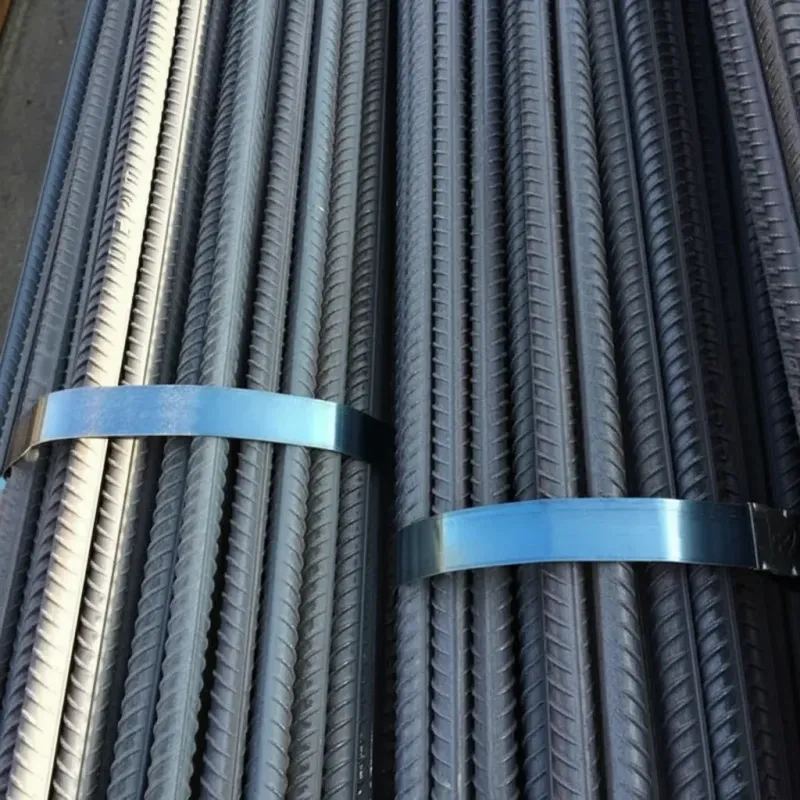

| Surface Finish | Hot-rolled deformed (ribbed) surface | Transverse and longitudinal ribs for superior concrete bond |
| Application | Buildings, bridges, tunnels, foundations, retaining walls | Primary reinforcement in reinforced concrete construction |
| Certification | ISO 9001, CE Mark, BIS, SGS, Mill Test Certificate (MTC) | Third-party inspection and material traceability available |
| Packaging | Bundled in 2–5 MT bundles, steel-strapped | Bare or with waterproof wrapping; seaworthy export packing |
| MOQ | 25 MT per order | Mixed grades and sizes accepted above minimum quantity |
Initial documentation gap on #5 rebar order — resolved promptly
We purchased 75 MT of ASTM A615 Grade 40 #5 bars for a municipal retaining wall project in Ohio. On arrival, the packing list referenced a different heat number than the MTRs, which would have flagged in our owner's quality audit. I raised it with the support team the same day. They issued a corrected MTR with a formal non-conformance closure letter within 48 hours, which satisfied our project engineer. The bars themselves tested fine — yield at 295 MPa, elongation compliant. Issue was administrative, not metallurgical, and the response was professional. Cautiously willing to reorder.
