| Property | Parameter | Description |
|---|---|---|

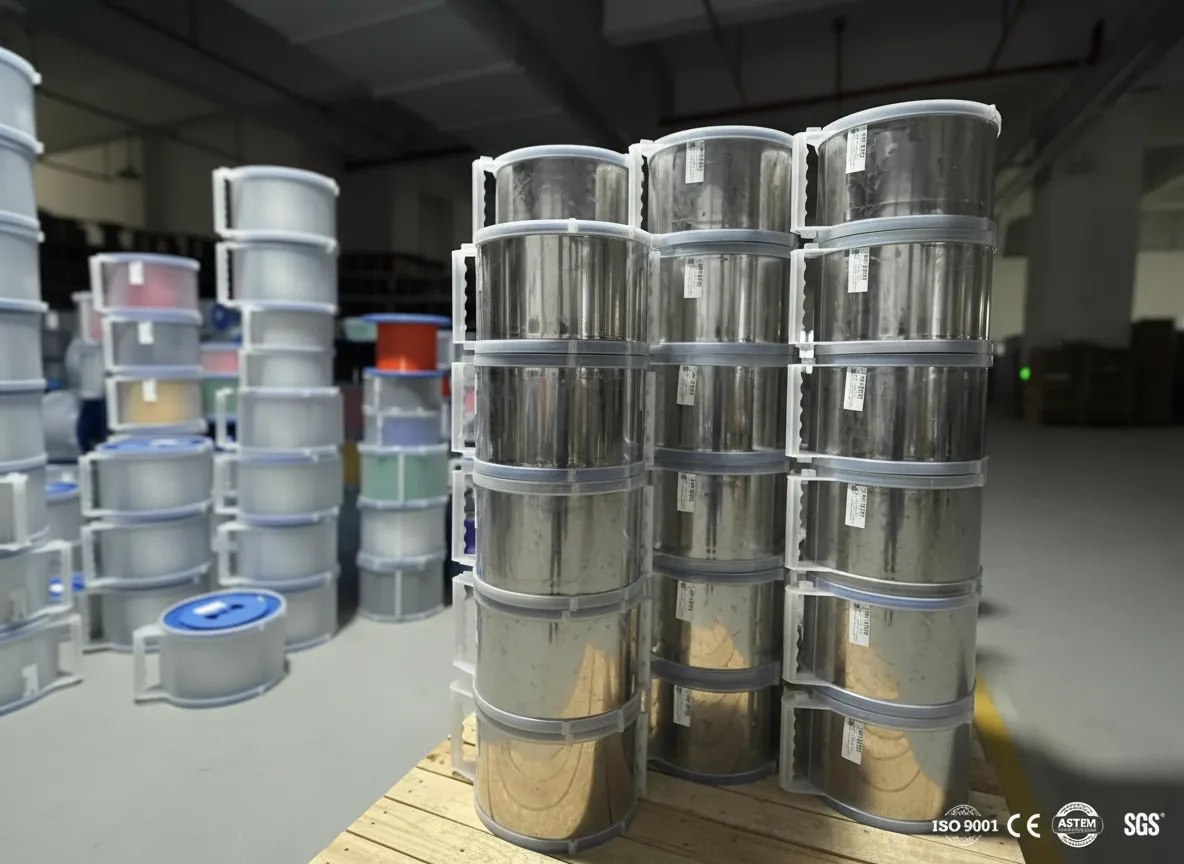

| Product Name | Pre Terminated Fiber Cable for Outdoor Use | Factory-terminated fiber optic cable assembly designed for outdoor deployment |
| Fiber Type | Single-mode (OS2) / Multimode (OM3/OM4) | ITU-T G.652D for SM; IEC 60793-2-10 for MM; selected per application bandwidth |
| Standard Compliance | IEC 61754-20, IEC 60794-1, TIA-568-C.3 | Compliant with international fiber optic cable and connector standards |
| Connector Type | LC/UPC, SC/UPC, SC/APC, MPO/MTP | Pre-polished and factory-tested connectors; insertion loss ≤0.3 dB per IEC 61300-3-4 |
| Insertion Loss | ≤0.3 dB (SM); ≤0.5 dB (MM) | Measured per IEC 61300-3-4; low-loss performance for long-distance outdoor links |
| Return Loss | ≥55 dB (UPC); ≥65 dB (APC) | Per IEC 61300-3-6; APC recommended for high-return-loss-sensitive systems |
| Cable Construction | Armored / LSZH / PE Jacket | Corrugated steel tape armor or rodent-resistant PE outer jacket; UV-stabilized sheath |
| Operating Temperature | -40°C to +70°C | Suitable for harsh outdoor environments; meets IEC 60794-1-2 temperature cycling test |
| IP Rating | IP67 / IP68 | Waterproof connector boots and sealed assemblies per IEC 60529 for direct burial or aerial use |
| Tensile Strength | ≥2700 N (armored); ≥1000 N (non-armored) | Per IEC 60794-1-2 Method E1; aramid yarn or steel wire strength members |
| Crush Resistance | ≥3000 N/100mm | Per IEC 60794-1-2 Method E3; armored design for direct burial and duct installation |
| Cable Diameter (OD) | 5.0 mm – 14.0 mm | Varies by fiber count (1–144 fibers) and armor type; custom OD available on request |
| Assembly Length | 1 m – 500 m (custom) | Pre-cut and terminated to specified length; ±0.5% length tolerance |
| Surface Finish | UV-resistant PE / LSZH outer jacket | Black PE standard for outdoor UV protection; LSZH option for low-smoke requirements |
| Application | FTTH, campus networks, data centers, aerial/direct burial links | Outdoor distribution, feeder cables, last-mile connectivity, and inter-building runs |
| Certification | RoHS, CE, UL, ISO 9001 | Factory 100% tested with test report included; OTDR trace available upon request |

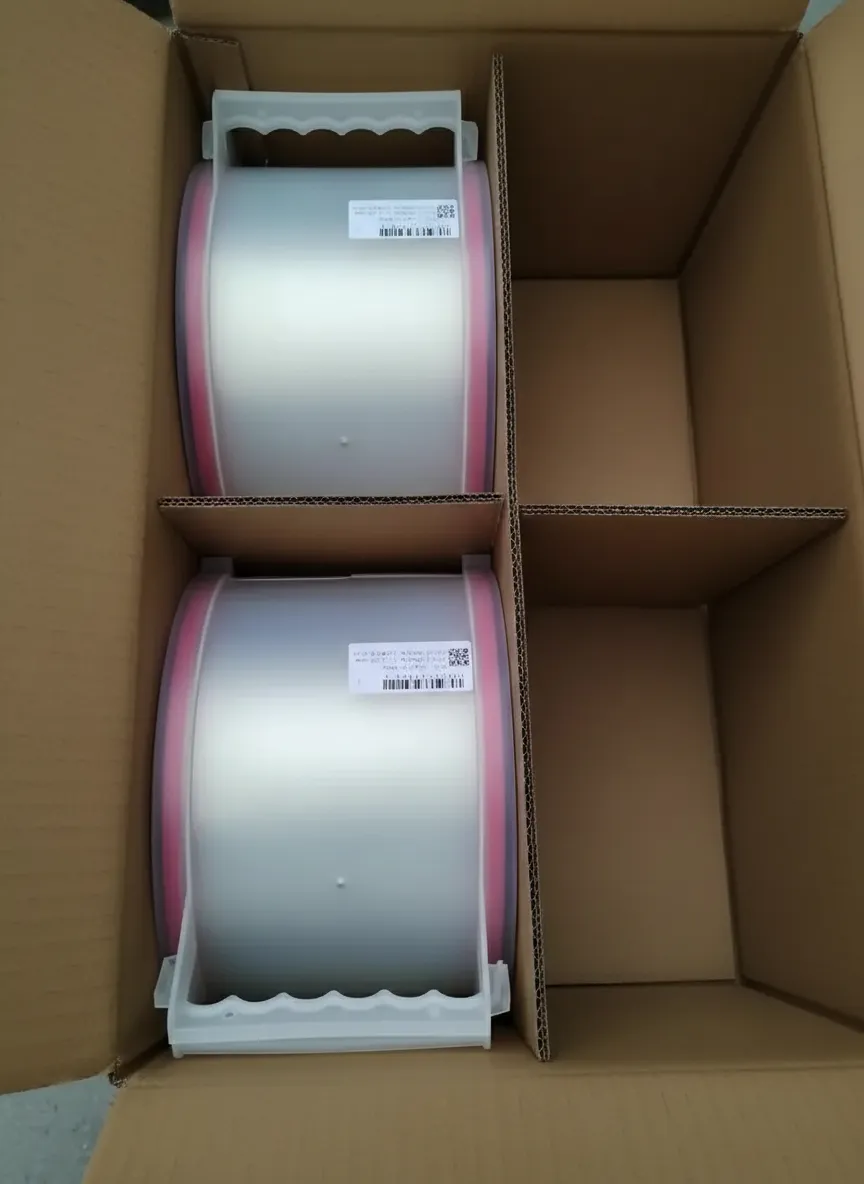

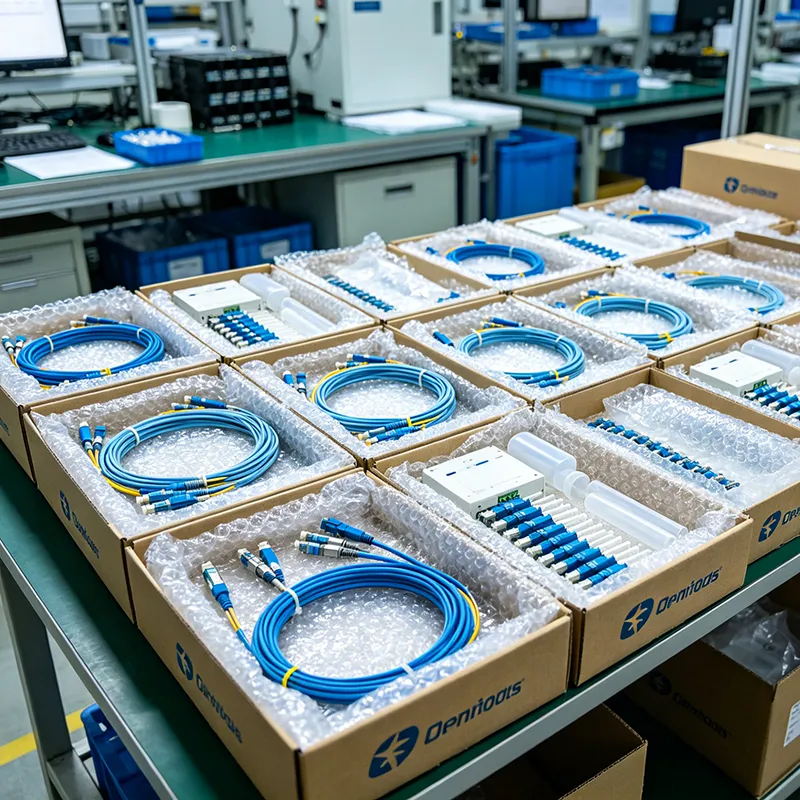

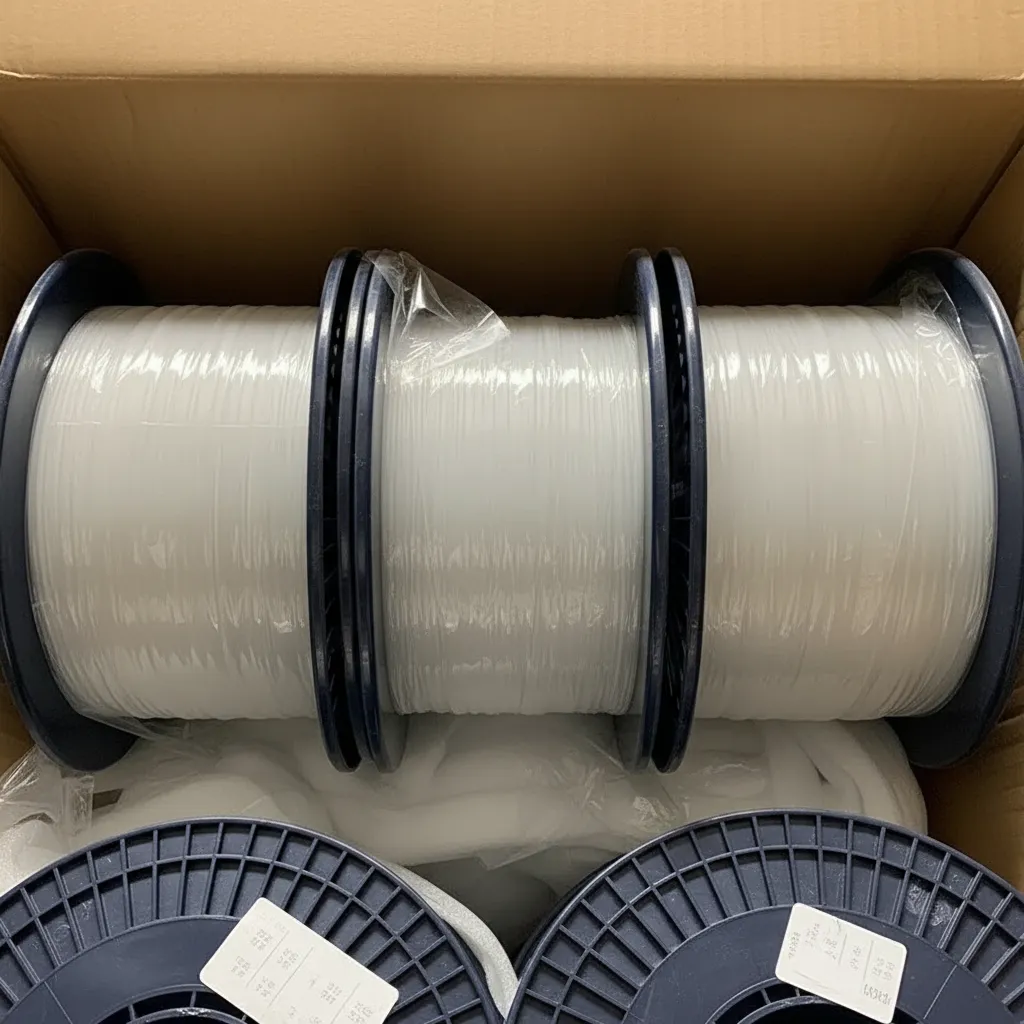

| Packaging | Wooden drum / cardboard reel / pull-out box | Protective end caps on connectors; moisture-barrier packaging for long-term storage |
| MOQ | 1 piece / custom project quantity | Small-batch and project-based orders accepted; bulk pricing available for ≥100 pcs |

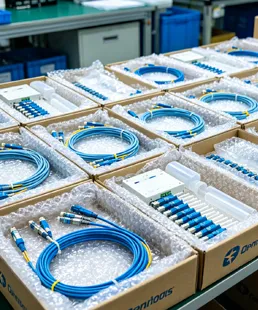

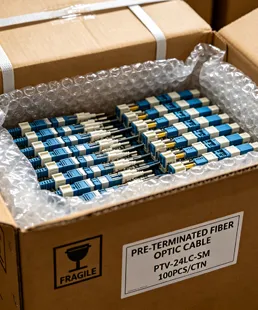

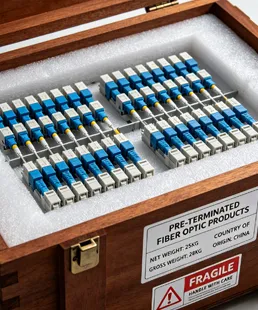

Initial shipping damage on connectors — factory resolved quickly
First order of 40 pcs G.657A2 LC/UPC outdoor assemblies, 25m each, for an industrial campus project. Upon inspection, 6 units had damaged dust caps and two connector end-faces showed contamination visible under 400× inspection — likely a packaging issue in transit. Reported to the factory with photos; they shipped replacement units within 3 business days at no charge and upgraded packaging for the batch. Replacement units all passed our IEC 61754 insertion loss verification. The resolution was professional and fast. Underlying product quality on the undamaged units was good — return loss averaged 52 dB. Will give the supplier another chance on our next procurement.
First order of 40 pcs G.657A2 LC/UPC outdoor assemblies, 25m each, for an industrial campus project. Upon inspection, 6 units had damaged dust caps and two connector end-faces showed contamination visible under 400× inspection — likely a packaging issue in transit. Reported to the factory with photos; they shipped replacement units within 3 business days at no charge and upgraded packaging for the batch. Replacement units all passed our IEC 61754 insertion loss verification. The resolution was professional and fast. Underlying product quality on the undamaged units was good — return loss averaged 52 dB. Will give the supplier another chance on our next procurement.
