| Property | Parameter | Description |
|---|---|---|
| Optical Fiber Product Name | OM2 Multimode Fiber Optic Cable Bulk Roll | 50/125 µm graded-index multimode optical fiber cable supplied on bulk reels for large-scale deployment |
| Fiber Grade & ITU-T Classification | OM2 / ITU-T G.651.1 | Laser-optimized 50/125 µm multimode fiber meeting IEC 60793-2-10 Type A1a.2 classification |
| Core & Cladding Diameter Range | Core: 50 ± 2.5 µm; Cladding: 125 ± 2 µm | Graded-index profile; coating diameter 245 ± 10 µm; concentricity error ≤ 1.5 µm |
| Attenuation Coefficient at 850 nm | ≤ 3.5 dB/km | Measured per IEC 60793-1-40; typical value 3.0 dB/km for standard OM2 bulk cable |
| Attenuation Coefficient at 1300 nm | ≤ 1.5 dB/km | Measured per IEC 60793-1-40; suitable for dual-window multimode transmission |
| Modal Bandwidth (Overfilled Launch) | ≥ 500 MHz·km @ 850 nm; ≥ 500 MHz·km @ 1300 nm | OFL bandwidth per IEC 60793-1-41; supports 1G Ethernet up to 550 m and 10G up to 82 m |
| Macrobending Loss Performance | ≤ 0.5 dB per 100 turns @ 75 mm mandrel diameter | Tested per IEC 60793-1-47; ensures stable performance in tight routing and conduit installations |
| Chromatic Dispersion Coefficient | ≤ 105 ps/(nm·km) @ 850 nm | Intermodal dispersion dominant; chromatic dispersion measured per IEC 60793-1-42 |
| Numerical Aperture (NA) | 0.200 ± 0.015 | Measured per IEC 60793-1-43; ensures efficient light coupling with standard multimode connectors |
| Batch Qualification Rate | ≥ 99.5% | Each bulk roll lot undergoes 100% OTDR screening and attenuation testing before shipment |
| Manufacturing Environment Standards | ISO 9001:2015 certified cleanroom production | Fiber drawing and cabling performed in Class 1000 cleanroom; humidity and temperature controlled |
| Core Raw Material Source | High-purity silica glass (SiO₂ ≥ 99.99%) | Germanium-doped silica core; fluorine-doped silica cladding; sourced from certified optical-grade suppliers |

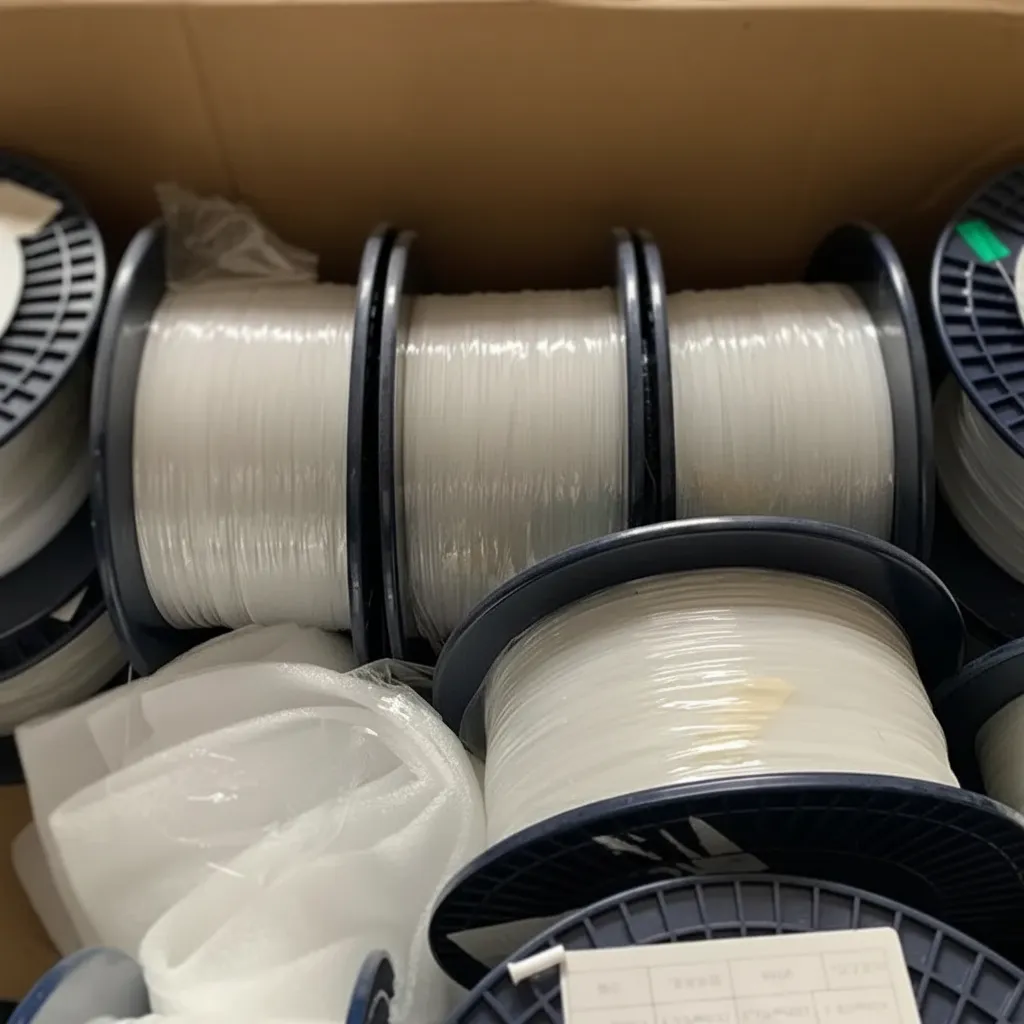

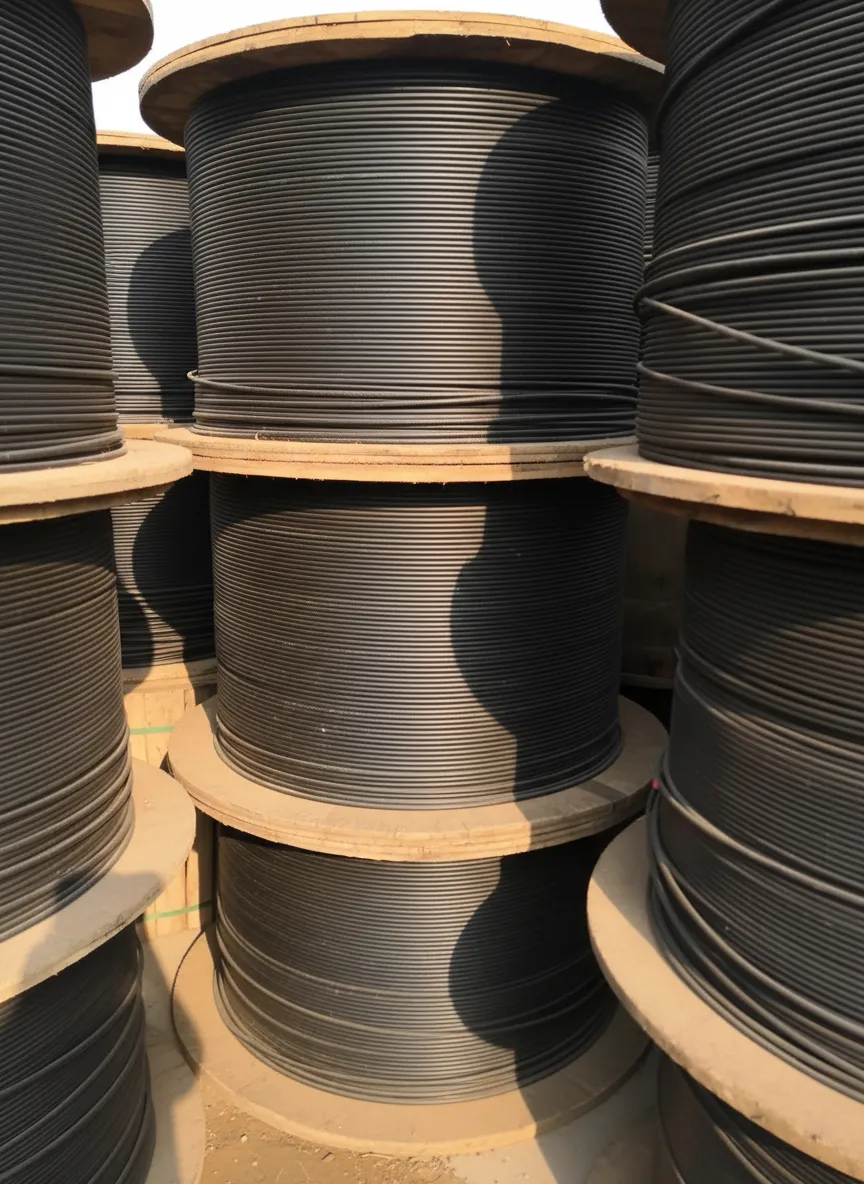

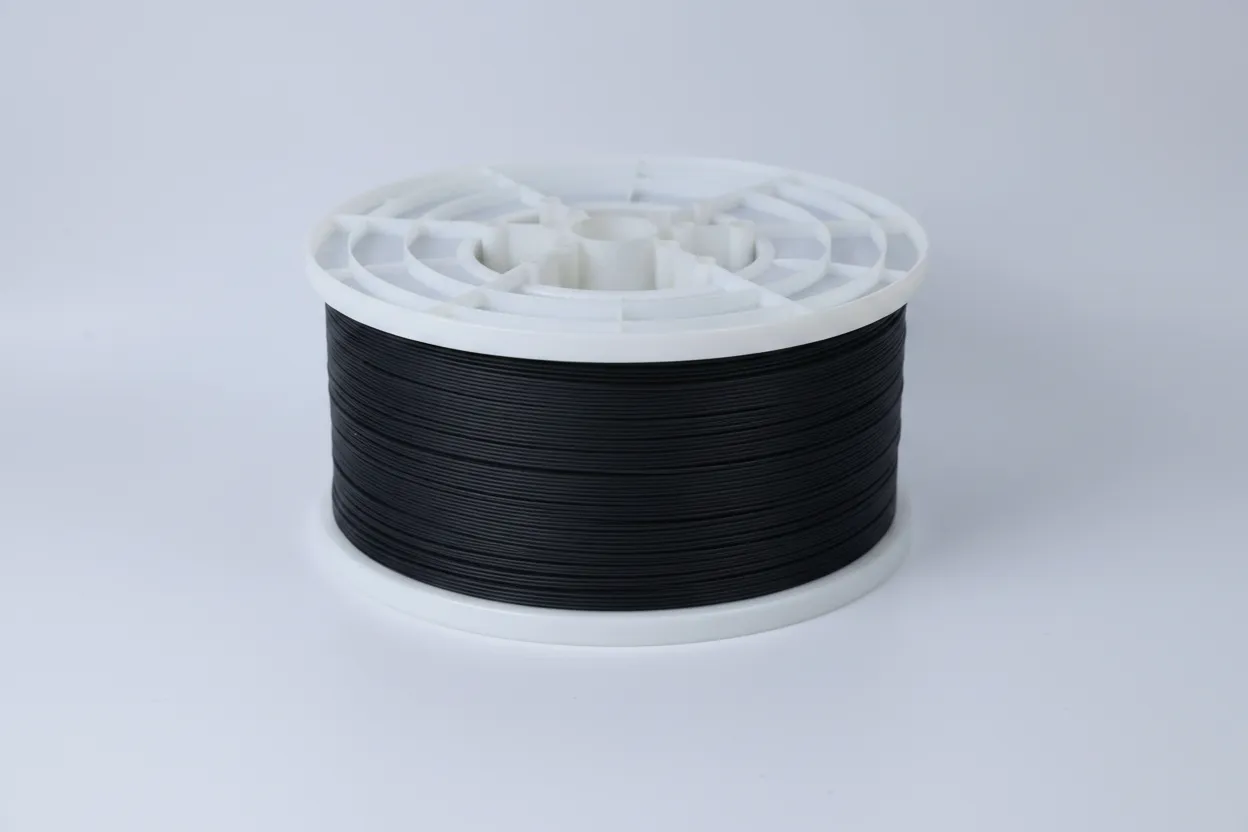

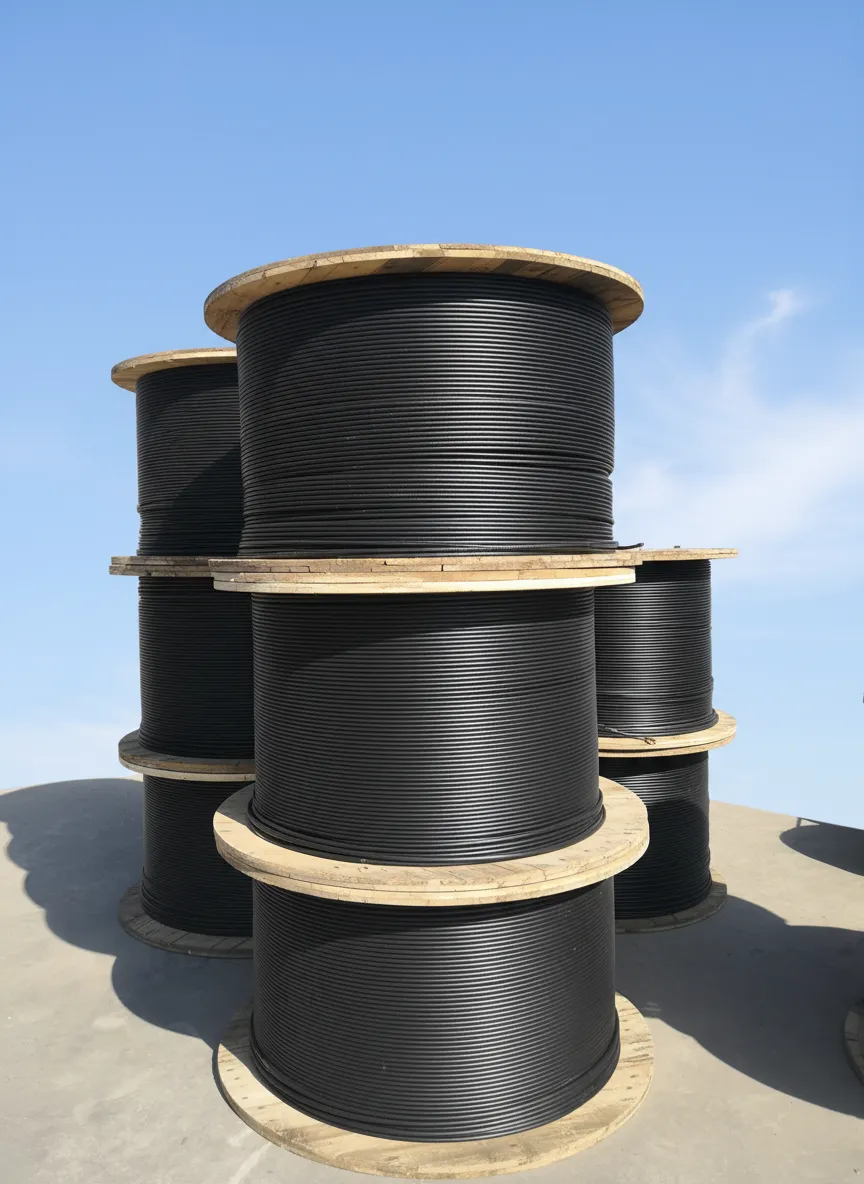

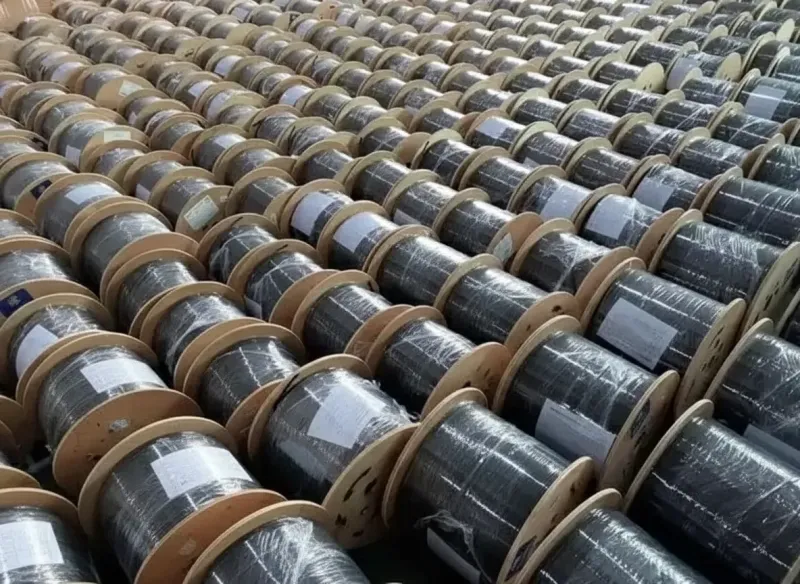

| Packaging Specification | Bulk rolls: 500 m, 1000 m, 2000 m per reel; custom lengths available | Wound on heavy-duty wooden or plastic reels; individually labeled with fiber length, lot number, and test data |
| Storage Conditions | Temperature: -20°C to +60°C; Relative Humidity: 10%–85% (non-condensing) | Store in original sealed packaging away from UV exposure, chemicals, and mechanical stress |
| Valid Shelf Life | 25 years (under recommended storage conditions) | Fiber coating integrity guaranteed for 25 years; reel packaging integrity guaranteed for 2 years from shipment |
| Application Scenarios | LAN, data centers, campus networks, CCTV, industrial automation, FTTD | Ideal for horizontal and backbone cabling in structured cabling systems; supports 1G/10G Ethernet and Fibre Channel |
| Compliance & Certification | IEC 60793-2-10, IEC 60794-1, TIA-492AAAB, RoHS 2011/65/EU, REACH | Compliant with IEEE 802.3 standards for 1000BASE-SX and 10GBASE-SR multimode applications |
| Minimum Order Quantity (MOQ) | 1 reel (500 m minimum) | Mixed reel lengths accepted per order; volume pricing available for orders ≥ 50 km |
| Monthly Supply Capacity | 500,000 m (500 km) per month | Scalable to 1,000 km/month with advance scheduling; OEM and private-label bulk supply supported |
Initial labeling discrepancy — resolved promptly by support team
Ordered 5 × 500 m LSZH OFNR OM2 spools for a campus network upgrade in Melbourne. On arrival, two spools had spool-length labels reading 480 m rather than the ordered 500 m. I raised this with the support team immediately. They responded within 6 hours, confirmed it was a labeling error, and verified via their production OTDR records that actual fiber length was 501 m and 499 m respectively. Replacement labels and corrected test reports were emailed within 24 hours. Optical performance — attenuation at 850 nm at 3.2 dB/km — was fully within spec. Issue was minor and handled professionally; no impact on the installation.
