Outdoor fiber optic cable for aerial installation

Customizable Rock-bottom price

$4850 1-49 kilometers Base price

$4637 50-99 kilometers 4.4% off

$4530 ≥100 kilometers 6.6% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 kilometers

Shipping total: To be negotiated

Subtotal of goods US$ 4,850.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of Outdoor Fiber Optic Cable for Aerial Installation

Property	Parameter	Description
Product Name	Outdoor Fiber Optic Cable for Aerial Installation	Self-supporting aerial fiber optic cable designed for outdoor overhead deployment
Cable Type / Grade	ADSS / Figure-8 / OPGW-equivalent aerial cable	All-Dielectric Self-Supporting (ADSS) or messenger wire figure-8 construction; international equivalent: ITU-T G.652D compliant fiber
Standard Compliance	IEC 60794-1-2, ITU-T G.652D, ANSI/ICEA S-87-640, YD/T 901	Meets international aerial outdoor cable performance and safety standards
Fiber Type	Single-mode (OS2) / Multimode (OM3/OM4)	ITU-T G.652D single-mode; IEC 60793-2-10 multimode; attenuation ≤0.4 dB/km @1310 nm, ≤0.25 dB/km @1550 nm
Fiber Count	2 – 288 fibers	Available in 2, 4, 6, 12, 24, 48, 96, 144, 288 fiber configurations
Tensile Strength	≥2700 N (short-term) / ≥1350 N (long-term)	Per IEC 60794-1-2 Method E1; ADSS span-rated up to 200 m standard span
Crush Resistance	≥3000 N/100 mm	Tested per IEC 60794-1-2 Method E3; ensures mechanical integrity under aerial load
Impact Resistance	≥20 N·m	Per IEC 60794-1-2 Method E4; protects against falling debris and installation impact
Jacket Material	HDPE (High-Density Polyethylene) / MDPE	UV-stabilized, weather-resistant outer sheath; carbon black content 2–2.5% for UV protection
Strength Member	FRP (Fiber Reinforced Plastic) / Galvanized Steel Wire	Central FRP rod for ADSS; galvanized steel messenger for figure-8; dielectric options available
Operating Temperature	-40°C to +70°C	Installation temperature: -20°C to +60°C; suitable for extreme outdoor climates
Cable Outer Diameter	8 mm – 22 mm (OD, varies by fiber count)	Compact designs for low wind/ice load; custom OD available per project specification

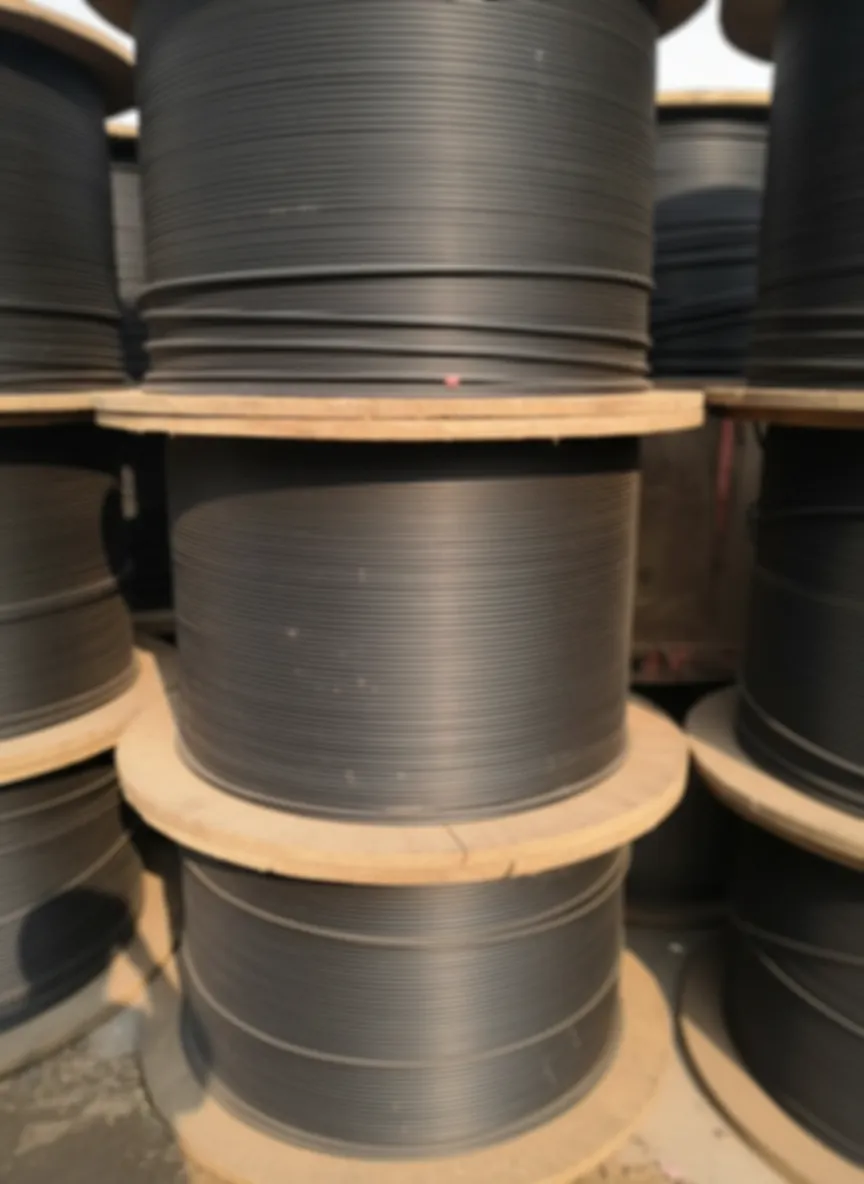

Cable Length per Reel	1000 m / 2000 m / 4000 m per drum	Standard wooden or steel drum; custom lengths available per order
Surface Finish	Smooth, UV-stabilized black HDPE jacket	Ribbed or smooth outer surface; color-coded inner buffer tubes per EIA/TIA-598
Application	Aerial overhead installation on utility poles, towers, and building-to-building spans	Telecom backbone, CATV distribution, rural broadband, power utility communication networks
Certification	CE, RoHS, ISO 9001:2015, UL Listed (optional)	Third-party tested; compliant with EU RoHS Directive 2011/65/EU; factory ISO certified

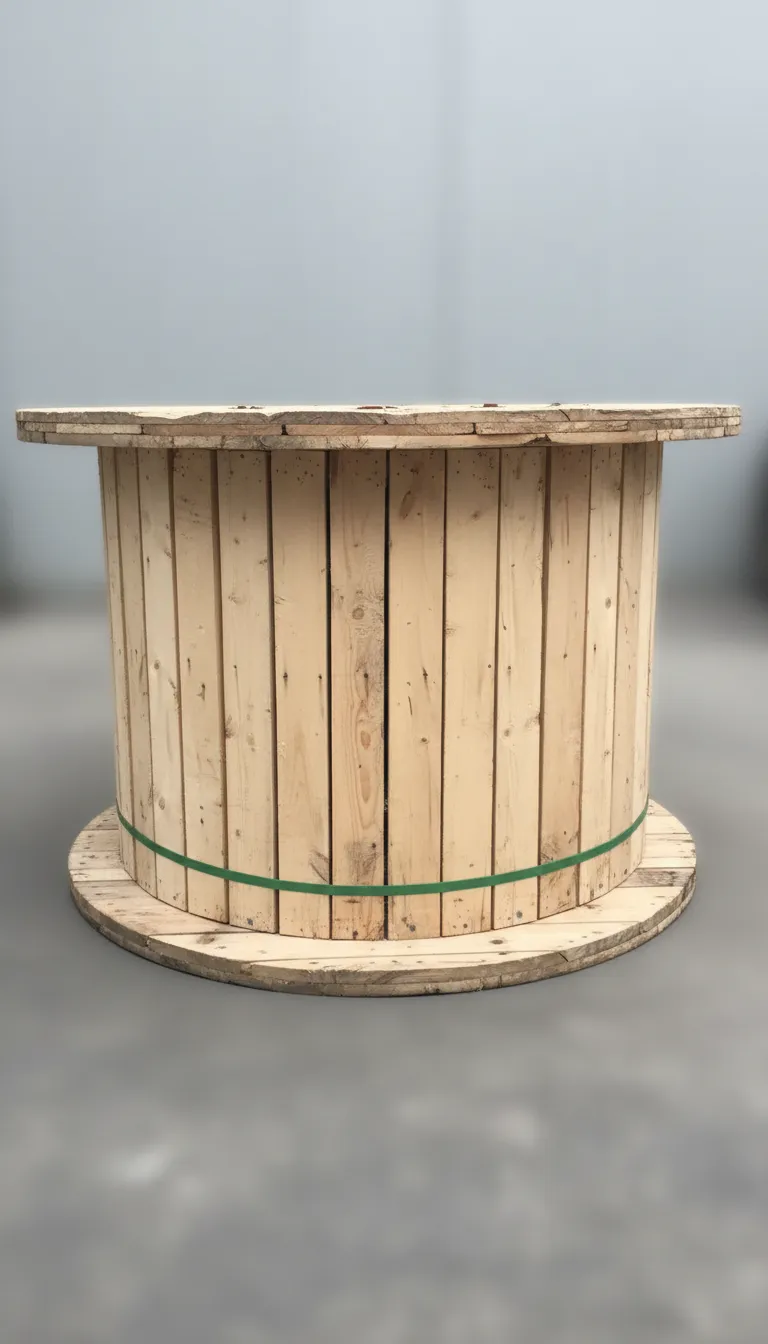

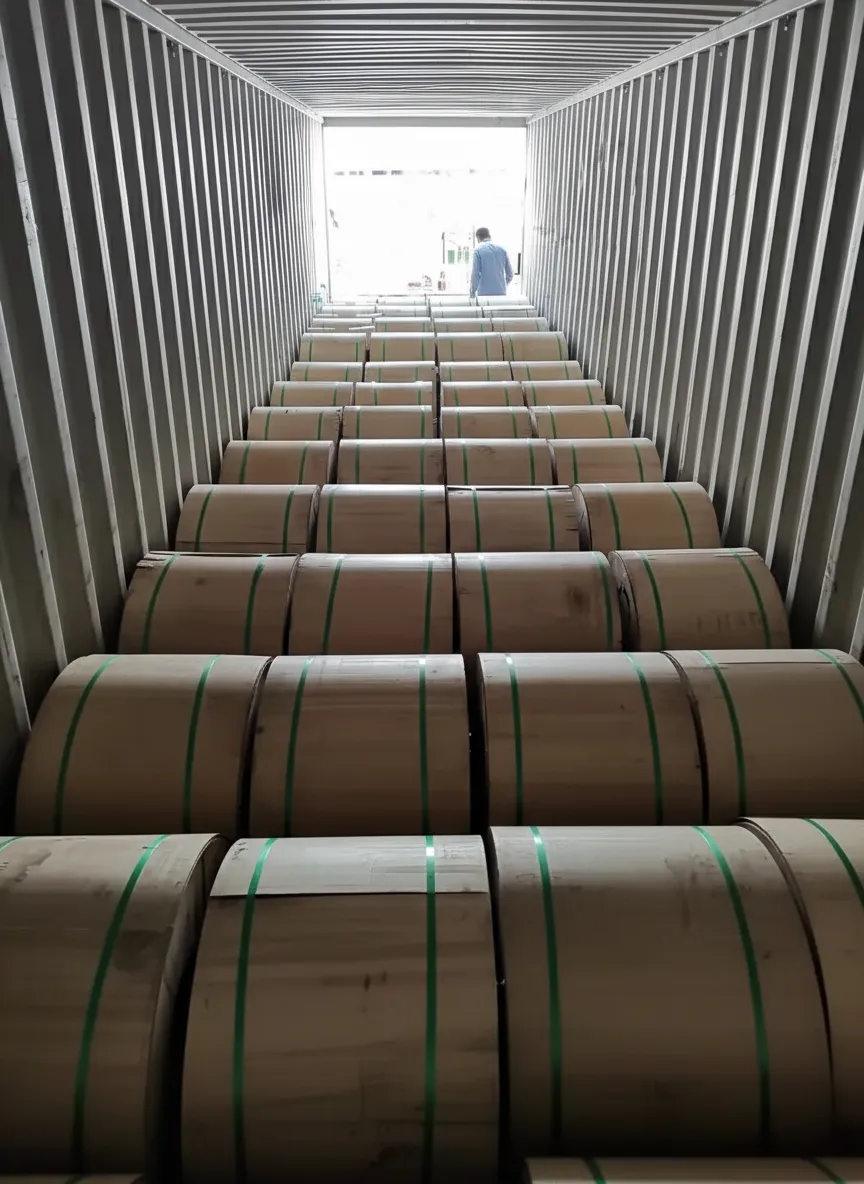

Packaging	Wooden/steel cable drums with moisture-proof wrapping	Drum ends sealed; reel marked with cable type, fiber count, length, and batch number
MOQ	1 drum (1000 m minimum)	OEM/ODM accepted; project-based bulk orders supported with lead time 15–30 days

Outdoor Fiber Optic Cable for Aerial - Manufacturer

Outdoor fiber optic cable for aerial installation serves as the backbone of modern long-distance telecommunications infrastructure, enabling high-speed data transmission across spans that traditional copper cabling simply cannot match. Engineered to endure extreme environmental conditions—including UV radiation, temperature fluctuations ranging from -40°C to +70°C, wind-induced vibration, and ice loading—these cables are purpose-built for overhead deployment on utility poles, towers, and self-supporting messenger wire systems. As a direct manufacturer with over a decade of production experience, we supply aerial fiber optic cables to telecom operators, ISPs, municipal broadband projects, and utility companies worldwide. Our production lines are certified to IEC 60794-1 and ITU-T G.652D standards, ensuring every meter of cable delivers consistent optical performance and mechanical reliability. Whether your project demands ADSS (All-Dielectric Self-Supporting) cable, OPGW (Optical Ground Wire), or Figure-8 lashed configurations, our engineering team provides end-to-end technical support from cable selection through final commissioning.

outdoor fiber optic cable for aerial installation supplier

What is Outdoor Fiber Optic Cable for Aerial Installation?

Outdoor fiber optic cable for aerial installation is a ruggedized optical transmission medium specifically designed for overhead, exposed-environment deployment without conduit protection. Unlike indoor or direct-burial variants, aerial cables incorporate reinforced jackets, aramid yarn or steel strength members, and weather-resistant sheathing compounds to maintain signal integrity across spans typically ranging from 50 m to 200 m between support points, delivering attenuation as low as 0.18 dB/km at 1550 nm wavelength.

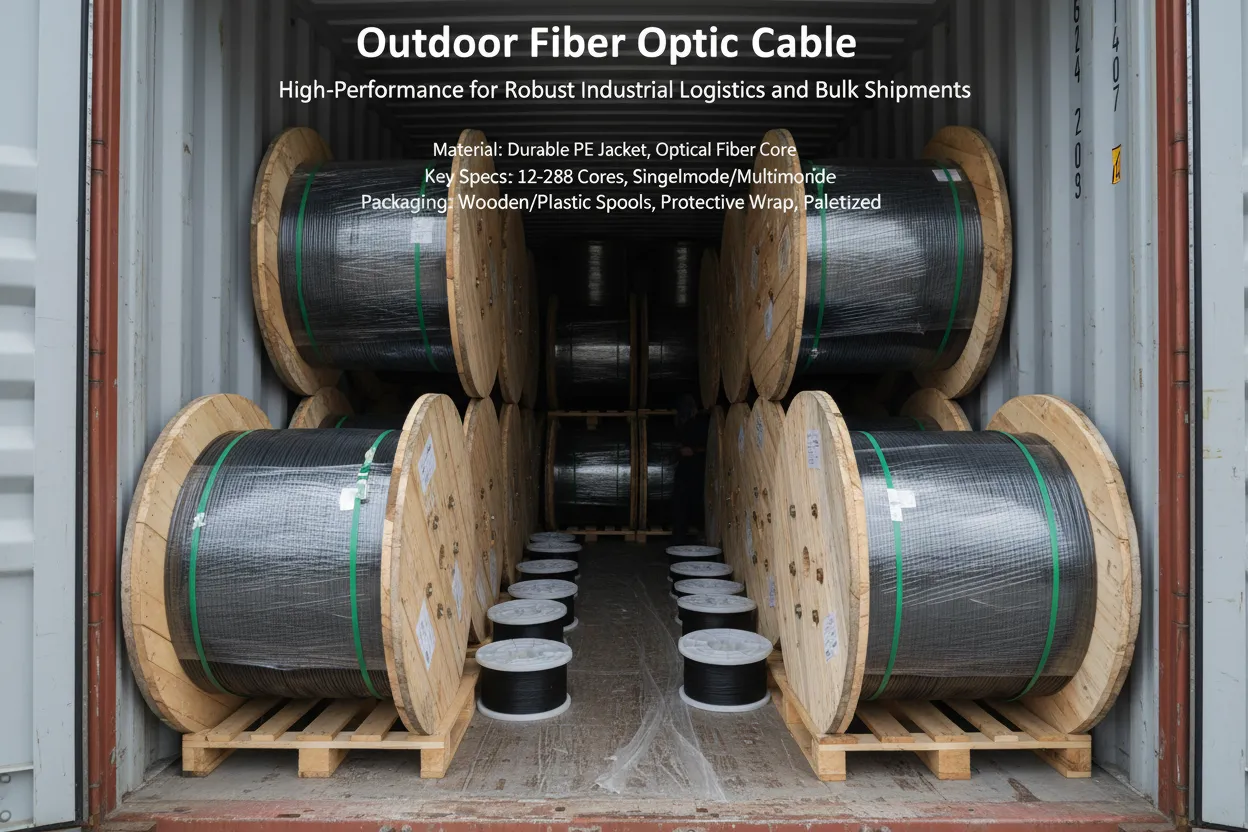

outdoor fiber optic cable for aerial installation manufacturer

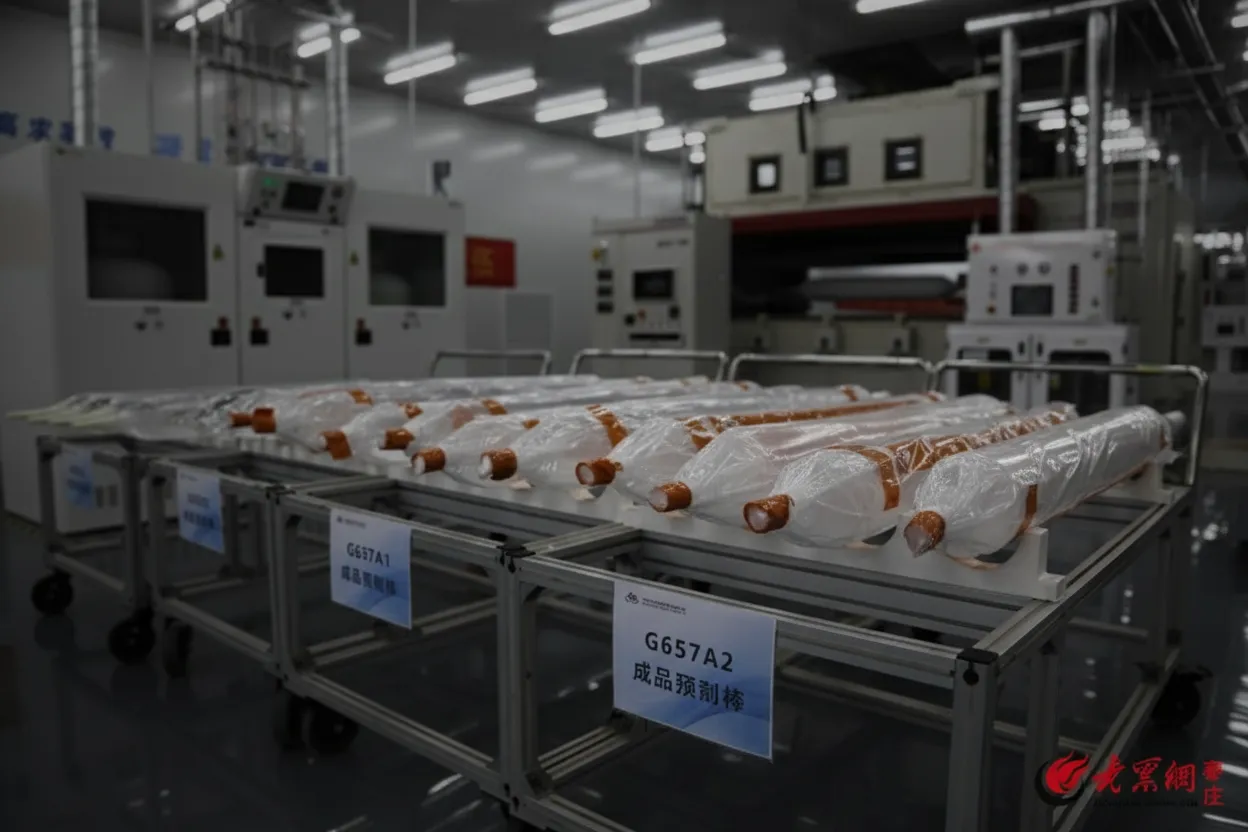

Outdoor Fiber Optic Cable for Aerial Installation Manufacturing Process

Production begins with precision-drawn single-mode or multimode optical fibers coated with dual-layer UV-cured acrylate at 245 µm nominal diameter. Fibers are stranded into loose-tube or tight-buffer configurations filled with water-blocking gel rated to prevent moisture ingress at pressures exceeding 1 bar. Aramid yarn tensile members—providing a minimum tensile load rating of 2,700 N for standard ADSS designs—are applied before high-density polyethylene (HDPE) or LSZH outer jacketing is extruded at controlled thickness tolerances of ±0.1 mm.

Outdoor Fiber Optic Cable for Aerial Installation Technical Specifications

Our aerial fiber optic cables are available in fiber counts from 2 to 288 cores, supporting both G.652D single-mode (zero water peak) and OM3/OM4 multimode variants. Key parameters include: outer diameter from 8.0 mm to 22.0 mm depending on fiber count; jacket tensile strength ≥ 20 N/mm² per IEC 60794-1-2 Method E1; crush resistance ≥ 1,000 N/100 mm; operational temperature range -40°C to +70°C; and a minimum bend radius of 20× cable diameter under installation load. ADSS versions achieve self-supporting spans up to 150 m under ice and wind loading per ANSI/TIA-596-B.

Get a Competitive Quote for Outdoor Fiber Optic Cable for Aerial

Partner with a verified manufacturer to secure mill-direct rates on outdoor fiber optic cable for aerial projects of any scale. We offer rapid sample dispatch, full third-party test reports, and custom reel lengths from 500 m to 6,000 m to minimize field splicing costs and accelerate your deployment timeline.

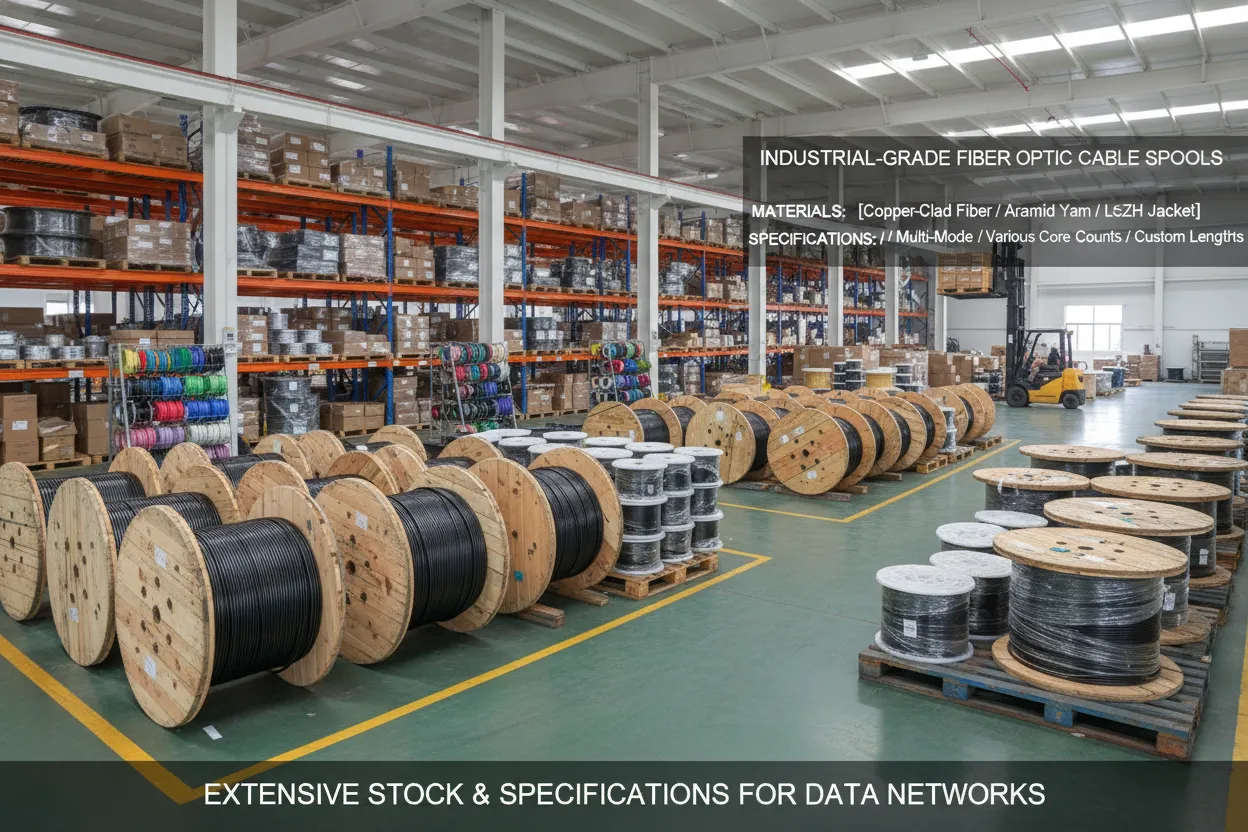

outdoor fiber optic cable for aerial installation wholesale

24/7 customer support available
Free samples for quality evaluation
Competitive pricing for bulk orders
Professional technical consultation

Contact us today to get your free quote within 24 hours!

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Steven C.

United States

2025-02-02

Initial Reel Labelling Issue—Resolved Promptly by Support Team

Our order of 48-core G.652D ADSS cable on 3,000 m reels arrived with two reels whose fibre count labels were transposed—a paperwork issue, not a cable defect. This caused a half-day delay on-site while we verified via OTDR that the actual fiber counts were correct (they were). I reported it and received a corrective action report and revised documentation within 24 hours. The cable itself met all specs: attenuation 0.19 dB/km, crush resistance above 1,000 N/100 mm. Issue is resolved and I'm satisfied with how it was handled. Would consider reordering.

Daniel H.

United Kingdom

2025-02-24

Competitive Pricing on 24-Core ADSS—Delivery Slightly Longer Than Quoted

Ordered 24-core ADSS cable, 500 m reels, for a point-to-point link across a 90 m span in rural Scotland. Jacket tensile strength tested at 22 N/mm²—above the IEC 60794-1-2 Method E1 minimum of 20 N/mm². The price per metre was the best we found after quoting five suppliers. Delivery came in at 19 days versus the 15-day estimate, which pushed our install date back slightly. Customer support kept us updated proactively, so it wasn't a surprise. Quality justifies the supplier relationship; we've already enquired about a larger follow-on order.

Omar A.

UAE

2025-03-18

Good Value on 288-Core Cable, Minor Documentation Delay

Purchased 288-core aerial fiber optic cable for a large ISP backbone project in Abu Dhabi. The cable itself performed exactly to spec—outer diameter 22.0 mm, operational range confirmed to +70°C which is critical here. Mill-direct pricing was approximately 18% below our previous distributor. Only reason for 4 stars: the full third-party test report package arrived 4 days after the shipment, slightly delaying our customs clearance. The team did expedite it once we flagged the urgency. Overall a strong supplier we intend to use again.

Know your supplier

Anxun optical fiber Co., Ltd.

7 yrs on Sinoali.com

Located in China

Company information More goods

FAQ

Q: What types of outdoor fiber optic cables do you supply?

A:We supply aerial, direct buried, duct, armored, non-armored and ADSS all-dielectric outdoor fiber cables.

Q: What is the difference between armored and non-armored outdoor fiber cable?

Q: Can your outdoor fiber cables be used directly buried underground?

Q: What fiber types are available for outdoor cables?

Q: What is the operating temperature range of outdoor fiber cable?

Q: Do your outdoor fiber cables have waterproof performance?
