Technical Specifications of Stainless Steel I Beam
| Property | Parameter | Description |
|---|---|---|
| Product Name | Stainless Steel I Beam | Hot-rolled or welded I-section structural beam in stainless steel |
| Material Grade | 304 / 304L / 316 / 316L / 321 / 310S | EN: 1.4301 / 1.4307 / 1.4401 / 1.4404; JIS: SUS304 / SUS316L |
| Standard Compliance | ASTM A276 / A484; EN 10088-3; JIS G4303; GB/T 1220 | Dimensional standards: EN 10034, ASTM A6/A6M |
| Chemical Composition (304) | C ≤0.08%, Cr 18–20%, Ni 8–10.5%, Mn ≤2%, Si ≤1%, P ≤0.045%, S ≤0.03% | 316L adds Mo 2–3%, C ≤0.03% for enhanced corrosion resistance |
| Tensile Strength | ≥515 MPa (304); ≥485 MPa (316L) | Per ASTM A276 / EN 10088-3 at room temperature |
| Yield Strength | ≥205 MPa (304); ≥170 MPa (316L) | 0.2% proof stress per ASTM A276 / EN 10088-3 |
| Elongation | ≥40% (304); ≥40% (316L) | Measured on 50 mm gauge length per ASTM A370 |
| Hardness | ≤201 HBW (304); ≤217 HBW (316L) | Brinell hardness per ASTM E10 |
| Flange Width | 50–300 mm | Standard IPE / IPN / HEA / HEB series available |
| Web Height (Depth) | 80–600 mm | Custom depths available upon request |
| Length | 3,000–12,000 mm (standard); up to 18,000 mm (custom) | Cut-to-length service available |
| Surface Finish | No.1 (Hot-rolled); 2B; BA; No.4; Pickled & Passivated | No.1 finish standard for structural applications; polished finishes on request |
| Application | Construction, chemical plants, food processing, marine, pharmaceutical, bridges | Suitable for load-bearing structures in corrosive environments |
| Certification | Mill Test Certificate (MTC) per EN 10204 3.1 / 3.2; ISO 9001:2015 | Third-party inspection (SGS, BV, TÜV) available |
| Packaging | Steel-banded bundles; wooden pallet or steel rack; waterproof wrapping | Export seaworthy packaging standard |
| MOQ | 1 Ton (stock items); 5 Tons (custom orders) | Mixed grades and sizes accepted per order |

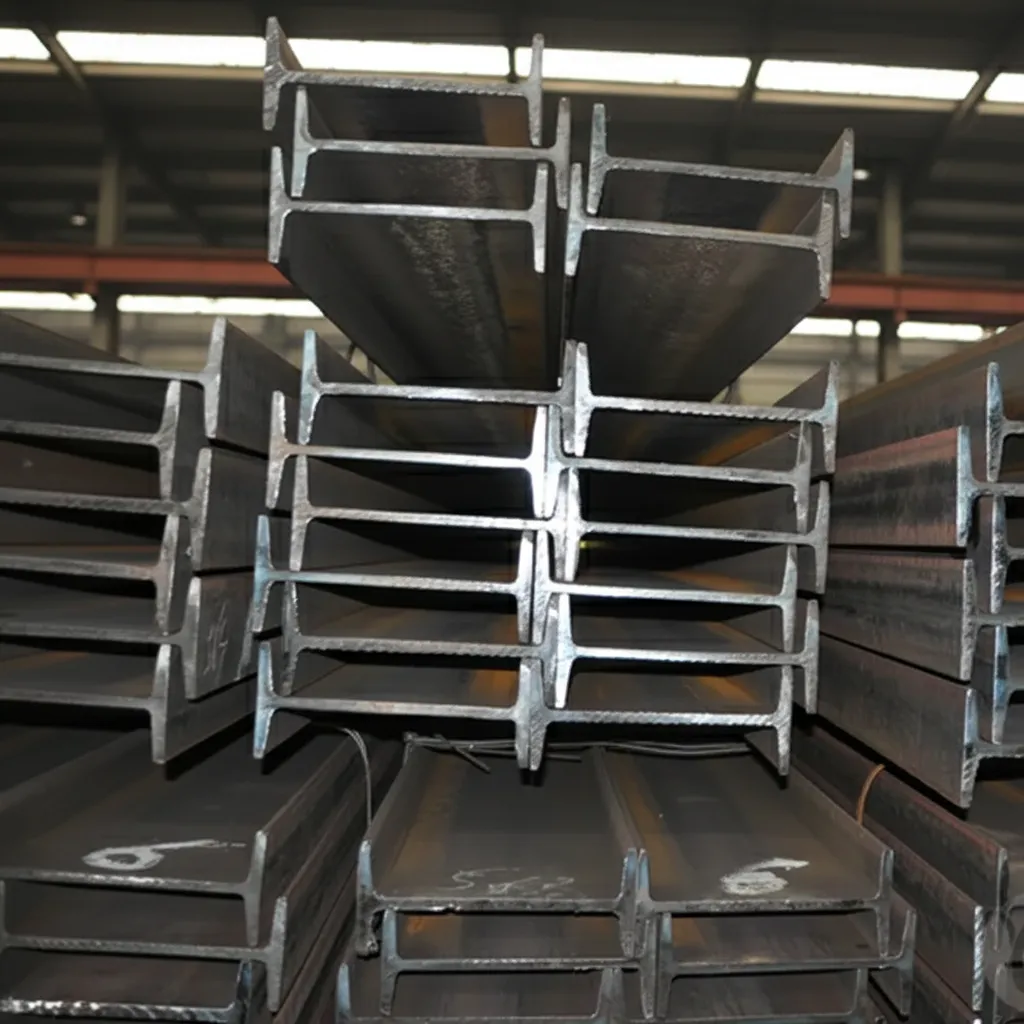

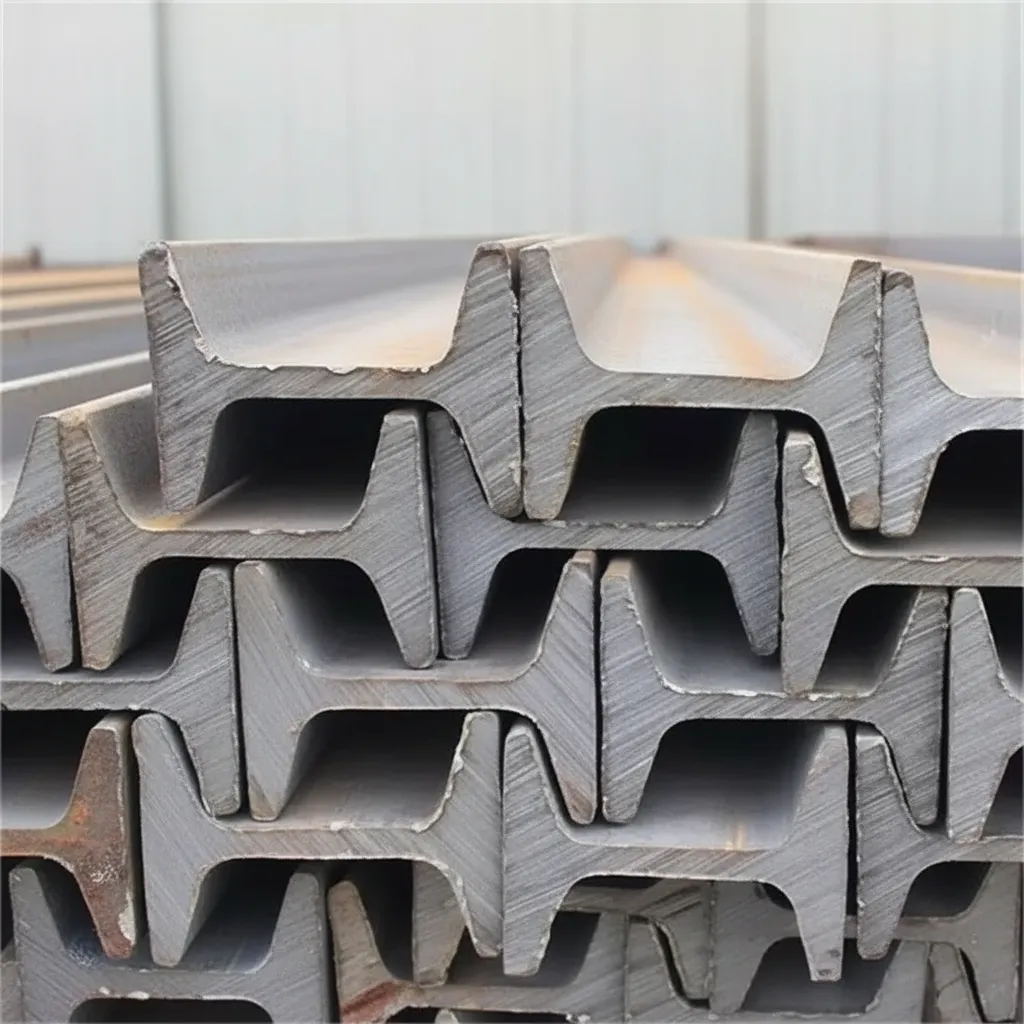

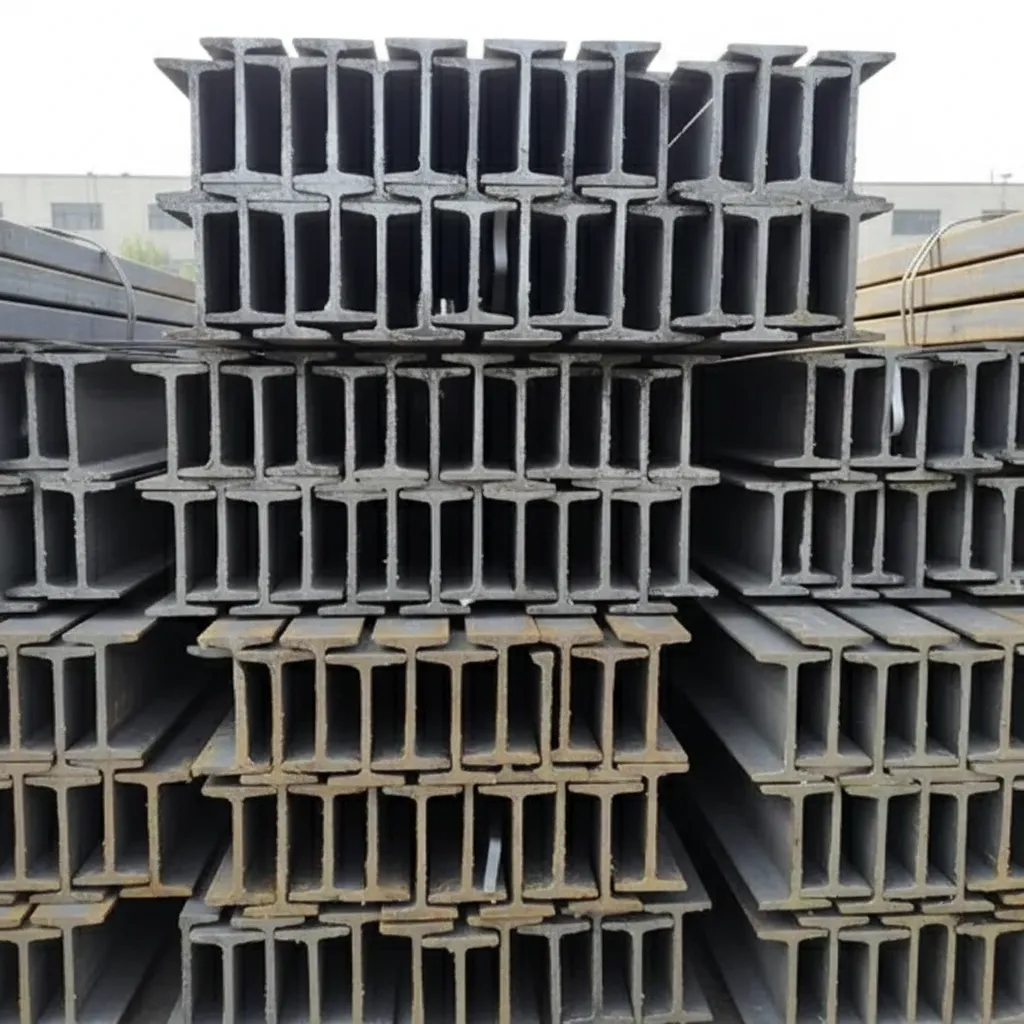

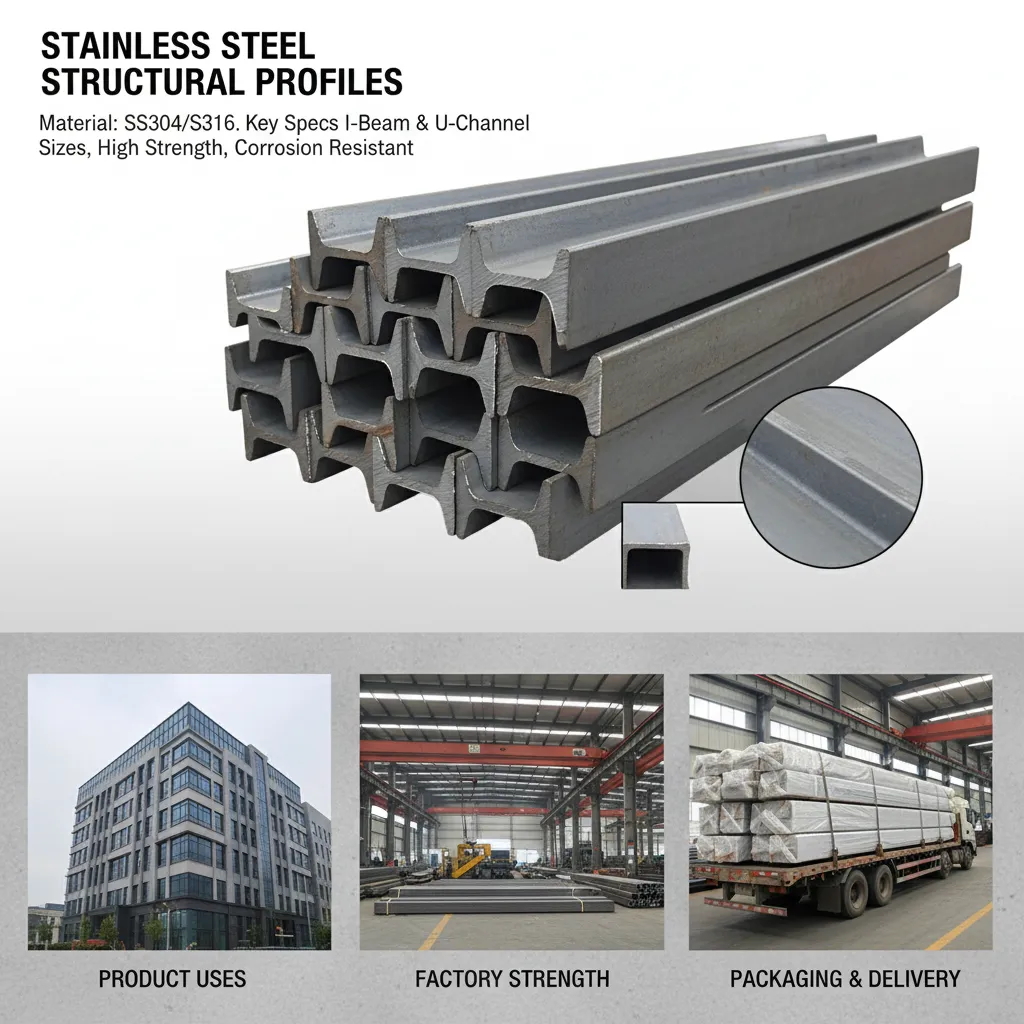

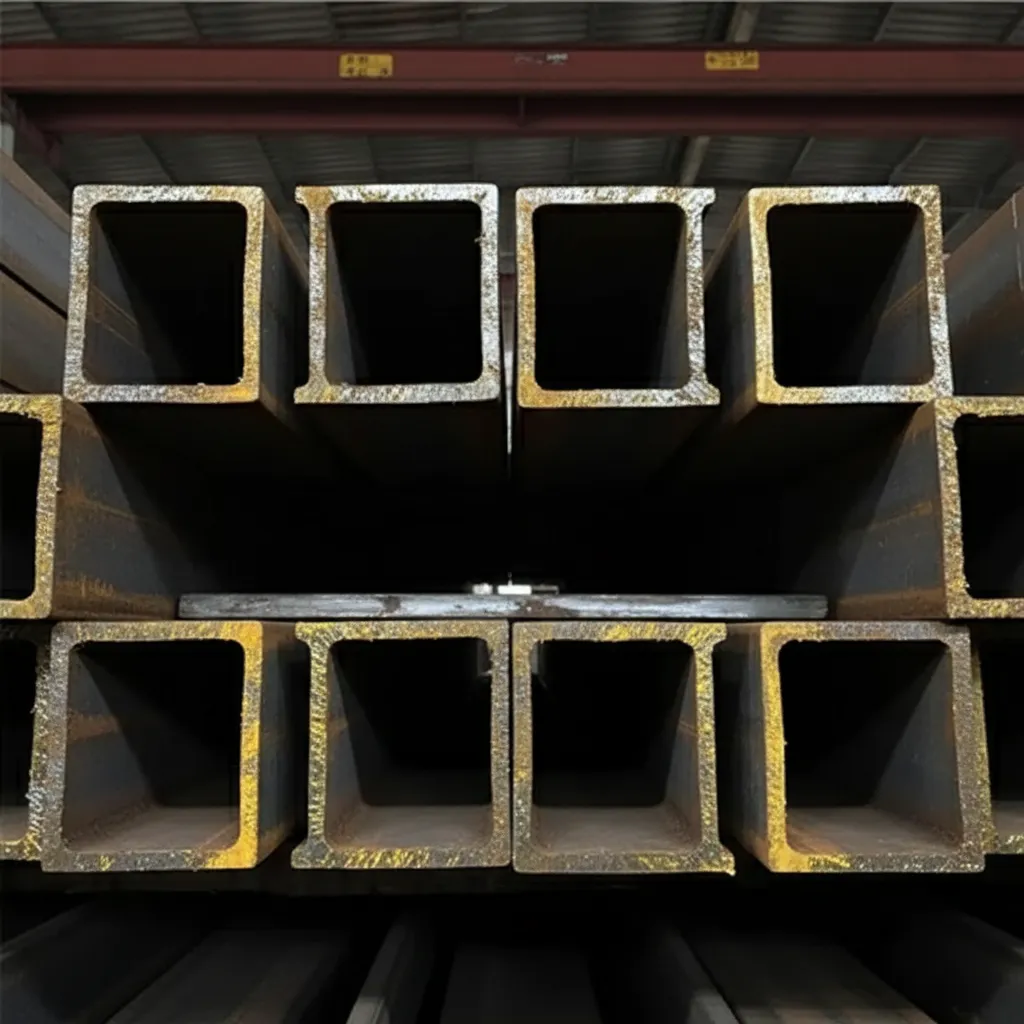

Stainless Steel I Beam
Stainless steel I beam is a high-performance structural profile widely used across heavy industry, construction, and infrastructure projects requiring exceptional strength combined with superior corrosion resistance. As a trusted supplier of stainless steel structural sections, we provide precision-manufactured I beams that meet the most demanding engineering and environmental standards worldwide.
What Is a Stainless Steel I Beam?
A stainless steel I beam, also known as an H-section or wide flange beam, features a characteristic cross-sectional shape resembling the letter "I." This geometry distributes load efficiently along the vertical web and horizontal flanges, delivering exceptional load-bearing capacity with minimal material weight. Unlike carbon steel equivalents, the stainless steel version offers inherent resistance to oxidation, chemical attack, and high-temperature degradation — making it the preferred choice for harsh operating environments.
Available Grades of Stainless Steel I Beam
We supply stainless steel I beams in a comprehensive range of grades to suit diverse application requirements:
- Grade 304 / 304L: The most commonly specified austenitic grade, offering excellent general corrosion resistance and weldability. Ideal for architectural, food processing, and light industrial use.
- Grade 316 / 316L: Enhanced with molybdenum for superior resistance to chloride-induced pitting and crevice corrosion. Recommended for marine, offshore, and chemical processing environments.
- Grade 321: Titanium-stabilized grade with excellent resistance to intergranular corrosion at elevated temperatures. Suitable for high-heat applications.
- Duplex 2205: Combines high strength with outstanding resistance to stress corrosion cracking, making it ideal for pressure vessels and structural components in aggressive media.
Key Specifications and Dimensions
Our stainless I beams are manufactured and stocked across a broad dimensional range to accommodate various structural design requirements:
- Standards: EN 10088, ASTM A276, JIS G4303, DIN 17440
- Size Range: 80mm × 42mm to 600mm × 220mm (custom sizes available)
- Web Thickness: 3.9mm – 21mm
- Flange Thickness: 5.9mm – 36mm
- Length: Standard 6m / 12m, or cut-to-length per customer specification
- Surface Finish: Hot rolled, pickled, mill finish, or polished (2B, No.4, BA)
Performance Advantages of Stainless Steel I Beams
Choosing a stainless steel I beam over conventional carbon steel or aluminum alternatives delivers multiple long-term performance benefits:
- Corrosion Resistance: The chromium oxide passive layer provides continuous self-repairing protection against rust, moisture, acids, and saline environments.
- High Strength-to-Weight Ratio: The I-section geometry maximizes structural efficiency, reducing total material consumption without compromising load capacity.
- Temperature Performance: Maintains mechanical integrity across a wide temperature range, from cryogenic conditions to sustained high-heat exposure above 800°C (grade dependent).
- Hygienic Properties: Smooth, non-porous surfaces resist bacterial growth, making stainless I beams suitable for food, pharmaceutical, and cleanroom facilities.
- Low Maintenance Cost: Minimal lifecycle maintenance requirements translate into significant long-term cost savings compared to painted or galvanized carbon steel sections.
- Aesthetic Appeal: Polished stainless I beams are widely used in exposed architectural and interior structural applications.
Industrial Applications of Stainless Steel I Beams
The versatility of the stainless steel I beam makes it an indispensable structural component across numerous industries:
- Oil & Gas: Offshore platforms, refineries, and subsea structures where chloride and hydrogen sulfide exposure is constant.
- Chemical & Petrochemical: Support frames, pipe racks, and equipment skids in corrosive process environments.
- Food & Beverage Processing: Hygienic structural frameworks in production facilities, cold storage, and cleanrooms.
- Marine & Shipbuilding: Deck structures, gangways, and hull reinforcements requiring maximum saltwater resistance.
- Construction & Architecture: Exposed structural columns, mezzanine floors, curtain wall systems, and bridge components.
- Power Generation: Nuclear, thermal, and renewable energy plant structures requiring certified material traceability.
Why Choose Us as Your Stainless Steel I Beam Supplier
As an experienced stainless steel I beam supplier, we maintain extensive mill-direct inventory and offer full material traceability with mill test certificates (MTC) compliant with EN 10204 3.1 standards. Our technical team provides expert guidance on grade selection, dimensional tolerances, and fabrication support. We serve clients across construction, energy, maritime, and process industries with reliable lead times and competitive pricing on both standard and custom-cut sections.
Contact us today to request a quote or technical consultation for your stainless steel I beam requirements.
