Prepainted Steel Coil Supplier for Roofing and Cladding

Prepainted Steel Coil is a factory-coated flat steel product designed for roofing, wall cladding, building panels, appliances, and fabricated components. It gives overseas distributors, roll formers, contractors, and original equipment manufacturers a consistent combination of structural performance, corrosion protection, and finished color. Because the metallic coating, pretreatment, primer, and finish coat are applied on a controlled coil-coating line, buyers can reduce downstream painting operations and improve production efficiency. Successful sourcing depends on matching the steel substrate, metallic coating, paint system, dimensions, color tolerance, and test requirements to the service environment and forming process.

Product Overview: Prepainted Steel Coil

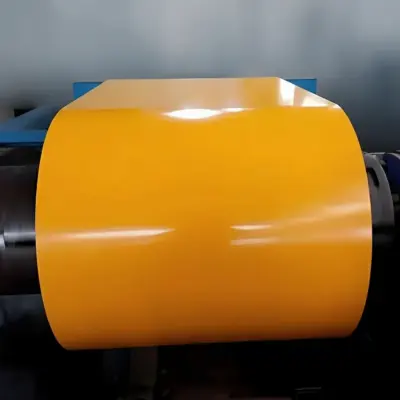

Prepainted Steel Coil, also known as color-coated steel coil or PPGI/PPGL depending on the substrate, is produced by applying organic coatings to metallic-coated steel strip before fabrication. A typical coating structure includes a steel base, zinc or zinc-aluminum alloy coating, chemical pretreatment, primer, and finish paint. The reverse side may receive a back coat selected for protection, adhesion, or compatibility with insulation and adhesives.

The substrate determines much of the product’s strength, formability, and corrosion behavior. Zinc-coated steel is widely selected for general construction and fabrication, while aluminum-zinc alloy-coated steel may be specified where enhanced atmospheric corrosion resistance is required. Substrate terminology and coating designations must be confirmed against the applicable standard rather than inferred solely from commercial labels such as PPGI or PPGL. Buyers can review related metallic-coated products through [[INTERNAL_LINK]].

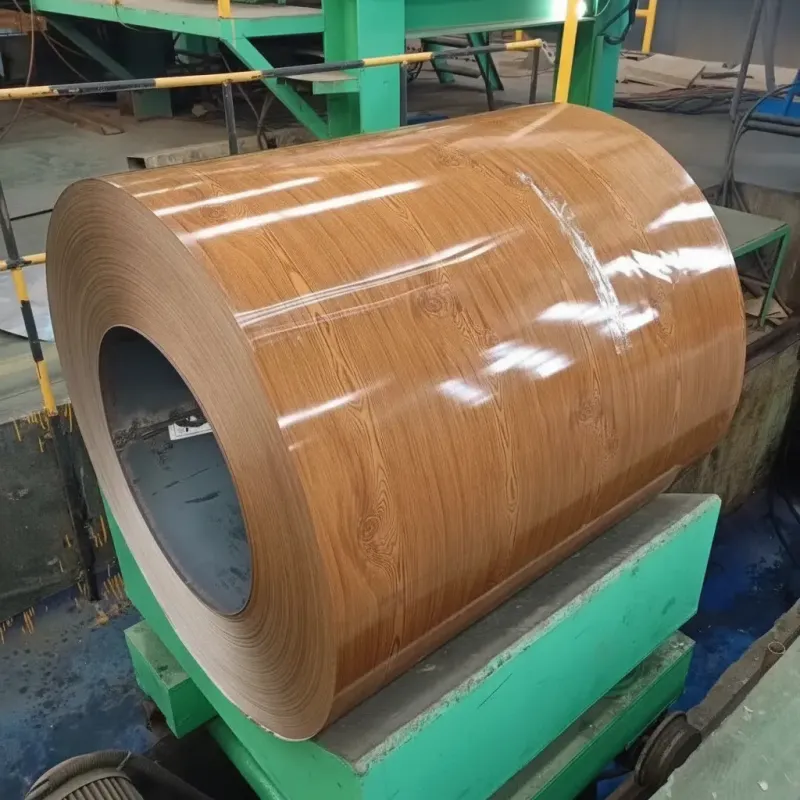

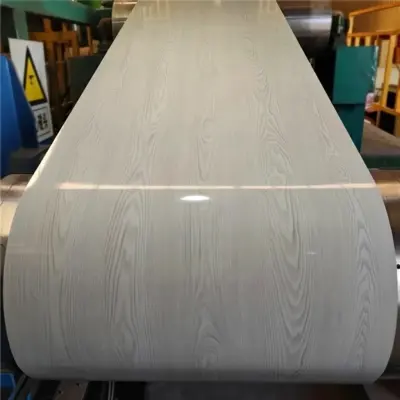

Common paint systems include polyester, silicon-modified polyester, polyurethane-based coatings, and polyvinylidene fluoride systems. Their suitability differs in color retention, flexibility, chemical resistance, chalking resistance, and expected exposure conditions. The appropriate system should be agreed according to the project environment, forming severity, warranty requirements, and target service life. Decorative finishes, matte surfaces, textured coatings, and protective films may also be available, subject to the coating line and purchase specification. More information about coating selection is available at [[INTERNAL_LINK]].

Prepainted Steel Coil Specifications & Standards

Prepainted Steel Coil should be ordered using a complete technical specification rather than color and thickness alone. Relevant international standards include ASTM A755/A755M for steel sheet with metallic coating by the hot-dip process and prepainted by the coil-coating process; EN 10169 for continuously organic-coated steel flat products; JIS G 3312 for prepainted hot-dip zinc-coated steel sheet and strip; and GB/T 12754 for prepainted steel sheet and strip. The metallic substrate may additionally reference ASTM A653/A653M for zinc-coated steel or ASTM A792/A792M for aluminum-zinc alloy-coated steel, where applicable.

Paint performance should be evaluated using measurable acceptance criteria. Depending on the standard and end use, inspection may cover dry-film thickness, gloss, color difference, pencil hardness, coating adhesion, bend performance, impact resistance, salt-spray exposure, humidity resistance, and accelerated weathering. Test methods and acceptance values must be written into the purchase contract because results are not interchangeable across different methods or exposure conditions. See [[INTERNAL_LINK]] for guidance on reading steel inspection documents.

Prepainted Steel Coil Applications

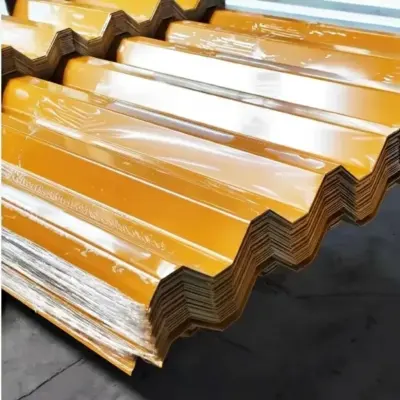

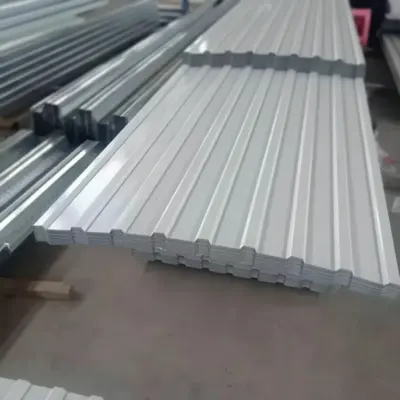

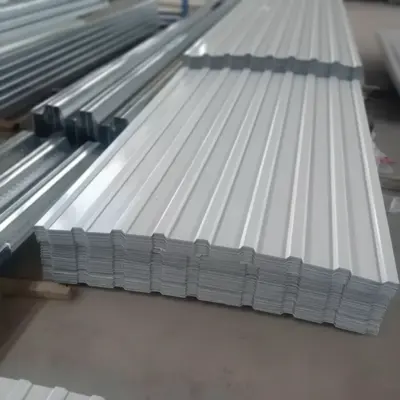

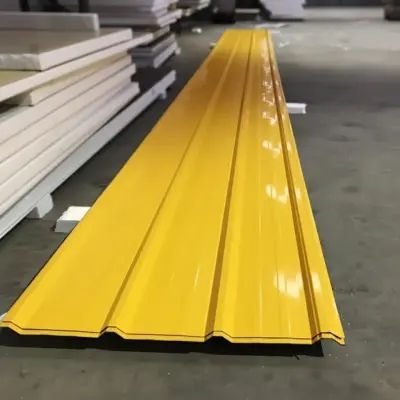

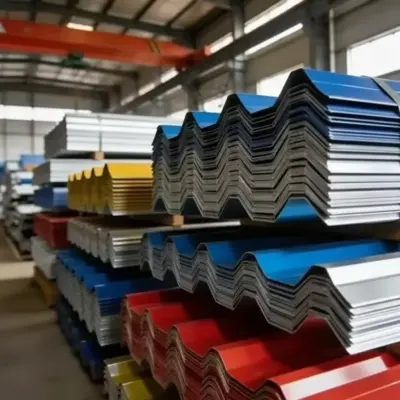

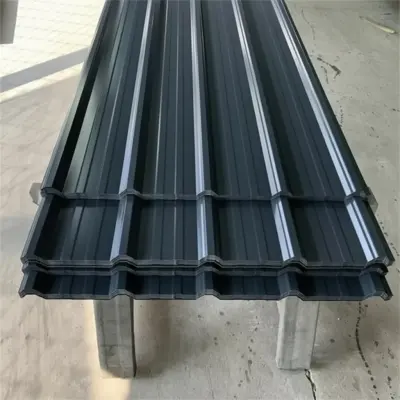

Roofing and profiled sheets: Prepainted coils are roll-formed into corrugated roofing, standing-seam profiles, tiles, ridge caps, gutters, and flashing. Formability and coating adhesion are especially important where the profile has tight bends. Related roofing products can be found at [[INTERNAL_LINK]].

Wall cladding and sandwich panels: Industrial buildings, warehouses, agricultural structures, and commercial facilities use coated steel for exterior skins and insulated panel facings. Exterior and interior faces may require different paint systems because their exposure conditions are not identical. See [[INTERNAL_LINK]] for insulated panel material options.

Building accessories and fabrication: Prepainted Steel Coil is processed into ceiling systems, partitions, doors, shutters, ventilation components, trims, and drainage products. Surface protection during slitting, profiling, handling, and installation should be planned before production.

Appliances and manufactured goods: Selected grades and finishes are used for appliance panels, cabinets, lighting housings, and other formed components. These applications can require closer controls for surface appearance, cleanliness, scratch resistance, and repeatability.

Transportation and general industry: Properly specified material may be used for enclosed bodies, interior panels, equipment covers, and fabricated enclosures. The buyer should validate the coating against mechanical wear, chemicals, UV exposure, and forming operations.

How to Choose Prepainted Steel Coil: Buying Guide

Begin with the finished component rather than a generic coil description. Provide the profile drawing, forming method, bend severity, service environment, expected exposure, and whether the material will be used indoors or outdoors. This allows the supplier to assess substrate grade, metallic coating, pretreatment, and paint compatibility. A coastal building, a humid processing facility, and an indoor partition should not automatically receive the same coating specification.

Define dimensions precisely, including ordered thickness, tolerance basis, width, slit tolerance, coil inside diameter, maximum outside diameter, coil weight, and edge condition. For roofing and cladding, calculate material consumption using the finished profile’s effective cover width, not only the flat coil width. A coil weight calculator and ordering guide are available through [[INTERNAL_LINK]].

Request the applicable standard, manufacturer’s inspection certificate, coating test report, and any project-specific compliance documents before shipment. If third-party inspection is required, identify the inspection scope, sampling plan, witness points, and responsible cost in the purchase order. Color-sensitive projects should use an approved reference sample and preferably one production batch for visually continuous elevations.

MOQ and lead time depend on steel grade, coating mass, paint system, color, width, coil weight, and production scheduling. Standard combinations may be easier to consolidate, while custom colors, uncommon dimensions, or specialized coatings may require a larger production quantity. Confirm raw-material availability, production time, inspection time, document preparation, and shipment schedule separately.

Logistics planning should cover export seaworthy packaging, moisture protection, coil orientation, loading method, container payload restrictions, and destination handling equipment. Agree on Incoterms, shipment port, insurance responsibility, and packaging photographs before dispatch. For additional export packing considerations, consult [[INTERNAL_LINK]].

Prepainted Steel Coil Frequently Asked Questions

Q: What is the difference between PPGI and PPGL coil?

A: PPGI generally refers to prepainted zinc-coated steel, while PPGL generally refers to prepainted aluminum-zinc alloy-coated steel. Their corrosion behavior, edge protection, forming characteristics, and commercial availability differ. The correct choice should be based on the metallic coating standard, environment, component design, and paint system rather than the abbreviation alone.

Q: Which standard should be specified for Prepainted Steel Coil?

A: Common references are ASTM A755/A755M, EN 10169, JIS G 3312, and GB/T 12754. Choose one standard that matches the project and destination market, then state the substrate grade, metallic coating, dimensions, paint system, tests, and tolerances required under that standard.

Q: Can the color be matched to a RAL code or physical sample?

A: Color can generally be ordered using a recognized color reference or an approved physical sample, subject to supplier capability. Because perceived color varies with gloss, texture, light, and viewing angle, the order should define the comparison method and permissible color difference.

Q: What certifications and documents are available?

A: Documentation depends on the manufacturer, standard, and contract. Buyers commonly request an inspection certificate, dimensional report, coating information, and test results. Third-party inspection or additional compliance documents must be agreed before order confirmation rather than assumed.

Q: What is the minimum order quantity?

A: There is no universal MOQ for Prepainted Steel Coil. It varies with color, paint type, substrate, width, coating line, and whether production can be combined with another order. Send a complete specification so the supplier can confirm the applicable minimum quantity.

Q: How long does production and delivery take?

A: Lead time depends on raw-material availability, color preparation, coating-line scheduling, testing, packaging, and shipping arrangements. Custom finishes and special grades can require additional time. A reliable quotation should separate manufacturing lead time from estimated transit time.

Q: What payment methods are used for export orders?

A: Payment terms are negotiated according to order value, commercial history, destination, and risk controls. Telegraphic transfer and documentary letter of credit are commonly considered in international trade, but the exact method, deposit, document requirements, and bank charges must be stated in the sales contract.

Q: How should coils be stored after arrival?

A: Store coils in a dry, ventilated, covered area, away from chemicals and sources of condensation. Keep packaging intact until processing, use suitable lifting equipment, and avoid prolonged contact with trapped moisture. Follow the supplier’s storage and handling instructions, especially for coils carrying protective film.

Send your required standard, substrate grade, metallic coating, thickness, width, coil weight, paint system, color, application, destination, and estimated quantity to request a technical review and quotation for Prepainted Steel Coil. Drawings, reference samples, inspection requirements, and delivery targets will help the supplier prepare an accurate commercial and production proposal.
