Product details

Technical Specifications of Aluzinc Color Coated Coil

Property	Parameter	Description
Product Name	Aluzinc Color Coated Coil	Pre-painted steel coil with 55% Al-Zn alloy coating base
Material Grade	AZ150 / CGCC / DX51D+AZ	Equivalent to ASTM A755M, EN 10169, JIS G3322 CGLCC
Standard Compliance	ASTM A755M / EN 10169 / JIS G3322 / GB/T 12754	International standards for prepainted metallic-coated steel
Chemical Composition (Coating)	Al: 55%, Zn: 43.4%, Si: 1.6%	55% aluminum-zinc alloy coating for superior corrosion resistance
Base Metal Composition	C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.035%, S ≤ 0.035%	Low-carbon steel substrate ensuring good formability
Tensile Strength	270–500 MPa	Per ASTM A755M / EN 10169; varies by grade
Yield Strength	140–420 MPa	Minimum yield strength depending on steel grade and thickness
Elongation	≥ 16–22%	Measured at gauge length A80; suitable for roll forming and bending
Aluzinc Coating Weight	AZ50–AZ185 (50–185 g/m²)	Both sides combined; AZ150 most common for roofing applications
Paint System	Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 7–12 µm	Polyester (PE), PVDF, SMP, HDP available; RAL color customizable
Thickness Range	0.14–1.50 mm	Base metal thickness excluding coating
Width Range	600–1,250 mm	Slit-to-width available upon request
Coil Inner Diameter	508 mm / 610 mm	Standard ID; outer diameter up to 1,500 mm
Surface Finish	Smooth / Embossed / Matte / High Gloss	Anti-fingerprint and anti-scratch treatment available
Application	Roofing, wall cladding, home appliances, garage doors, HVAC	Widely used in construction, automotive, and industrial sectors
Certification	ISO 9001, SGS, BV, CE	Third-party inspection and mill test certificate (MTC) provided
Packaging	Eye-to-sky or eye-to-wall; waterproof paper + steel strip strapping	Export seaworthy packaging; moisture-proof inner wrapping
MOQ	25 MT per order	Mixed specifications accepted; spot stock available

Aluzinc Color Coated Coil - Mill Direct Manufacturer

Aluzinc color coated coil represents one of the most versatile and durable pre-painted steel solutions available in today's construction and manufacturing markets. Engineered by applying a chromatic polymer coating over an aluzinc (55% aluminum-zinc alloy) substrate, this product delivers a compelling combination of aesthetic appeal and long-term structural protection. The aluzinc base layer — composed of approximately 55% aluminum, 43.4% zinc, and 1.6% silicon — provides a self-healing barrier that significantly outperforms conventional galvanized steel in aggressive environments. Color coated variants extend this advantage further by adding UV-resistant organic coatings in a virtually unlimited palette, making them a preferred choice for roofing panels, wall cladding, garage doors, home appliances, and agricultural structures. As a mill-direct manufacturer, we supply aluzinc color coated coil with consistent dimensional tolerances and certified mechanical properties, eliminating intermediary markups and ensuring faster lead times for global buyers.

What is Aluzinc Color Coated Coil?

Aluzinc color coated coil is a pre-painted flat-rolled steel product in which a 55% Al-Zn alloy-coated substrate receives one or more layers of organic coating — typically polyester (PE), high-durability polyester (HDP), polyvinylidene fluoride (PVDF), or silicon modified polyester (SMP) — applied through a continuous coil coating process. The finished product combines the outstanding anti-corrosion properties of the aluzinc alloy layer with the decorative and weather-resistant performance of the paint film, delivering a ready-to-fabricate material that requires no further surface treatment on the production line.

Aluzinc Color Coated Coil Manufacturing Process

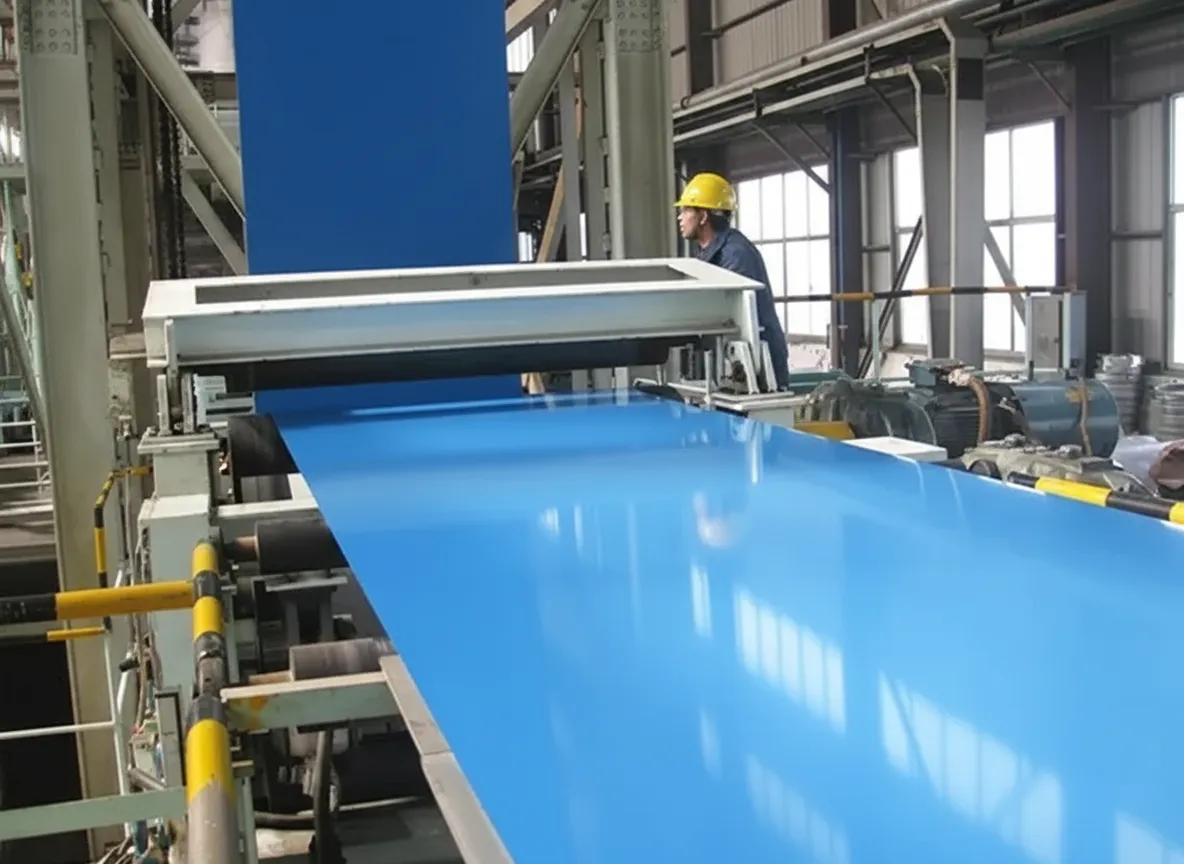

Production begins with cold-rolled or hot-dip aluzinc-coated steel coil as the base substrate. The strip undergoes alkaline degreasing, water rinsing, and chromate or chrome-free chemical conversion treatment to maximize paint adhesion. Primer and topcoat layers are then applied sequentially in a continuous roller-coat line and cured in high-temperature ovens at approximately 230–260 °C (peak metal temperature). A back coat is applied simultaneously to prevent corrosion on the reverse side. Finished coils are cooled, inspected, and rewound to customer-specified inner diameters of 508 mm or 610 mm.

Aluzinc Color Coated Coil Technical Specifications

Our aluzinc color coated coil is manufactured in compliance with ASTM A755, EN 10169, and JIS G 3320 standards. Key parameters include:

Aluzinc color coated coil supplier

Parameter	Specification
Base Substrate	55% Al-Zn alloy coated steel (AZ / Galvalume)
Steel Grade	DX51D, DX52D, DX53D, S280GD, S350GD
Thickness	0.14 mm – 1.50 mm
Width	600 mm – 1,500 mm
Coating Mass (AZ)	AZ50 – AZ185 (50–185 g/m² two-side)
Topcoat Thickness	PE: ≥15 µm; PVDF: ≥25 µm
Tensile Strength	270 – 550 MPa depending on grade
Yield Strength	≥280 MPa (S280GD per EN 10346)
Gloss Level	10–90 GU (customizable)
Salt Spray Resistance	≥1,000 hours (ASTM B117)
Coil Weight	3 – 10 MT per coil
Inner Diameter	508 mm / 610 mm

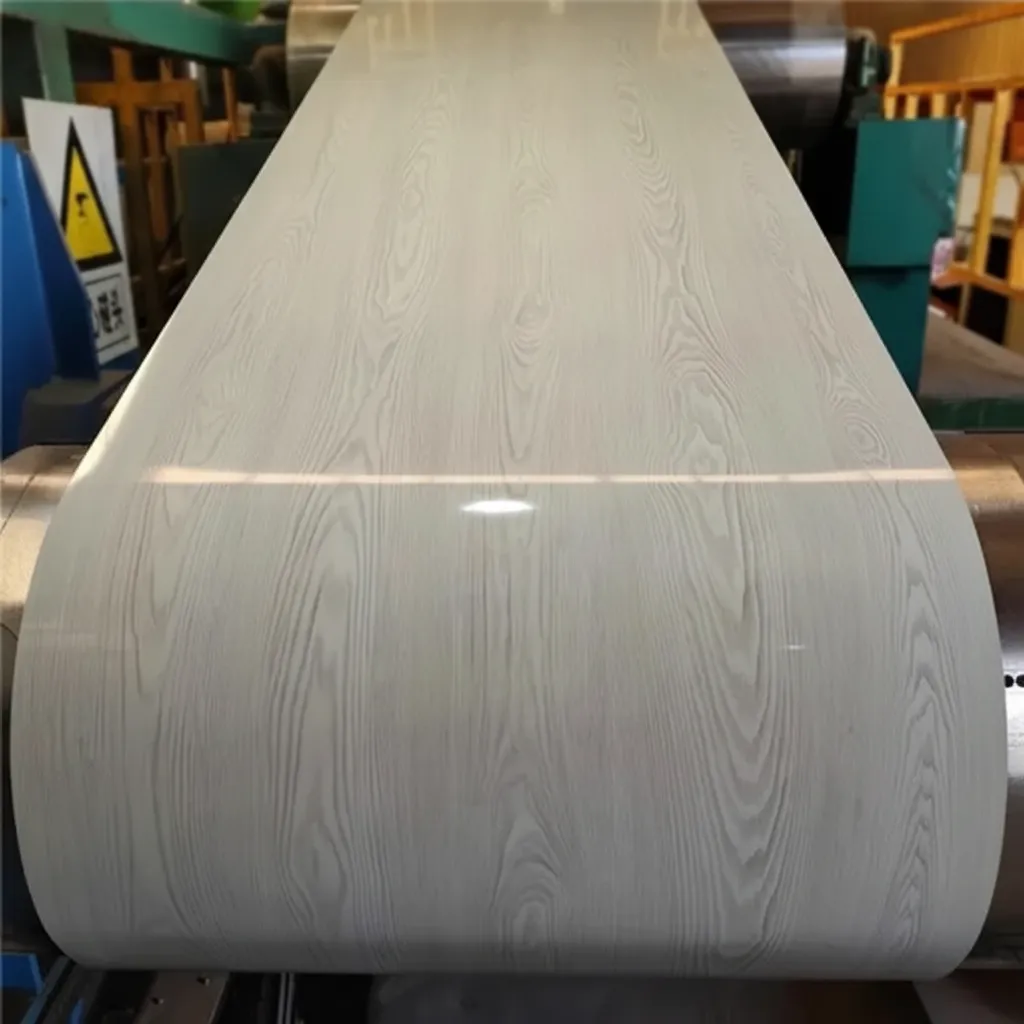

Color options span RAL, Pantone, and proprietary custom shades. Surface textures include smooth, embossed, and stone-grain finishes to meet diverse architectural and industrial requirements.

Aluzinc color coated coil manufacturer

Get a Competitive Quote for Aluzinc Color Coated Coil

As a mill-direct manufacturer, we offer cost-effective pricing, strict quality control from melt to coil, and rapid dispatch to ports worldwide. Whether you require standard stock dimensions or fully customized specifications, our technical team is ready to match your exact project requirements. Reach out now and receive a detailed quotation within 24 hours.

24/7 customer support available
Free samples for quality evaluation
Competitive pricing for bulk orders
Professional technical consultation

Contact us today to get your free quote within 24 hours!

Aluzinc color coated coil wholesale

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Rachel B.

United States

2025-02-01

Initial shipment had an edge wave issue — resolved satisfactorily

Our first order was 25 MT of 0.30 mm DX51D, AZ70, PE coated, 600 mm width for light appliance components. When the coils arrived, three of them had noticeable edge wave that caused feeding issues on our stamping line. Flagged this to the supplier with measurement data. They investigated, acknowledged the flatness deviation fell outside agreed tolerances, and arranged replacement coils within 10 days at no additional cost. Replacement coils were perfect. Paint adhesion and ASTM A755 compliance on all coils were fine throughout. Issue was resolved professionally, so we're willing to try a second order.

Tariq A.

UAE

2025-02-22

Competitive pricing on large volume — slight color variance on one coil

Ordered 95 MT of 0.40 mm AZ100 with SMP topcoat in RAL 9002 white, 1,250 mm width for a warehouse cladding project in Dubai. Overall very satisfied — mechanical properties met S280GD per EN 10346, and most coils had excellent color consistency. One coil showed a slight gloss variation (measured 28 GU vs. specified 30 GU). Raised the issue and supplier acknowledged it promptly, offering a partial credit. For the price point and volume flexibility, this is still strong value. Will consider for future projects with the understanding that pre-shipment inspection is advisable on large runs.

David H.

United States

2025-03-16

Good value for ASTM-compliant material — minor documentation delay

Purchased 35 MT of 0.55 mm DX53D, AZ150, PE topcoat (≥15 µm), 914 mm width for roll-forming operations in Texas. Product quality was solid — ASTM A755 compliance verified, salt spray test results included, and the polyester coating showed good formability with no cracking during our T-bend testing. Pricing was competitive for this spec. Only minor issue: the full test report package arrived two days after the goods, which caused a short customs delay. Supplier resolved it quickly and offered to send documents ahead of shipment on future orders. Would buy again.
