| Property | Parameter | Description |
|---|---|---|

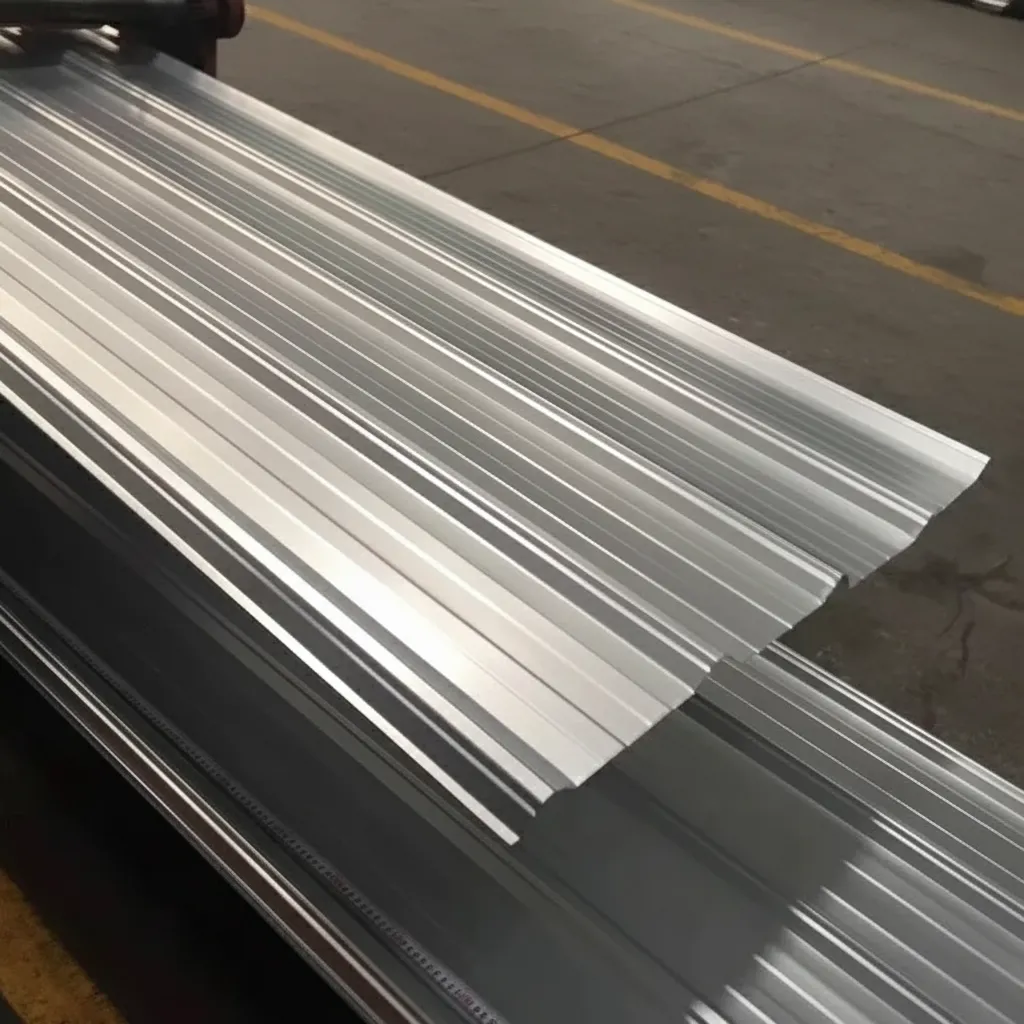

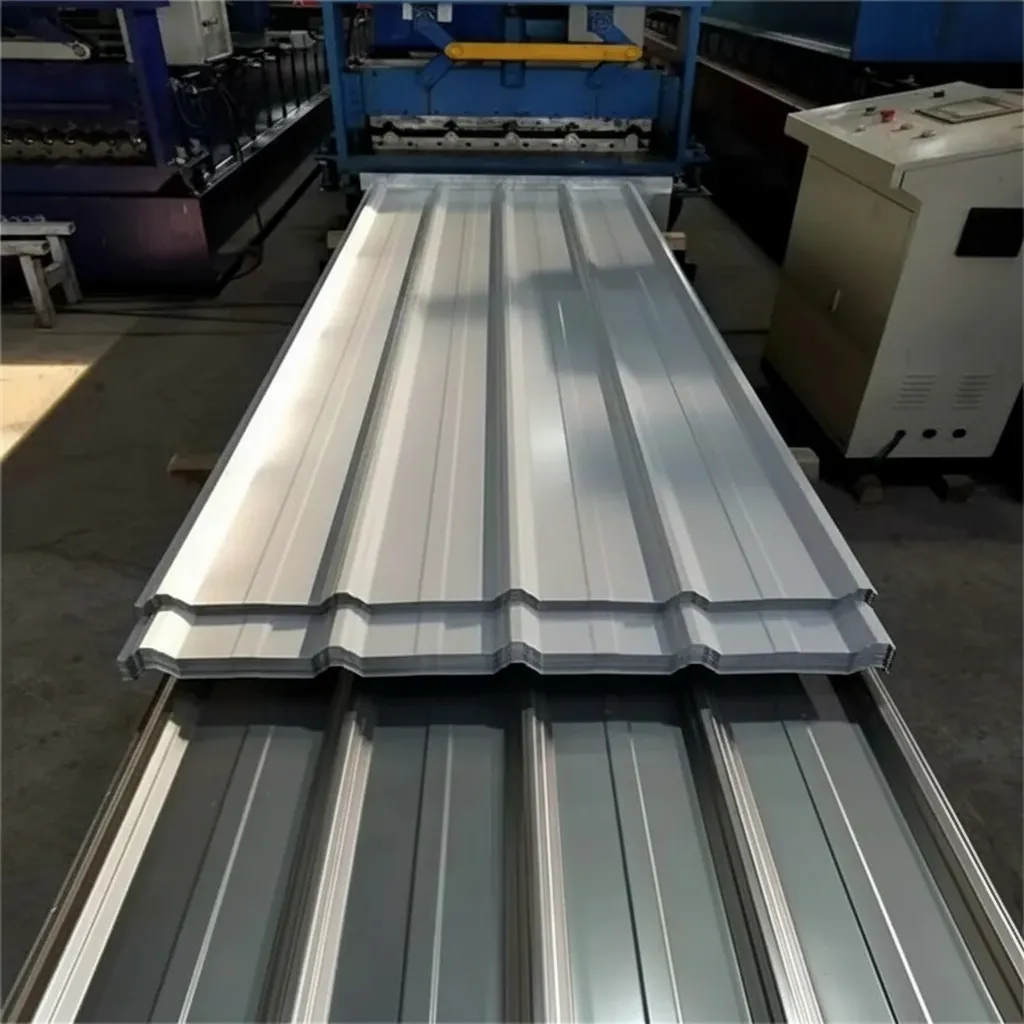

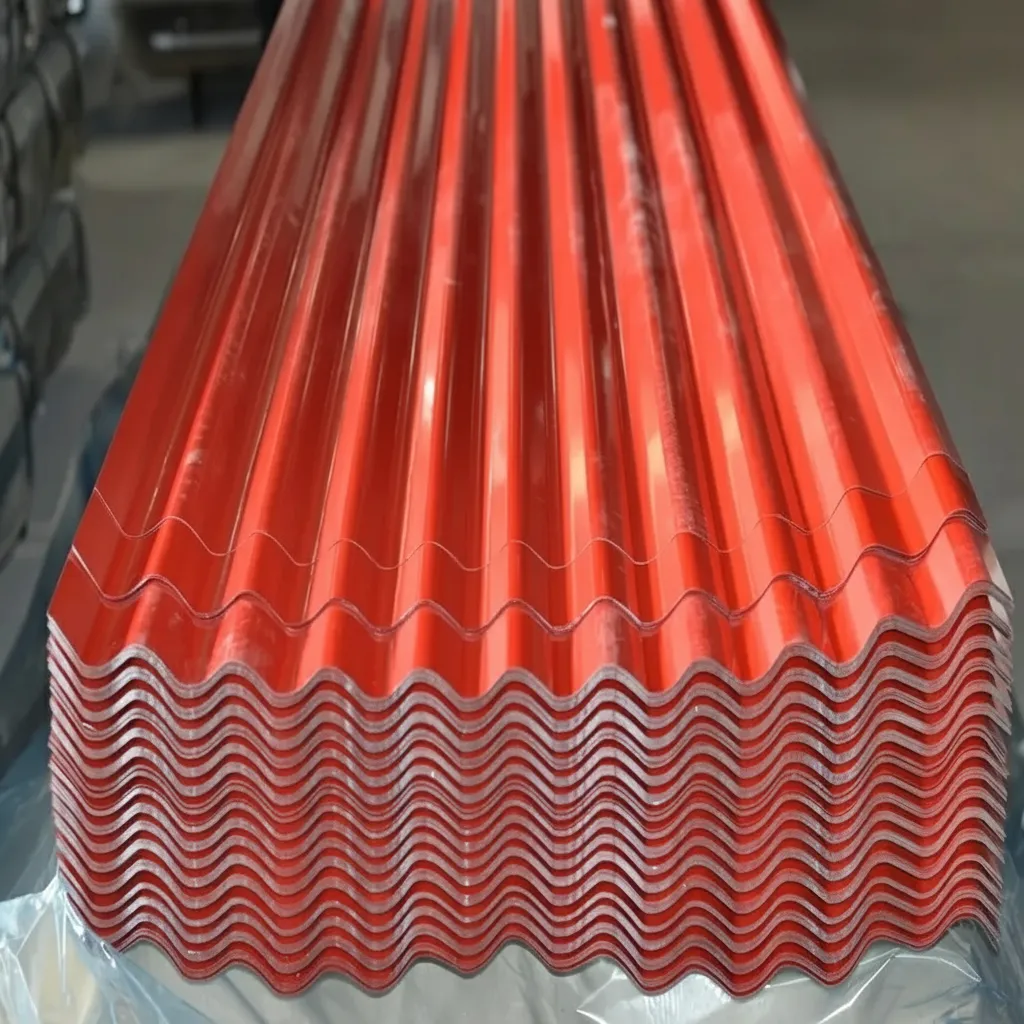

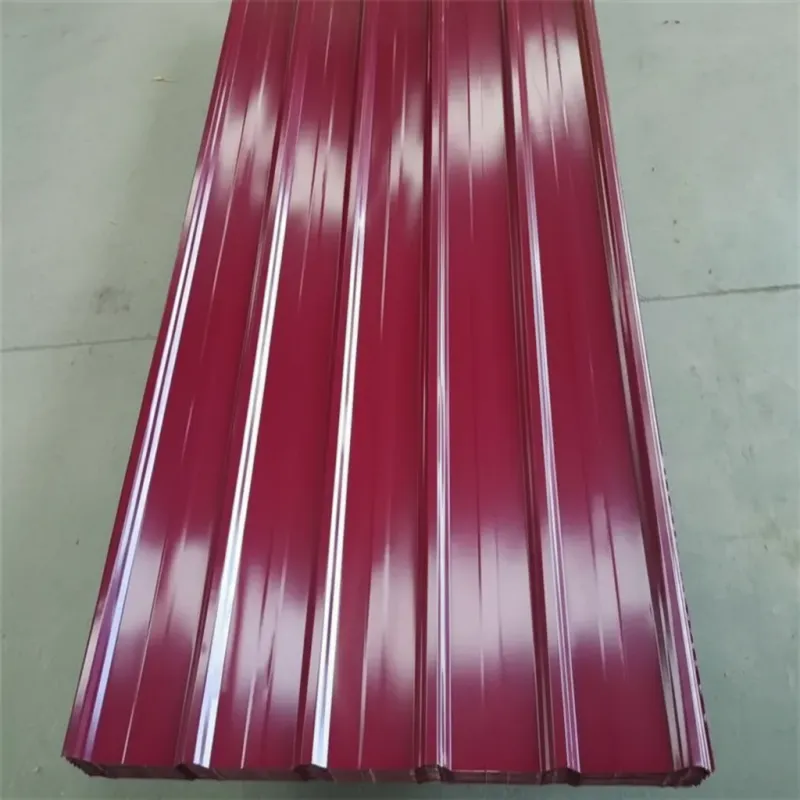

| Product Name | Color Coated Aluminum Sheet | Pre-painted aluminum sheet with polymer coating on one or both sides |
| Material Grade | 1100, 3003, 3105, 5052, 6061 (AA Grade) | Equivalent to EN AW-1100, EN AW-3003, EN AW-5052; pure and alloy aluminum base |
| Standard Compliance | ASTM B209, EN 485-2, GB/T 3880, AAMA 2604/2605 | Covers mechanical properties, coating performance, and dimensional tolerances |
| Chemical Composition | Al ≥99.0% (1100); Mn 1.0–1.5% (3003); Mg 2.2–2.8% (5052); Si, Fe, Cu ≤limits | Composition varies by alloy series; low Cu content ensures corrosion resistance |
| Tensile Strength | 110–290 MPa (alloy/temper dependent) | 1100-H14: ≥110 MPa; 3003-H14: ≥150 MPa; 5052-H32: ≥230 MPa (per ASTM B209) |
| Yield Strength | 85–215 MPa | 3003-H14: ≥130 MPa; 5052-H32: ≥160 MPa; varies with temper designation |
| Elongation | 4–12% | Measured over 50 mm gauge length; higher elongation in O-temper grades |
| Temper | H14, H16, H18, H24, H32, O | Work-hardened and stabilized tempers available to suit forming requirements |
| Thickness Range | 0.2–4.0 mm | Common coil thickness: 0.3–1.5 mm; sheet thickness up to 4.0 mm on request |
| Width Range | 100–2650 mm | Standard widths: 1000 mm, 1220 mm, 1500 mm; custom slit widths available |
| Length | 500–6000 mm (sheets); coil form available | Fixed-length sheets or coil supply; coil weight up to 5 MT |
| Coating Type | PVDF, PE (Polyester), FEVE, Epoxy Primer | PVDF: 25–70 μm total; PE: 18–25 μm; primer coat 5–8 μm; topcoat + back coat |

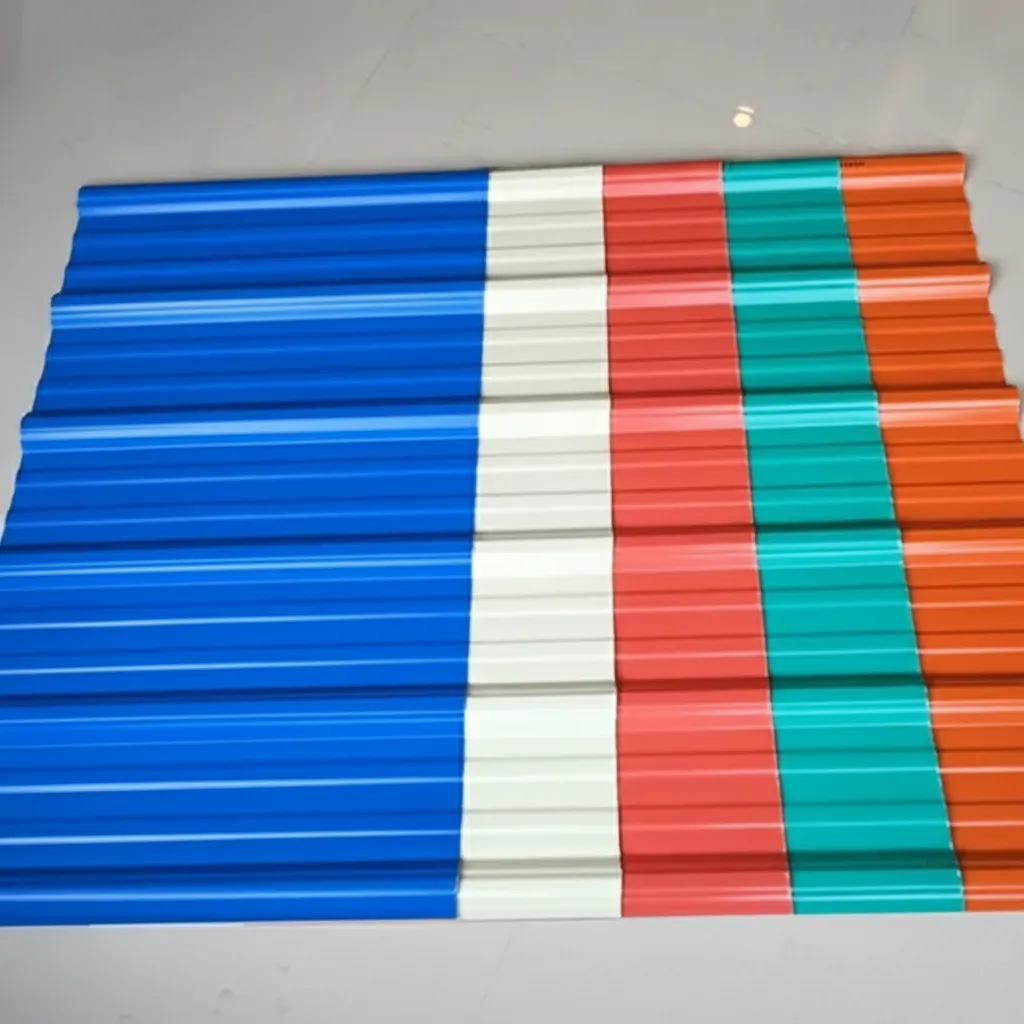

| Surface Finish | Smooth, Embossed, Brushed, Stucco, Mirror | RAL/Pantone custom colors; gloss level 10–90 GU (60° geometry) |
| Coating Performance | Salt spray ≥1000 h; UV resistance ≥10 years (PVDF) | Per ASTM B117 (salt spray), ASTM G154 (UV); pencil hardness ≥2H |
| Application | Building facades, roofing, ACP panels, signage, automotive trim, appliances | Widely used in construction cladding, interior decoration, and transportation |
| Certification | ISO 9001, SGS, CE, RoHS, REACH | Mill test certificate (MTC) per EN 10204 3.1 available upon request |
| Packaging | Wooden pallet with moisture-proof film; coils on steel mandrel with eye-to-sky | Edge protectors applied; export seaworthy packaging standard |
| MOQ | 1 MT (coil); 500 kg (sheet) | Mixed alloy/color orders accepted; lead time 15–25 days after order confirmation |
Initial color deviation issue — resolved satisfactorily
Ordered 6 tons of 3003-H14 at 0.60 mm in RAL 5015 sky blue for architectural cladding. When the shipment arrived, we measured ΔE 1.4 on approximately 15% of sheets — outside our ΔE ≤ 1.0 tolerance per spec. We raised a formal NCR immediately. The supplier responded within 48 hours, accepted the deviation report, and arranged replacement sheets at no additional cost within 12 days. Replacement batch measured ΔE 0.6 — fully compliant. The after-sales handling was professional and fast. Knocking off two stars for the initial issue, but their response process restored confidence for future orders.
