| Property | Parameter | Description |
|---|---|---|

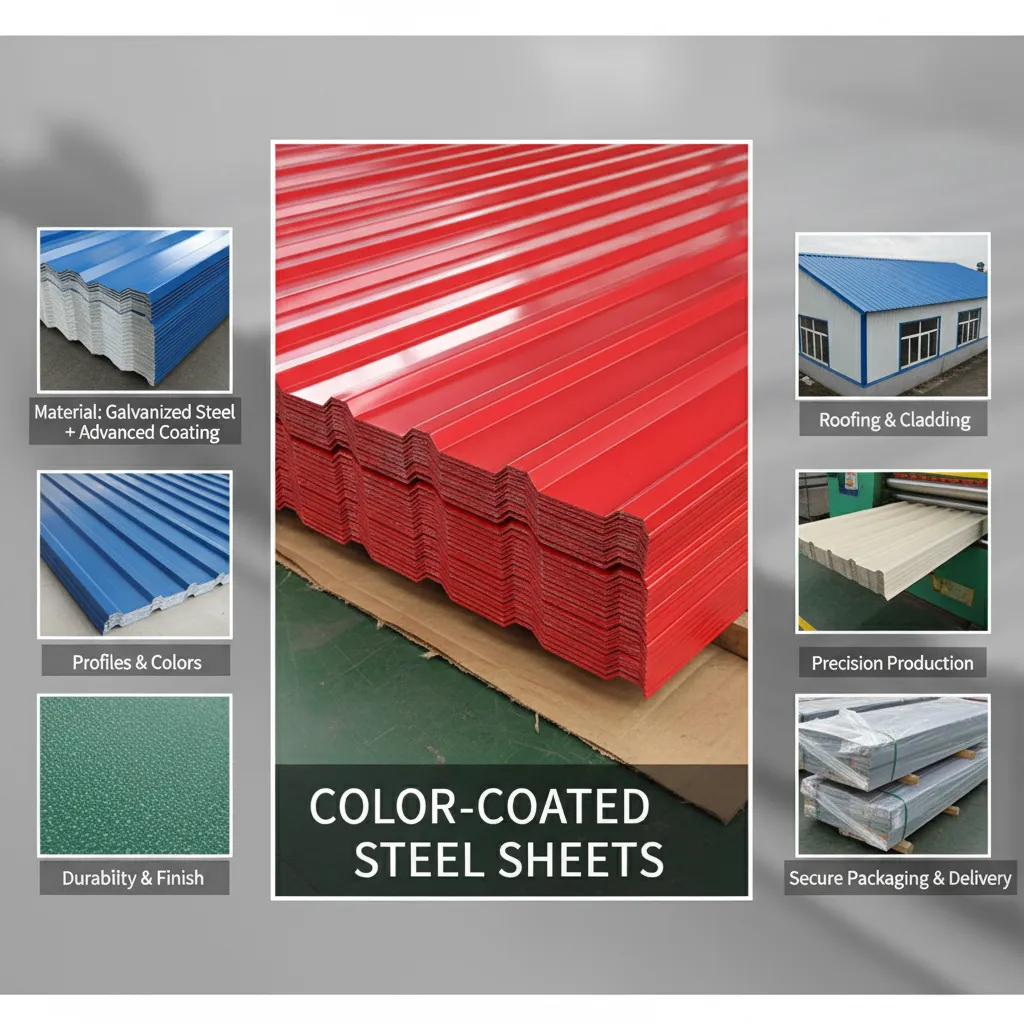

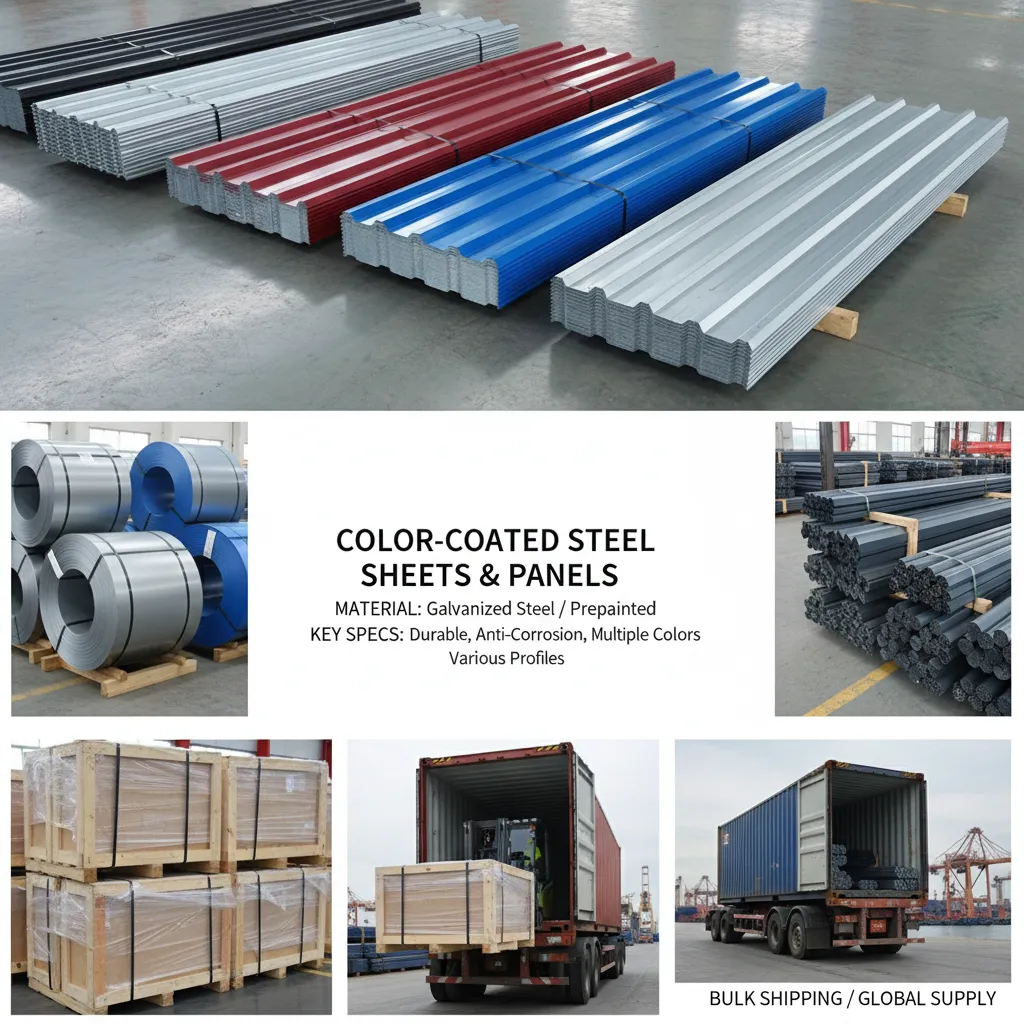

| Product Name | Scratch Resistant Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet with enhanced scratch-resistant coating |
| Material Grade | DX51D, DX52D, DX53D (EN 10346); SGCC, SGCD (JIS G3302); CS-B, FS-B (ASTM A653) | International equivalent grades for base metal substrate |
| Standard Compliance | EN 10169, ASTM A755/A755M, JIS G3312, GB/T 12754 | Governing standards for prepainted flat-rolled steel products |
| Chemical Composition (Base) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Typical composition for DX51D substrate; Zn or Al-Zn coating applied over base |
| Tensile Strength | 270–500 MPa | Per EN 10346 / ASTM A653; varies by grade and temper |
| Yield Strength | 140–420 MPa | Minimum yield strength depending on substrate grade (DX51D–DX53D) |
| Elongation | ≥ 22% (A80mm) | Measured per EN ISO 6892-1; ensures formability for roll-forming and bending |
| Scratch Resistance | Pencil Hardness ≥ 2H; Cross-cut Adhesion Grade 0 (ISO 2409) | High-hardness topcoat (PVDF, SMP, or HDP) provides superior mar and scratch resistance |
| Coating Type | PVDF, SMP (Silicone Modified Polyester), HDP (High Durability Polyester) | PVDF offers highest UV and scratch resistance; SMP balances cost and performance |
| Zinc/Coating Mass | Z100–Z275 g/m² (hot-dip galvanized); AZ70–AZ150 g/m² (galvalume) | Per EN 10346 / ASTM A653; heavier coating improves corrosion protection |
| Thickness Range | 0.30–1.50 mm (base metal); total with coating: 0.33–1.55 mm | Custom thickness available upon request |
| Width Range | 600–1,250 mm | Standard coil width; slit-to-width service available |

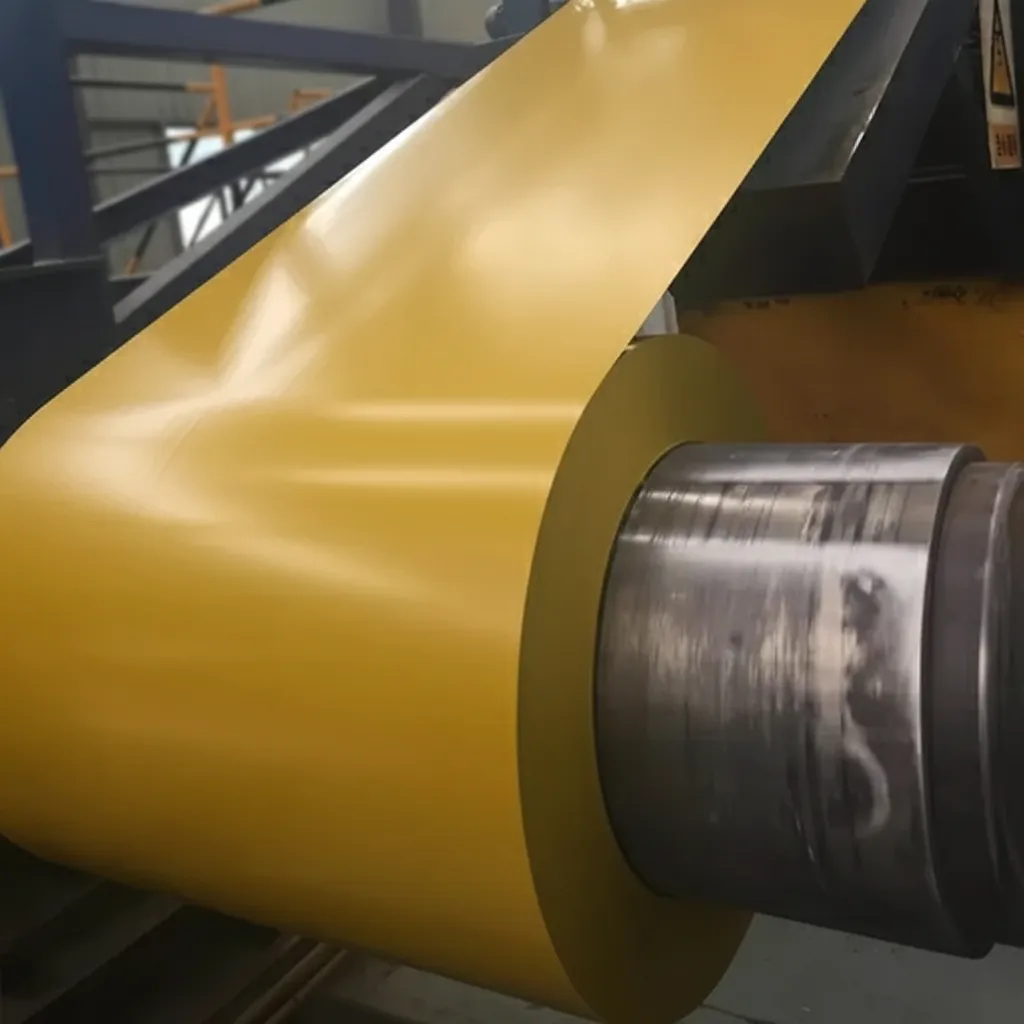

| Length / Form | Coil (ID 508/610 mm) or cut-to-length sheets up to 6,000 mm | Coil weight typically 3–10 MT; sheet length customizable |
| Surface Finish | Smooth, embossed, or matte; gloss level 10–80 GU (60° geometry) | RAL/custom color matching available; uniform paint film thickness 15–25 µm (topcoat) |

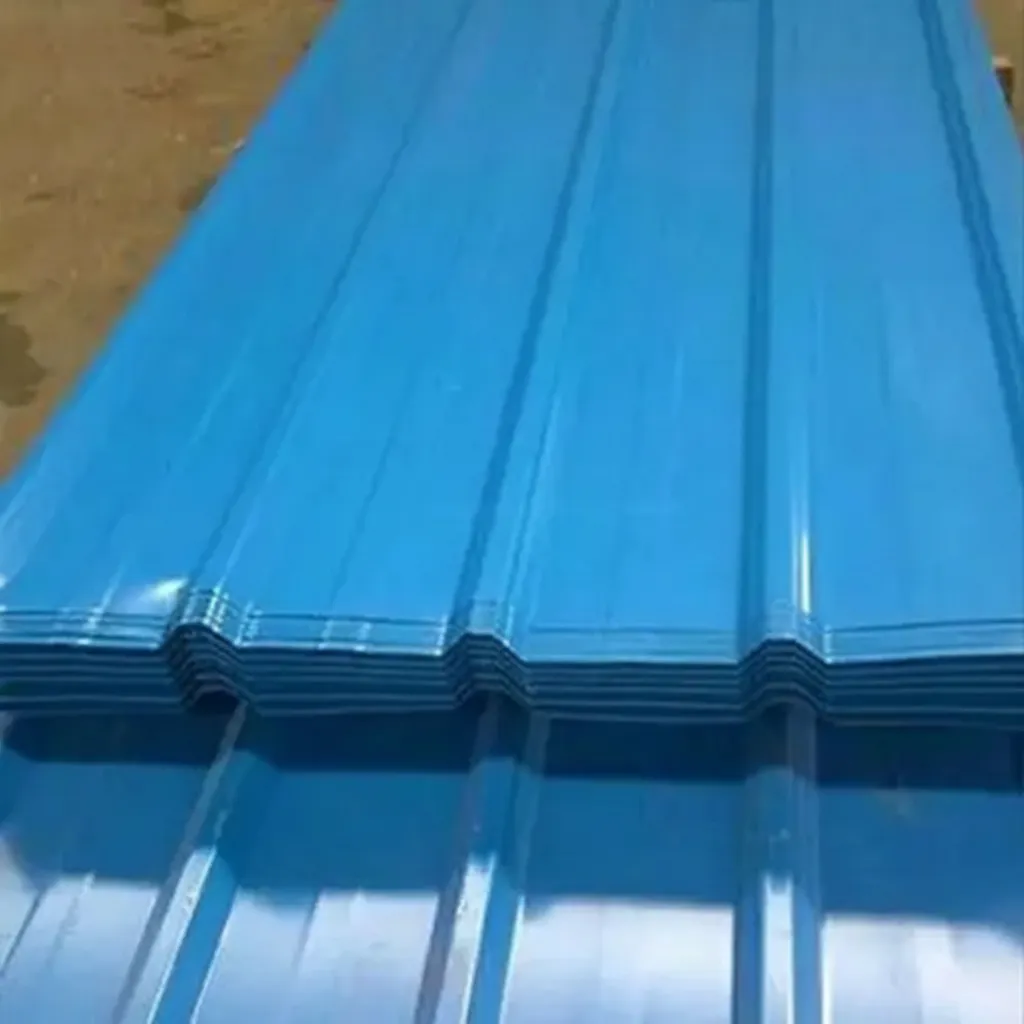

| Application | Roofing, wall cladding, home appliances, garage doors, interior decoration, automotive parts | Suitable for construction, industrial, and consumer product sectors |
| Certification | ISO 9001:2015, CE Marking, SGS, RoHS Compliant | Third-party inspection and mill test certificates (MTC) available per EN 10204 3.1 |
| Packaging | Coils wrapped in waterproof paper + steel strip banding; sheets in wooden pallets with edge protectors | Export-standard seaworthy packaging; moisture-proof inner wrapping |
| MOQ | 5 MT per color/specification | Mixed container orders accepted; lead time 15–25 days after order confirmation |
Initial shipment had minor edge burr issues — resolved promptly
We ordered 10 tons of 0.35 mm scratch resistant sheet, slit to 950 mm width, for interior partition panels. On arrival, approximately 15% of coils had minor edge burrs from slitting that required additional deburring on our line, adding processing time. We raised the issue immediately and the supplier's technical team responded within 24 hours, acknowledged the slitting tolerance deviation, and arranged a partial credit plus priority replacement coils within two weeks. Replacement material was clean and within spec. The willingness to resolve the problem quickly restored our confidence. Would consider ordering again.
