Steel Bifurcation Pipe for Efficient Industrial Flow Control

Steel bifurcation pipe is a fabricated flow component that divides one pressurized pipeline into two branches, helping industrial systems distribute water, slurry, gas, or other process media with controlled direction and reliable mechanical support. It is used by EPC contractors, utility owners, power-generation companies, mining operators, process-plant buyers, and industrial distributors that need a branch fitting designed around a specific line size and operating condition. A properly engineered steel bifurcation pipe can simplify routing, reduce the number of separate fittings, and support a balanced transition between the main pipe and branch outlets. Selection should be based on design pressure, temperature, medium, diameter, wall thickness, welding requirements, inspection scope, and applicable project standards rather than on nominal size alone.

Product Overview

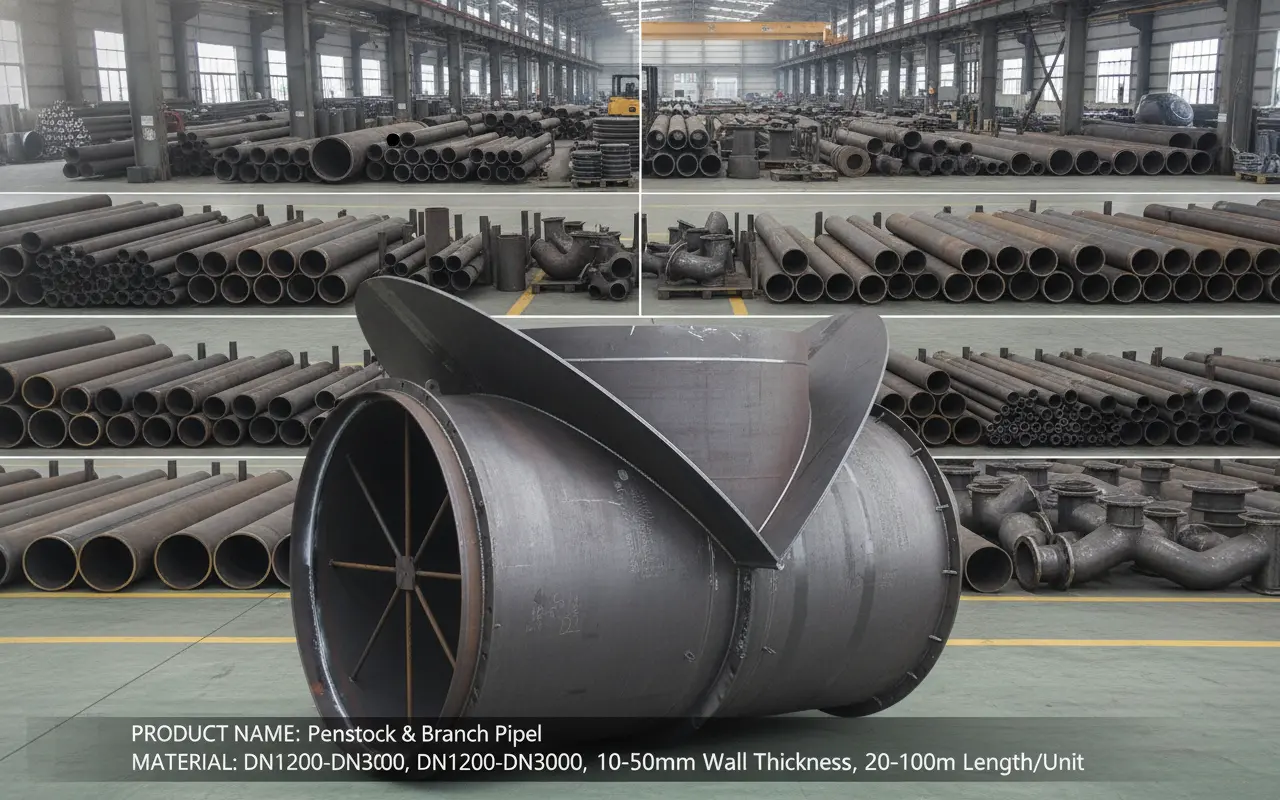

A steel bifurcation pipe is a Y-shaped or branching pipe assembly with one inlet and two outlets. Depending on the project, it may be produced as a symmetrical bifurcation, an unequal branch fitting, or a custom transition with different outlet diameters and centerline angles. The component can be installed in above-ground piping, buried pipelines, water conveyance systems, hydropower penstocks, industrial utility networks, and process systems where one flow path must be divided into two downstream routes.

The body is commonly fabricated from carbon steel, low-alloy steel, or stainless steel selected according to pressure, temperature, corrosion exposure, weldability, and the characteristics of the conveyed medium. Carbon steel is often considered for general industrial water, utility, air, and non-corrosive service. Low-alloy grades may be specified where higher strength or elevated-temperature performance is required. Stainless steel can be appropriate for corrosive media, hygienic service, or applications where resistance to localized corrosion is important. The final grade should be confirmed against the project material specification and the applicable design code.

Unlike a standard catalog tee, a steel bifurcation pipe is frequently engineered for a defined geometry and loading condition. The branch angle, crotch radius, reinforcement arrangement, reducer transitions, flange configuration, support loads, and access for nondestructive testing can all affect performance. Buyers evaluating [[INTERNAL_LINK]] should therefore provide a dimensional drawing or complete operating data before requesting a commercial quotation.

Typical features may include beveled weld ends, flanged outlets, reinforced branch connections, internal lining, external coating, lifting lugs, inspection ports, and machining allowances. Surface preparation and coating requirements vary by whether the assembly will operate indoors, outdoors, underground, submerged, or in a marine atmosphere. For water projects, buyers may also need to coordinate the pipe with [[INTERNAL_LINK]] and the surrounding support or anchoring system.

Specifications & Standards

Steel bifurcation pipe specifications should be established from the complete piping design. Relevant information normally includes the inlet and outlet nominal diameters, outside diameters, wall thicknesses, branch angle, overall dimensions, design pressure, design temperature, flow medium, corrosion allowance, end connection, material grade, heat-treatment condition, coating system, inspection plan, and packaging method. Because a bifurcation is often a custom fabricated fitting, its dimensions should be controlled by an approved drawing and not by a generic catalog description.

Applicable standards depend on the material, manufacturing route, destination market, and project code. ASTM A234/A234M is commonly referenced for wrought carbon steel and alloy steel piping fittings for moderate and elevated-temperature service, while ASTM A420/A420M covers wrought carbon steel and alloy steel fittings for low-temperature service. ASTM A403/A403M may be relevant for wrought austenitic stainless steel fittings. These standards address fitting material and manufacturing requirements; they do not by themselves replace the project piping design code or confirm that every custom bifurcation geometry is suitable.

For European projects, EN 10253-2 may be considered for butt-welding fittings made from non-alloy and alloy steels, and EN 10253-4 may be relevant to austenitic and austenitic-ferritic stainless steel fittings. Depending on the procurement specification, EN 10204 inspection documents may be requested, with the certificate type stated in the purchase order. Japanese projects may reference JIS B 2311 or JIS B 2312 for butt-welding pipe fittings, subject to the required pressure and material class. Chinese projects may specify GB/T 12459 for steel butt-welding seamless pipe fittings and GB/T 13401 for steel butt-welding pipe fittings, with the applicable edition and material requirements confirmed by the buyer.

A complete material certificate may include heat or cast identification, chemical analysis, tensile properties, yield strength, elongation, impact results where specified, and heat-treatment information. The exact chemistry and mechanical values must come from the selected grade and its governing standard; they should not be assumed from the term “carbon steel.” If the fitting is welded from plate or pipe rather than formed from a standard fitting blank, the supplier should identify the manufacturing route and submit the relevant welding procedure qualification, welder qualification, and repair-control requirements where requested.

Hydrostatic or pneumatic testing, dimensional inspection, weld examination, and coating inspection should be listed in the inspection and test plan. For a high-energy water or process line, the buyer may also need stress analysis, finite-element assessment, flow analysis, or a fatigue review. The required evidence should be agreed before fabrication, together with document language, inspection hold points, third-party witness requirements, and traceability expectations. Buyers comparing [[INTERNAL_LINK]] should make sure that quoted inspection scope is genuinely comparable.

Applications

Steel bifurcation pipe is used in several industrial flow-control environments:

• Hydropower and water conveyance: A penstock or pressure pipeline may divide toward two turbines, branches, or downstream units. The fitting must be coordinated with surge conditions, hydraulic thrust, supports, and site installation constraints.
• Municipal and industrial water systems: Treatment plants, pumping stations, cooling-water networks, and transmission systems use branch assemblies to route flow to separate process areas or parallel equipment trains.
• Mining and mineral processing: Slurry, process water, tailings, and service-water systems can require robust custom branches. Material selection and lining depend strongly on solids content, velocity, abrasion, and chemistry.
• Power and process plants: Utility steam, condensate, cooling, compressed-air, fuel, and chemical service lines may use bifurcated fittings where plant layout requires one supply to feed two systems.
• Oil, gas, and general industrial piping: Branch connections can support gathering, distribution, or utility functions, provided the material, design code, welding, inspection, and pressure classification meet the governing project specification.

In each application, the bifurcation should be evaluated as part of the complete piping system. Fluid velocity, turbulence, pressure loss, thermal expansion, vibration, dead weight, seismic loads, and accessibility for maintenance can influence the design. A branch that fits dimensionally may still require additional reinforcement or support if the two outlets impose substantial reaction forces.

How to Choose / Buying Guide

Begin with a complete technical data sheet. State the medium, normal and maximum flow rates, operating and design pressures, operating and design temperatures, density or viscosity where relevant, solids content, corrosivity, and any cyclic or transient conditions. Provide the inlet and outlet sizes, pipe schedules or wall thicknesses, branch angle, orientation, flange details, face-to-face dimensions, and connection to adjacent valves or equipment. A marked-up drawing is often more useful than a short product name.

Next, select the material from service conditions and the project specification. Confirm that the proposed grade is compatible with the parent pipe, welding consumables, post-weld heat treatment requirements, impact-test requirements, and operating temperature. For corrosive or abrasive media, discuss lining, cladding, corrosion allowance, or replaceable wear components instead of treating coating as a substitute for material engineering.

Define standards and documentation in the request for quotation. Identify whether ASTM, EN, JIS, GB/T, ASME, or another code governs the work, and specify the required edition where the project controls it. Ask for a drawing approval stage, material certificates, welding documentation, dimensional records, pressure-test records, nondestructive examination reports, coating reports, and a final manufacturing data book when required. If a third-party inspection agency will attend, include its scope and notification period in the purchase order.

MOQ is not always a fixed catalog quantity for a custom steel bifurcation pipe. It may be one engineered assembly, a small project batch, or a larger repeat order, depending on fabrication capacity and the supplier's commercial policy. Request the minimum order quantity, tooling or engineering charges, sample or prototype conditions, and the validity period of the quotation. The same approach applies to [[INTERNAL_LINK]], where dimensions and documentation can materially affect cost.

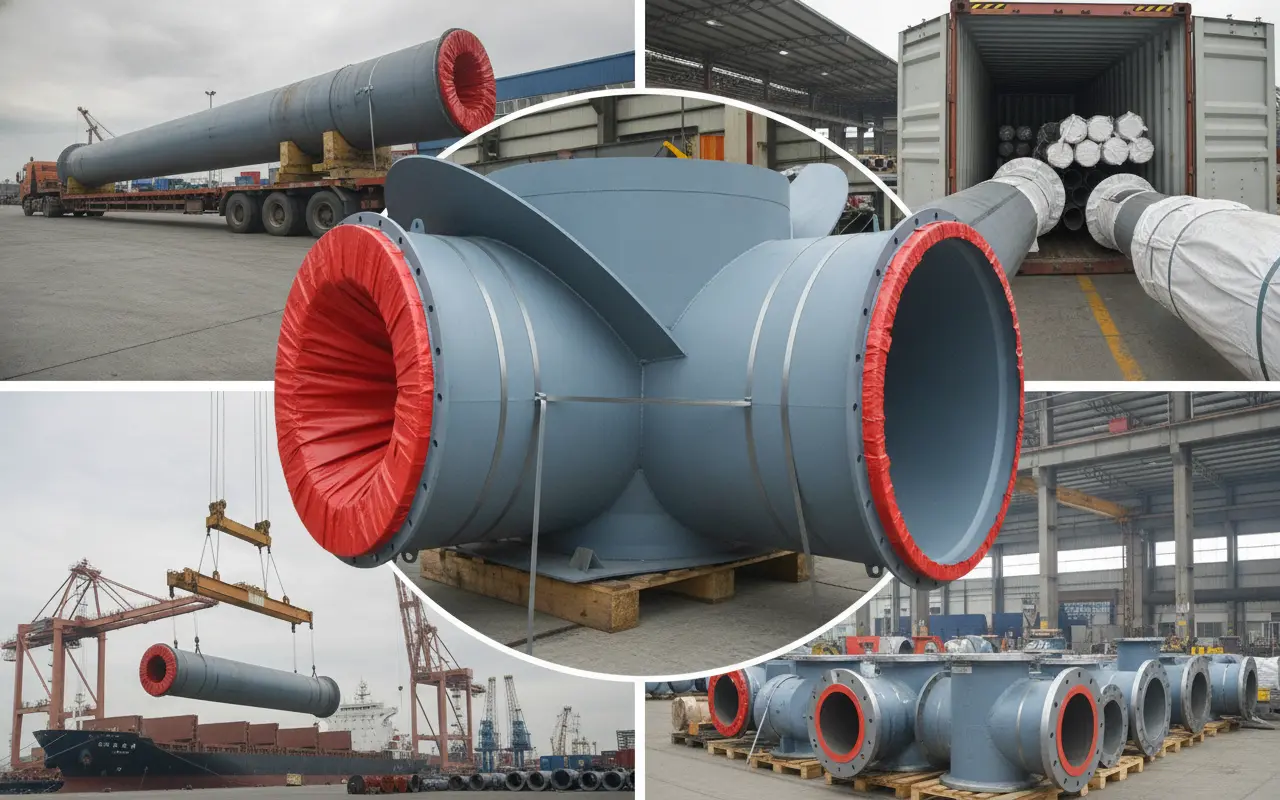

Lead time should be separated into engineering review, material procurement, fabrication, inspection, coating, and packing. Ask which milestone starts the quoted lead time and whether it assumes prompt drawing approval and material availability. For delivery planning, confirm total packed dimensions, gross weight, lifting points, container suitability, export packing, moisture protection, and shipping documents. Large branch fittings may require break-bulk or project cargo arrangements rather than standard container loading. The final delivery location and applicable import requirements should be established before the logistics quotation is accepted.

Commercial terms should be explicit. Confirm currency, Incoterms, payment schedule, warranty language, spare or replacement policy, document format, and responsibility for inspection or rework. Payment options vary by supplier and project; common arrangements may include a deposit with balance against documents, a letter of credit, or another agreed method. Buyers should evaluate the full landed cost and schedule risk, not only the quoted unit amount.

Frequently Asked Questions

Q: What is the difference between a steel bifurcation pipe and a standard steel tee?

A: A tee generally follows a standardized branch geometry and size range. A steel bifurcation pipe is often engineered for one main inlet dividing into two outlets, with project-specific angles, radii, transitions, reinforcement, and support loads. A tee may be suitable for a simple branch, while a bifurcation is more appropriate when two downstream flow paths and their hydraulic or structural effects must be considered together.

Q: Which material should be used for a steel bifurcation pipe?

A: The correct material depends on pressure, temperature, medium, corrosion, abrasion, weldability, and the parent piping. Carbon steel may suit many general services, while low-alloy or stainless steel can be needed for higher-temperature, higher-strength, or corrosive conditions. The exact grade should be selected from the project specification and verified against the applicable ASTM, EN, JIS, or GB/T requirement.

Q: Can the supplier provide material certificates and inspection reports?

A: Documentation can usually be arranged when it is stated during quotation and purchase-order review. Depending on the contract, the package may include heat traceability, chemical and mechanical test results, dimensional records, welding documents, pressure-test results, nondestructive examination reports, coating records, and an EN 10204 inspection certificate. Buyers should define the required certificate type and acceptance criteria in advance.

Q: What is the usual MOQ for a steel bifurcation pipe?

A: There is no universal MOQ because this product is commonly made to drawing. The order may be for a single assembly or several units, depending on engineering effort, raw-material purchasing, production planning, and supplier policy. Ask for the minimum commercially acceptable quantity and any one-time design, tooling, or inspection charges before placing the order.

Q: How long does production and delivery take?

A: Lead time varies with material availability, dimensions, fabrication complexity, inspection scope, coating, and destination. A reliable quotation should identify the time for drawing approval, material procurement, fabrication, testing, finishing, and dispatch. Buyers should also allow time for transport booking, export documents, customs clearance, and site receiving, particularly for oversized assemblies.

Q: What payment methods are available for international orders?

A: Payment terms are negotiated according to supplier policy, order value, customer history, and project risk. Possible arrangements include an agreed advance payment and balance, documentary credit, or another contractually accepted method. The quotation should state when payment is due, which documents trigger the balance, and how inspection or delivery milestones affect the schedule.

Q: Does a bifurcation pipe require hydraulic or stress analysis?

A: It may. Analysis is especially important for high pressure, high flow velocity, large diameter, severe transients, significant temperature change, unusual branch angles, or heavy attached equipment. The responsible engineer should determine whether pressure-loss evaluation, reinforcement calculations, finite-element analysis, or piping stress analysis is required by the project code and service conditions.

Q: How should a steel bifurcation pipe be protected against corrosion?

A: Protection depends on exposure and medium. Options can include an external paint system, internal lining, corrosion allowance, cladding, cathodic protection, or a stainless material selection. Surface preparation, dry-film thickness, holiday testing, repair procedures, and site touch-up requirements should be specified rather than left as an undefined coating statement. Related requirements may also apply to [[INTERNAL_LINK]].

Request a Steel Bifurcation Pipe Quote

Send the required sizes, branch geometry, service conditions, material preference, applicable standards, inspection scope, coating requirements, destination, and target delivery date to obtain a technically reviewable quotation for steel bifurcation pipe. Include drawings and any approved project specification so the supplier can confirm feasibility, documentation, and logistics before pricing. Request a dimensional proposal, manufacturing schedule, inspection plan, and commercial terms together to support an accurate purchasing decision.
