Plane Sliding Gate Manufacturer | Durable Industrial Gate Valve Solutions

A plane sliding gate is an industrial shut-off valve designed to control or isolate the flow of liquids, gases, powders, or other process media through a pipeline or handling system. The product is intended for overseas distributors, EPC contractors, plant operators, valve stockists, and OEM buyers who need a configurable gate solution for demanding service conditions. Its flat sliding closure concept can support compact installation, low flow resistance when fully open, and dependable isolation when the valve is correctly selected for pressure, temperature, media, and operating frequency. Buyers can specify body material, sealing arrangement, connection standard, actuation method, size, pressure class, inspection level, and documentation package according to the project requirement.

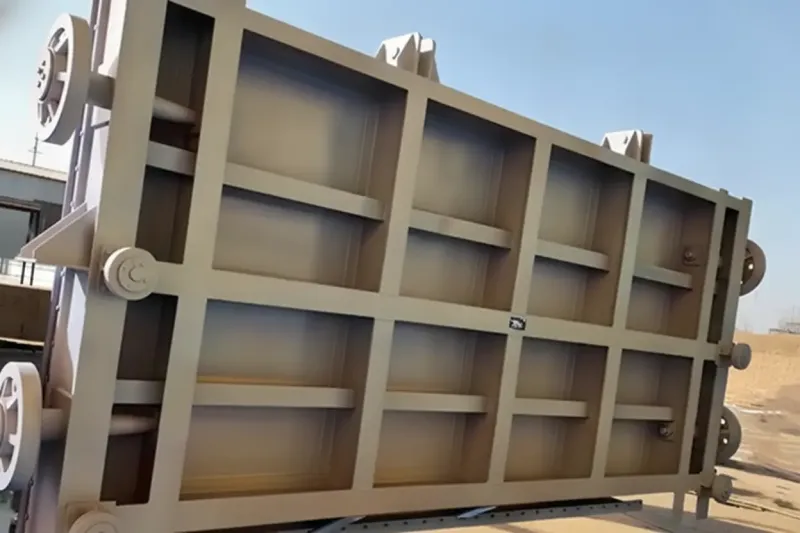

Product Overview: Plane Sliding Gate

A plane sliding gate uses a flat plate, or sliding gate element, that moves across the flow passage to open or close the valve. In the fully open position, the gate is retracted from the main flow path, which can help reduce obstruction compared with some throttling valve designs. In the closed position, the gate and sealing surfaces provide separation between the upstream and downstream sides. The exact internal construction varies by manufacturer and service duty, so the approved drawing and technical data sheet should always be reviewed before purchase.

Plane sliding gate valves are generally selected for isolation rather than continuous flow regulation. Repeated throttling can accelerate wear on the gate, seats, and sealing surfaces, particularly where the medium contains abrasive solids or where pressure drop is significant. For this reason, the purchasing specification should clearly state whether the valve will be used for on-off service, emergency isolation, maintenance isolation, or occasional process switching.

Common construction choices include carbon steel, stainless steel, alloy steel, ductile iron, or other materials selected for pressure, temperature, corrosion, and media compatibility. The correct material cannot be determined from valve size alone. Water service, dry bulk handling, corrosive chemicals, steam, hydrocarbon service, and high-temperature process lines may require different body, gate, seat, packing, and fastener materials.

Depending on the design, a plane sliding gate may be supplied with resilient or metallic seating, a rising or non-rising stem arrangement, manual handwheel operation, pneumatic actuation, electric actuation, or hydraulic actuation. Optional features may include limit switches, position indicators, locking devices, extension stems, protective stem covers, drain or vent connections, special coatings, and certified inspection records. Review related [[INTERNAL_LINK]]industrial gate valve products to compare construction options for the same nominal size and service.

Specifications & Standards for Plane Sliding Gate

Plane sliding gate specifications should be confirmed against the service data and the governing project standard. Because no application-specific data, pressure rating, dimensional series, material grade, or test class has been provided for this product, the values below are selection parameters rather than a fixed product promise. A manufacturer should issue a final drawing, bill of materials, pressure-temperature rating, and inspection plan for approval before production.

Applicable international standards

The relevant standard depends on the valve’s design, connection type, pressure class, and end use. For pipeline isolation valves, API 6D and its international counterpart ISO 14313 are commonly referenced where the project specification requires pipeline valve design and testing controls. ASME B16.34 is widely used for pressure-containing valve design, materials, pressure-temperature ratings, and marking requirements. Flanged-end dimensions may be governed by ASME B16.5 for relevant smaller and medium flange sizes, ASME B16.47 for larger flanges, EN 1092-1 for selected PN flange systems, or JIS B 2220 for Japanese flange systems.

These references should not be treated as automatic certification. The quotation should identify which standards apply, which edition is being used, whether the valve is fully compliant or designed to selected clauses, and what third-party inspection is available. A buyer comparing [[INTERNAL_LINK]]API-compliant valve options should request the compliance statement and test plan rather than relying on a catalogue description alone.

Applications of Plane Sliding Gate

A plane sliding gate can be specified for several industrial environments when the valve design, materials, and sealing system are matched to the medium.

Water treatment and utility pipelines

Waterworks, filtration systems, wastewater plants, and utility networks may use sliding gate isolation valves to divide process sections, isolate pumps, and support maintenance. For treated or chemically conditioned water, the buyer should confirm corrosion resistance, coating requirements, seat material, and the expected frequency of operation. Related [[INTERNAL_LINK]]water treatment valves may be considered where the project has defined municipal or utility specifications.

Bulk solids and powder handling

Flat sliding gates are used in selected hoppers, chutes, silos, conveyors, and discharge systems for powders, granules, ash, dust, cement, minerals, and agricultural products. Abrasive or sticky material can change the required gate thickness, clearance, lining, seal arrangement, and actuator sizing. These systems often need careful attention to installation orientation and access for cleaning.

Power generation and industrial utilities

Power plants and industrial facilities require isolation equipment for cooling water, service water, air, fuel-related auxiliary systems, ash handling, and other utility lines. The buyer should separate ordinary utility duty from high-temperature, steam, or severe-service duty, because the applicable body, packing, seat, and testing requirements may differ substantially.

Chemical and process plants

Chemical processing lines may use a plane sliding gate where the medium and operating conditions are compatible with the selected materials. Media concentration, chloride content, pH, solids loading, toxicity, and cleaning chemicals should be disclosed before quotation. Stainless steel construction alone does not guarantee suitability for every chemical; the complete wetted-material selection must be evaluated.

Mining, mineral processing, and material recovery

Mining and recycling plants often need isolation at transfer points, bins, slurry-related auxiliary systems, and process equipment. Wear, impact, dust ingress, and limited maintenance access are central design considerations. Buyers should provide the material description, particle size, bulk density, moisture level, operating cycles, and available actuator utilities when requesting a technical proposal. For related wear-resistant equipment, see [[INTERNAL_LINK]]industrial material handling valves.

How to Choose / Buying Guide for Plane Sliding Gate

1. Define the service before the size

Start with the medium, normal flow, maximum pressure, temperature range, flow direction, solids content, corrosive constituents, and required shut-off condition. A DN or NPS number without service data is insufficient for reliable selection. State whether the valve is intended for isolation, dead-end service, emergency shutdown, or frequent cycling. If the line may experience pressure surges, vacuum, thermal expansion, or pipeline pigging, include those conditions in the inquiry.

2. Match the valve to the piping standard

Confirm nominal size, face-to-face length, flange drilling, pressure class, gasket arrangement, and allowable installation orientation. ASME, EN, JIS, and GB/T systems are not automatically interchangeable. For Chinese domestic projects, the purchaser may need to reference a specific GB/T valve or flange standard; the exact number should be stated in the request for quotation. Ask for a dimensional drawing before placing an order, especially when replacing an existing valve.

3. Review materials as a complete system

Request the body, gate, seat, stem, packing, bolting, and coating materials as a bill of materials. Material certificates should be tied to heat numbers where traceability is required. For corrosive or abrasive service, discuss surface treatment, replaceable components, hardness requirements, and expected maintenance intervals. Do not select a material only because it is familiar or less expensive; compatibility depends on the entire operating environment.

4. Select the operating method carefully

Manual operation may suit infrequent, accessible isolation. A gearbox can reduce handwheel effort for larger or higher-pressure valves. Pneumatic, electric, or hydraulic actuation may be preferable for remote, automated, or interlocked systems. The actuator specification should include available air pressure or power supply, required open-close time, fail position, signal type, enclosure rating, and environmental conditions. Confirm the output torque or thrust with the valve manufacturer.

5. Clarify inspection and certification

Before comparing quotations, define the required inspection level. Typical documentation may include a certificate of conformity, dimensional inspection report, pressure-test report, material certificates, coating records, packing list, and operation manual. Some projects require witness or hold points, non-destructive examination, PMI, functional testing, or third-party inspection. Certification availability must be confirmed for the actual order and not assumed from a general company statement.

6. Confirm MOQ, lead time, and shipment planning

Minimum order quantity depends on size, material, actuation, customization, and the supplier’s production arrangement. Since no fixed MOQ or lead time has been provided for this product, request a written commercial offer based on the exact configuration. The quotation should separate manufacturing time, inspection time, packing time, and estimated transit time. Ask whether partial shipment is possible when the project contains multiple sizes or urgent replacement units.

For logistics, provide the destination country, delivery term, preferred packaging, and any export marking requirements. Large valves may need reinforced cases, lifting points, moisture protection, and detailed gross dimensions for freight planning. The final shipping method should be based on packed weight, volume, route availability, and delivery urgency. Buyers sourcing [[INTERNAL_LINK]]custom industrial valves should include logistics information at the technical inquiry stage.

Frequently Asked Questions About Plane Sliding Gate

Q: What is the difference between a plane sliding gate and a conventional wedge gate valve?

A: A plane sliding gate generally uses a flat gate that travels across the flow passage, while a wedge gate uses a wedge-shaped closure that seats between inclined sealing surfaces. The two designs can differ in sealing behavior, flow passage, installation envelope, operating force, and suitability for solids or specific pressure conditions. The correct comparison must be based on the manufacturer’s approved design and the actual medium rather than the name alone.

Q: Can a plane sliding gate be used for throttling?

A: It is normally selected for open-close isolation, not continuous throttling. Partly open operation may create turbulence, vibration, erosion, and accelerated seat or gate wear. If the process requires regular flow control, discuss a control valve, butterfly valve, globe valve, or a purpose-designed slide gate with the supplier. The operating cycle and control requirement should be stated in the inquiry.

Q: Which materials are available for a plane sliding gate?

A: Material availability depends on the manufacturer and service requirement. Common categories include carbon steel, stainless steel, alloy steel, ductile iron, and engineered sealing materials. The final selection requires information about pressure, temperature, corrosion, abrasion, and the process medium. Buyers should request a complete wetted-parts bill of materials and verify it against the project material specification.

Q: What certifications can be supplied with the valve?

A: Available documents depend on the purchase order and applicable standard. They may include a certificate of conformity, material certificates, pressure-test records, dimensional inspection, coating reports, operation manuals, and third-party inspection documentation. API 6D, ISO 14313, ASME B16.34, API 598, or EN 12266-1 may apply in particular projects, but compliance must be confirmed for the exact model and configuration.

Q: What is the minimum order quantity for a plane sliding gate?

A: There is no universal MOQ. It may vary according to valve size, body material, actuator, customization, inspection requirements, and whether the item is standard or project-specific. Request the supplier’s MOQ for the exact bill of materials. A distributor order, replacement unit, and engineered package may each receive different commercial conditions.

Q: What payment methods are available for international orders?

A: Payment terms are agreed between the buyer and supplier and may depend on company policy, order value, customization, and buyer qualification. Common commercial arrangements in international trade can include an advance payment with the balance before shipment, documentary payment, or a letter of credit. The pro forma invoice should clearly state currency, payment milestones, bank charges, inspection conditions, and documents required for release.

Q: How long does delivery take?

A: Lead time depends on size, material, machining workload, actuator selection, inspection scope, and current production capacity. A standard manual valve may follow a different schedule from a custom actuated or certified assembly. Ask for a written production schedule that identifies drawing approval, material procurement, manufacturing, testing, inspection, and packing. Transit time should be quoted separately from factory lead time.

Q: What information should be included in a request for quotation?

A: Include the valve type, nominal size, pressure class, connection standard, medium, pressure, temperature, flow direction, shut-off requirement, materials, actuation method, quantity, applicable standards, inspection documents, destination, delivery term, and required delivery date. A piping drawing, valve data sheet, or existing valve photograph can help resolve dimensional questions. For an engineered request, attach the line list and project specification where available.

Q: How should the valve be stored before installation?

A: Follow the manufacturer’s storage instructions. In general, protect the valve from impact, moisture, contamination, and unauthorized operation; keep flange protectors or end covers in place; and store actuators and electrical components within their specified environmental limits. Do not remove protective packaging or operate the valve repeatedly before installation unless the supplier’s manual permits it.

Send your required size, pressure rating, connection standard, medium, temperature, material preference, actuation method, quantity, and destination to request a plane sliding gate quotation. The technical team can review the service conditions, confirm applicable ASTM, EN, JIS, GB/T, API, or ASME requirements, prepare the correct drawing and documentation list, and provide a commercial offer for your project. You may also submit your valve data sheet through [[INTERNAL_LINK]]the industrial valve inquiry page or compare related [[INTERNAL_LINK]]pipeline isolation solutions before final selection.
