PPGL Steel Coil Supplier for Roofing and Construction

PPGL Steel Coil is a pre-painted flat steel product manufactured with an aluminum-zinc alloy-coated substrate and a factory-applied organic paint system. It is specified by roofing manufacturers, building-material distributors, roll formers, contractors, and industrial fabricators that require corrosion resistance, consistent color, and efficient downstream processing. Compared with post-painting fabricated components, coil-coated PPGL supports continuous production, controlled film thickness, and repeatable surface appearance. Overseas procurement teams can order it by substrate grade, metallic coating mass, thickness, width, paint type, color, gloss, and coil weight to match forming equipment and project-service conditions.

PPGL Steel Coil Product Overview

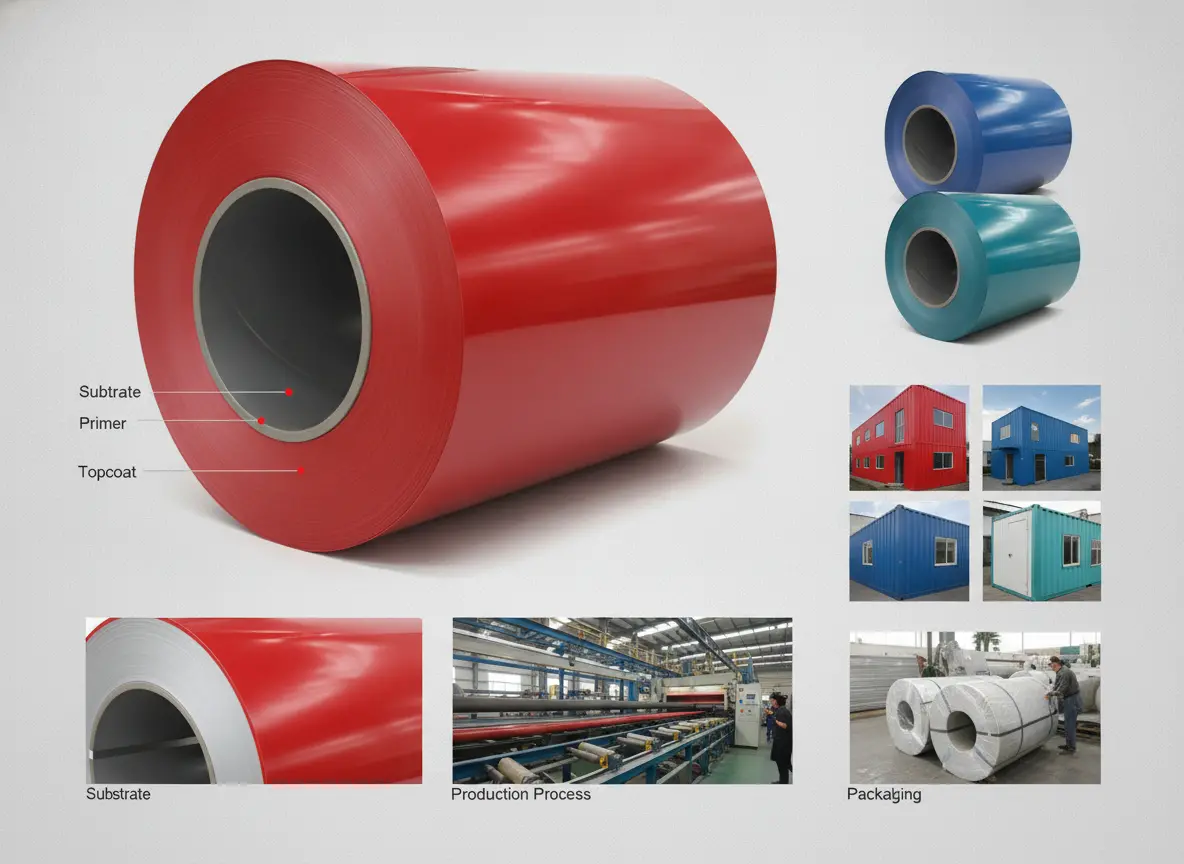

PPGL means pre-painted galvalume steel. The product begins with a cold-rolled steel substrate coated with an aluminum-zinc alloy, commonly referred to as galvalume or Al-Zn coated steel. A coil-coating line then applies pretreatment, primer, and finish paint under controlled conditions. The finished PPGL Steel Coil combines the structural formability of sheet steel with a metallic corrosion barrier and a decorative organic coating.

The metallic coating used for conventional galvalume products is nominally composed of approximately 55% aluminum, 43.4% zinc, and 1.6% silicon by mass. Aluminum contributes barrier protection, zinc provides galvanic protection at exposed areas, and silicon helps control the coating reaction during manufacture. Actual conformity should be verified against the ordered substrate standard and the mill certificate rather than inferred from the product name alone.

Paint selection has a direct effect on service life and appearance. Common coating families include polyester, silicone-modified polyester, polyurethane-based systems, and polyvinylidene fluoride. Their suitability varies with ultraviolet exposure, humidity, chemicals, color-retention requirements, and project budget. Buyers should therefore specify the coating system, topcoat and back-coat requirements, gloss, color reference, and intended environment. Related [[INTERNAL_LINK]] and [[INTERNAL_LINK]] resources can help compare metallic-coated and pre-painted steel products.

Key advantages include uniform color, production-ready surfaces, compatibility with roll forming, and fewer painting operations after fabrication. Performance still depends on correct storage, tool setup, cut-edge design, installation practice, and compatibility with fasteners and adjacent materials.

PPGL Steel Coil Specifications & Standards

PPGL Steel Coil should be purchased through a complete specification rather than by color and thickness alone. Relevant standards include ASTM A755/A755M for metallic-coated steel sheet pre-painted by the coil-coating process, ASTM A792/A792M for 55% aluminum-zinc alloy-coated steel sheet, EN 10169 for continuously organic-coated steel flat products, and EN 10346 for continuously hot-dip-coated steel flat products.

Other recognized routes include JIS G 3322 for prepainted hot-dip 55% aluminum-zinc alloy-coated steel sheets and coils, JIS G 3321 for the corresponding unpainted substrate, and GB/T 12754 for prepainted steel sheet and strip. Standards are not automatically interchangeable. Grade designations, test methods, coating classes, tolerances, and ordering language must be reviewed before substitution.

Mechanical properties are grade-dependent. A structural PPGL product cannot be assumed to have the same yield strength or elongation as a drawing-quality product. The purchase order should identify the exact grade and standard, after which the applicable values can be reported on the inspection certificate.

For further technical comparison, consult [[INTERNAL_LINK]] for galvalume substrates and [[INTERNAL_LINK]] for color-coated steel testing considerations.

PPGL Steel Coil Applications

PPGL Steel Coil is primarily selected for fabricated products that need a finished appearance and resistance to atmospheric exposure. Typical applications include:

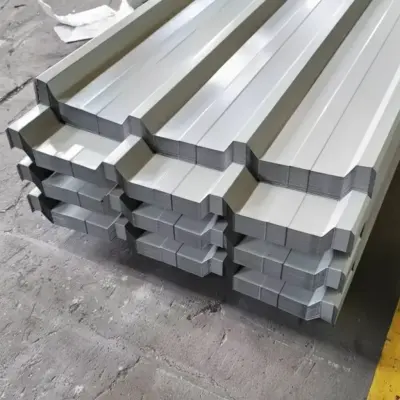

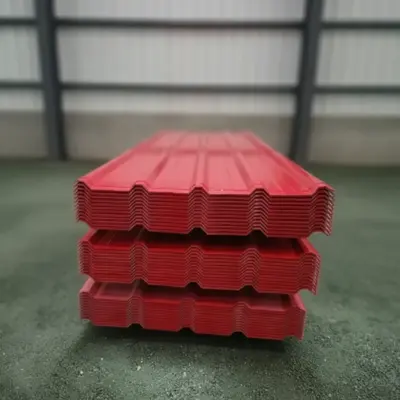

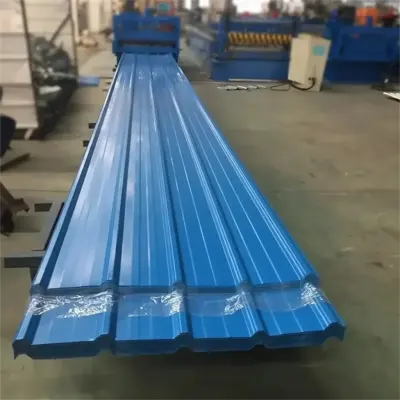

• Roofing and wall cladding: Roll-formed corrugated sheets, standing-seam profiles, insulated sandwich-panel skins, flashings, and architectural trim.
• Prefabricated construction: Modular buildings, site offices, warehouses, workshops, and light-gauge building components where rapid assembly is important.
• Rainwater and accessory systems: Gutters, downpipes, ridge caps, closures, and related formed parts, subject to suitable coating and design.
• Appliance and enclosure components: Selected housings, panels, cabinets, and non-critical covers after validation of finish, forming, and operating environment.
• General fabrication: Signage panels, partitions, ceilings, doors, and other products processed by slitting, cutting, bending, or profiling.

Application suitability should be evaluated against corrosion category, ultraviolet exposure, roof pitch, drainage, contact materials, maintenance access, and expected forming radius. Coastal, industrial, high-humidity, or chemically aggressive locations may require a more durable paint system and project-specific warranty review. See [[INTERNAL_LINK]] for roofing profiles and [[INTERNAL_LINK]] for sandwich-panel materials.

How to Choose PPGL Steel Coil: Buying Guide

Procurement managers should begin with the finished component, not a generic coil description. Send the supplier a specification covering the governing standard, base-steel grade, thickness definition, width and tolerance, Al-Zn coating designation, paint system, color, gloss, dry film requirements, surface texture, coil dimensions, and intended application.

Review forming requirements carefully. Tight bends, deep profiles, or demanding roll-forming lines may need a substrate and paint system with suitable ductility and adhesion. Request technical confirmation when changing steel grade, coating mass, paint chemistry, or supplier because seemingly equivalent products can behave differently during fabrication. A trial coil or approved production sample may be appropriate before a large repeat program.

Certification requirements should appear in the inquiry and purchase order. Ask which inspection document can be supplied, which properties are tested by batch, and whether coating mass, mechanical properties, dimensions, color, gloss, and paint performance are included. If third-party inspection is required, define the inspection scope, acceptance criteria, sampling stage, and responsible party before production. Guidance on [[INTERNAL_LINK]] can support document review.

MOQ and lead time depend on color, paint system, substrate availability, width, coil size, and production scheduling. Standard combinations may have different commercial conditions from custom colors or narrow slit coils. Request written confirmation of the minimum order quantity, production window, sample-approval period, and partial-shipment policy.

For export logistics, confirm packing orientation, edge and bore protection, waterproof wrapping, lifting method, container loading plan, and maximum acceptable coil weight. The quotation should also state the Incoterm, loading responsibility, documentation, and shipment basis. Review [[INTERNAL_LINK]] for steel-coil packing and handling practices.

Frequently Asked Questions About PPGL Steel Coil

Q: What is the difference between PPGL and PPGI steel coil?

A: PPGL normally uses a 55% aluminum-zinc alloy-coated substrate, while PPGI uses a zinc-coated galvanized substrate. Their cut-edge behavior, heat reflectivity, corrosion mechanisms, forming response, and application suitability can differ. Selection should be based on the exposure environment, component design, paint system, and governing specification rather than appearance alone.

Q: Which standards apply to PPGL Steel Coil?

A: Common references include ASTM A755/A755M and ASTM A792/A792M, EN 10169 and EN 10346, JIS G 3322 and JIS G 3321, and GB/T 12754. The contract should identify one coherent standards route and the exact grade, coating designation, tolerances, and test requirements.

Q: Can the supplier provide material certification?

A: Certification availability should be confirmed during quotation. Buyers may request an inspection certificate listing the ordered grade, mechanical properties, metallic coating mass, dimensions, and other agreed results. Specify whether third-party verification or a particular inspection-document format is mandatory.

Q: What is the minimum order quantity for PPGL Steel Coil?

A: There is no universal MOQ. It varies with substrate, color, coating system, width, coil weight, and current production planning. Custom colors and special paint systems may require production-batch quantities. Ask for an order-specific MOQ and identify whether mixed sizes or colors can be combined.

Q: How should buyers select the paint coating?

A: Consider outdoor exposure, UV intensity, humidity, industrial contaminants, color-retention expectations, forming severity, and service-life objectives. Polyester may suit general applications, while more demanding environments may justify upgraded coating systems. Final selection should follow technical data and project requirements.

Q: What payment methods are available for export orders?

A: Payment terms are supplier- and order-specific. Common international methods may include bank transfer or letter of credit, subject to commercial agreement and credit review. Confirm currency, deposit or credit terms, banking charges, document conditions, and payment milestones in the sales contract.

Q: How long is the production and delivery lead time?

A: Lead time depends on raw-material availability, color approval, paint selection, quantity, slitting requirements, production schedule, and shipping arrangements. Obtain separate written estimates for sample approval, manufacture, inspection, inland transport, and ocean shipment.

Q: How should PPGL coils be stored and handled?

A: Keep coils dry, ventilated, securely supported, and protected from condensation, rain, salt contamination, and mechanical damage. Use suitable lifting equipment and avoid damaging coil edges. Wet packages should be addressed promptly according to the supplier’s handling guidance.

Send your required PPGL Steel Coil standard, grade, thickness, width, coating designation, paint system, color, coil weight, destination, and estimated quantity to request a technical review and export quotation. Drawings, forming details, inspection requirements, and packing instructions will help the supplier prepare an accurate offer.
