| Property | Parameter | Description |
|---|---|---|

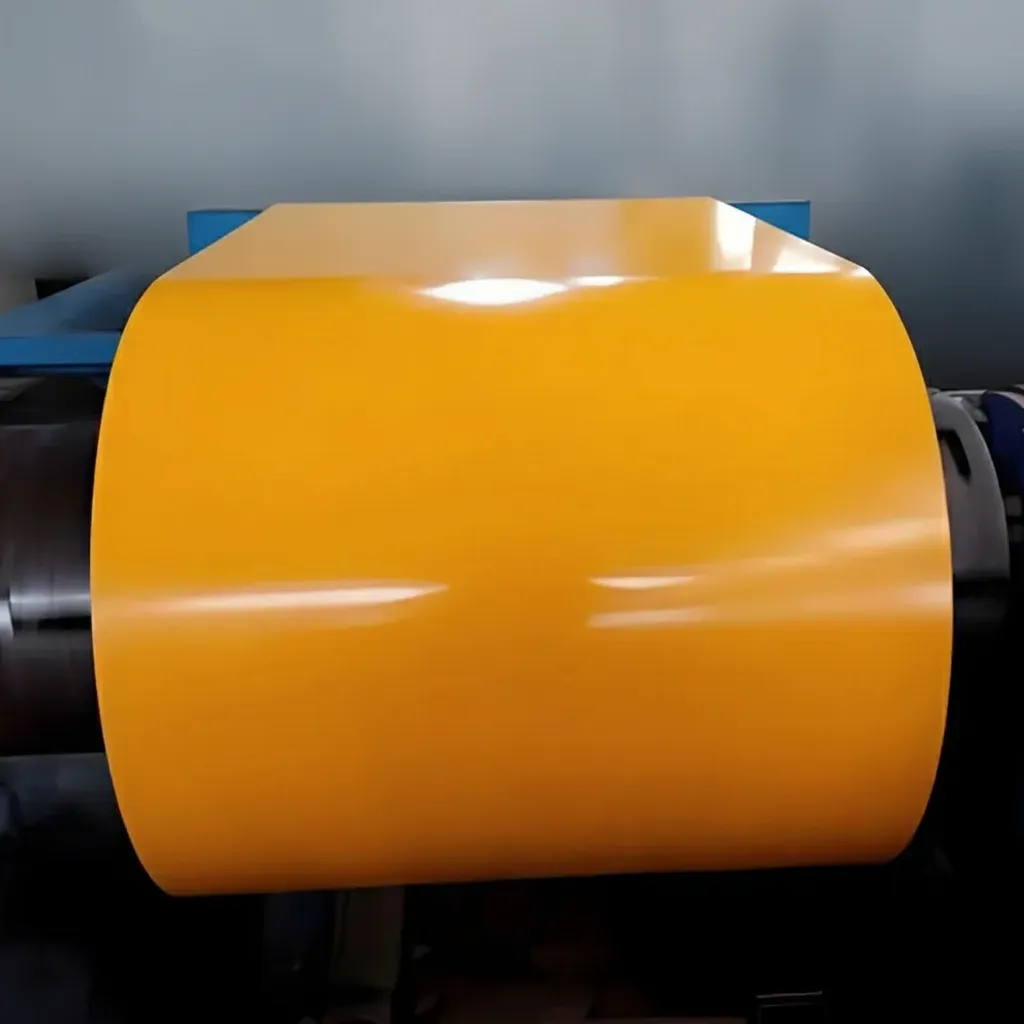

| Product Name | Steel Color Coating Processing | Pre-painted / color-coated steel sheet and coil produced via continuous coating line |
| Material Grade | SGCC, SGCD, DX51D, DX52D, S280GD, S350GD | Equivalent to JIS G3302, EN 10346, ASTM A653; base metal hot-dip galvanized or cold-rolled steel |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | International standards for continuously organic-coated flat-rolled steel products |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Typical composition for DX51D/SGCC substrate; adjusted per grade requirement |
| Tensile Strength | 270–560 MPa | Varies by substrate grade; e.g., S280GD: ≥ 280 MPa per EN 10346 |
| Yield Strength | 140–420 MPa | DX51D: ≥ 140 MPa; S350GD: ≥ 350 MPa; per EN 10346 / ASTM A653 |
| Elongation | ≥ 16–22% | A80 elongation; DX51D ≥ 22%, S350GD ≥ 16% per EN 10346 |
| Coating Type | Polyester (PE), PVDF, SMP, HDP, Epoxy | Top coat options; PVDF offers superior UV and weather resistance for exterior applications |
| Coating Thickness | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 5–12 µm | Total dry film thickness measured per ASTM D1005 / EN ISO 2808 |

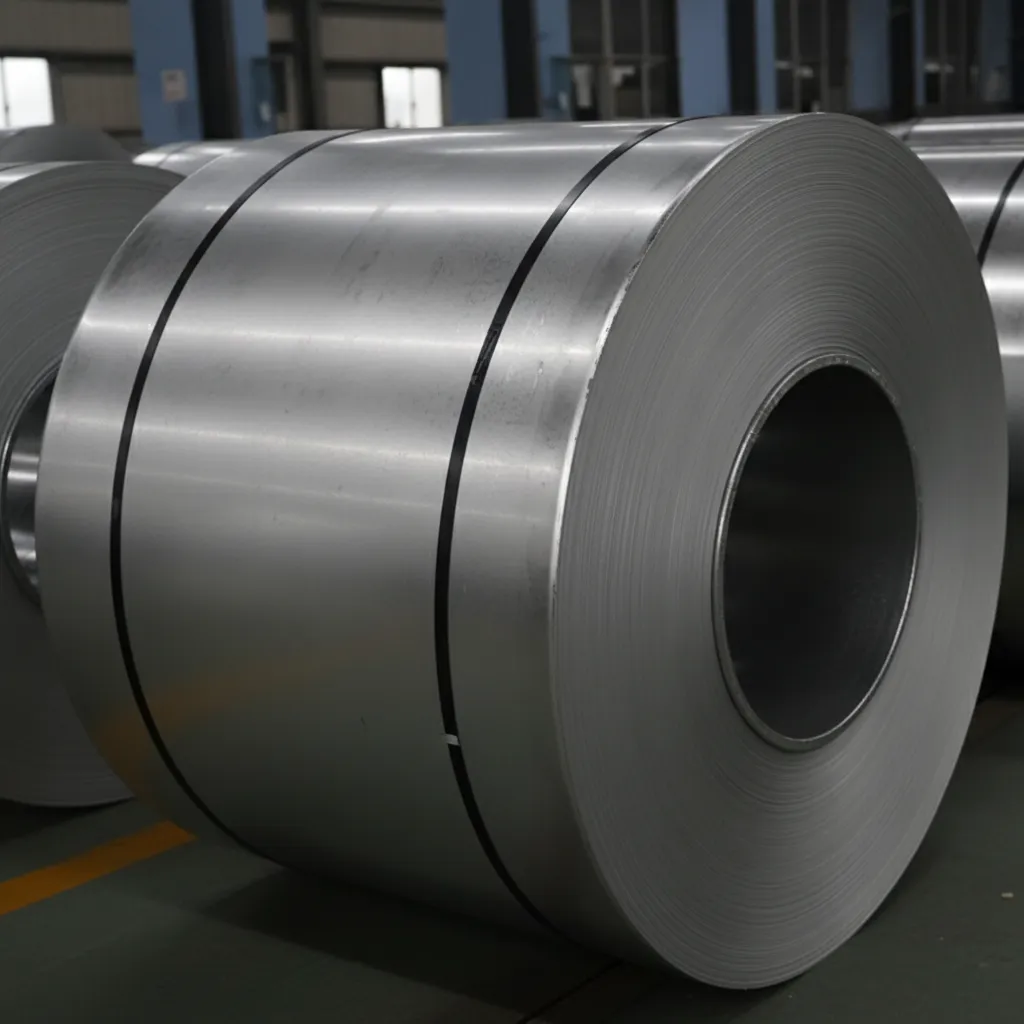

| Zinc Coating Mass | Z60–Z275 (g/m²); AZ50–AZ150 (Galvalume) | Per EN 10346 / ASTM A653; heavier zinc coating enhances corrosion resistance |
| Thickness Range | 0.20–1.50 mm | Base metal thickness excluding coating; tolerance per EN 10143 / ASTM A924 |
| Width Range | 600–1,500 mm | Slit coil or full-width coil available; custom slit width upon request |
| Coil Inner Diameter | 508 mm / 610 mm | Standard inner diameter; coil weight typically 3–10 MT per coil |

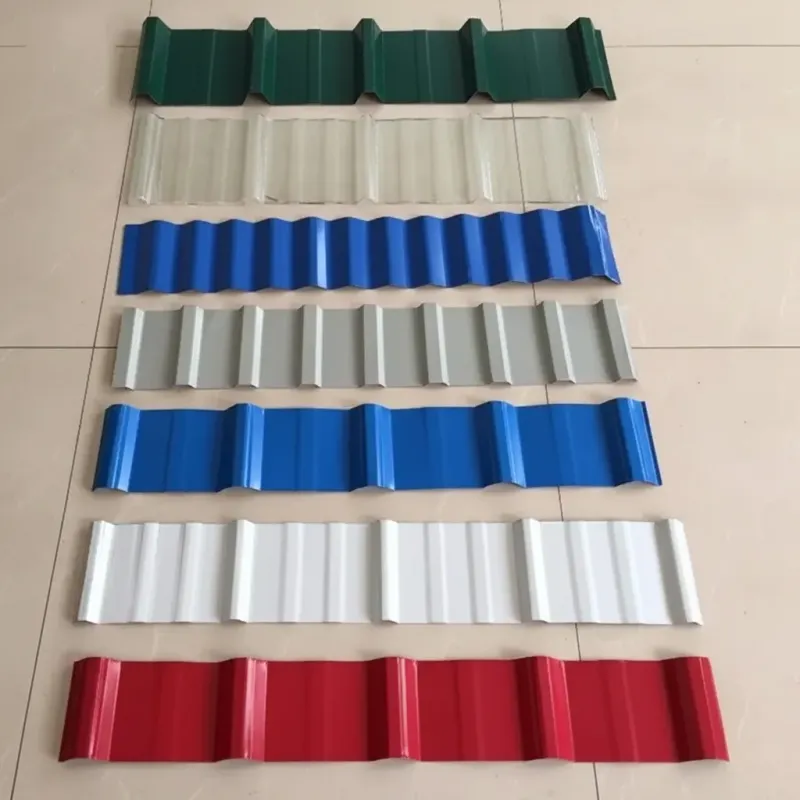

| Surface Finish | Smooth, embossed, matte, high-gloss | Color uniformity per RAL / Pantone system; gloss level 10–85 GU (60° angle, ASTM D523) |

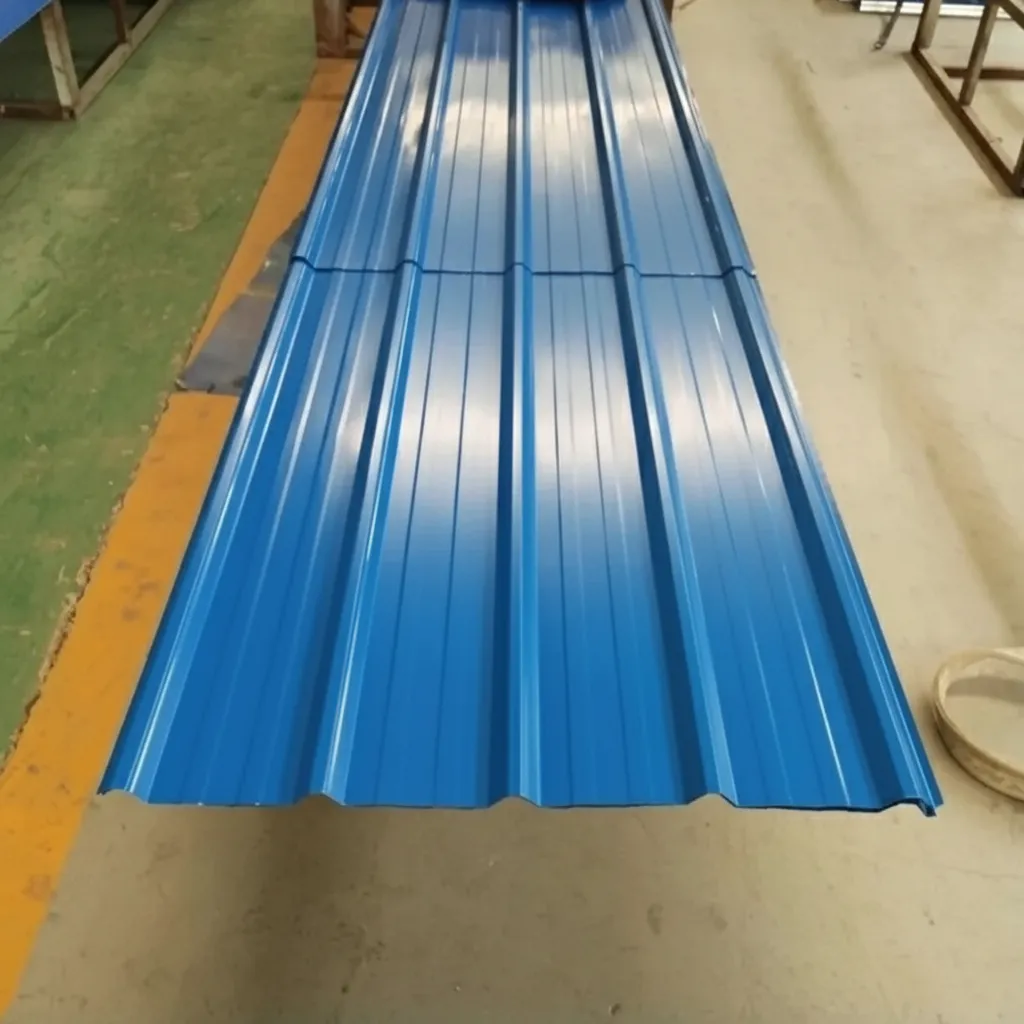

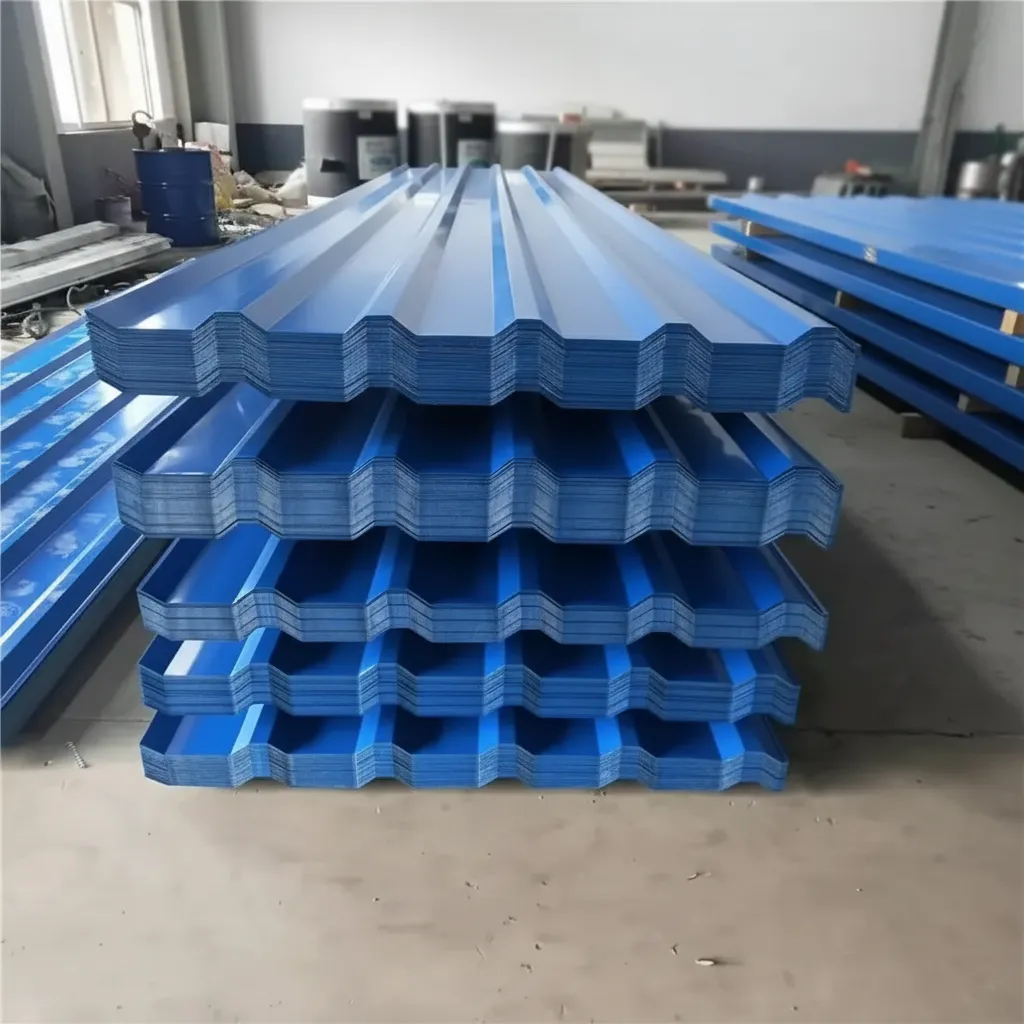

| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts, automotive parts | Widely used in construction, household appliance panels, and industrial enclosures |
| Certification | ISO 9001, CE Marking, SGS, RoHS | Quality management and environmental compliance certifications |

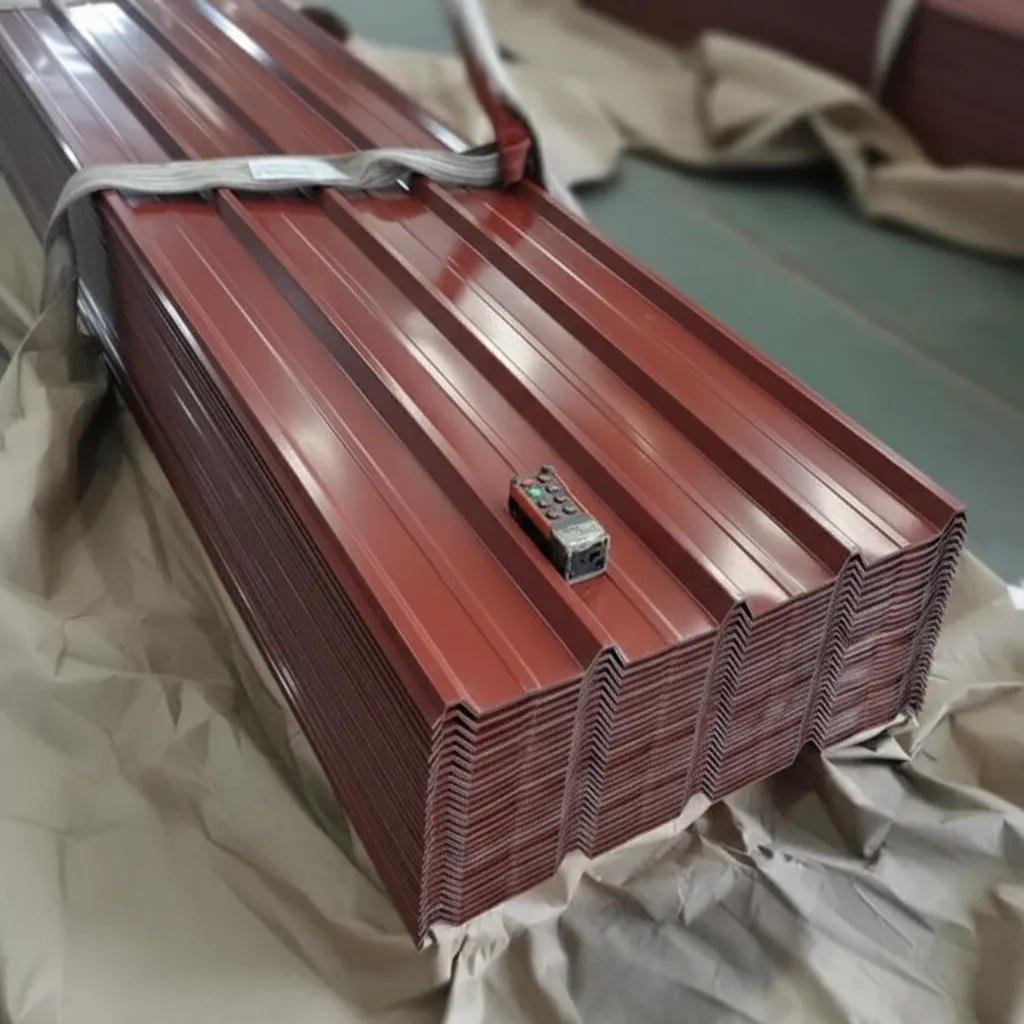

| Packaging | Eye-to-sky or eye-to-wall coil; waterproof paper + steel strip strapping | Moisture-proof inner wrapping; wooden pallet or steel cradle for sea freight |
| MOQ | 25 MT per order | Mixed specifications acceptable; smaller trial orders negotiable |
Initial coating adhesion query — resolved satisfactorily
Our first batch of 15 MT of polyester-coated galvalume coils showed minor adhesion variance on approximately 3% of the strip length, flagged during our cross-cut adhesion test per EN 13523. We raised the issue immediately and the technical team responded within 4 hours, identified a brief oven temperature fluctuation in that production run, and arranged a partial replacement shipment within 10 days. The replacement coils passed all EN 10169 acceptance criteria. The resolution process was professional and transparent. We've since placed a second order and quality has been fully consistent.
