Color Coated Steel Sheet Manufacturer for Industrial Roofing

Color coated steel sheet is a pre-painted flat steel product designed for industrial roofing, wall cladding, fabricated panels, and other applications that require a finished surface and controlled corrosion protection. Overseas buyers typically include roofing contractors, building-material distributors, steel service centers, prefab building manufacturers, and industrial project procurement teams. The product combines a steel substrate with metallic coating, chemical pretreatment, primer, and topcoat, reducing the need for on-site painting. For reliable sourcing, buyers should evaluate substrate grade, coating mass, paint system, dimensional tolerances, color requirements, certification, packaging, and delivery terms together rather than selecting only by surface appearance.

Product Overview

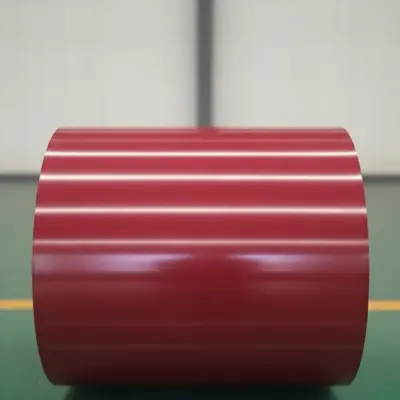

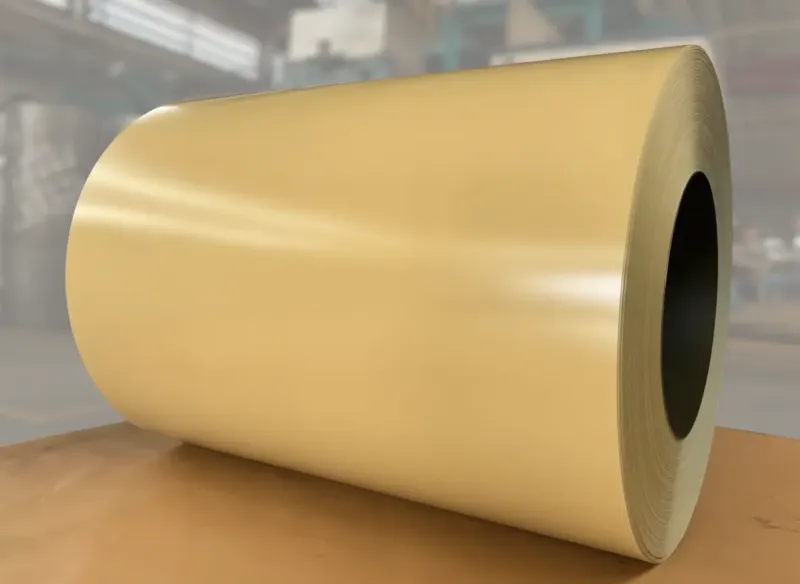

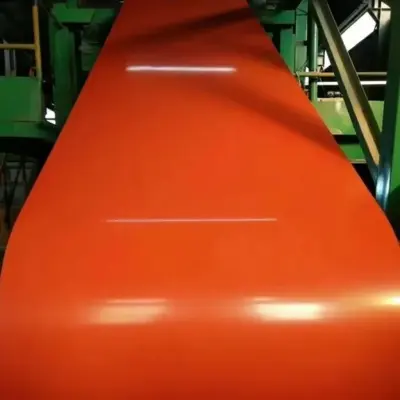

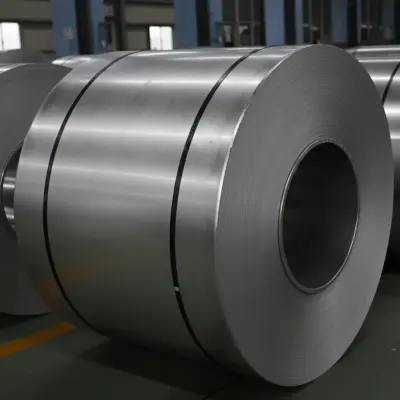

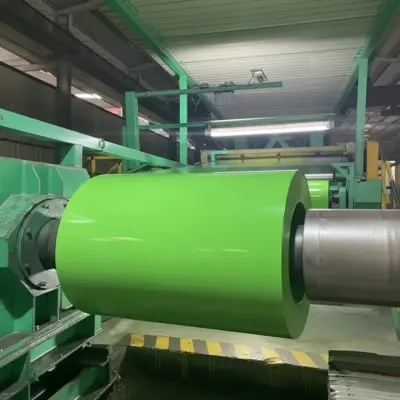

Color coated steel sheet is produced by continuously coating galvanized steel, zinc-aluminum-coated steel, or another specified metallic-coated steel substrate with an organic paint system. The finished material is supplied as flat sheets or, more commonly for roofing projects, as coils for roll forming into profiles. Depending on the project, the product may also be supplied with a protective film, embossed surface, or a specified back-coating system.

The main construction of a color coated steel sheet normally includes:

• Steel substrate: Provides the basic strength, formability, and dimensional stability required for fabrication.
• Metallic coating: Usually zinc or a zinc alloy, selected to provide sacrificial corrosion protection to the steel substrate.
• Chemical pretreatment: Improves coating adhesion and supports resistance to corrosion at the painted interface.
• Primer: Helps bond the topcoat to the substrate and contributes to overall durability.
• Topcoat and back coat: Provide color, weathering resistance, surface protection, and suitability for the intended forming process.

Common paint systems include polyester for general building use, silicone-modified polyester for improved weathering performance, high-durability systems for demanding exposure conditions, and plastisol or polyurethane systems where additional film thickness or flexibility is required. The correct coating depends on ultraviolet exposure, humidity, industrial pollutants, forming severity, cleaning requirements, and expected service life. Buyers can also compare this product with galvanized steel sheet when a painted finish is not necessary.

Specifications & Standards for Color Coated Steel Sheet

There is no single universal specification for every color coated steel sheet. The applicable standard depends on the substrate, coating type, paint system, product form, and destination market. The purchase order should identify the governing standard, nominal dimensions, allowable tolerances, coating designation, color reference, paint thickness or performance class where applicable, and inspection requirements.

Mechanical properties should not be assumed from the color or coating type. A roofing profile may require a structural grade, while a deep-drawn component may require a more formable grade. The supplier should confirm yield strength, tensile strength, elongation, and forming class against the selected standard and the customer’s forming process. If the project requires chemistry or mechanical performance data, request a mill test certificate or inspection certificate showing the actual heat and batch results rather than relying on generic catalog values.

Color is commonly selected using a recognized color card or project reference, such as RAL where applicable. However, visual matching can vary with gloss, lighting, batch, and surface texture. Buyers should approve a physical sample when color consistency is commercially important. For a wider comparison of coated materials, see PPGI and PPGL steel coils and prepainted galvanized steel specifications.

Applications of Color Coated Steel Sheet

Industrial Roofing and Wall Cladding

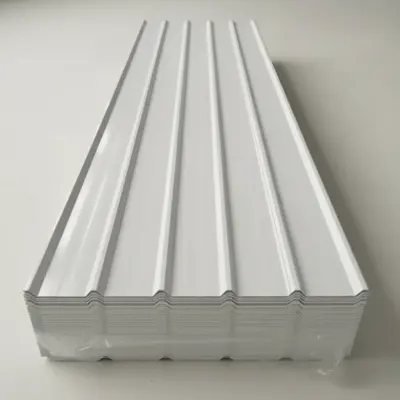

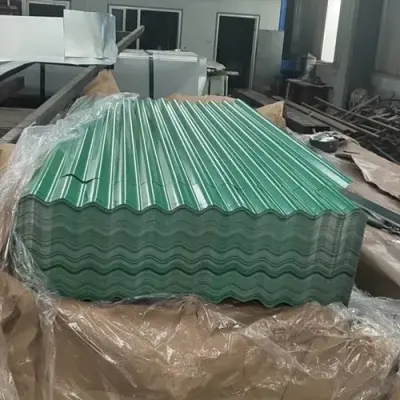

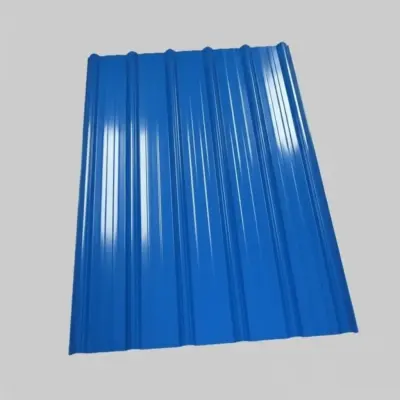

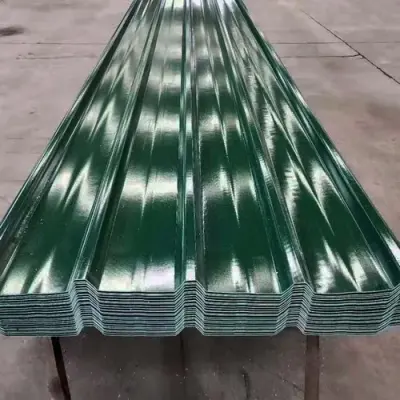

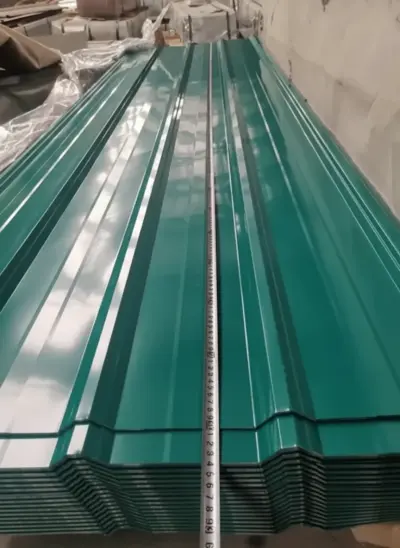

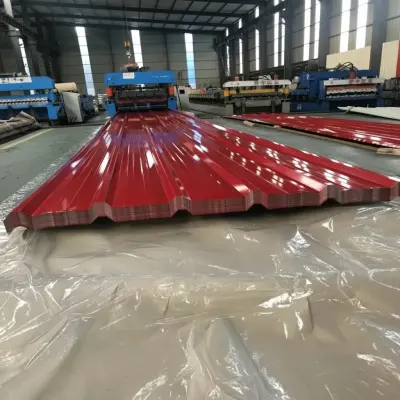

Color coated steel sheet is widely roll formed into corrugated, trapezoidal, and standing-seam panels for factories, warehouses, workshops, logistics centers, and agricultural buildings. The required coating system should reflect the building’s exposure to moisture, sunlight, chemicals, and airborne contaminants.

Prefab and Modular Buildings

Manufacturers of portable offices, modular homes, site accommodation, and containerized buildings use painted steel for external panels, roofing, partitions, and trim. Consistent coil width, surface quality, and color availability are important for repeat production.

Insulated Sandwich Panels

The material is used as the external or internal facing of polyurethane, PIR, EPS, and mineral-wool sandwich panels. In this application, flatness, paint adhesion, surface protection, and compatibility with the panel-lamination process should be confirmed before production.

Commercial and Agricultural Structures

Retail buildings, farm buildings, equipment shelters, and storage facilities may use pre-painted steel for roofs, facades, doors, flashings, and accessories. Agricultural or coastal environments may require a more suitable metallic coating and paint system than a standard inland application.

Fabricated Components

Cut-to-length sheets can be processed into duct covers, partition panels, equipment enclosures, ceiling components, and architectural trims. The buyer should confirm whether the product will be bent, punched, folded, or roll formed after delivery.

How to Choose / Buying Guide for Color Coated Steel Sheet

1. Define the end use and exposure

Start with the building location, expected service environment, roof or wall profile, indoor or outdoor exposure, and design life. Coastal, high-humidity, industrial, and agricultural environments can impose different requirements. Provide the supplier with the application and forming method before asking for a quotation.

2. Select the substrate and grade

Choose galvanized or zinc-aluminum-coated substrate according to the project specification. Then define the steel grade based on structural loading, bending radius, roll-forming requirements, and fabrication method. Do not select thickness only by nominal gauge; confirm the required minimum thickness, tolerance, and coating designation.

3. Specify the paint system and color

State the required paint family, nominal coating thickness or performance class if specified, top and back colors, gloss level, protective film, and approved color reference. For a project with strong solar exposure or strict appearance requirements, ask for documented weathering and color-retention performance appropriate to the selected system.

4. Confirm documents and inspection

Request the applicable mill test certificate, coating or paint inspection records, dimensional inspection results, and certificate of conformity when required. The documents should identify the standard, batch or coil number, actual dimensions, and test results. Independent inspection can be arranged when the contract value or project risk justifies it. Related guidance is available in steel coil inspection procedures.

5. Clarify MOQ, lead time, and shipment form

Minimum order quantity, production lead time, and available widths depend on the supplier’s production schedule, coating line, raw-material availability, and required color. These details must be confirmed in the quotation rather than assumed. Also specify whether the shipment will be supplied as coils or cut sheets, the maximum coil weight, packaging method, and container-loading limitations.

6. Review logistics and payment terms

Agree on Incoterms, destination port or inland delivery point, packing requirements, insurance responsibility, and document timing. Payment terms should be stated clearly in the sales contract, including the deposit or letter-of-credit arrangement if applicable, balance conditions, and procedures for claims. Buyers may also review steel export packaging options and coils versus cut-to-length sheets before placing an order.

Frequently Asked Questions

Q: What is the difference between color coated steel sheet and galvanized steel sheet?

A: Galvanized steel sheet has a metallic zinc coating, while color coated steel sheet adds pretreatment, primer, and a colored organic coating over a suitable substrate. The painted product provides a finished appearance and an additional surface-protection layer, but the correct choice depends on exposure, forming, cost, and project requirements.

Q: Is color coated steel sheet suitable for industrial roofing?

A: Yes, it is commonly used for industrial roof and wall panels. The buyer should match the steel grade, metallic coating, paint system, profile design, and fastener details to the building environment and structural specification.

Q: Which standards apply to color coated steel sheet?

A: Common references include ASTM A755/A755M, EN 10169, JIS G3322, and GB/T 12754 for painted metallic-coated steel. The underlying galvanized or aluminum-zinc-coated substrate may also be specified to ASTM A653/A653M, ASTM A792/A792M, EN 10346, JIS G3302, or GB/T 2518, depending on the product and market.

Q: Can the supplier provide certification and test reports?

A: Certification availability depends on the contract and production arrangement. Buyers should request the relevant mill test certificate, certificate of conformity, dimensional records, and coating inspection documents before shipment, with the required standard and traceability stated in the purchase order.

Q: What is the minimum order quantity for color coated steel sheet?

A: MOQ is not universal. It varies with thickness, width, color, paint system, coil or sheet form, and the supplier’s production schedule. Request a project-specific MOQ and ask whether a small trial order or mixed-width shipment is possible.

Q: How long is the delivery time?

A: Lead time depends on raw-material availability, color approval, production capacity, inspection, and destination logistics. A reliable quotation should separate production lead time from ocean or inland transit time and should state the shipment basis clearly.

Q: What payment methods are normally available?

A: Payment terms are negotiated between buyer and supplier and may include bank transfer arrangements or documentary letters of credit, subject to company policy and order value. The contract should define payment milestones, required documents, and the process for handling shortages, damage, or non-conformity.

Send your required standard, substrate, thickness, width, color reference, coating system, quantity, application, and destination to request a tailored quotation for color coated steel sheet. A detailed inquiry allows the supplier to confirm technical compliance, documents, packaging, MOQ, lead time, and shipping terms before order placement.
