PPGL Steel Coil With Durable Color Coating For Roofing

Technical Specifications of PPGL Steel Coil

PPGL Steel Coil With Durable Color Coating for Roofing

PPGL Steel Coil is a pre-painted steel product manufactured from an aluminum-zinc alloy-coated substrate and finished with protective paint layers. It is specified by roofing manufacturers, building-material distributors, roll-forming companies, and project contractors that require corrosion resistance, consistent appearance, and efficient fabrication. Compared with unpainted metallic-coated sheet, the factory-applied coating provides both decorative color and additional surface protection. Buyers can define the substrate grade, aluminum-zinc coating mass, paint system, dimensions, color, and surface finish according to the intended environment and forming process. Proper specification reduces coating failures, color variation, and unnecessary processing costs.

PPGL Steel Coil Product Overview

PPGL stands for pre-painted galvalume steel. The base metal is cold-rolled steel coated with an aluminum-zinc alloy, commonly identified by AZ coating designations under relevant standards. A pretreatment layer, primer, and finish coat are applied in a continuous coil-coating line. The reverse side normally receives a backing coat selected for handling protection, adhesion, or service conditions.

The metallic layer provides barrier and sacrificial corrosion protection, while the organic coating controls color, gloss, weather resistance, and surface durability. This combined structure makes PPGL Steel Coil suitable for profiled roofing sheets, wall panels, cladding, and other roll-formed products. Buyers comparing metallic-coated substrates can also review [[INTERNAL_LINK]] for related galvanized and aluminum-zinc coated steel options.

Available paint technologies may include polyester, silicon-modified polyester, high-durability polyester, and polyvinylidene fluoride systems. Availability and performance depend on the coating producer, production line, pigment, film thickness, and warranty conditions. Polyester is widely used for general building products, while more weather-resistant systems may be considered for demanding exterior exposure. The appropriate coating should be selected using the project location and expected service environment rather than color alone.

Important PPGL Steel Coil characteristics include consistent coating adhesion, controlled color difference, formability, corrosion resistance, and compatibility with profiling equipment. Surface options may include smooth, matte, textured, or embossed finishes where supported by the supplier. Protective film can also be requested for fabrication processes in which scratching is a concern. Related surface-finish guidance is available at [[INTERNAL_LINK]].

PPGL Steel Coil Specifications & Standards

PPGL Steel Coil specifications should state both the metallic-coated substrate standard and the finished pre-painted product standard. ASTM A755/A755M covers pre-painted metallic-coated steel sheet for exterior building products, while ASTM A792/A792M applies to aluminum-zinc alloy-coated steel sheet. EN 10169 covers continuously organic-coated steel flat products, and EN 10346 covers continuously hot-dip coated steel flat products.

Other commonly referenced specifications include JIS G 3322 for pre-painted hot-dip 55% aluminum-zinc alloy-coated steel sheet and coil, JIS G 3321 for the corresponding metallic-coated substrate, GB/T 12754 for pre-painted steel sheet and strip, and GB/T 14978 for hot-dip aluminum-zinc alloy-coated steel sheet and strip. Contract documents should identify the required standard edition, grade, coating designation, test method, and acceptance criteria.

Mechanical properties are grade-dependent and must be taken from the selected standard rather than assumed from the product name. Commercial-quality material may prioritize forming behavior, while structural grades require minimum yield strength and tensile properties. A clear purchase specification prevents substitution between products that look similar but perform differently during profiling.

Testing may include coating mass, dry-film thickness, gloss, color difference, pencil hardness, impact resistance, T-bend performance, and adhesion. The required tests and limits should be written into the purchase order. See [[INTERNAL_LINK]] for an overview of pre-painted steel inspection terminology.

PPGL Steel Coil Applications

Roofing and rainwater systems: PPGL Steel Coil is roll-formed into corrugated sheets, trapezoidal panels, standing-seam profiles, ridge caps, gutters, and flashing. The material specification should reflect local rainfall, ultraviolet exposure, coastal conditions, and roof geometry. Roofing profile options can be reviewed through [[INTERNAL_LINK]].

Wall cladding and building envelopes: Industrial plants, warehouses, agricultural structures, and commercial buildings use pre-painted panels for exterior walls and internal partitions. Designers should coordinate the color, gloss, fastener material, sealant, and cut-edge protection.

Insulated sandwich panels: PPGL facings can be bonded to compatible insulation cores for roof and wall systems. Adhesion between the reverse coating and the panel adhesive must be validated before volume production. More information on panel-facing materials is available at [[INTERNAL_LINK]].

Light-gauge fabricated components: Selected grades are used for doors, shutters, ceilings, duct covers, appliance housings, and general formed parts. Tight bends or deep forming require particular attention to steel grade, paint flexibility, and forming direction.

How to Choose PPGL Steel Coil: Buying Guide

Begin with the finished component rather than a generic request for colored coil. Provide the profile drawing, nominal base-metal thickness, width, steel grade, AZ coating designation, paint system, topcoat and back-coat requirements, color reference, gloss, and expected annual volume. For roll forming, confirm the minimum bend radius and whether the visible surface faces inward or outward during processing.

Request a mill test certificate or inspection certificate that identifies the heat or coil, substrate grade, mechanical properties, dimensions, and metallic coating result. Paint-related documentation may include coating thickness, gloss, color difference, adhesion, and bend-test results. Third-party inspection can be arranged when required by the contract, but the scope and acceptance criteria should be agreed before production. A practical inspection checklist is provided at [[INTERNAL_LINK]].

MOQ should be confirmed by thickness, width, color, paint system, and total order quantity. Special colors, narrow slit widths, uncommon coatings, or small batches may affect production feasibility and unit cost. Lead time should likewise be confirmed after technical approval because substrate availability, paint preparation, line scheduling, inspection, and packaging all influence the shipment date.

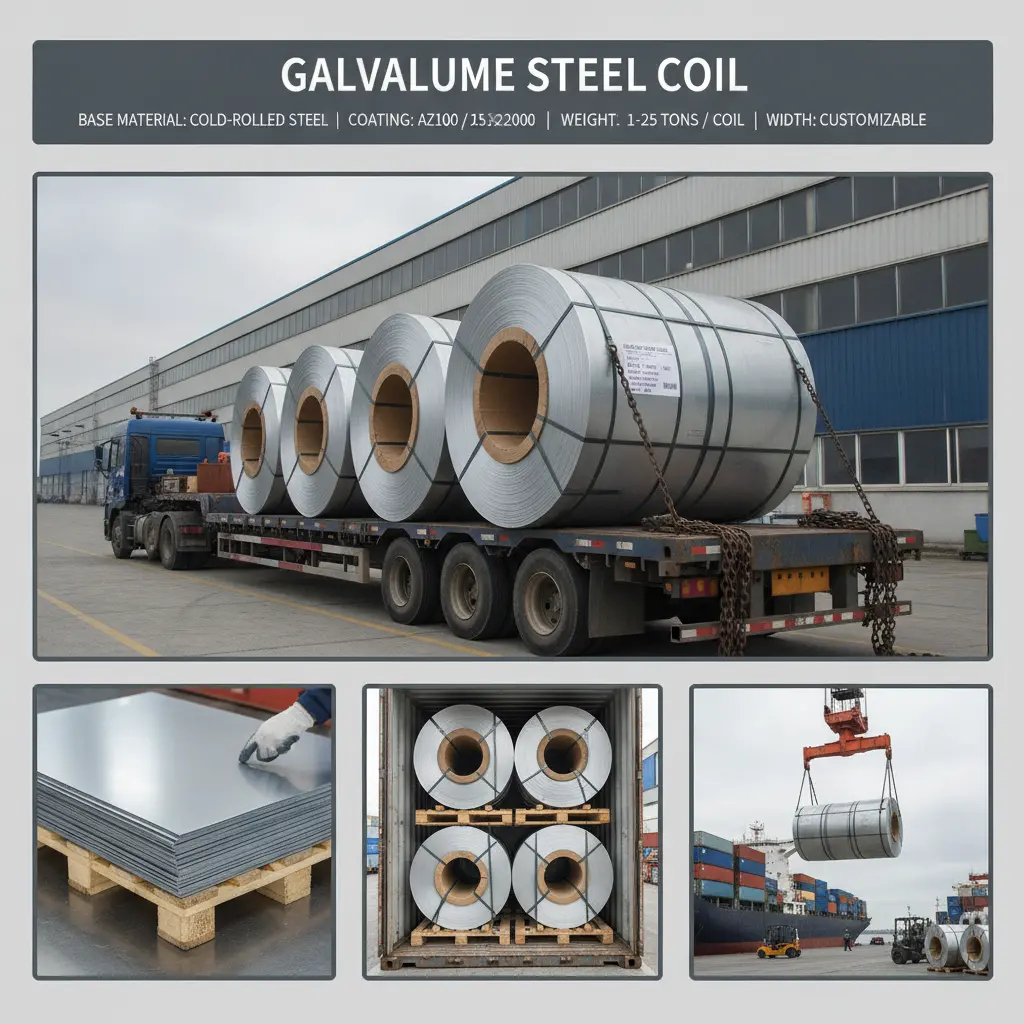

For logistics, specify maximum coil weight, internal diameter, loading orientation, destination requirements, and available lifting equipment. Export packaging should protect the coil from water ingress, edge damage, collapse, and movement in transit. Buyers should also agree on labeling, packing lists, traceability marks, and container or breakbulk loading arrangements. Consult [[INTERNAL_LINK]] for general steel-coil handling and storage practices.

PPGL Steel Coil Frequently Asked Questions

Q: What is the difference between PPGL and PPGI steel coil?

A: PPGL uses an aluminum-zinc alloy-coated substrate, while PPGI uses a zinc-coated galvanized substrate. Their corrosion behavior, cut-edge performance, appearance, forming response, and applicable standards differ. Selection should be based on the application and exposure environment.

Q: Which paint system should I specify for roofing?

A: The choice depends on ultraviolet exposure, humidity, industrial pollutants, coastal salt, roof slope, desired appearance, and service expectations. PE may suit general applications, while SMP, HDP, or PVDF may be considered for more demanding exposure, subject to supplier data and warranty terms.

Q: Can PPGL Steel Coil be supplied with international certification?

A: Suppliers may provide inspection documents against the agreed ASTM, EN, JIS, or GB/T specification. Buyers should state the required certificate type, test items, third-party involvement, and document language in the inquiry and purchase contract.

Q: What is the minimum order quantity?

A: MOQ varies by manufacturer, color, width, thickness, coating system, and production schedule. Standard production combinations may require less setup than custom colors or uncommon dimensions. Request confirmation against a complete specification rather than asking for one universal MOQ.

Q: How long does production and delivery take?

A: Lead time depends on substrate inventory, paint availability, production-line scheduling, testing, packaging, and transport method. The supplier should confirm separate estimated dates for technical approval, production completion, and dispatch.

Q: What payment methods are normally available?

A: Payment terms are agreed commercially and may vary with order value, credit assessment, destination, and transaction history. Common international methods include bank transfer and letter of credit, but the exact deposit, balance, banking charges, and document conditions must be written into the contract.

Q: How should color and gloss be approved?

A: Use a recognized color reference together with an approved physical sample when appearance is critical. The order should define the measurement method, permitted color difference, gloss range, viewing conditions, and whether different production batches may be mixed on one elevation.

Q: How should PPGL coils be stored after delivery?

A: Store coils in a dry, ventilated area on stable supports and protect them from rain, condensation, chemicals, and standing water. Inspect packaging promptly after arrival. Wet coils should not remain sealed because trapped moisture may stain the surface or damage the coating.

Send your required PPGL Steel Coil standard, thickness, width, grade, AZ coating designation, paint system, color, coil weight, quantity, and destination to request a technically aligned quotation, production schedule, packaging proposal, and available inspection documentation.
