PVDF Color Coated Steel for Durable Architectural Panels

PVDF Color Coated Steel is a factory-finished metal sheet used by architectural panel manufacturers, roofing contractors, façade fabricators, and building-material distributors that require stable color and long-term exterior performance. The material combines a steel substrate with metallic or organic coatings and a polyvinylidene fluoride-based topcoat applied through a controlled coil-coating process. Its main value is consistent appearance, resistance to ultraviolet exposure and weathering, and efficient fabrication into roofing, cladding, wall panels, and trim. Buyers can specify substrate grade, coating system, thickness, width, color, surface finish, and packaging according to project conditions and applicable standards.

Product Overview

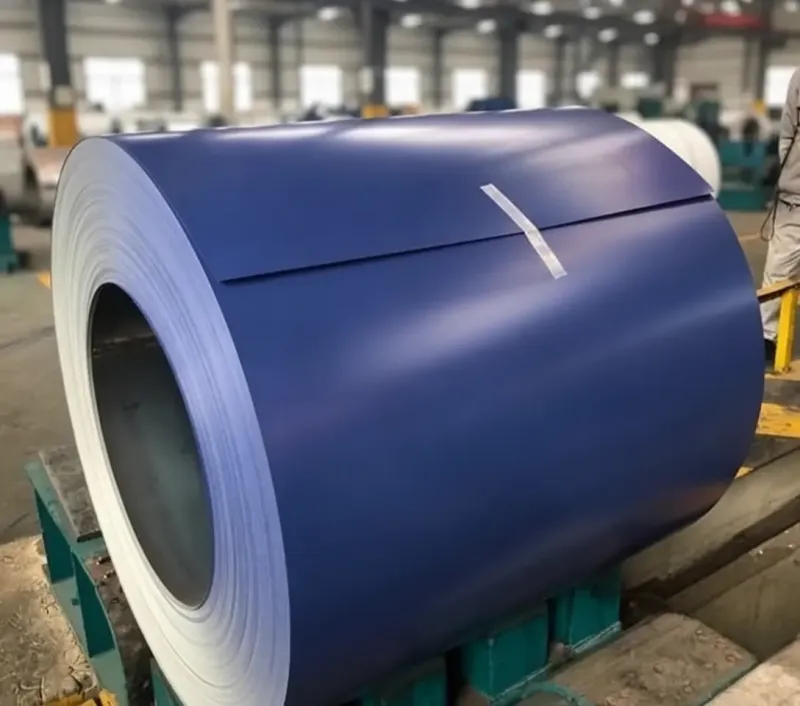

PVDF Color Coated Steel is pre-painted steel supplied in coils or cut sheets. The steel substrate is normally metallic-coated or otherwise corrosion-protected before the paint system is applied. A typical coating system may include a pretreatment layer, primer, color coat, and PVDF-based finish coat. The final construction should always be confirmed in the technical datasheet or purchase specification because coating layers and resin formulations vary by manufacturer and project requirement.

PVDF, or polyvinylidene fluoride, is selected for architectural applications because it can provide strong resistance to sunlight, color change, chalking, moisture, and atmospheric exposure when correctly formulated and applied. Performance depends on resin content, pigment selection, coating thickness, substrate protection, forming conditions, installation details, and the surrounding environment. The coating is not a substitute for correct drainage, edge protection, or suitable fasteners.

Common product options include:

• Galvanized or other metallic-coated steel substrates selected for the required corrosion environment.
• Plain, embossed, textured, metallic, or custom color surfaces.

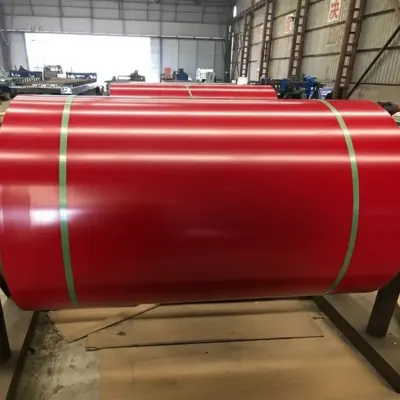

• Coils for roll forming and cut-to-length sheets for panel fabrication.
• Surface finishes for curtain walls, roof systems, insulated sandwich panels, doors, soffits, and architectural trim.
• Protective films or interleaving materials where the formed surface requires temporary protection during transport and installation.

For related material selection, buyers may also compare [[INTERNAL_LINK]] and [[INTERNAL_LINK]] to determine whether PVDF-coated steel, polyester-coated steel, or another finish is suitable for the intended service environment.

Specifications & Standards for PVDF Color Coated Steel

Purchasing specifications should define the substrate, metallic coating, paint system, dimensions, tolerances, surface appearance, forming requirements, inspection method, and packing method. The following standards are commonly referenced in international procurement, but the applicable edition and acceptance criteria should be agreed in the contract.

No universal chemical composition or mechanical-property table should be used for every PVDF Color Coated Steel order. These values depend on the selected substrate grade and standard. A reliable mill offer should therefore provide the material certificate, coating designation, nominal dimensions, tolerance data, and test results linked to the actual production batch. Buyers can review [[INTERNAL_LINK]] for guidance on steel substrate selection and [[INTERNAL_LINK]] for information about galvanized coating designations.

Important technical data to request includes coating thickness, primer and topcoat construction, paint resin description, color reference, gloss range, reverse-side coating, pencil hardness or similar surface test where specified, T-bend or forming performance, impact resistance, adhesion, and warranty conditions. A color card or physical sample should be approved before mass production, especially for metallic and low-gloss finishes.

Applications

PVDF Color Coated Steel is used where appearance, weather resistance, and fabrication efficiency are important. Typical applications include:

1. Architectural wall cladding: Exterior façade panels, cassette panels, profiled cladding, and rainscreen systems can use pre-finished steel to create consistent color across large elevations.

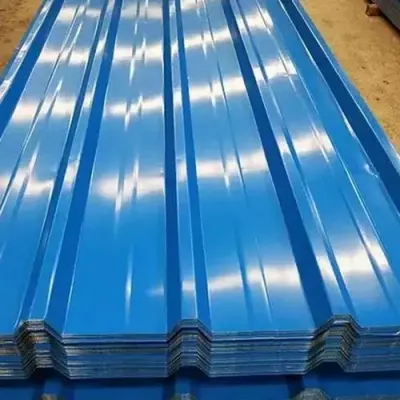

2. Roofing systems: Standing-seam roofs, corrugated roofing, trim, gutters, and flashing may use PVDF-coated material when the selected system is compatible with the project environment.
3. Insulated sandwich panels: The coated sheet can serve as the exterior or interior skin of insulated building panels for industrial, commercial, cold-storage, and logistics facilities.
4. Commercial and public buildings: Airports, retail buildings, offices, schools, sports facilities, and transport structures may specify durable architectural finishes for roofs and façades.
5. Architectural components: Soffits, louvers, canopies, doors, column covers, ceiling panels, and fabricated trims can be produced from coil-coated steel.

Material selection should reflect the site atmosphere. Coastal, industrial, high-humidity, and chemically exposed locations may require a specific metallic coating, edge-treatment approach, fastener system, and maintenance plan. See [[INTERNAL_LINK]] for additional information on roofing and façade material choices.

How to Choose / Buying Guide

Procurement managers should evaluate PVDF Color Coated Steel as a complete coating-and-substrate system rather than judging only the visible color. The following points help reduce technical and commercial risk:

1. Match the substrate to the application

Confirm the base steel type, nominal thickness, forming requirement, and structural or non-structural use. A material for roll-formed roofing may require different mechanical properties from a flat architectural panel. If the panel will be deeply formed, request forming limits and test requirements before placing the order.

2. Define the coating system clearly

Specify the PVDF resin description, coating construction, color, gloss, reverse coating, and expected outdoor exposure. Do not rely on the term “PVDF” alone; the actual paint supplier, resin formulation, coating thickness, and inspection criteria should appear in the technical offer. For color-sensitive projects, approve a sample and define the acceptable color difference method.

3. Request certification and traceability

Ask for a certificate of conformity, mill test certificate, coating test report, and production-batch identification. The documents should identify the standard, substrate grade, dimensions, coating designation, and inspection results. Where a project requires third-party inspection, agree the inspection stage and sampling plan before production.

4. Confirm MOQ and production planning

Minimum order quantity may vary by substrate thickness, width, color, coating line setup, and whether the order requires a special finish. Obtain the supplier’s MOQ, color surcharge policy, allowable quantity tolerance, and sample policy in writing. Standard colors and dimensions may be easier to schedule than custom specifications.

5. Plan lead time and logistics

Lead time depends on raw-material availability, laboratory approval, coating-line scheduling, production volume, inspection, and packaging. Confirm the estimated production date separately from transit time. The purchase order should state coil or sheet packing, moisture protection, lifting requirements, shipping marks, and the agreed delivery term. For more guidance, review [[INTERNAL_LINK]] and [[INTERNAL_LINK]].

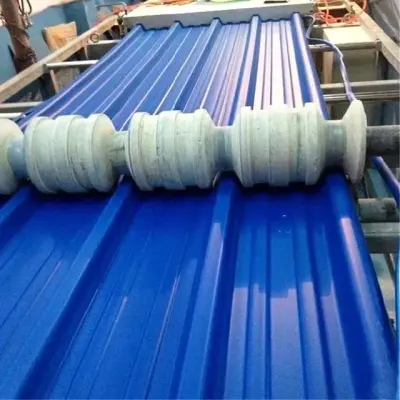

6. Consider fabrication and installation

Check whether the coating is compatible with roll forming, cutting, bending, drilling, sealants, and fasteners. Avoid practices that damage the topcoat or leave exposed steel edges without suitable protection. Storage should prevent condensation, contamination, and prolonged exposure before installation.

Frequently Asked Questions About PVDF Color Coated Steel

Q: What is the difference between PVDF Color Coated Steel and polyester-coated steel?

A: Both are pre-painted steel products, but they use different coating chemistries and may offer different levels of exterior weathering performance. PVDF systems are commonly selected for demanding architectural exposure, while polyester systems may be suitable for less severe environments or cost-sensitive applications. The correct choice depends on the project specification, exposure, forming needs, and warranty requirements.

Q: Which standards can be used for PVDF Color Coated Steel?

A: Common references include ASTM A755/A755M, EN 10169, JIS G3322, and GB/T 12754 for pre-painted steel. The substrate may be specified under ASTM A653/A653M, EN 10346, or JIS G3302. Buyers should confirm the exact standard, edition, coating designation, and acceptance criteria in the purchase contract.

Q: Can the color be customized?

A: Custom colors may be available, subject to coating-line capability, pigment availability, minimum order requirements, and sample approval. Buyers should provide a recognized color reference or physical sample and confirm gloss, texture, and acceptable color variation before production.

Q: What is the minimum order quantity?

A: MOQ is not universal. It can change according to thickness, width, color, coating system, and production setup. Request a written quotation that separates standard-color MOQ, custom-color MOQ, sample quantities, and any setup charges.

Q: What certifications should an overseas buyer request?

A: Request the relevant mill test certificate, certificate of conformity, coating test report, batch traceability information, and inspection records required by the project. If a third-party inspection or specific architectural warranty is required, define it before production rather than after shipment.

Q: How long is the typical delivery time?

A: Delivery time depends on material availability, color approval, production scheduling, inspection, packing, and transportation. A supplier should provide a production lead time and an estimated transit time separately. Custom colors and special dimensions generally require additional planning.

Q: What payment terms are available?

A: Payment terms depend on the supplier, order value, customer history, and trade route. Common arrangements may include a deposit with the balance before shipment, documentary payment, or another mutually agreed method. Confirm the payment schedule, bank details, document release conditions, and responsibility for inspection charges in the sales contract.

Send your required substrate standard, thickness, width, color reference, coating system, quantity, destination, and target application to request a project-specific quotation for PVDF Color Coated Steel. Our team can help review the specification, confirm applicable standards, arrange samples, and prepare a commercial offer with production and shipping details.
