| Property | Parameter | Description |
|---|---|---|

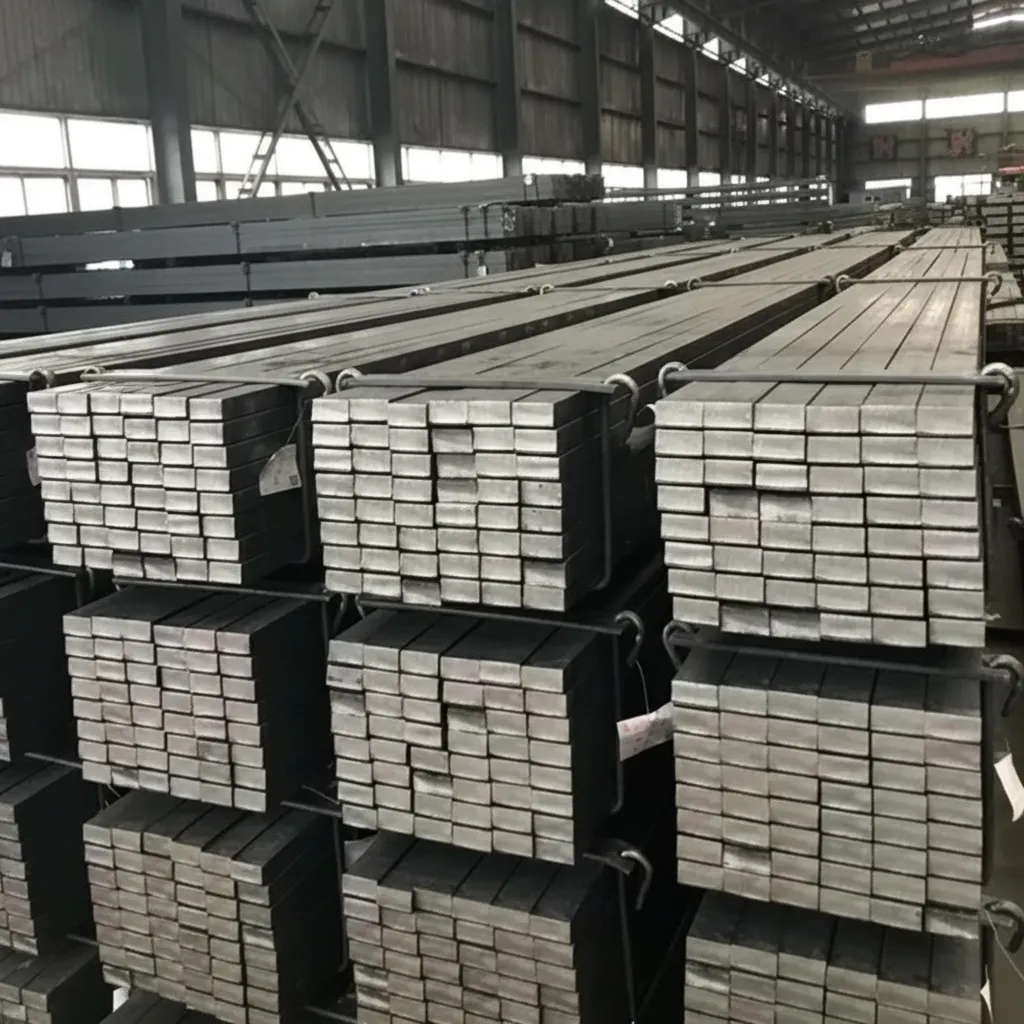

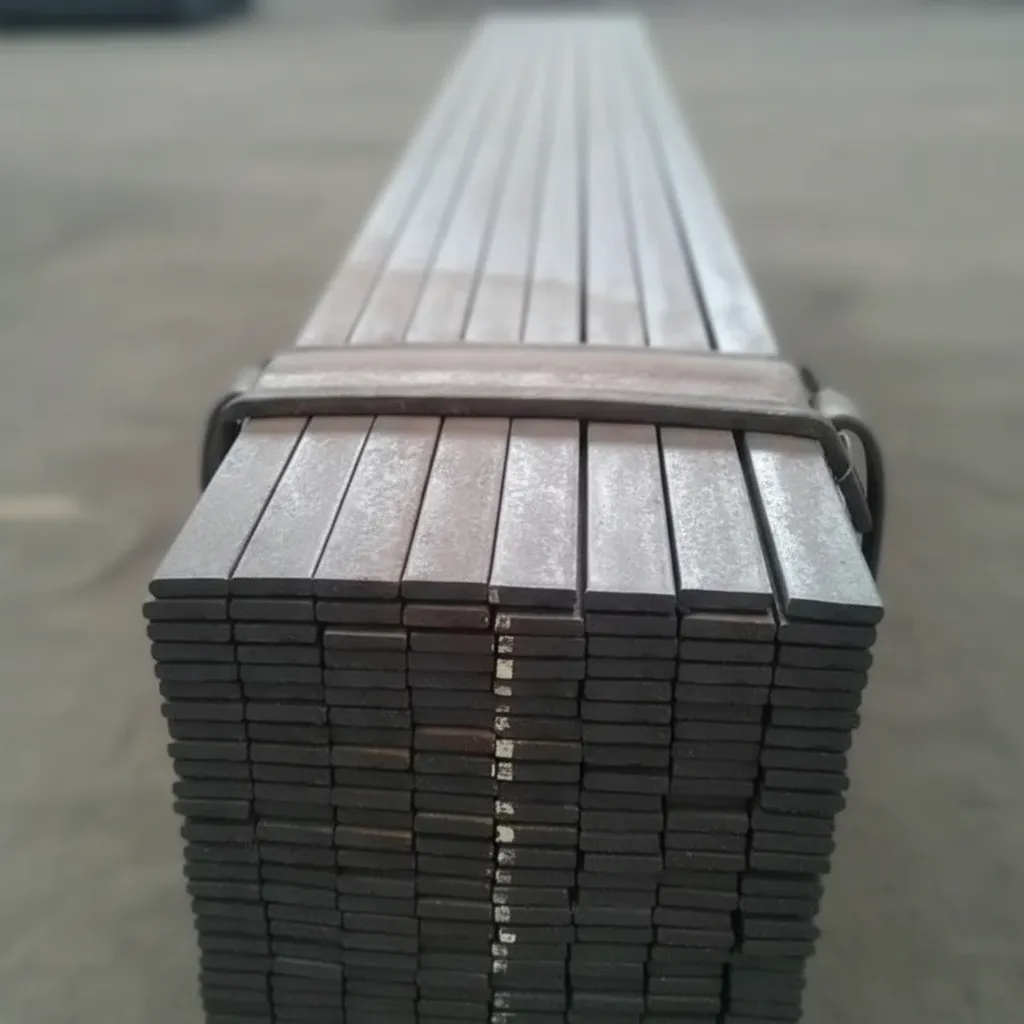

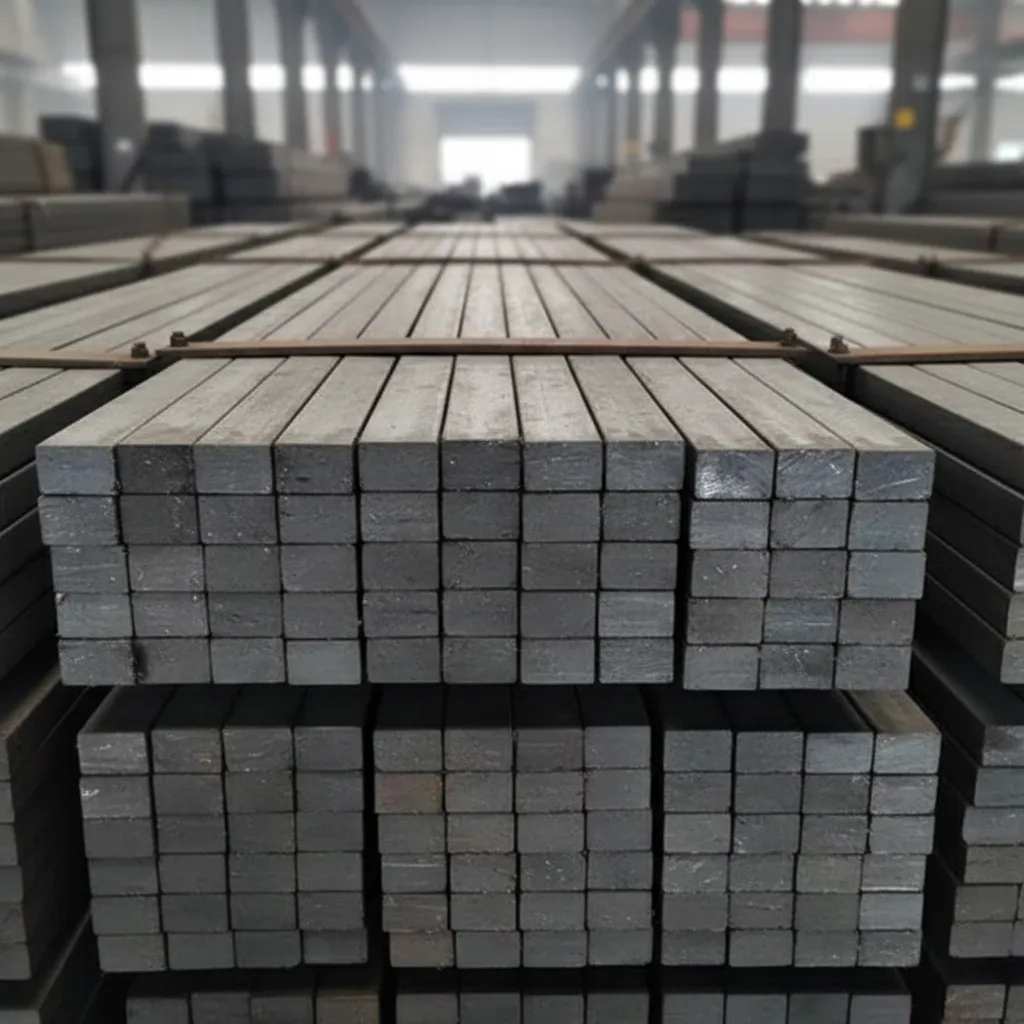

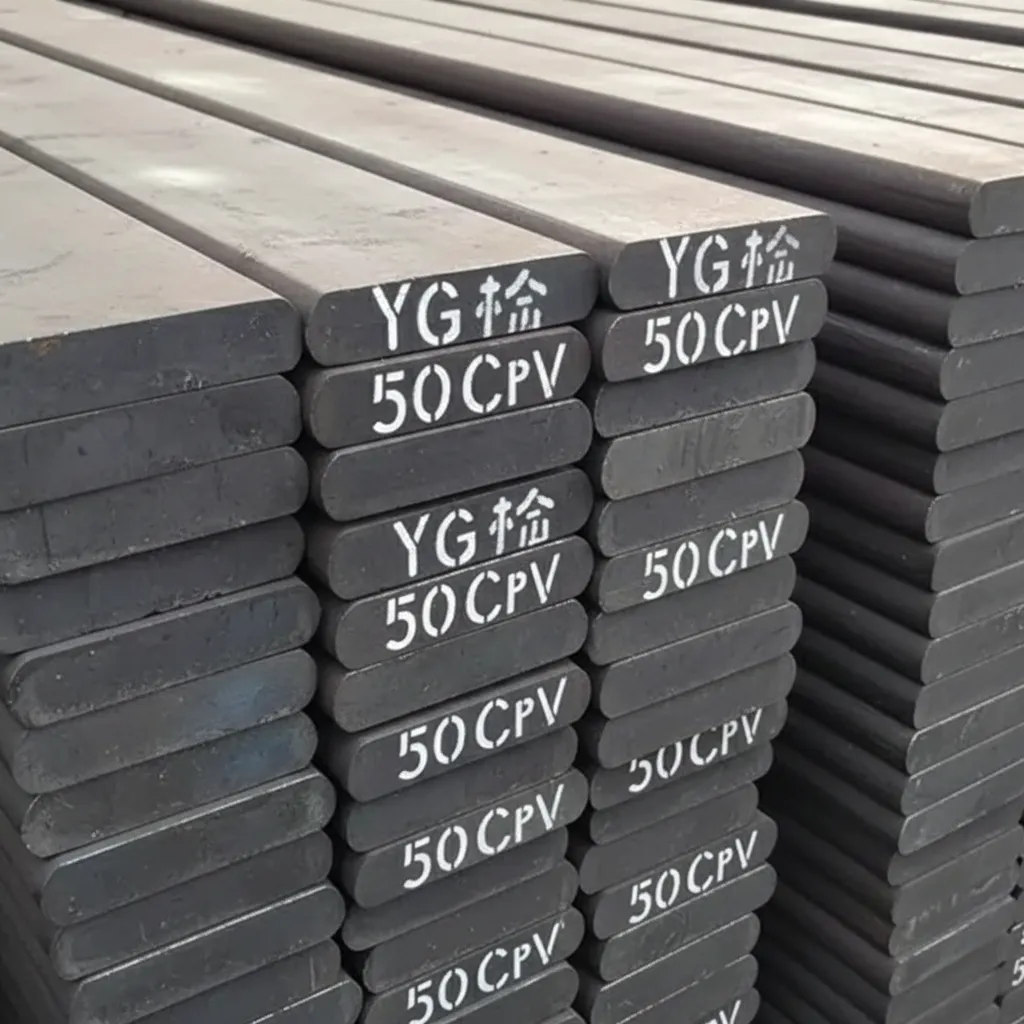

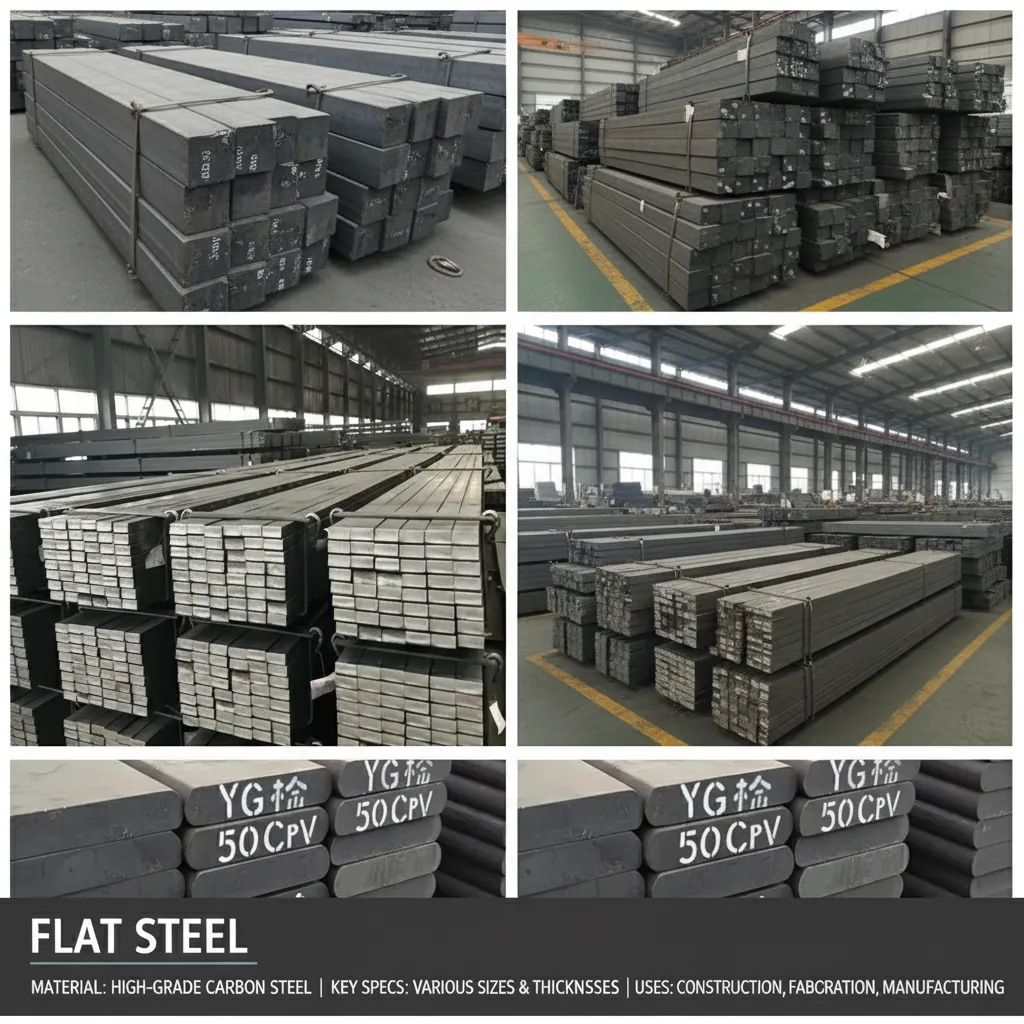

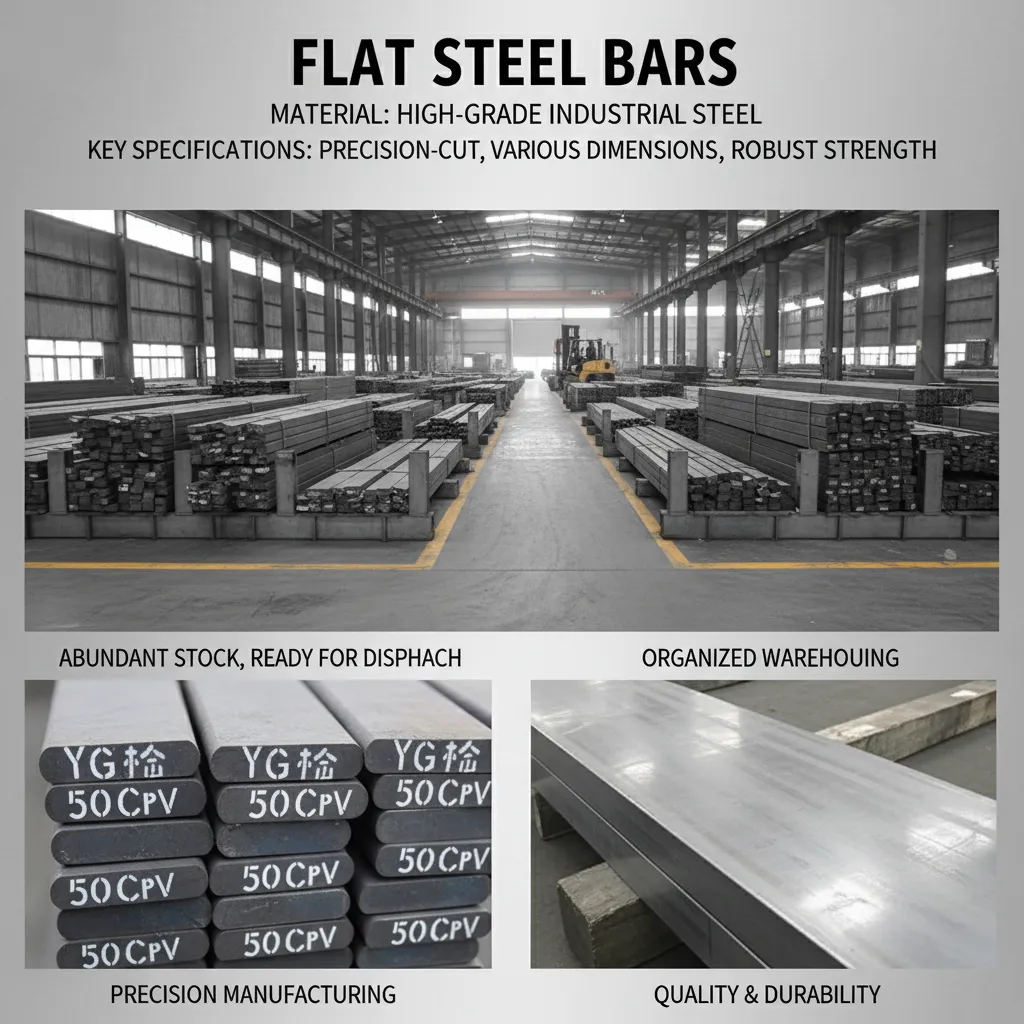

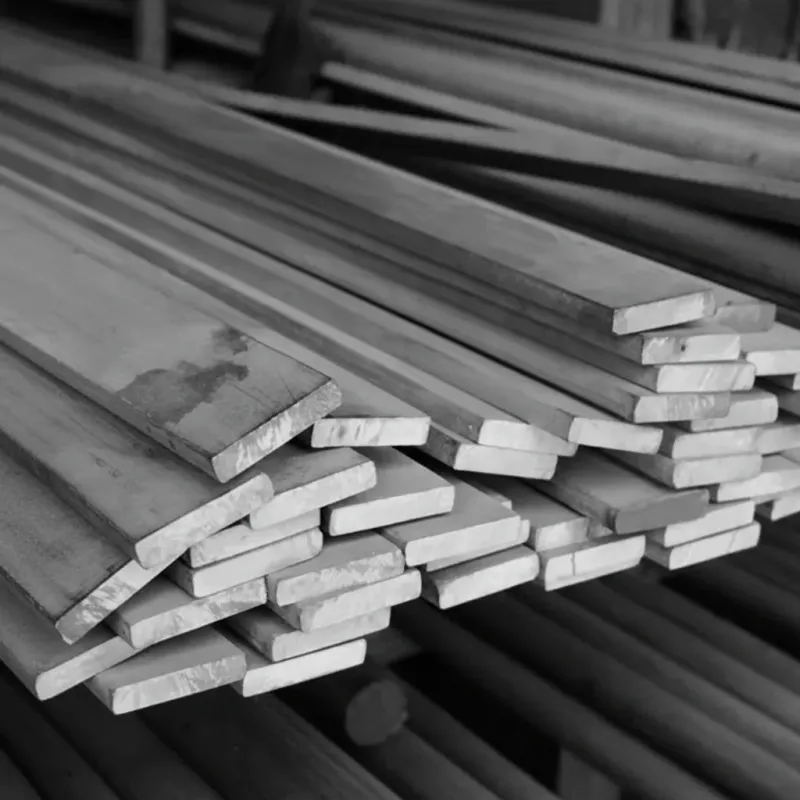

| Product Name | High Strength Flat Steel | Hot-rolled high strength structural flat steel bar |
| Material Grade | Q460 / S460 / ASTM A572 Gr.50 | Equivalent grades: EN S460N, JIS SM490, GB/T Q460C |
| Standard Compliance | ASTM A572, EN 10025-3, GB/T 1591 | International structural steel standards for high strength applications |
| Carbon (C) | ≤ 0.20% | Controlled carbon content for weldability and toughness |
| Manganese (Mn) | ≤ 1.70% | Enhances strength and hardenability |
| Silicon (Si) | ≤ 0.60% | Deoxidizer improving strength |
| Phosphorus (P) | ≤ 0.025% | Restricted to ensure ductility and toughness |
| Sulfur (S) | ≤ 0.020% | Low sulfur for improved impact resistance |
| Vanadium (V) / Niobium (Nb) | V ≤ 0.20% / Nb ≤ 0.05% | Micro-alloying elements for grain refinement and precipitation strengthening |
| Tensile Strength | 550 - 720 MPa | Per ASTM A572 Gr.50 / EN 10025-3 S460N requirements |
| Yield Strength | ≥ 460 MPa | Minimum yield point ensuring structural load-bearing capacity |
| Elongation | ≥ 17% | Measured on gauge length of 200 mm per standard test methods |
| Thickness Range | 5 - 80 mm | Customizable thickness to meet project specifications |
| Width Range | 40 - 600 mm | Standard and custom widths available |
| Length Range | 6,000 - 12,000 mm | Cut-to-length service available upon request |
| Surface Finish | Hot-rolled / Shot-blasted / Painted | Optional anti-corrosion primer coating (SA 2.5 blast cleaning) |
| Application | Bridges, buildings, heavy machinery, crane booms, offshore structures | Ideal for load-bearing components requiring high strength-to-weight ratio |
| Certification | ISO 9001, EN 10204 3.1 MTC, SGS, BV | Mill test certificate provided with each shipment |

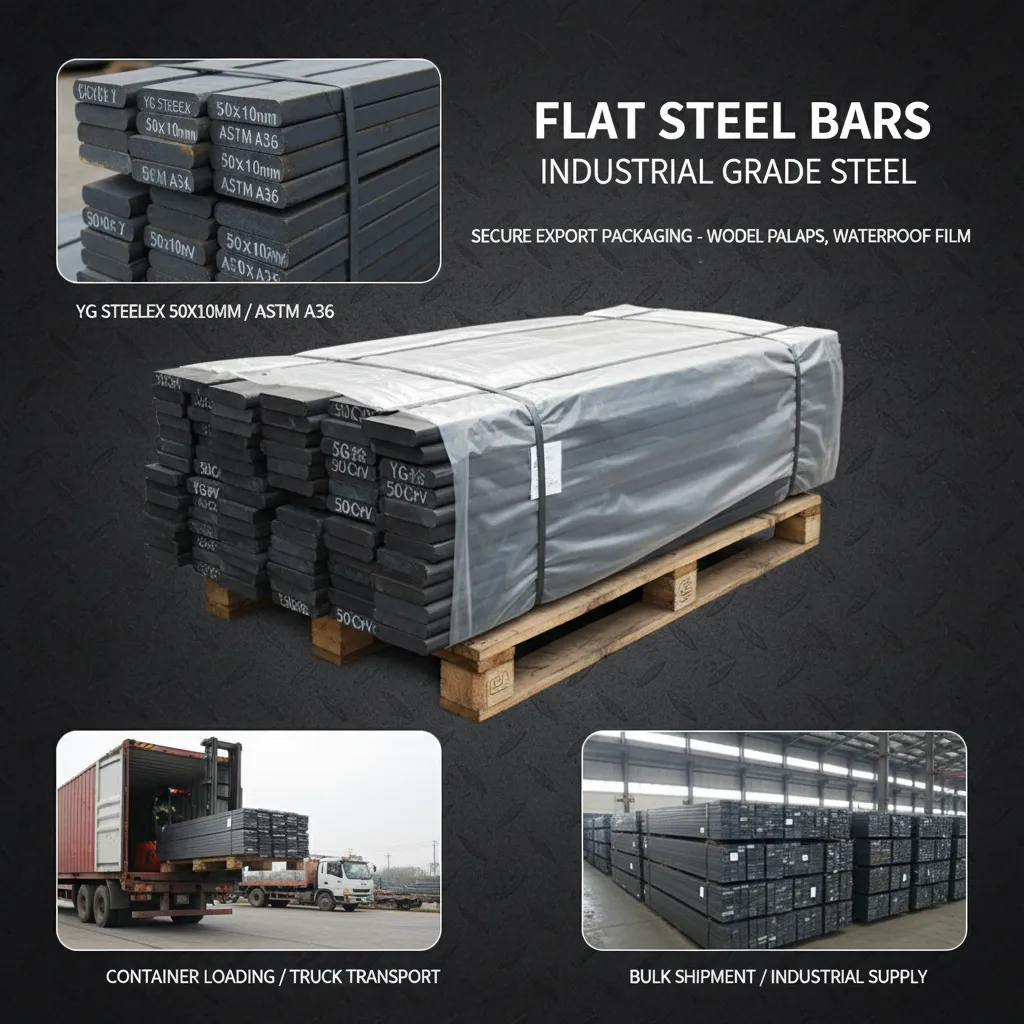

| Packaging | Bundled with steel strips, waterproof paper wrapped | Seaworthy export packaging with identification tags |
| MOQ | 5 Metric Tons | Smaller quantities negotiable for trial orders |
Minor Dimensional Issue Resolved Satisfactorily
Ordered 6 tonnes of S355J2 flat steel, 16mm x 200mm x 9m. About 15% of the pieces had width running slightly over tolerance — measured 202.5mm against the EN 10058 limit. Contacted their support team and they responded within a few hours, offered a credit note and expedited a replacement batch that arrived within 3 weeks. The replacement material was perfect. Mechanical properties on all material were fine. Appreciate that they handled the issue professionally rather than disputing it. Would cautiously reorder with tighter inspection instructions.
