High Strength Square Steel - ASTM Certified Factory Direct Supplier

Technical Specifications of High Strength Square Steel

High Strength Square Steel - ASTM Certified Factory Direct Supplier

High strength square steel is an essential structural material that serves critical roles in heavy-duty construction, industrial framework fabrication, and precision mechanical engineering. Engineered to deliver superior load-bearing capacity and dimensional accuracy, this premium-grade product is manufactured from carefully selected billets through controlled hot-rolling or cold-drawing processes. With yield strength ratings significantly exceeding conventional mild steel grades, high strength square steel bars provide architects, engineers, and fabricators with the structural reliability demanded by modern infrastructure projects. As a factory direct supplier with ASTM certification, we deliver mill-direct inventory with full traceability documentation, ensuring every piece meets rigorous international quality benchmarks before shipment to your facility.

What is High Strength Square Steel?

High strength square steel refers to solid square-section steel bars produced from high-performance alloy or micro-alloyed steel grades, including ASTM A572 Grade 50, S355J2, and Q345B. These bars feature a uniform square cross-section with sharp or rounded corners and are engineered to achieve a minimum yield strength of 345–460 MPa and tensile strength of 470–630 MPa, depending on the specific grade. This combination of geometric precision and enhanced mechanical properties makes them ideal for load-critical applications where standard carbon steel falls short.

High Strength Square Steel Technical Specifications

Our high strength square steel products are manufactured in strict compliance with ASTM A572/A572M, EN 10025-2, and GB/T 1591 standards. Below are the key technical parameters:

• Cross-section dimensions: 10mm × 10mm to 250mm × 250mm
• Length range: 6m, 9m, 12m standard, or custom-cut to specification
• Yield strength: ≥345 MPa (Grade Q345B / S355JR) up to ≥460 MPa (Grade S460 / A572 Gr.65)
• Tensile strength: 470–630 MPa depending on grade selection
• Elongation at break: ≥20% (per 200mm gauge length)
• Density: 7.85 g/cm³ at 20°C
• Dimensional tolerance: ±0.5mm on side length per ASTM A6/A6M
• Surface finish: Hot-rolled black, peeled, or ground finish available
• Chemical composition (typical Q345B): C ≤0.20%, Mn ≤1.70%, Si ≤0.55%, P ≤0.035%, S ≤0.035%

Each batch undergoes mill testing including tensile testing, Charpy V-notch impact testing at −20°C, and ultrasonic flaw detection per ASTM A388, with Material Test Certificates (EN 10204 3.1) provided as standard.

Applications of High Strength Square Steel Bars

This material finds extensive application across demanding industrial sectors. In structural construction, it reinforces high-rise building columns and bridge supports. In mechanical manufacturing, it serves as raw stock for precision-machined shafts, keys, and heavy-duty frames. Mining equipment, offshore platforms, crane booms, and agricultural machinery all benefit from the exceptional strength-to-weight ratio that high strength square steel delivers compared to conventional mild steel alternatives, reducing overall material usage by up to 15–20% without compromising structural integrity.

Get a Competitive Quote for High Strength Square Steel

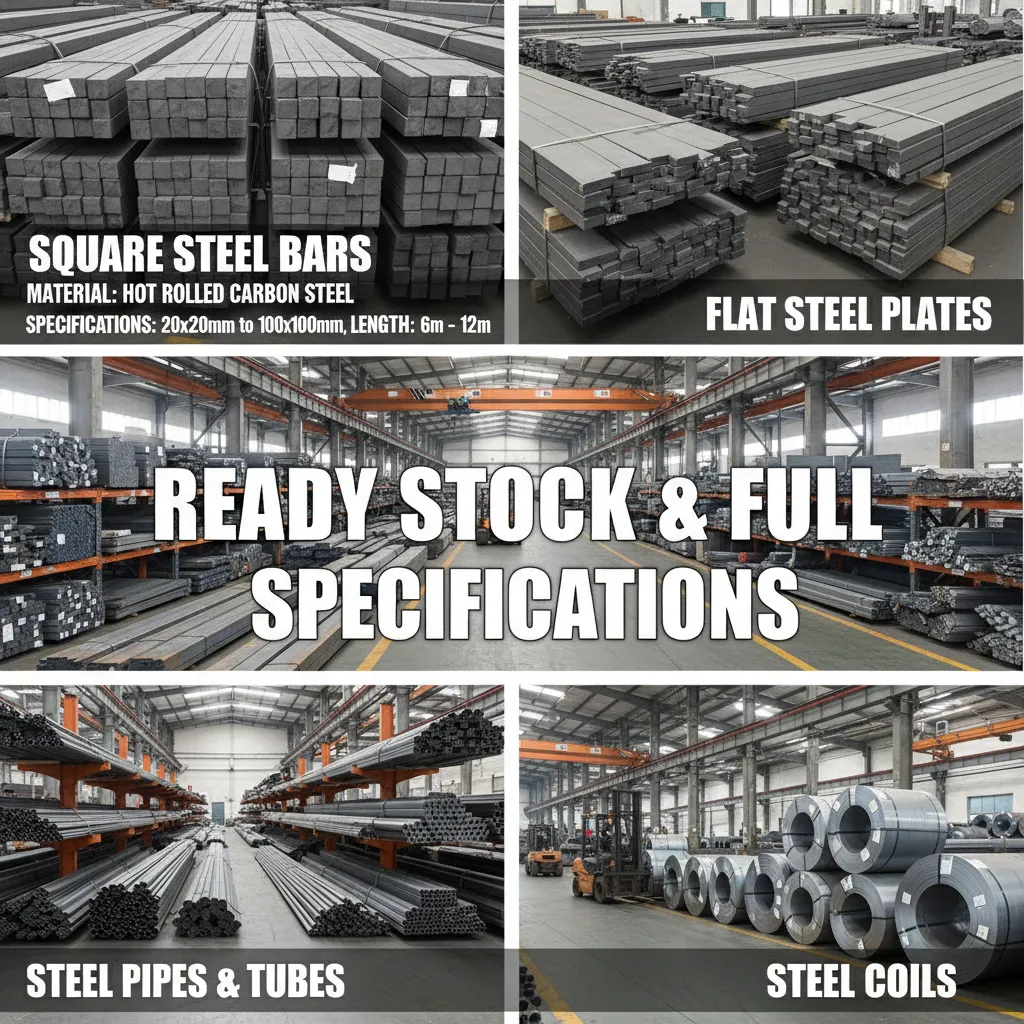

Partner with a certified factory direct supplier to secure cost-effective pricing on premium high strength square steel bars. We maintain over 5,000 metric tons of ready stock across multiple grades and dimensions, enabling rapid fulfillment for both standard and custom orders worldwide.

• 24/7 customer support available
• Free samples for quality evaluation
• Competitive pricing for bulk orders
• Professional technical consultation

Contact us today to get your free quote within 24 hours!
