| Property | Parameter | Description |
|---|---|---|

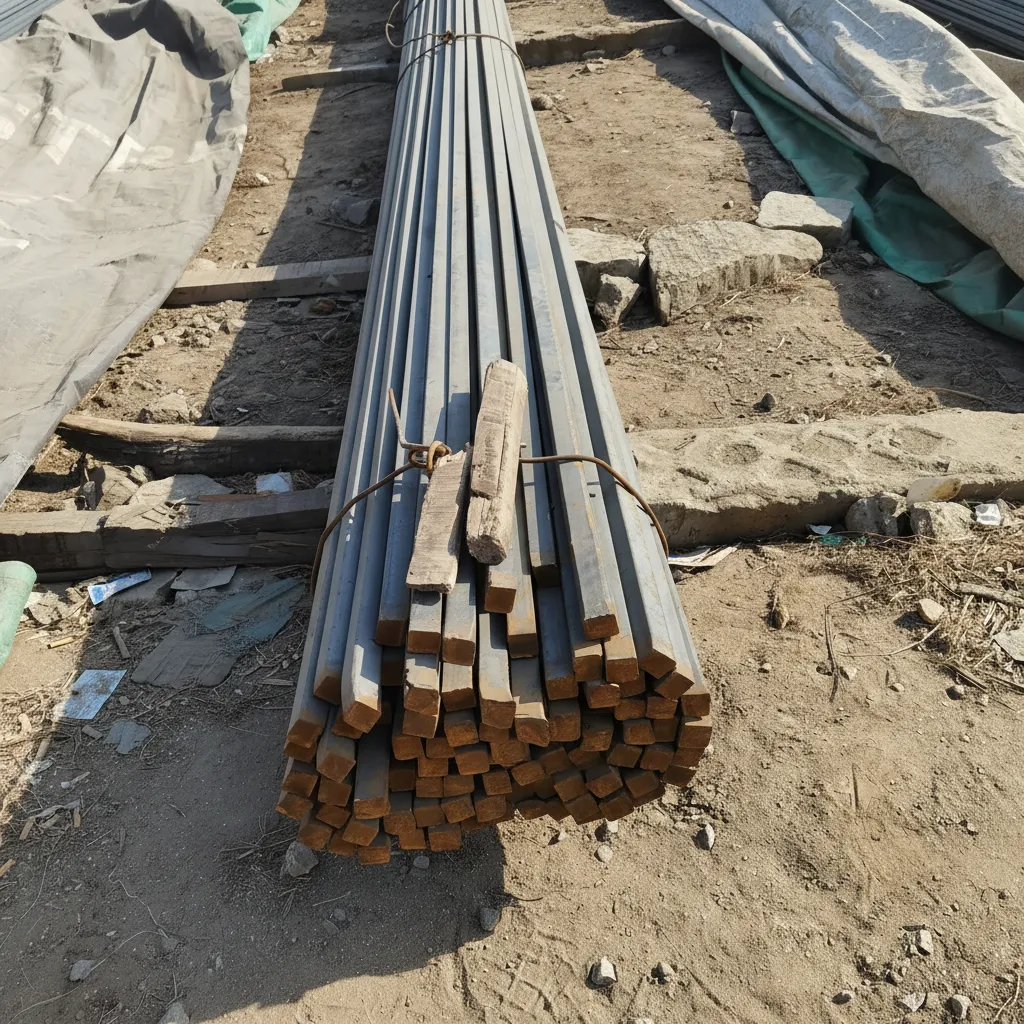

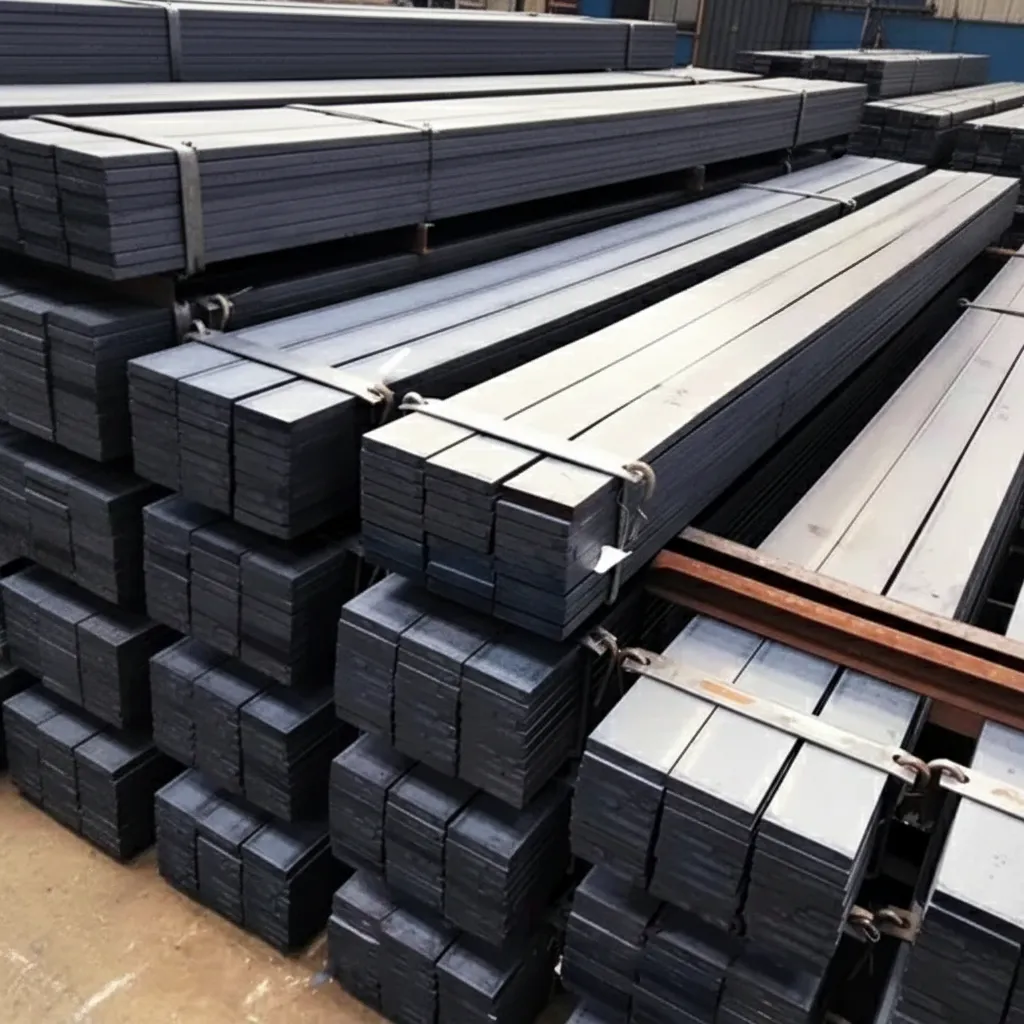

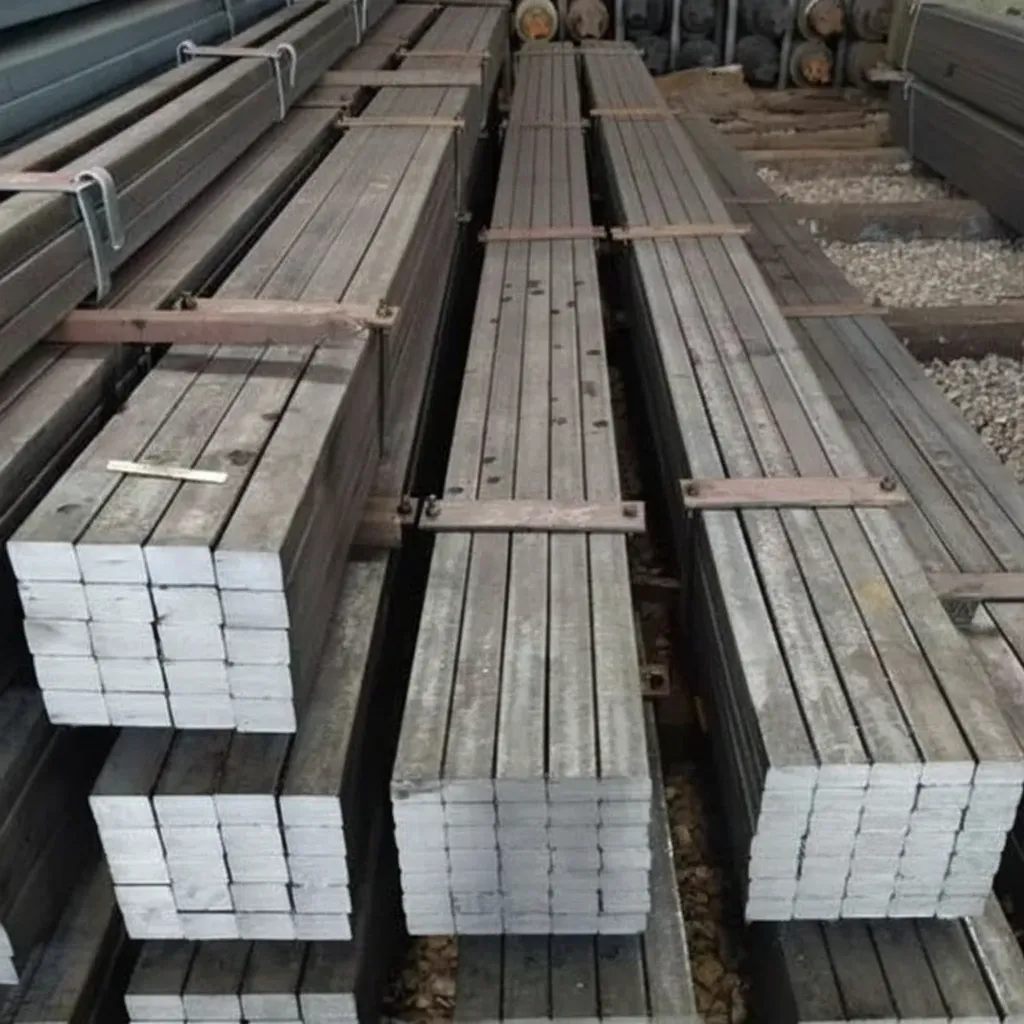

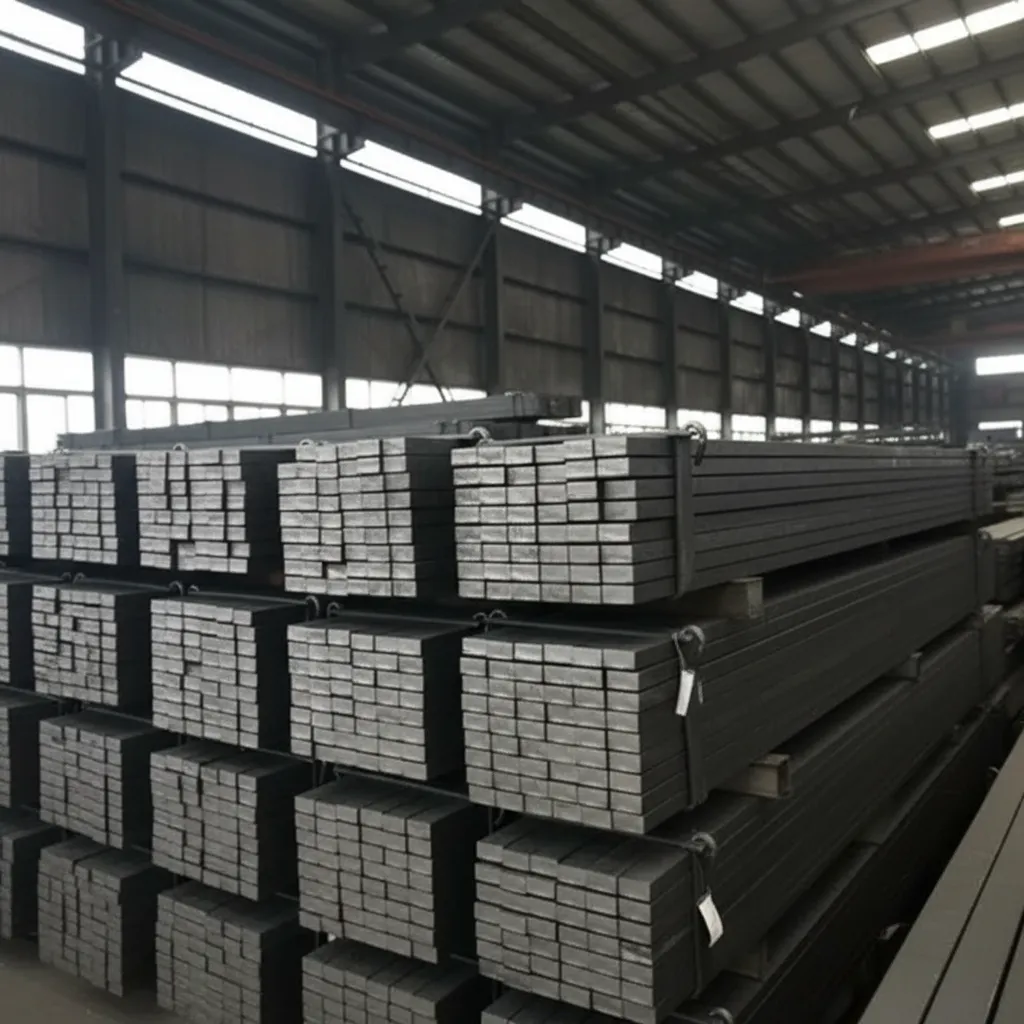

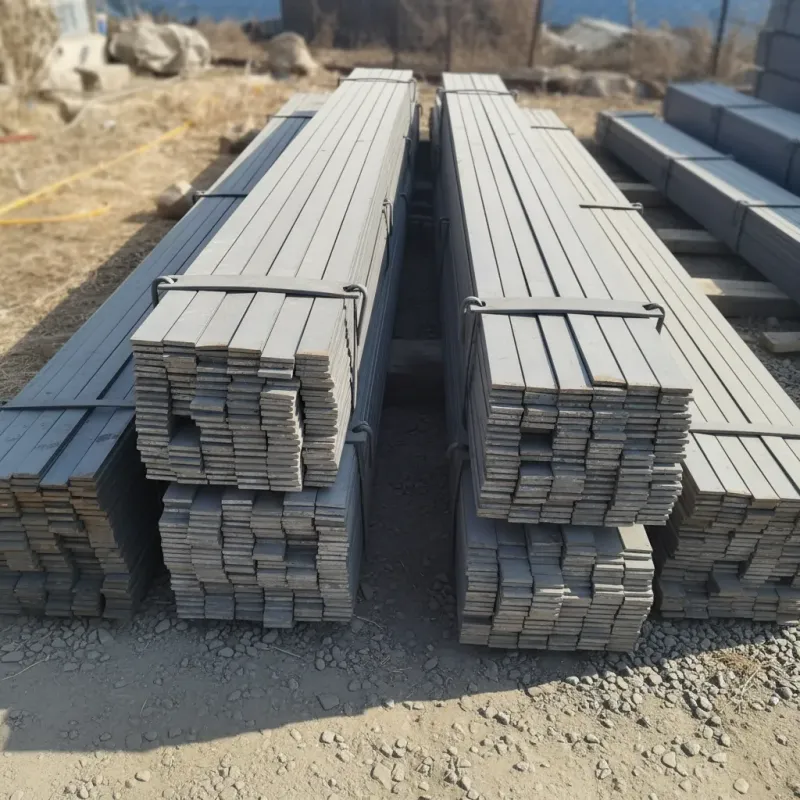

| Product Name | Square Steel Bar | Solid square cross-section steel bar for structural and mechanical use |
| Material Grade | A36 / S235JR / Q235B / 1018 / 1045 | A36 (ASTM), S235JR (EN 10025), Q235B (GB/T 700), 1018/1045 (SAE) |
| Standard Compliance | ASTM A36, EN 10025-2, GB/T 700, JIS G3101 | Meets international structural and engineering steel standards |
| Chemical Composition (C) | 0.25% max (A36) / 0.17% max (S235JR) | Carbon content controls hardness and weldability |
| Chemical Composition (Mn) | 0.80–1.20% | Manganese enhances strength and toughness |
| Chemical Composition (P/S) | P ≤ 0.04%, S ≤ 0.05% | Low phosphorus and sulfur improve ductility and impact resistance |
| Tensile Strength | 400–550 MPa (S235JR) / 400–550 MPa (A36) | Per EN 10025-2 and ASTM A36; higher grades available up to 690 MPa |
| Yield Strength | ≥ 235 MPa (S235JR) / ≥ 250 MPa (A36) | Minimum yield strength ensuring structural load-bearing capacity |
| Elongation | ≥ 20% (A36) / ≥ 26% (S235JR) | Measured on 50 mm gauge length; indicates ductility and formability |
| Size Range (Side Length) | 6 mm – 200 mm | Common sizes: 10×10, 20×20, 25×25, 50×50, 100×100 mm |
| Length | 3 m – 12 m (standard) / custom cut available | Random or fixed lengths per customer requirement |
| Tolerance | ±0.5 mm (side) per EN 10060 / ASTM A36 | Dimensional tolerance per applicable rolling standard |
| Surface Finish | Hot rolled (black scale) / Cold drawn (bright) / Pickled & oiled | Hot rolled for structural use; cold drawn for precision machining applications |
| Application | Construction, machinery, shafts, frames, brackets, tooling | Widely used in structural fabrication, manufacturing, and general engineering |
| Certification | Mill Test Certificate (MTC) per EN 10204 3.1 / 2.2 | Third-party inspection available (SGS, BV, TÜV upon request) |
| Packaging | Bundled with steel strapping, 1–3 MT per bundle | Waterproof paper or plastic wrap for export; bare bundle for domestic |
| MOQ | 1 MT (stock items) / 5 MT (custom orders) | Mixed sizes accepted; trial orders welcome |
Initial size discrepancy flagged — resolved promptly with replacement stock
Our order of 4 tons of 1018 cold-drawn square bar in 35mm × 35mm arrived with approximately 200 kg of pieces measuring 34.3mm on one face — outside the stated ±0.5 mm tolerance. We raised a formal quality claim with photos and measurements. The supplier acknowledged the issue within 24 hours and arranged a replacement shipment for the affected quantity at no additional cost, delivered within 10 days. The remainder of the batch was fully within spec. Credit to the after-sales team for handling it professionally. We are cautiously continuing the relationship and will reassess after the next order.
Our order of 4 tons of 1018 cold-drawn square bar in 35mm × 35mm arrived with approximately 200 kg of pieces measuring 34.3mm on one face — outside the stated ±0.5 mm tolerance. We raised a formal quality claim with photos and measurements. The supplier acknowledged the issue within 24 hours and arranged a replacement shipment for the affected quantity at no additional cost, delivered within 10 days. The remainder of the batch was fully within spec. Credit to the after-sales team for handling it professionally. We are cautiously continuing the relationship and will reassess after the next order.
