| Property | Parameter | Description |
|---|---|---|

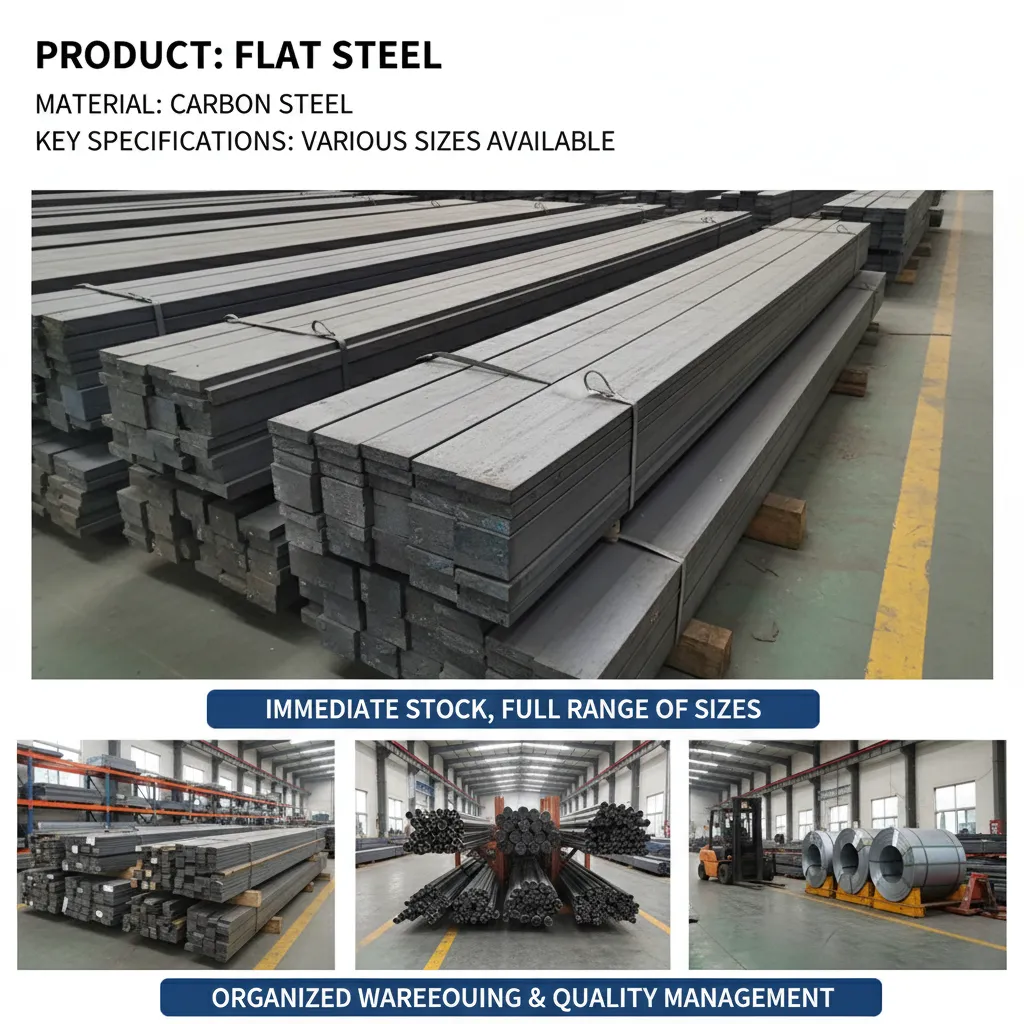

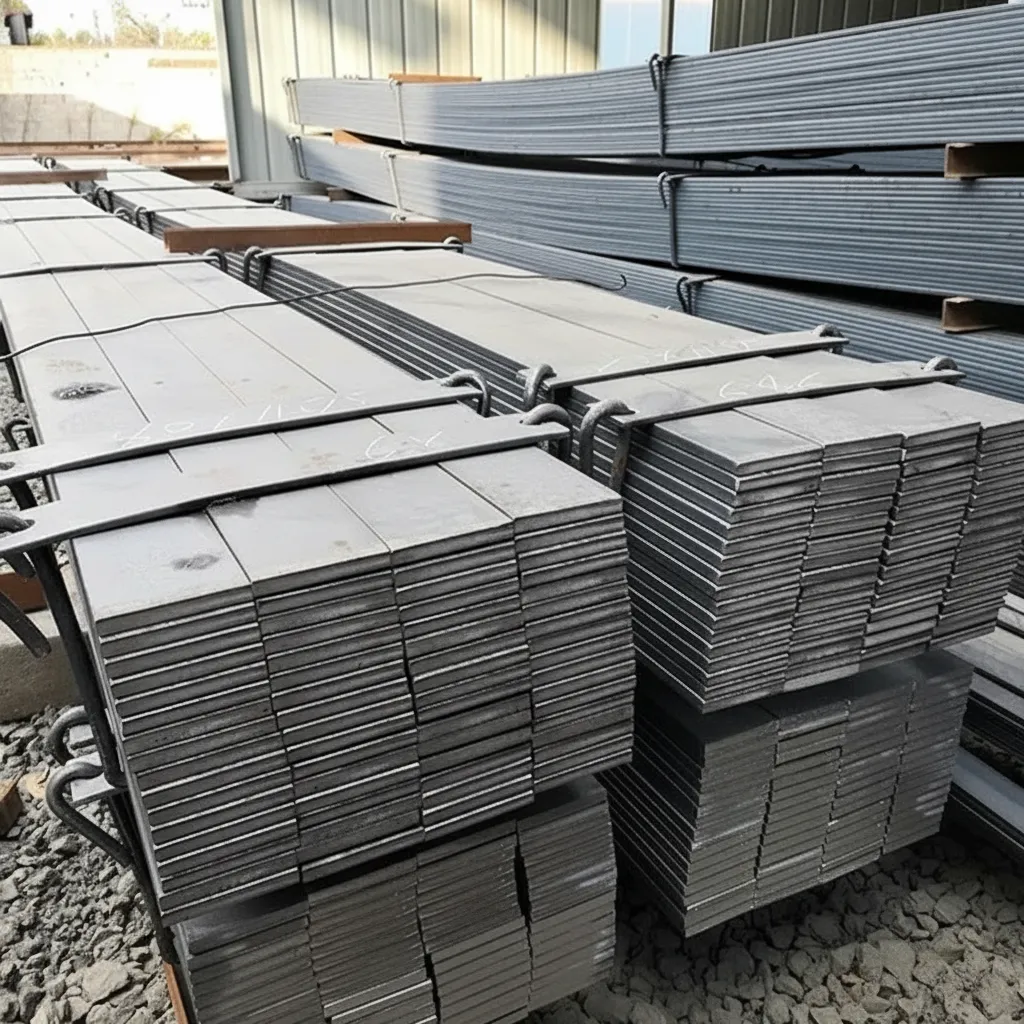

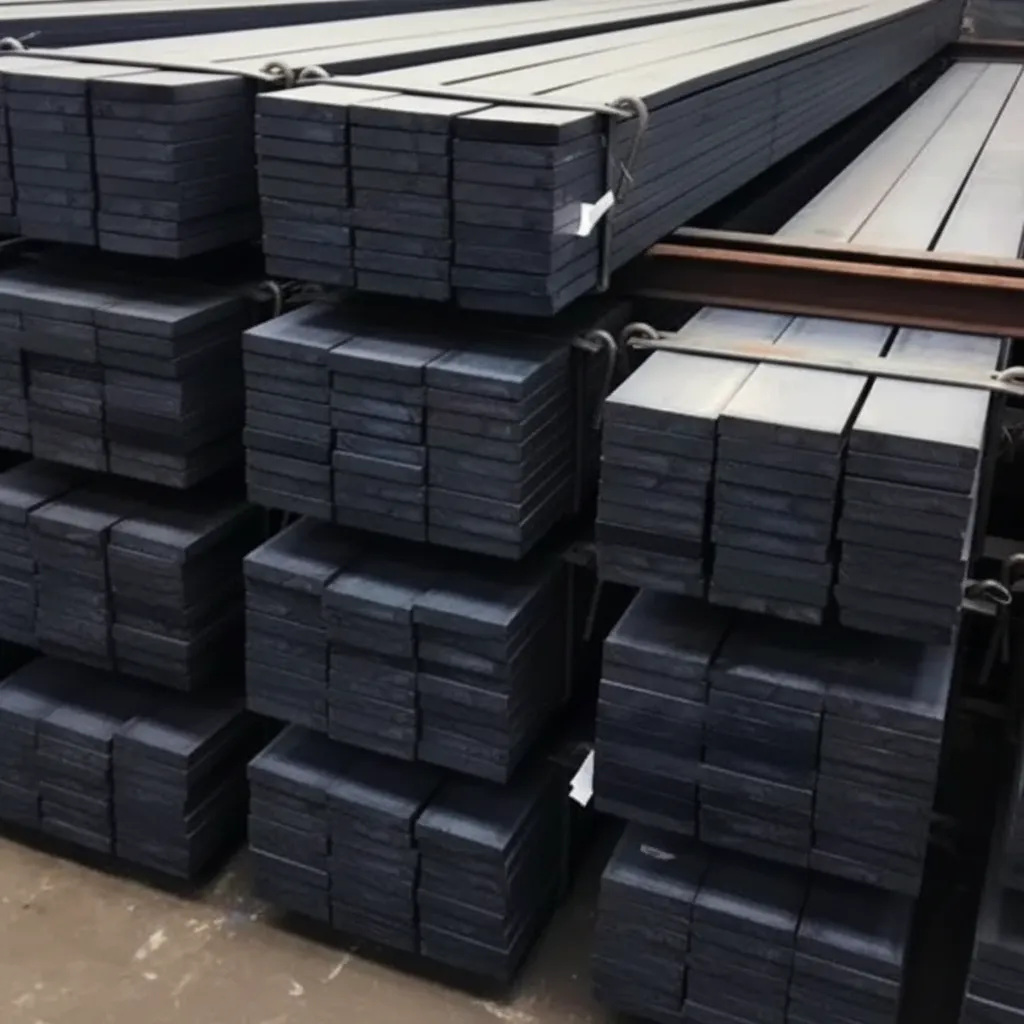

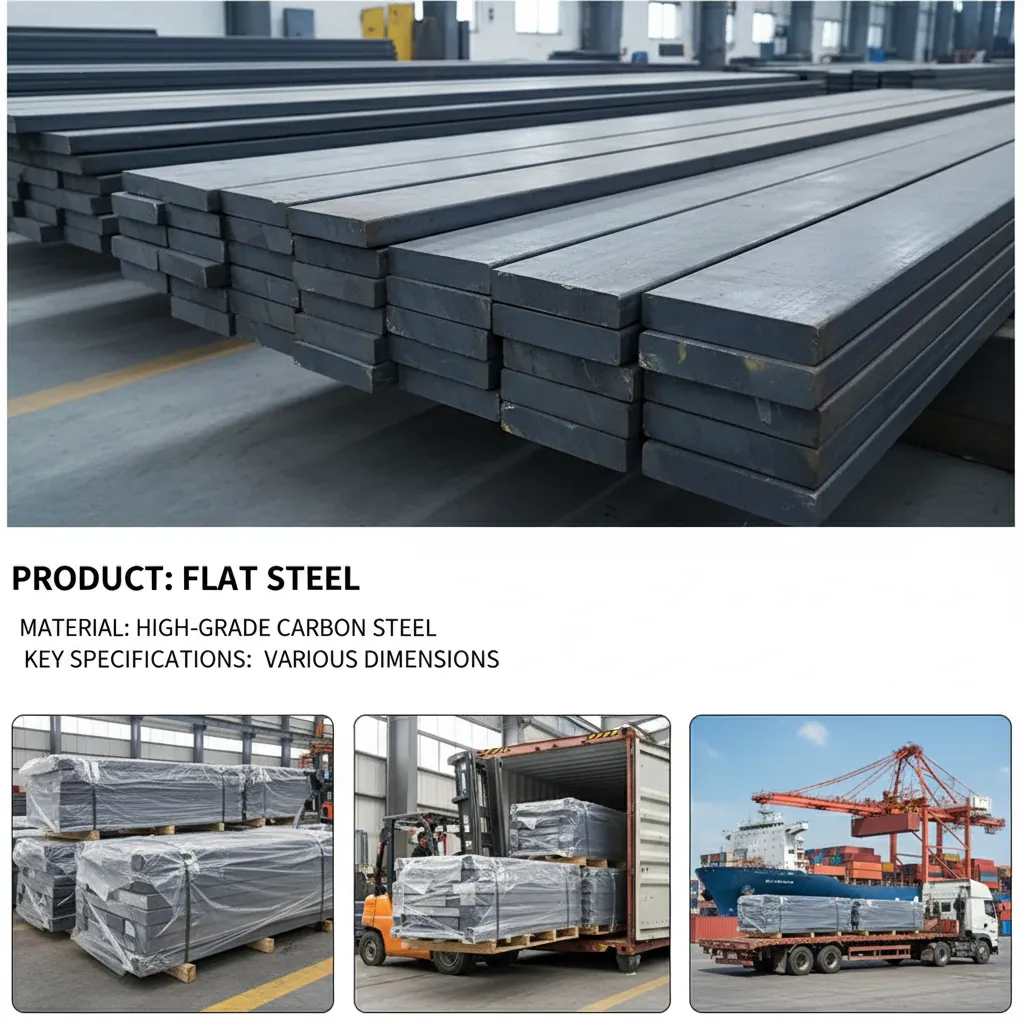

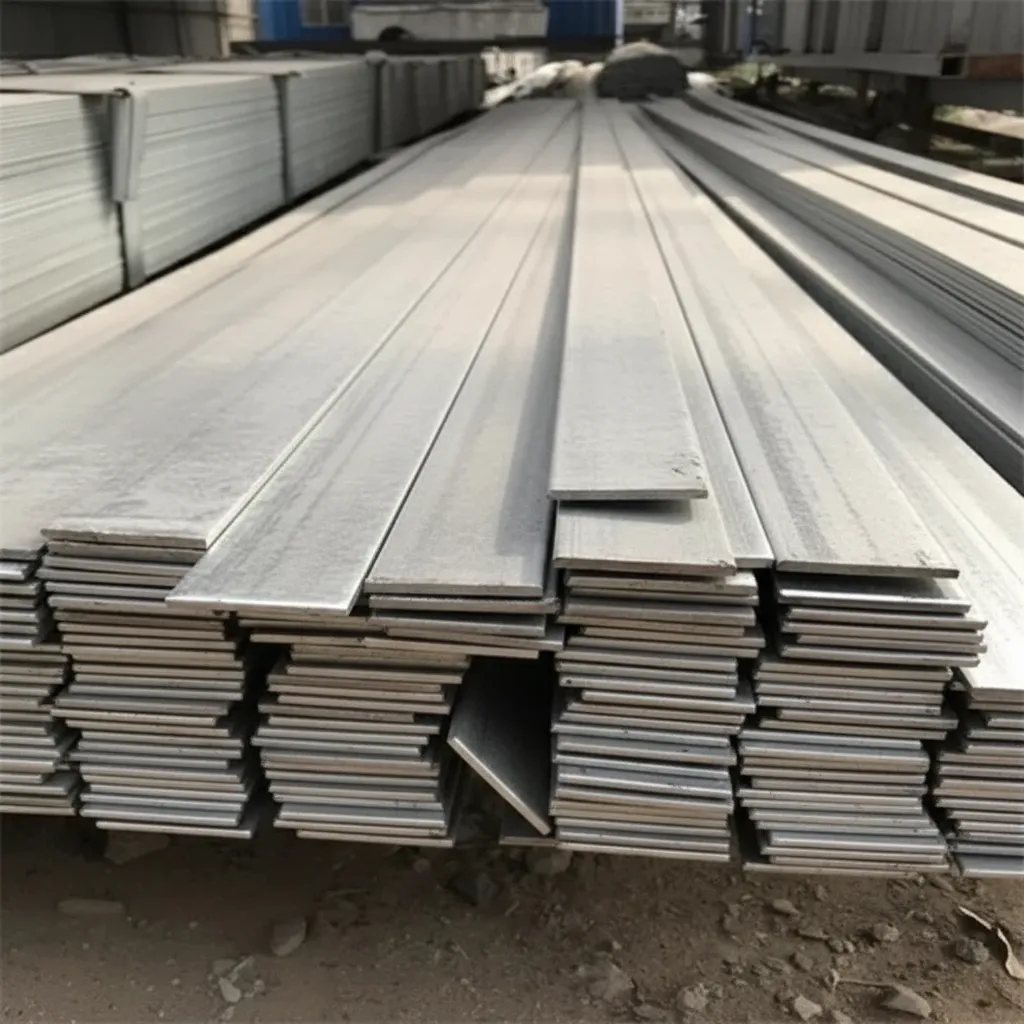

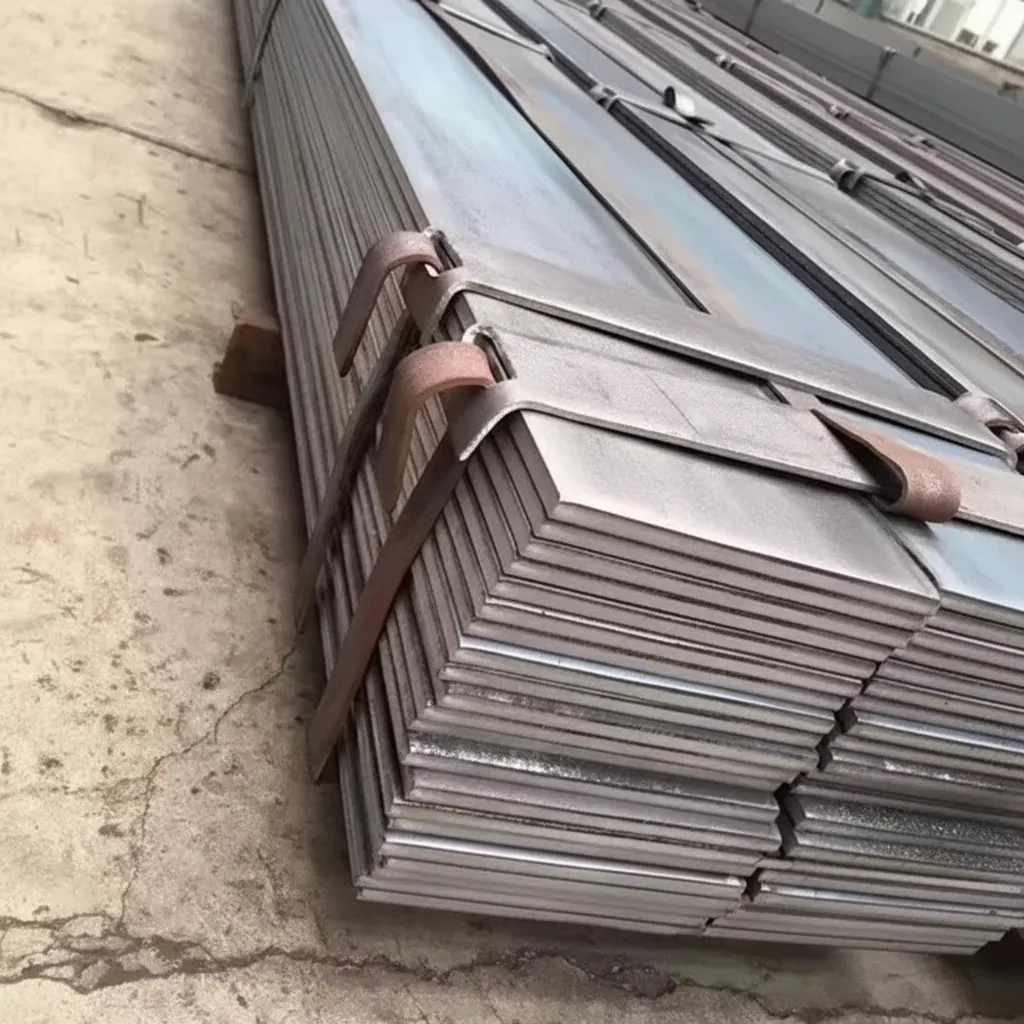

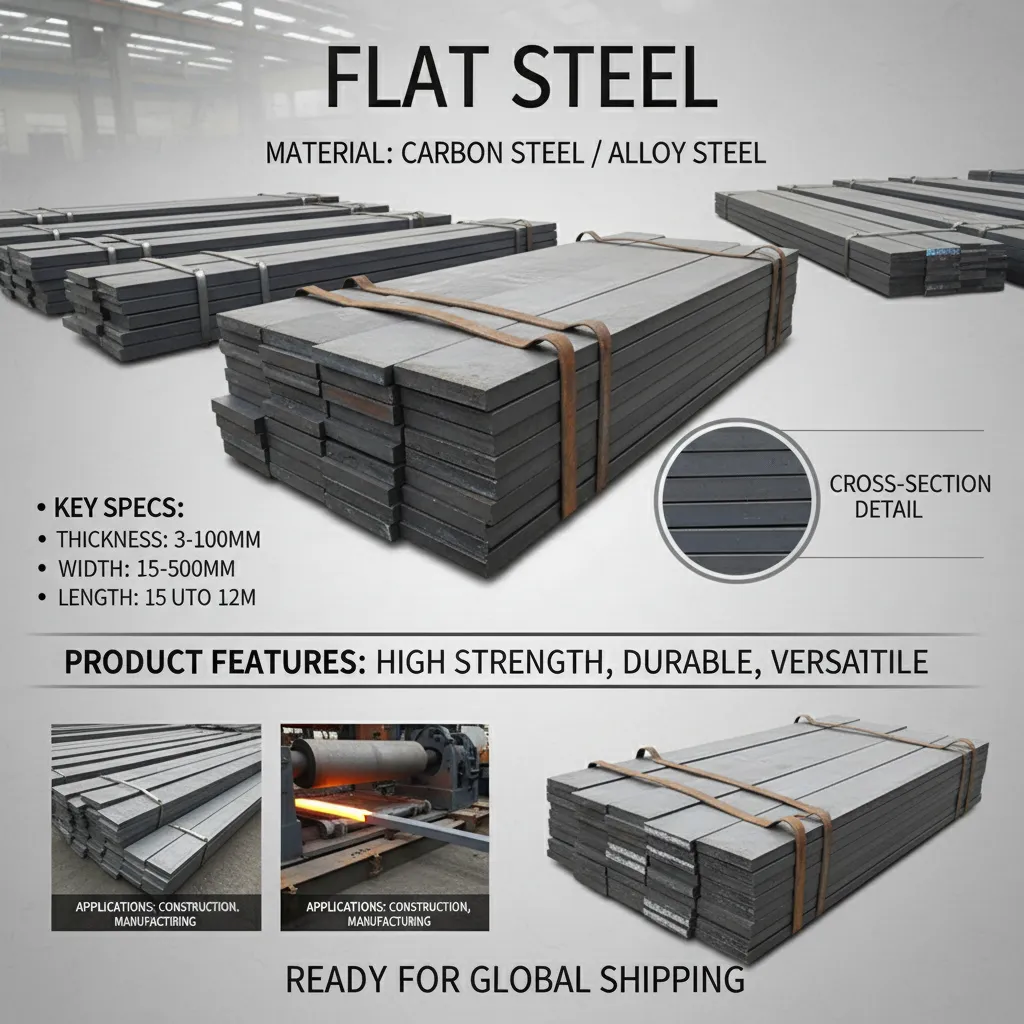

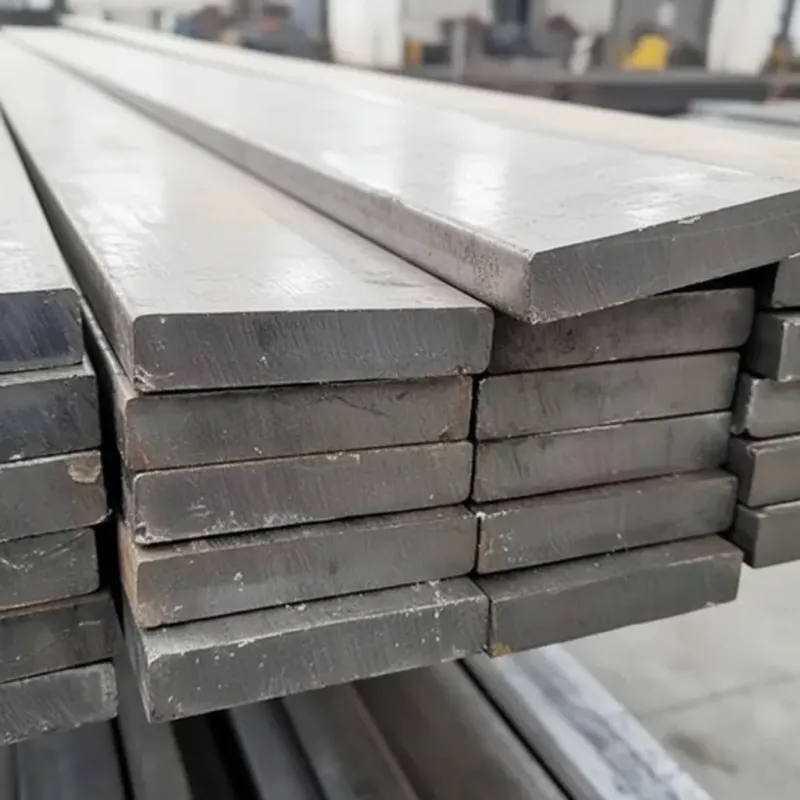

| Product Name | Flat Steel Bar | Hot rolled or cold drawn flat bar for structural and industrial use |
| Material Grade | A36 / SS400 / Q235B / S235JR | Equivalent grades across ASTM, JIS, GB, and EN standards |
| Standard Compliance | ASTM A36 / EN 10058 / JIS G3101 / GB/T 702 | International quality and dimensional standards |
| Carbon (C) | ≤ 0.26% | Per ASTM A36 chemical composition requirements |
| Manganese (Mn) | 0.60 - 1.20% | Enhances strength and hardenability |
| Silicon (Si) | ≤ 0.40% | Improves strength and deoxidation |
| Phosphorus (P) | ≤ 0.040% | Controlled to ensure weldability and toughness |
| Sulfur (S) | ≤ 0.050% | Minimized to prevent hot shortness |
| Tensile Strength | 400 - 550 MPa | Per ASTM A36: min. 400 MPa (58 ksi) |
| Yield Strength | ≥ 250 MPa | Per ASTM A36: min. 250 MPa (36 ksi) |
| Elongation | ≥ 20% | Measured on 200 mm gauge length specimen |
| Thickness Range | 3 - 200 mm | Customizable per customer specification |
| Width Range | 10 - 600 mm | Standard and non-standard widths available |
| Length Range | 3,000 - 12,000 mm | Cut-to-length service available upon request |
| Surface Finish | Hot Rolled / Pickled / Polished | Mill finish or customized surface treatment |
| Application | Construction, machinery, bridges, automotive, shipbuilding | Widely used in structural frames, base plates, and brackets |
| Certification | ISO 9001, SGS, Mill Test Certificate (EN 10204 3.1) | Third-party inspection available on request |
| Packaging | Bundled with steel strips, waterproof paper wrapped | Seaworthy export packaging with tags and markings |
Minor Thickness Variation Resolved After Communication
Ordered 18 tons of hot rolled flat bar in Q235B, 16mm x 120mm x 12m, for base plates in an industrial shed project. On arrival in Chennai, we found about 15% of bars had thickness running 16.6–16.8mm — slightly outside the EN 10058 tolerance for that size. We raised the issue with photos and measurements. The supplier responded within 24 hours, offered a fair credit note, and tightened QC checks for our next shipment. Second batch came through perfectly at 16.0–16.3mm. Appreciated the honest resolution. Continuing to work with them.
Ordered 18 tons of hot rolled flat bar in Q235B, 16mm x 120mm x 12m, for base plates in an industrial shed project. On arrival in Chennai, we found about 15% of bars had thickness running 16.6–16.8mm — slightly outside the EN 10058 tolerance for that size. We raised the issue with photos and measurements. The supplier responded within 24 hours, offered a fair credit note, and tightened QC checks for our next shipment. Second batch came through perfectly at 16.0–16.3mm. Appreciated the honest resolution. Continuing to work with them.
