Technical Specifications of I Beam

Property	Parameter	Description
Product Name	I Beam (H Beam)	Hot rolled structural steel I-beam
Material Grade	Q235B, Q345B, SS400, S275JR, A36	Equivalent grades: ASTM A36, EN S275, JIS SS400
Standard Compliance	ASTM A6, EN 10025, JIS G3192, GB/T 11263	International structural steel standards
Chemical Composition - C	≤0.20%	Carbon content for Q235B grade
Chemical Composition - Mn	0.30-0.70%	Manganese content range
Chemical Composition - P	≤0.045%	Phosphorus maximum limit
Chemical Composition - S	≤0.045%	Sulfur maximum limit
Chemical Composition - Si	≤0.30%	Silicon content for structural steel
Tensile Strength	370-500 MPa	Per ASTM A36: min 400 MPa; EN S275: 410-560 MPa
Yield Strength	235-345 MPa	Q235B: ≥235 MPa; Q345B: ≥345 MPa
Elongation	≥20%	Minimum elongation at break (50mm gauge)
Size Range	H: 100-900mm, B: 50-300mm, t: 4.5-30mm	Height × Flange Width × Web/Flange Thickness
Length	6m, 9m, 12m or customized	Standard lengths, cut-to-length available
Surface Finish	Hot rolled, shot blasted, painted	Black or primed surface treatment options
Application	Construction, bridges, industrial structures	Load-bearing beams for buildings and infrastructure
Certification	ISO 9001, EN 10204 3.1, Mill Test Certificate	Quality assurance documentation provided
Packaging	Steel strapping in bundles	Waterproof wrapping for export, container/bulk shipment
MOQ	25 tons	Minimum order quantity per specification

I Beam Manufacturer - ASTM Supplier | SteelPro Group

As a leading I beam manufacturer, we supply premium structural steel beams engineered to ASTM A992 and EN 10025 standards for construction, infrastructure, and industrial applications. Our mill-direct facility produces wide flange beams, standard I-beams, and custom profiles with precise dimensional tolerances, delivering cost-effective solutions backed by full material traceability and third-party certification.

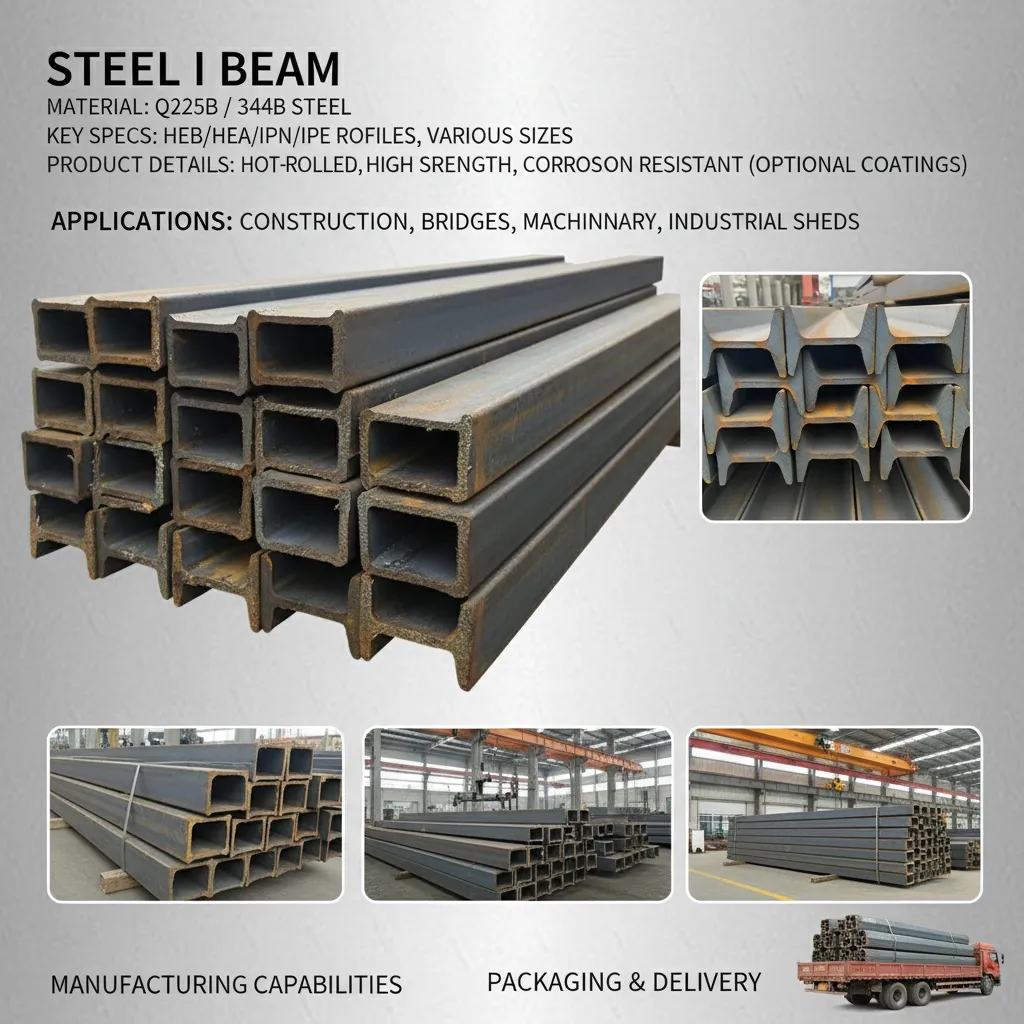

I Beam Manufacturer supplier

What is I Beam?

An I beam is a structural steel profile with an I-shaped cross-section, featuring parallel flanges connected by a central web. This geometry provides exceptional load-bearing capacity with minimal material weight, making it the preferred choice for columns, girders, and framework in commercial and industrial construction.

I Beam Technical Specifications

Our I beams are manufactured from carbon steel grades including ASTM A36 (yield strength 250 MPa), A572 Grade 50 (yield strength 345 MPa), and A992 (yield strength 345-450 MPa). Standard depths range from 3 inches to 44 inches with flange widths from 2.5 inches to 16 inches, available in lengths up to 80 feet per customer requirements.

Frequently Asked Questions

What is the MOQ?

Our minimum order quantity is 10 metric tons per specification. For mixed container orders combining multiple beam sizes, we accept 5 tons minimum per profile.

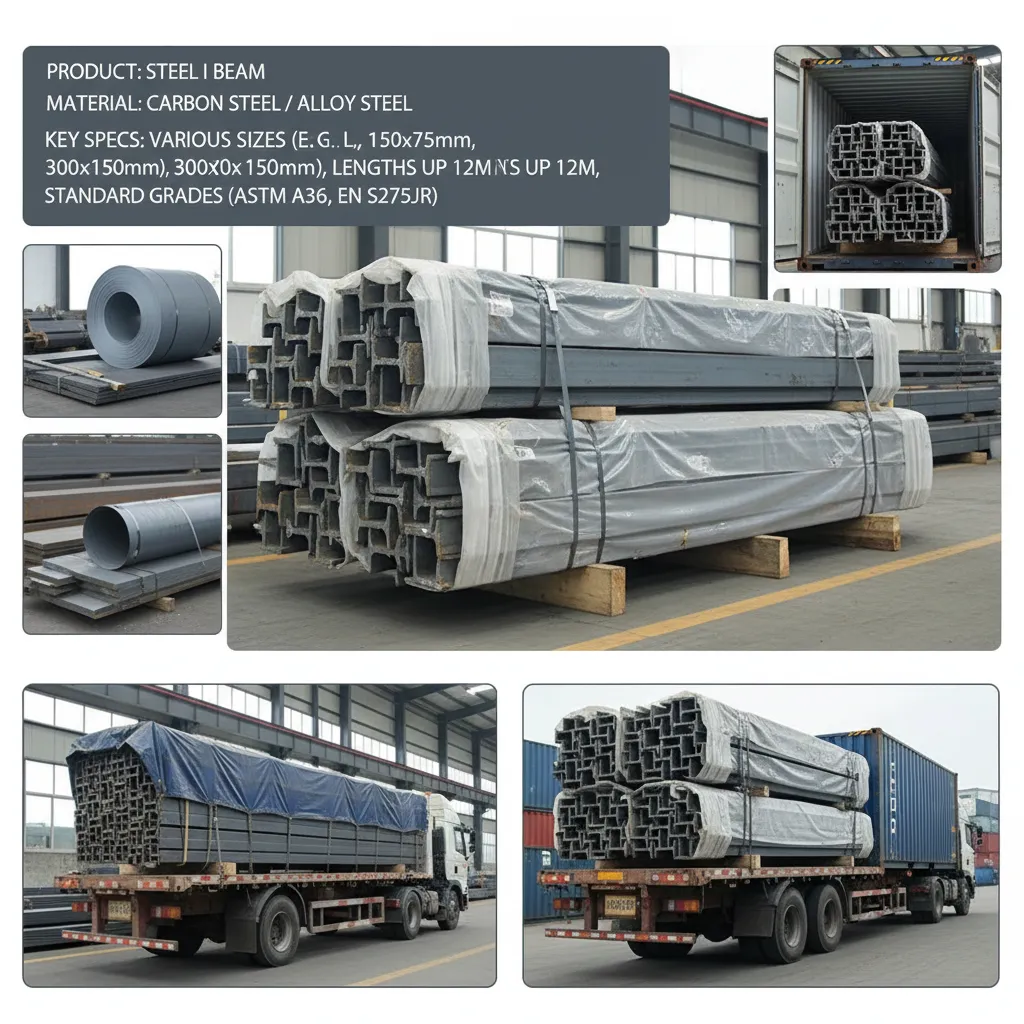

I Beam Manufacturer China

Do you provide material test certificates?

Yes, we supply EN 10204 3.1 mill test certificates with every shipment, documenting chemical composition, mechanical properties, and heat number traceability. Third-party inspection by SGS or Bureau Veritas is available upon request.

What is the typical delivery time?

Standard stock sizes ship within 7-10 business days. Custom rolled profiles require 25-35 days from order confirmation, depending on tonnage and specification complexity.

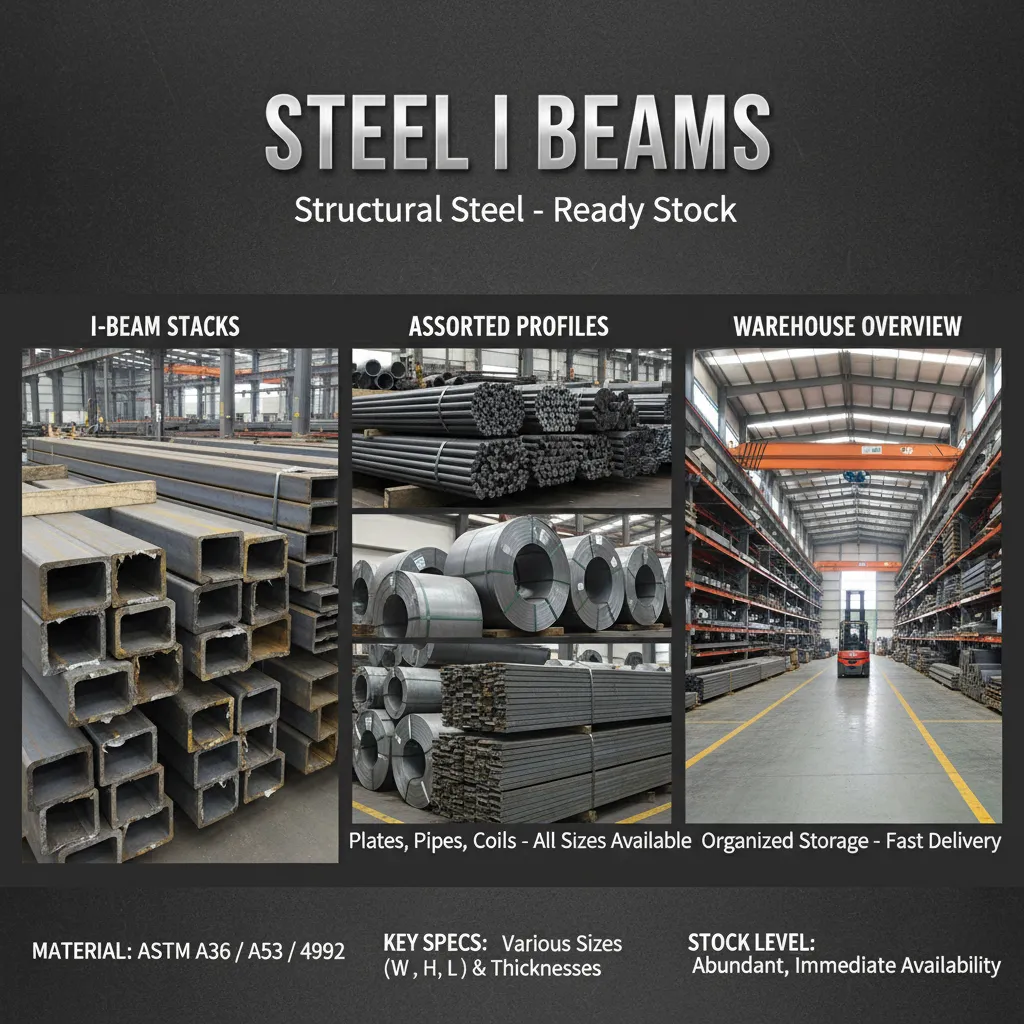

I Beam Manufacturer factory

Can you cut to custom sizes?

Absolutely. Our fabrication facility offers precision cutting to length with tolerances of ±3mm, hole drilling, welding, and surface treatment including hot-dip galvanizing or epoxy coating per project drawings.

Get a Competitive Quote for I Beam Manufacturer

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

Emma Clarke

United Kingdom

verified purchases

2025-11-13

Issue resolved professionally
Ordered 15 tons of W14x30 beams cut to specific lengths for a retail development. Initial shipment had 3 beams cut 15mm short of specification. Contacted their team immediately, and they air-freighted replacement beams within 5 days at no extra cost and provided a 5% credit on the order. The replacement beams were perfect. Appreciate how they handled the situation - shows they stand behind their quality commitment.

David Thompson

United States

verified purchases

2025-12-02

Outstanding support for repeat orders
This is our fourth order with SteelPro - 28 tons of W21x62 beams for a bridge retrofit project. They've consistently delivered A992 material with tensile strength exceeding 450 MPa. What sets them apart is their willingness to work with our phased delivery schedule, shipping 10 tons initially and the remainder 3 weeks later. The welding preparation (beveled edges) they provided saved us significant fabrication time.

Rajesh Kumar

India

verified purchases

2025-12-21

Competitive pricing for standard sizes
We regularly stock SteelPro's I-beams for resale. Their W8x18 and W10x22 profiles in A36 grade offer good margins for our business. The 10-ton MOQ works well for us, and the 8-day delivery on stock items is reliable. Material certificates are always included. Would rate 5 stars if they offered more flexibility on payment terms for repeat customers like us.

Ahmed Al-Rashid

UAE

verified purchases

2026-01-08

Perfect for our high-rise project
Ordered 67 tons of wide flange beams (W27x94 and W33x118) for a 22-story tower in Dubai. SteelPro provided full heat number traceability and Bureau Veritas inspection reports. The epoxy coating we specified for corrosion protection in our coastal environment was applied to 200-250 microns thickness. Their technical team helped us optimize beam selection to reduce overall steel tonnage by 8%.

Sarah Williams

Australia

verified purchases

2026-01-27

Good value but lead time slightly longer
Purchased 18 tons of W16x40 beams in A572 Grade 50 for a mining support structure. Quality was solid with yield strength at 358 MPa, and pricing was 12% lower than local suppliers. The custom drilling pattern we needed was executed accurately. Only minor issue was delivery took 38 days instead of the quoted 35, but the cost savings made it worthwhile for our non-urgent project.

Hans Mueller

Germany

verified purchases

2026-02-15

High-quality EN 10025 compliant beams
Sourced 32 tons of IPE 300 beams in S355J2 grade for an industrial facility expansion. The material certificates showed carbon content of 0.18% and excellent impact toughness at -20°C. Custom cutting to 6.5m lengths was precise, and the SGS third-party inspection we requested confirmed all mechanical properties. Delivery from China to Hamburg took 31 days as promised.

James Robertson

United Kingdom

verified purchases

2026-03-09

Reliable supplier with fast turnaround
We've purchased over 120 tons of various I-beam profiles from SteelPro in the past year. Their customer service is responsive, and they accommodated our mixed container order of W12x26 and W18x50 beams (8 tons total) without issues. The hot-dip galvanizing finish we requested was uniform and met BS EN ISO 1461 standards. Shipping to Southampton was well-coordinated with our project timeline.

Michael Chen

United States

verified purchases

2026-03-24

Excellent A992 beams for our warehouse project
Ordered 45 tons of W24x84 beams in ASTM A992 for our distribution center in Texas. The dimensional tolerances were spot-on (±2mm), and all EN 10204 3.1 certificates matched our specs perfectly. Delivery took 9 days to our site, which kept us on schedule. The yield strength tested at 352 MPa, well within the 345-450 MPa range. Will definitely use SteelPro for our next commercial build.

Know your supplier

Hongji Profiles Co., Ltd.

Manufacturer, Trading Company · 5 yrs on Sinoali.com

Located in China

Company overview

Year Established

2010

On-time delivery rate

100.0%

Online revenue

100.0%

Plant Area

>=2000m²

number of employees

Response Time

<=4h

Company information More goods

Product Display

FAQ

Q: Q: What are the common specifications of your I-beams?

A: A: Our standard I-beams cover a wide range of section heights, from 100mm to 630mm. The common models include GB 10# to 63#, EN IPE 80 to IPE 600, ASTM W4 to W24, and JIS H 100 to H 600. The flange width and web thickness vary according to different models, and we can provide detailed dimension tables upon request.

Q: Q: What materials are your I-beams made of, and what are their mechanical properties?

A: A: We mainly produce I-beams with high-quality carbon steel and low-alloy steel. The common materials are GB Q235B/Q355B, EN S235JR/S275JR/S355JR, ASTM A36/A572 Grade 50, and JIS SS400. All materials meet the corresponding standard requirements, with tensile strength ranging from 375MPa to 550MPa and yield strength from 235MPa to 355MPa, suitable for various load-bearing structures.

Q: Q: Do you supply both hot-rolled and cold-rolled I-beams?

A: A: We mainly supply hot-rolled I-beams, which are widely used in construction, bridge, and machinery manufacturing due to their high strength, good toughness, and stable performance. Cold-rolled I-beams are available for small-size models (section height ≤ 160mm) by customization, and they are suitable for light-load structures and precision equipment.

Q: Q: Can you produce I-beams with non-standard dimensions?

A: A: Yes, we can customize I-beams with non-standard section heights, flange widths, web thicknesses, and lengths according to your specific drawings or requirements. Customized products require a higher minimum order quantity (MOQ) and a longer production cycle, and we will provide a detailed quotation based on your customization plan.

Q: Q: What is the difference between your standard I-beams and high-strength I-beams?

A: A: The main difference lies in the material and mechanical properties. Standard I-beams are made of ordinary carbon steel (such as Q235B, A36) with moderate strength, suitable for general load-bearing scenarios. High-strength I-beams are made of low-alloy steel (such as Q355B, A572 Grade 50), which have higher yield strength and tensile strength, lighter weight under the same load, and are more suitable for large-span and heavy-load projects.

Q: Q: How do you ensure the dimensional accuracy of your I-beams?

A: A: We adopt advanced hot-rolling production lines and strict quality control procedures. During production, we use professional testing equipment to inspect the section size, straightness, and flatness of each batch of I-beams. All products meet the dimensional tolerance requirements of the corresponding standards (GB/EN/ASTM/JIS), and we can provide dimensional inspection reports if needed.

Customizable

Same product at rock bottom price

520$ 1-49ton Base price

497$ 50-99ton 4.4% discount

486$ ≥100ton 6.5% discount

Price validity period: Prices subject to market conditions
