| Property | Parameter | Description |
|---|---|---|

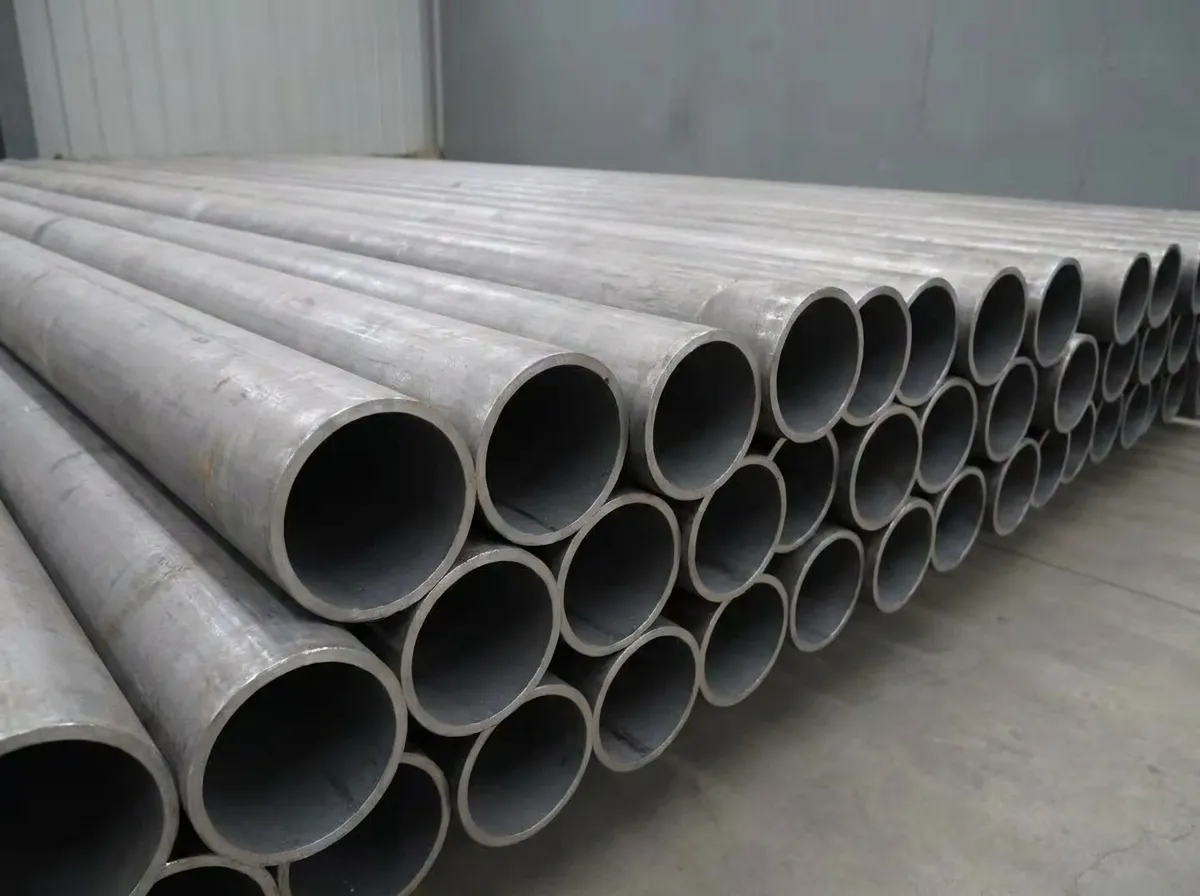

| Product Name | Welded Steel Pipe for Building Construction | ERW / LSAW / SSAW structural welded steel pipe used in construction applications |
| Material Grade | Q235B, Q345B, S235JR, S355JR, ASTM A53 Gr.B, ASTM A500 Gr.B/C | Q235B ≈ S235JR ≈ ASTM A36; Q345B ≈ S355JR ≈ ASTM A572 Gr.50 |
| Standard Compliance | ASTM A53, ASTM A500, EN 10219, EN 10210, GB/T 13793, GB/T 6728 | Covers ERW, cold-formed and hot-finished structural hollow sections for construction |
| Chemical Composition (C) | ≤ 0.26% (Q235B); ≤ 0.20% (Q345B); ≤ 0.25% (ASTM A53 Gr.B) | Carbon content controls weldability and strength |
| Chemical Composition (Mn, Si, P, S) | Mn ≤ 1.60%; Si ≤ 0.55%; P ≤ 0.045%; S ≤ 0.045% | Typical values per GB/T 700, GB/T 1591 and ASTM A53 requirements |
| Tensile Strength | 415–655 MPa (ASTM A53 Gr.B); 400–540 MPa (Q235B); 470–630 MPa (Q345B) | Minimum tensile strength per respective standard; ensures structural load-bearing capacity |
| Yield Strength | ≥ 240 MPa (Q235B); ≥ 345 MPa (Q345B); ≥ 240 MPa (ASTM A53 Gr.B) | Minimum yield strength guaranteeing structural integrity under design loads |
| Elongation | ≥ 22% (Q235B); ≥ 20% (Q345B); ≥ 29% (ASTM A53 Gr.B, 2-in gauge) | Measured on standard gauge length; indicates ductility for seismic and dynamic loads |
| Outer Diameter (OD) | 21.3 mm – 2020 mm (ERW: 21.3–660 mm; LSAW/SSAW: 219–2020 mm) | Wide OD range covers structural columns, scaffolding, piling and framework |
| Wall Thickness | 1.5 mm – 25.4 mm | Selected based on design pressure, load and span requirements |
| Length | Standard: 6 m, 12 m; Custom: 1–18 m | Fixed or random lengths available; cut-to-length service upon request |

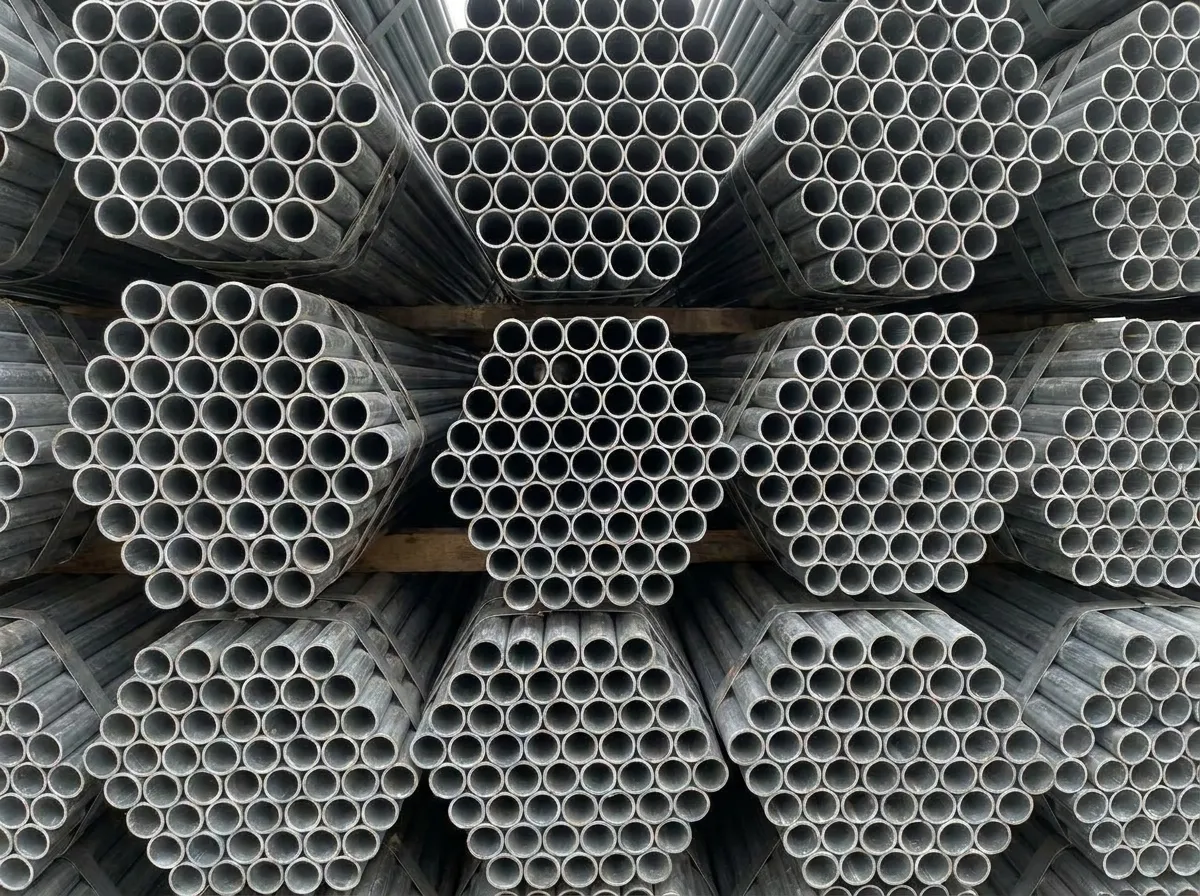

| Surface Finish | Black (mill finish), hot-dip galvanized (≥ 85 µm), epoxy coated, 3PE coated | Galvanized finish per ASTM A123 / EN ISO 1461 for corrosion protection in exposed structures |
| Application | Structural columns, beams, scaffolding, piling, curtain wall frames, greenhouse frames | Widely used in residential, commercial and industrial building construction projects |
| Certification | ISO 9001:2015, CE Marking (EN 1090), API 5L (where applicable), SGS / BV / TÜV third-party inspection | Certificates available for mill test reports (MTR) per EN 10204 3.1 / 3.2 |
| Packaging | Bundled with steel strips (max 2 MT/bundle); end caps fitted; waterproof paper or PE film wrapping | Sea-worthy export packing available; bare bundle for domestic delivery |
| MOQ | 5 MT per size (stock items); 25 MT per size (custom production) | Mixed sizes accepted to meet MOQ; trial orders negotiable for new customers |
Initial coating inconsistency flagged — supplier resolved promptly
We ordered 75 tonnes of hot-dip galvanized ERW pipe, OD 48.3 mm, wall 3.2 mm, ASTM A53 Gr.B, for a residential compound project in Dubai. On arrival, our QC team found approximately 12% of pipes in one bundle had galvanizing below the 85 µm minimum — some readings were around 72–78 µm. We raised a formal NCR with photos. The supplier acknowledged the issue within 24 hours, arranged replacement pipes for the affected bundle at no additional cost, and shipped within 10 days. The replacement batch passed our inspection. The resolution was handled professionally; we are willing to order again with an agreed pre-shipment inspection clause.
