| Property | Parameter | Description |
|---|---|---|

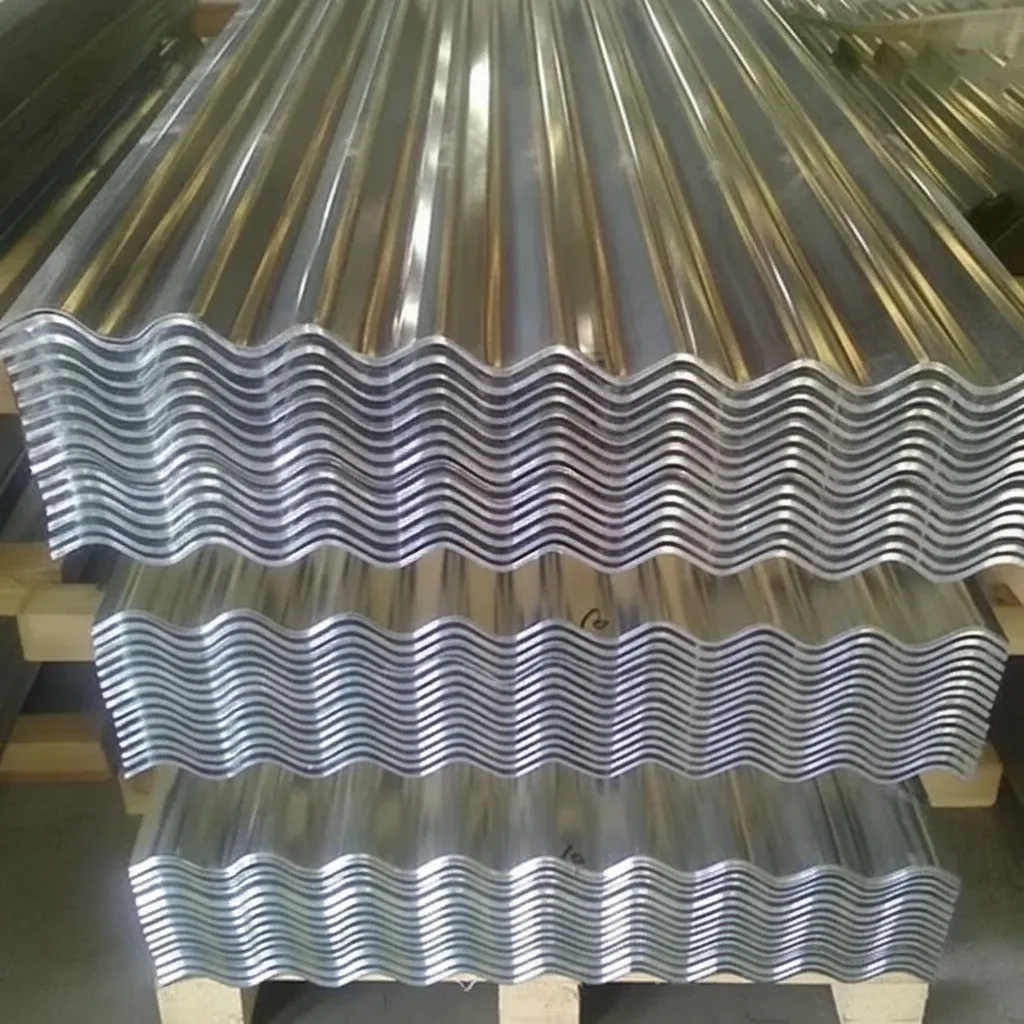

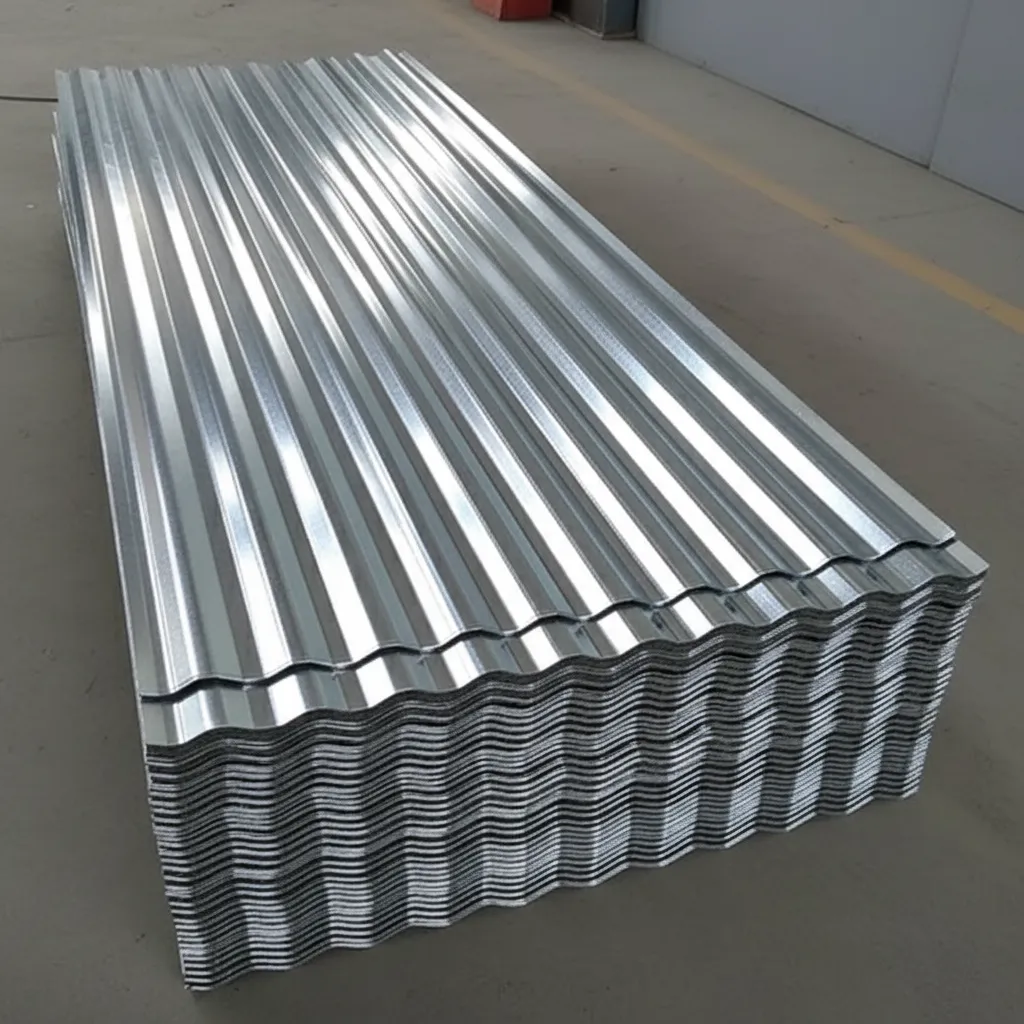

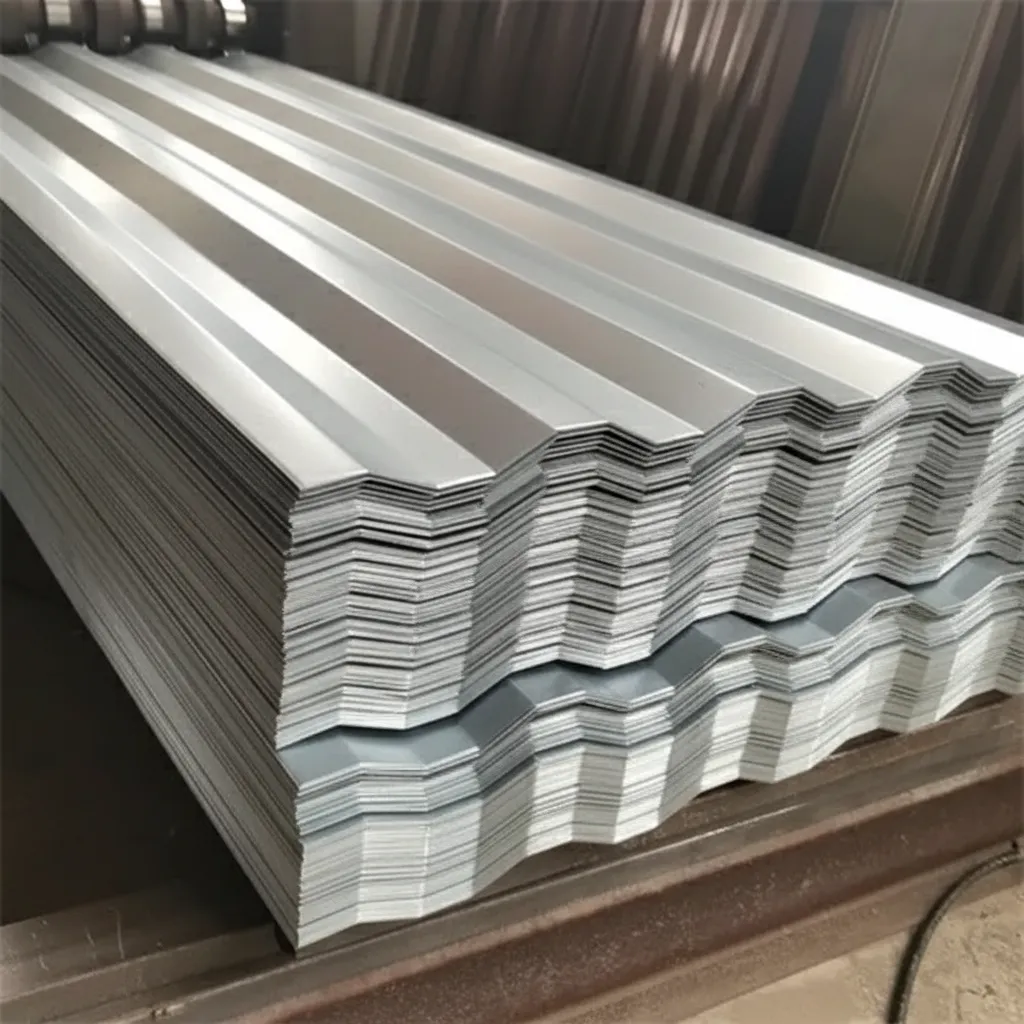

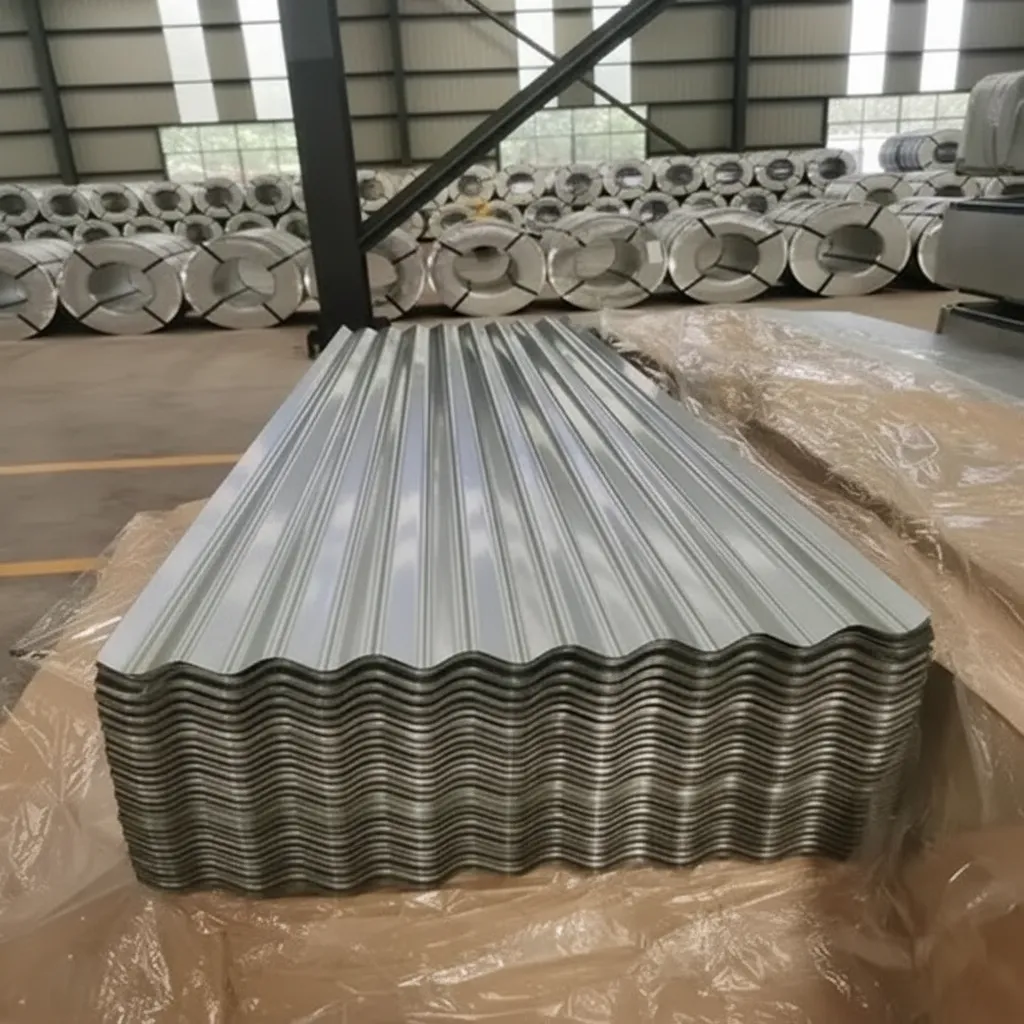

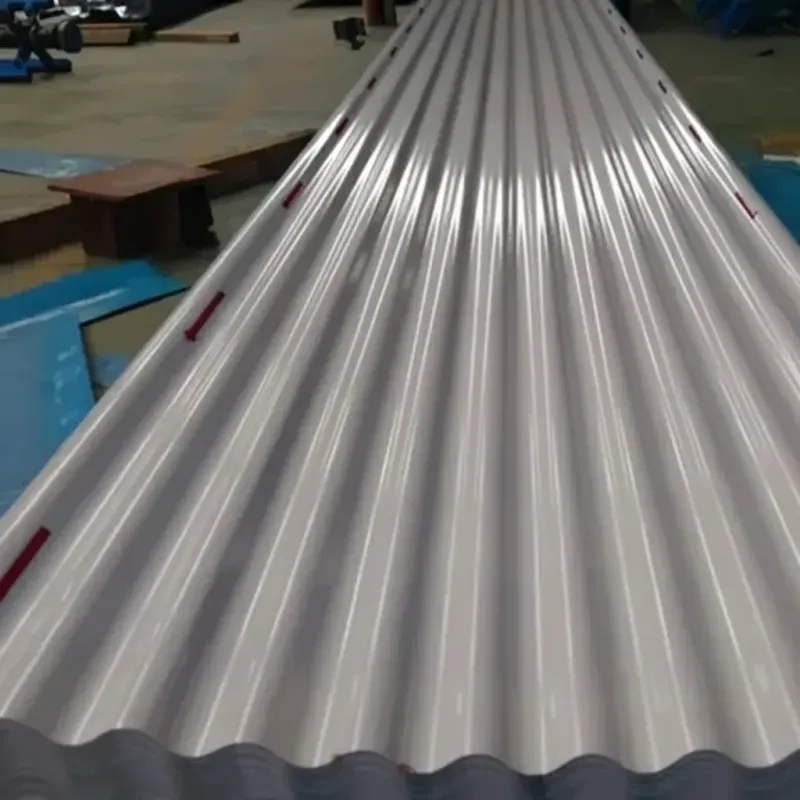

| Product Name | PPGL Corrugated Roof Plate | Pre-painted Galvalume steel corrugated roofing sheet |
| Base Material | Galvalume (55% Al-Zn alloy coated steel) | Hot-dip 55% aluminum-zinc alloy coated substrate |
| Thickness Range | 0.3 mm – 0.8 mm | Base metal thickness excluding coating |
| Width Range | 600 mm – 1250 mm | Effective coverage width after corrugation forming |
| Length Range | 1000 mm – 12000 mm | Custom cut-to-length available per order |
| Coating Structure | Primer + Top Coat (PVDF / PE / SMP) | Total dry film thickness: 20 – 35 µm |
| Top Coat Thickness | 15 – 25 µm | PVDF: 25 µm; PE: 15 µm; SMP: 20 µm |
| Zinc-Aluminum Coating Mass | AZ100 – AZ150 (100 – 150 g/m²) | Both sides combined, per ASTM A792 / JIS G3321 |
| Yield Strength | ≥ 280 MPa | Structural grade; tensile strength ≥ 350 MPa |
| Corrugation Profile | Wave height: 18 mm – 35 mm; Pitch: 76 mm – 130 mm | Standard profiles: 760, 820, 900, 1000 type |
| Surface Finish | Smooth / Matte / Embossed | RAL color system; 1000+ color options available |
| Salt Spray Resistance | ≥ 1000 hours | Per ASTM B117; no blistering or delamination |
| Heat Resistance | -40 °C – +120 °C | Suitable for extreme climate roofing applications |
| Packaging | Steel strip bundled + waterproof film wrapped | Palletized; 2–5 MT per bundle; corner protectors applied |
| Storage Conditions | Dry, ventilated warehouse; ≤ 80% RH | Avoid direct contact with ground; stack ≤ 1.5 m high |
| Application | Industrial plants, warehouses, residential roofing, wall cladding | Suitable for coastal, industrial, and high-humidity environments |
| Certification | ISO 9001, SGS, CE, ASTM A792, JIS G3321 | Third-party inspection available upon request |
| MOQ | 25 MT | Mixed specifications accepted per container |
| Supply Capacity | 5000 MT/month | Lead time: 15–25 days after order confirmation |
Initial documentation gap resolved — product quality is acceptable
Ordered 0.40 mm PPGL corrugated panels with PVDF finish for a light industrial facility in Dubai. On first shipment, the SGS inspection report referenced AZ100 coating weight but our PO specified AZ150 per ASTM A792 — a discrepancy that caused a brief hold at customs. The supplier acknowledged the error quickly and provided corrected certification within 48 hours, which resolved the issue. Product itself — 840 mm cover width, 25 mm wave height — installed without problems and the PVDF finish looks good in the Gulf heat. Supplier has since confirmed improved documentation checks. Would consider reordering with clearer spec confirmation upfront.
