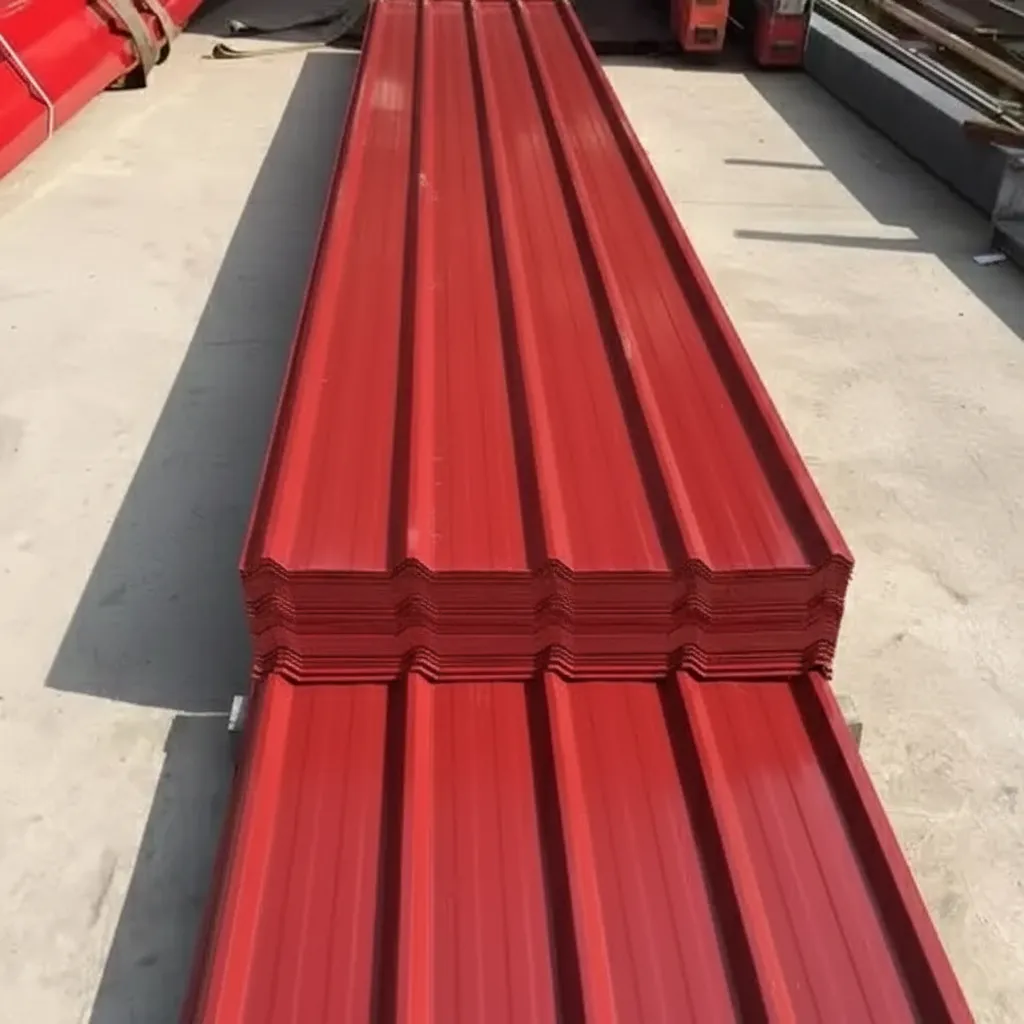

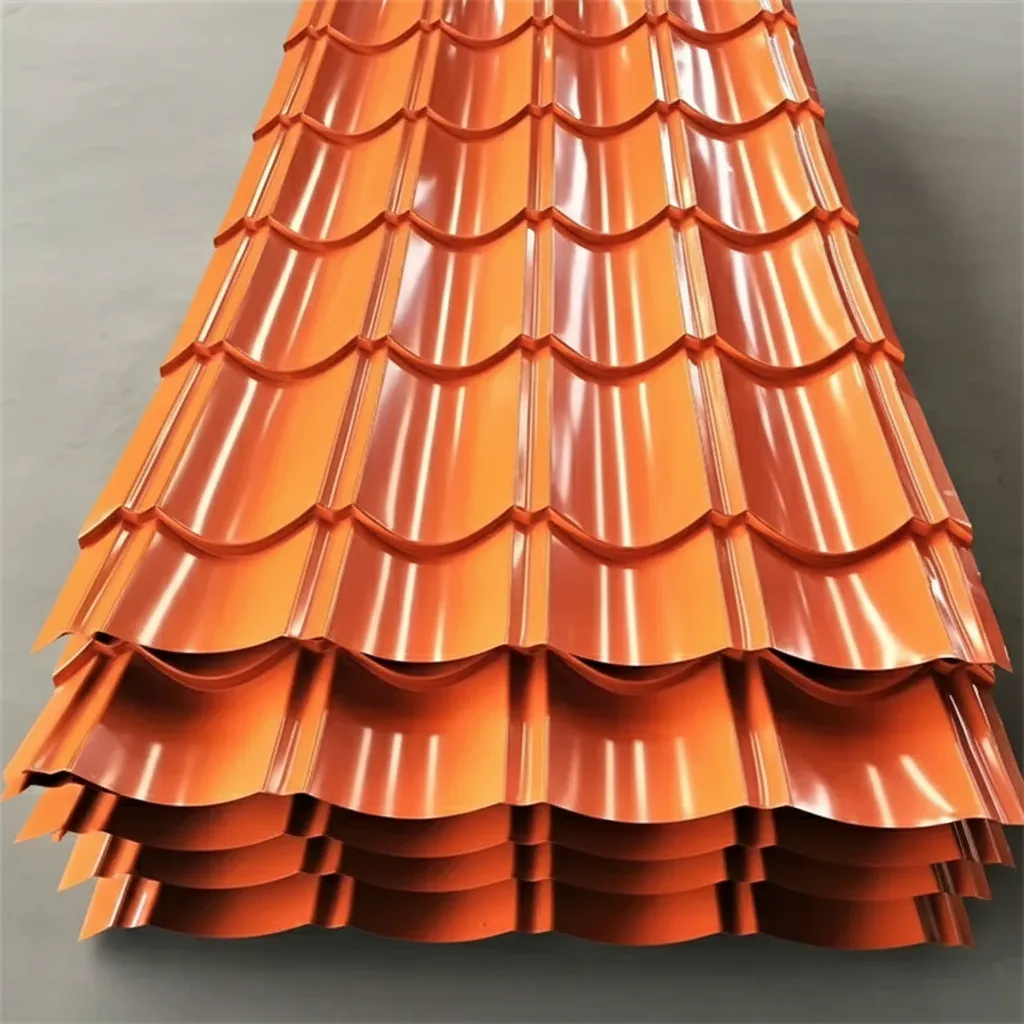

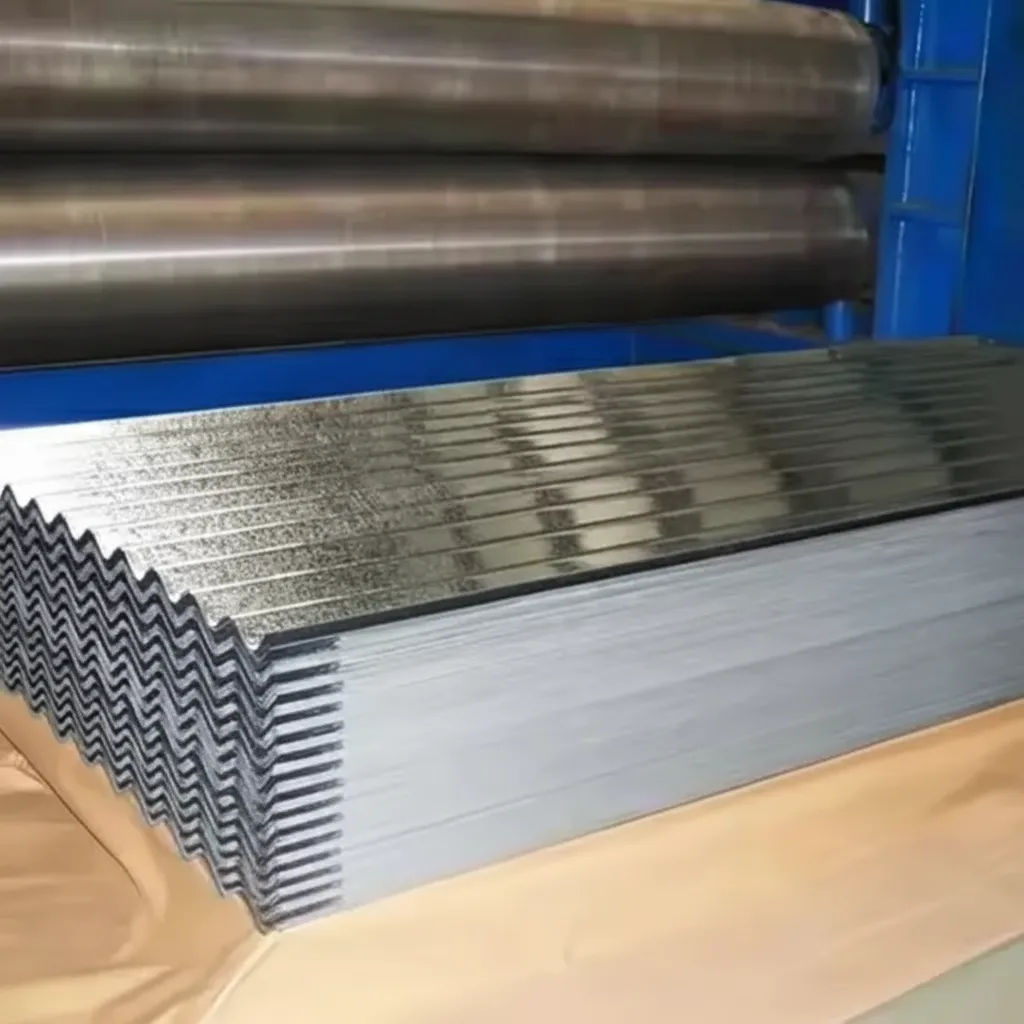

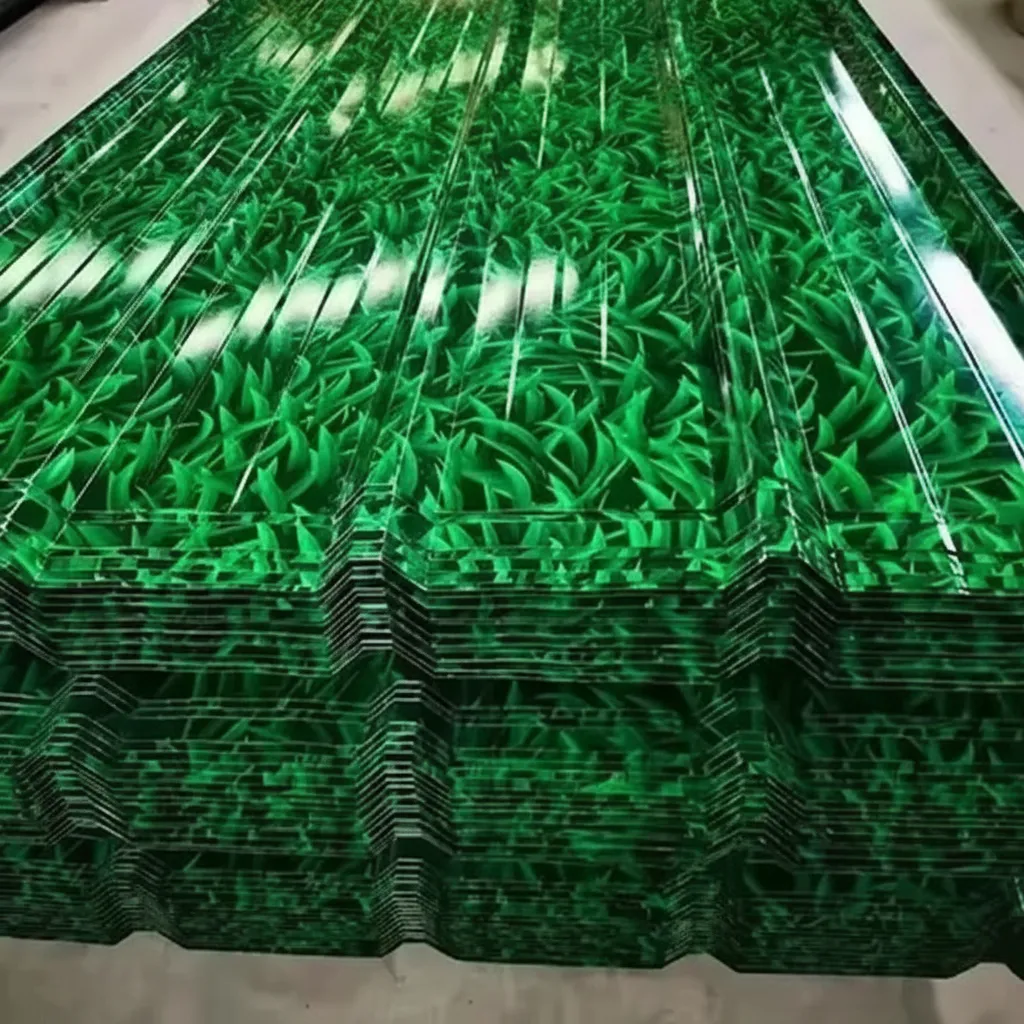

Aluminum zinc color coated steel sheet image thumbnail

Aluminum zinc color coated steel sheet image

Technical Specifications of Aluminum Zinc Color Coated Steel Sheet

Property	Parameter	Description
Product Name	Aluminum Zinc Color Coated Steel Sheet	Pre-painted Galvalume steel sheet with polymer coating on surface
Material Grade	TDC51D+AZ / TDC52D+AZ / TS280GD+AZ	Equivalent to ASTM A755M, JIS G3322 CGLCC / CGLS, EN 10169
Standard Compliance	ASTM A755M / JIS G3322 / EN 10169 / GB/T 14978	Meets international standards for prepainted aluminum-zinc alloy coated steel
Chemical Composition	C ≤0.12%, Mn ≤0.60%, P ≤0.10%, S ≤0.045%, Si ≤0.50%	Base metal composition; Al-Zn coating alloy: 55% Al, 43.4% Zn, 1.6% Si
Coating Mass	AZ50 / AZ100 / AZ150 (g/m²)	Total both-side coating weight; AZ150 = 150 g/m² aluminum-zinc alloy
Paint Coating Thickness	Top coat: 15–25 μm; Primer: 5–7 μm; Back coat: 5–15 μm	Polyester (PE), High Durability Polyester (HDP), PVDF available
Tensile Strength	270–560 MPa	Per ASTM A755M / JIS G3322; varies by grade (e.g., TS280GD: ≥360 MPa)
Yield Strength	220–480 MPa	Minimum yield strength per corresponding grade standard
Elongation	≥16% (A80mm)	Longitudinal direction; per JIS G3322 / EN 10169 test method
Thickness Range	0.14 mm – 1.50 mm	Base metal thickness excluding coating; tolerance per EN 10143 / ASTM A924M
Width Range	600 mm – 1,500 mm	Slit coil or sheet width; custom widths available upon request
Length / Coil Weight	Coil: 3–10 MT; Sheet: 1,000–6,000 mm	Inner diameter 508 mm or 610 mm; outer diameter ≤1,500 mm
Surface Finish	Smooth / Embossed / Matte / High Gloss	RAL color customizable; pencil hardness ≥2H; T-bend ≤2T
Application	Roofing, wall cladding, home appliances, garage doors, HVAC ducts	Widely used in construction, automotive, and household appliance industries
Certification	ISO 9001, SGS, BV, CE	Mill test certificate (MTC) per EN 10204 3.1 available
Packaging	Eye-to-sky or eye-to-wall coil; waterproof paper + steel strip strapping	Suitable for sea freight; fumigation-free wooden pallet for sheets
MOQ	25 MT per order	Mixed specifications acceptable; sample order negotiable

Aluminum Zinc Color Coated Steel Sheet - Mill Direct

Aluminum zinc color coated steel sheet stands as one of the most versatile and durable coated steel products available in today's construction and manufacturing markets. Combining the structural integrity of a high-strength steel substrate with a precisely engineered aluminum-zinc alloy coating and a polymer-based color finish, this material delivers outstanding anti-corrosion properties, superior weather resistance, and long-term aesthetic appeal. It finds extensive application in roofing panels, wall cladding systems, home appliances, automotive components, and industrial enclosures. With a base coating typically composed of 55% aluminum, 43.4% zinc, and 1.6% silicon by mass, the alloy layer provides a self-healing barrier that significantly outperforms conventional galvanized coatings. The additional color coating layer — available in polyester (PE), silicon-modified polyester (SMP), or polyvinylidene fluoride (PVDF) finishes — further enhances UV resistance and surface durability, making aluminum zinc color coated steel sheet a preferred choice for architects, engineers, and procurement specialists worldwide seeking mill-direct pricing and reliable supply chains.

What is Aluminum Zinc Color Coated Steel Sheet?

Aluminum zinc color coated steel sheet is a composite flat-rolled steel product manufactured by applying an aluminum-zinc alloy coating (commonly known as Galvalume or AZ coating) onto a cold-rolled steel substrate, followed by a chromate passivation layer, a primer coat, and a topcoat of colored organic polymer. The result is a product that combines metallic corrosion protection with decorative surface functionality, serving critical roles in both structural and aesthetic building applications.

Aluminum Zinc Color Coated Steel Sheet Manufacturing Process

Production begins with cold-rolled steel coils fed through a continuous hot-dip coating line, where the strip is immersed in a molten aluminum-zinc bath at approximately 600°C to achieve AZ coating weights ranging from AZ50 to AZ150 g/m². After cooling and surface treatment, the coated strip passes through a continuous coil coating line where primer and topcoat layers are applied via precision roll coaters and cured in high-temperature ovens at 220–250°C peak metal temperature, ensuring consistent film thickness of 15–25 µm.

Aluminum Zinc Color Coated Steel Sheet Technical Specifications

Standard offerings conform to ASTM A755, EN 10169, and GB/T 12754 specifications. Typical parameters include: base steel yield strength of 250–550 MPa; total coil thickness of 0.30–1.20 mm; coil width of 600–1,250 mm; AZ coating weight of 75–150 g/m² (double-side); topcoat dry film thickness of 15–25 µm (PE) or 25–35 µm (PVDF); pencil hardness of 2H minimum; T-bend flexibility of 0T–2T; and salt spray resistance exceeding 1,000 hours per ASTM B117. Color options span RAL and custom palettes with gloss levels from 10 to 80 GU at 60°.

Aluminum zinc color coated steel sheet supplier

Get a Competitive Quote for Aluminum Zinc Color Coated Steel Sheet

Our mill-direct supply model eliminates intermediary markups, enabling us to offer cost-effective pricing on both small trial orders and large-volume contracts. Share your specifications — thickness, width, coating grade, and color — and our technical team will respond with a detailed quotation within 24 hours.

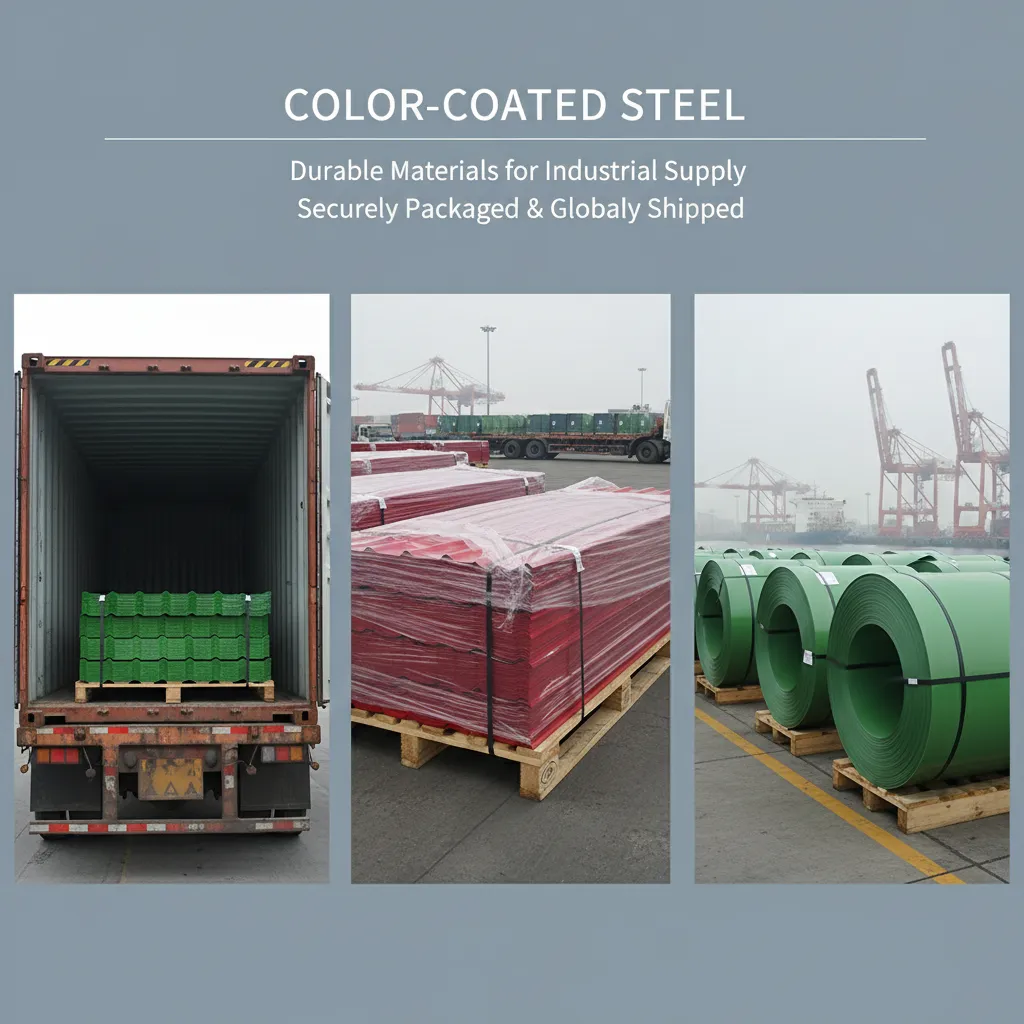

Aluminum zinc color coated steel sheet manufacturer

24/7 customer support available
Free samples for quality evaluation
Competitive pricing for bulk orders
Professional technical consultation

Contact us today to get your free quote within 24 hours!

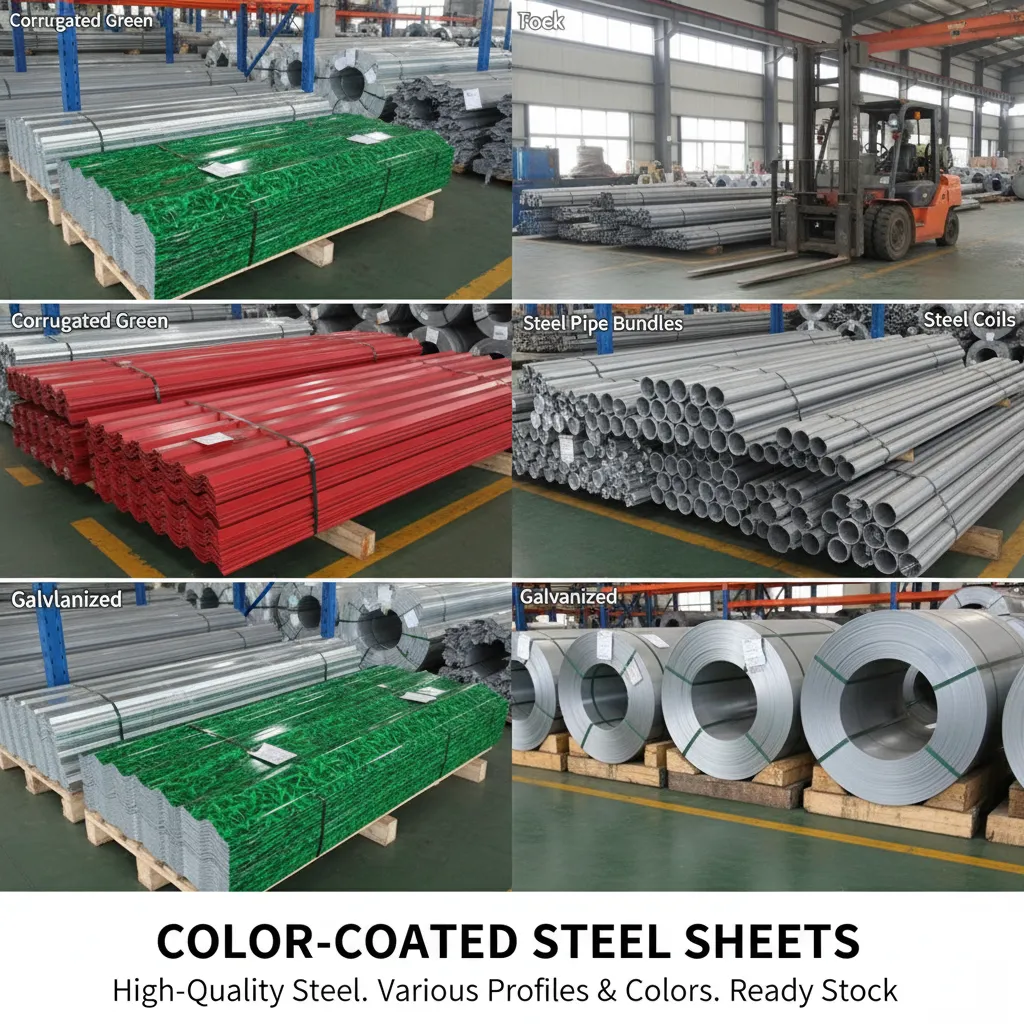

Aluminum zinc color coated steel sheet wholesale
