| Property | Parameter | Description |
|---|---|---|
| Product Name | Galvanized Corrugated Roofing Sheet | Hot-dip galvanized steel sheet with corrugated profile for roofing and cladding |
| Material Grade | DX51D, S250GD, S350GD / SGCC, SGCH | Equivalent to ASTM A653 CS Type B / EN 10346 / JIS G3302 grades |
| Standard Compliance | ASTM A653/A653M, EN 10346, JIS G3302, GB/T 2518 | International standards for continuous hot-dip zinc-coated steel sheet |
| Chemical Composition (C) | ≤ 0.12% | Low carbon content ensures good formability and weldability |
| Chemical Composition (Mn) | ≤ 0.60% | Manganese for strength enhancement |
| Chemical Composition (P / S) | P ≤ 0.045% / S ≤ 0.045% | Controlled phosphorus and sulfur for improved ductility |
| Tensile Strength | 270–560 MPa | Per ASTM A653 / EN 10346; varies by grade (e.g., S350GD: ≥ 420 MPa) |
| Yield Strength | 140–420 MPa | S250GD: ≥ 250 MPa; S350GD: ≥ 350 MPa per EN 10346 |
| Elongation | ≥ 16–22% | Minimum elongation at fracture (A80mm) per EN 10346 / ASTM A653 |
| Zinc Coating Weight | Z60–Z275 (60–275 g/m²) | Both sides combined; Z275 (G90) recommended for high-corrosion environments |
| Sheet Thickness | 0.14–1.20 mm (BMT) | Base metal thickness excluding zinc coating; custom thickness available |
| Sheet Width | 600–1250 mm (effective coverage) | Standard effective cover width: 762 mm, 900 mm, 1000 mm |
| Sheet Length | 1800–12000 mm | Custom cut-to-length available; standard lengths 1.8 m, 2.4 m, 3.0 m, 6.0 m |
| Corrugation Profile | Pitch: 76 mm / 32 mm; Depth: 18–25 mm | Standard corrugated wave profile; custom profiles available on request |
| Surface Finish | Regular Spangle / Minimized Spangle / Zero Spangle | Bright zinc finish; optional chromate passivation or oiled surface treatment |
| Application | Roofing, wall cladding, agricultural buildings, warehouses, industrial sheds | Suitable for residential, commercial, and industrial construction projects |
| Certification | ISO 9001, CE Marking, SGS, BV | Third-party inspection and quality management system certification available |

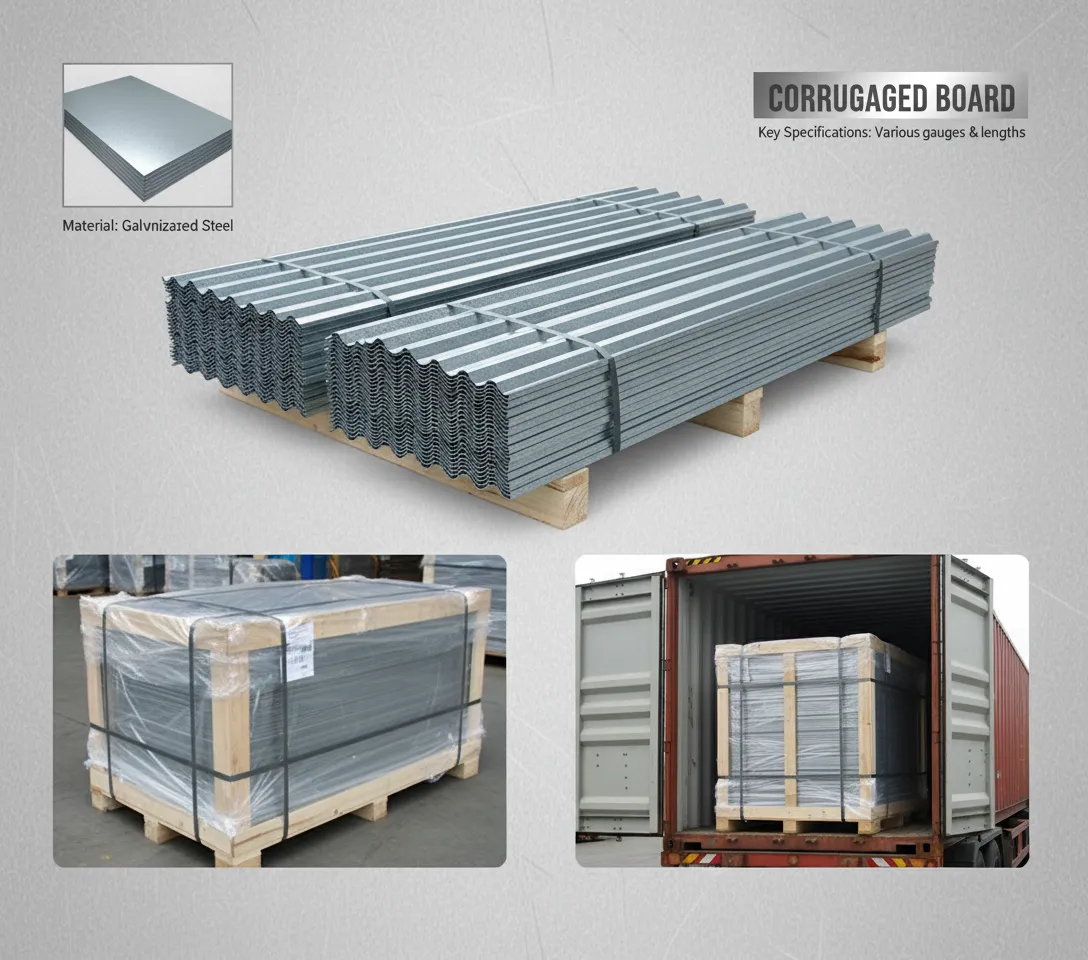

| Packaging | Bundle with steel strapping; waterproof kraft paper + wooden pallet | Export seaworthy packaging; custom labeling and bundling per buyer requirement |
| MOQ | 5 Metric Tons per specification | Mixed specifications accepted; OEM/ODM orders welcome |
Initial Width Tolerance Issue – Resolved After Prompt Supplier Intervention
Our first order of 25 tonnes of 0.50 mm Z120 sheets arrived with width measurements on roughly 8% of panels reading 1,248 mm instead of the specified 1,250 mm. For our customer's standing-seam application, this was outside acceptable tolerance. We submitted measurement records and photos to the supplier immediately. Their quality team responded within one business day, acknowledged the deviation, and arranged a partial replacement shipment at no additional cost within 12 days. The replacement panels were within ±0.5 mm. The resolution process was professional and the product has performed well on-site since. Cautiously optimistic about the next order.
