| Property | Parameter | Description |
|---|---|---|

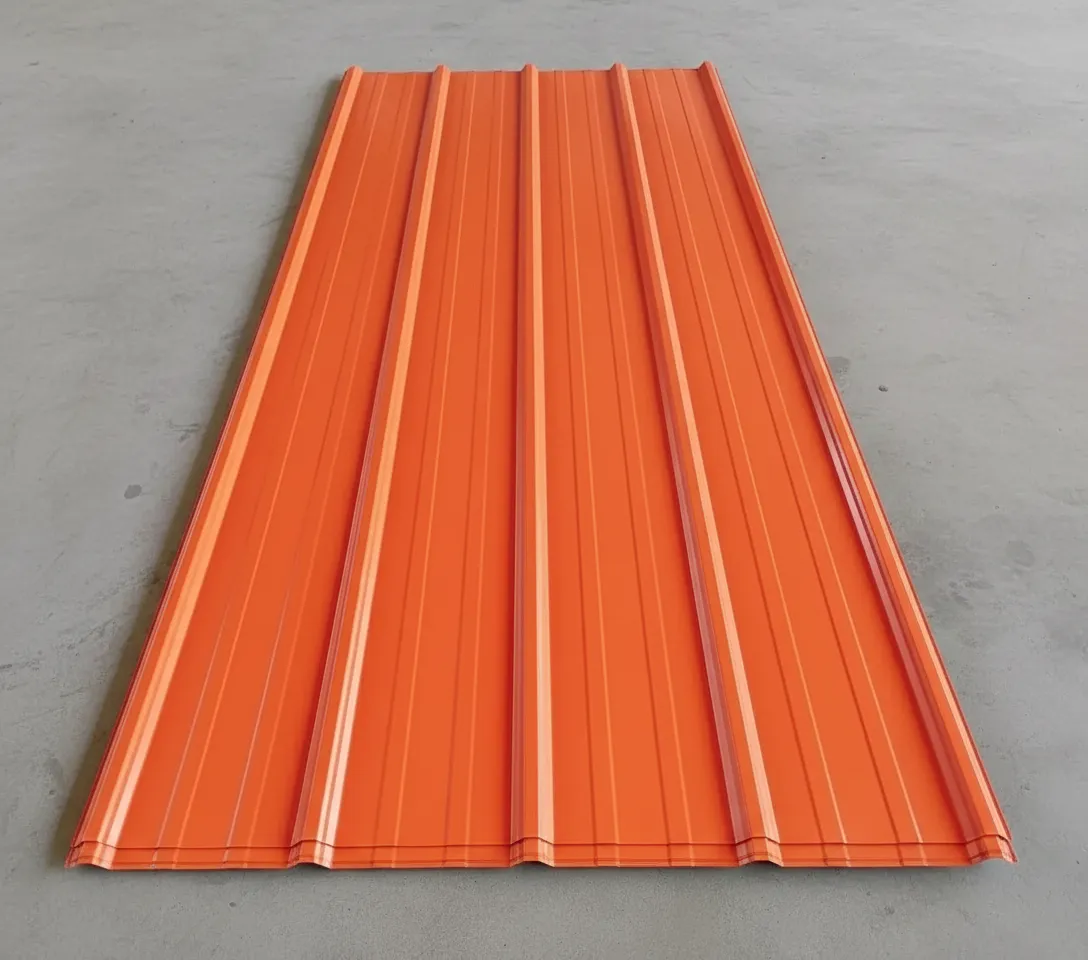

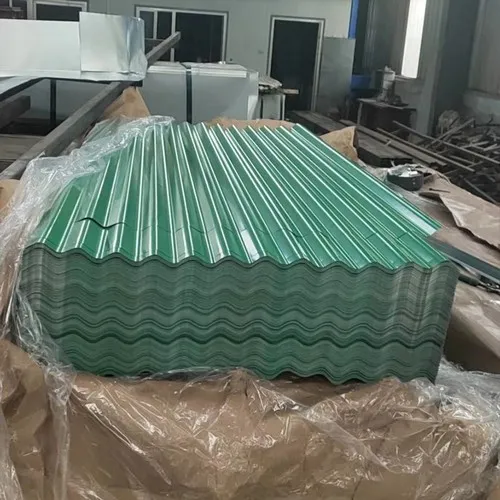

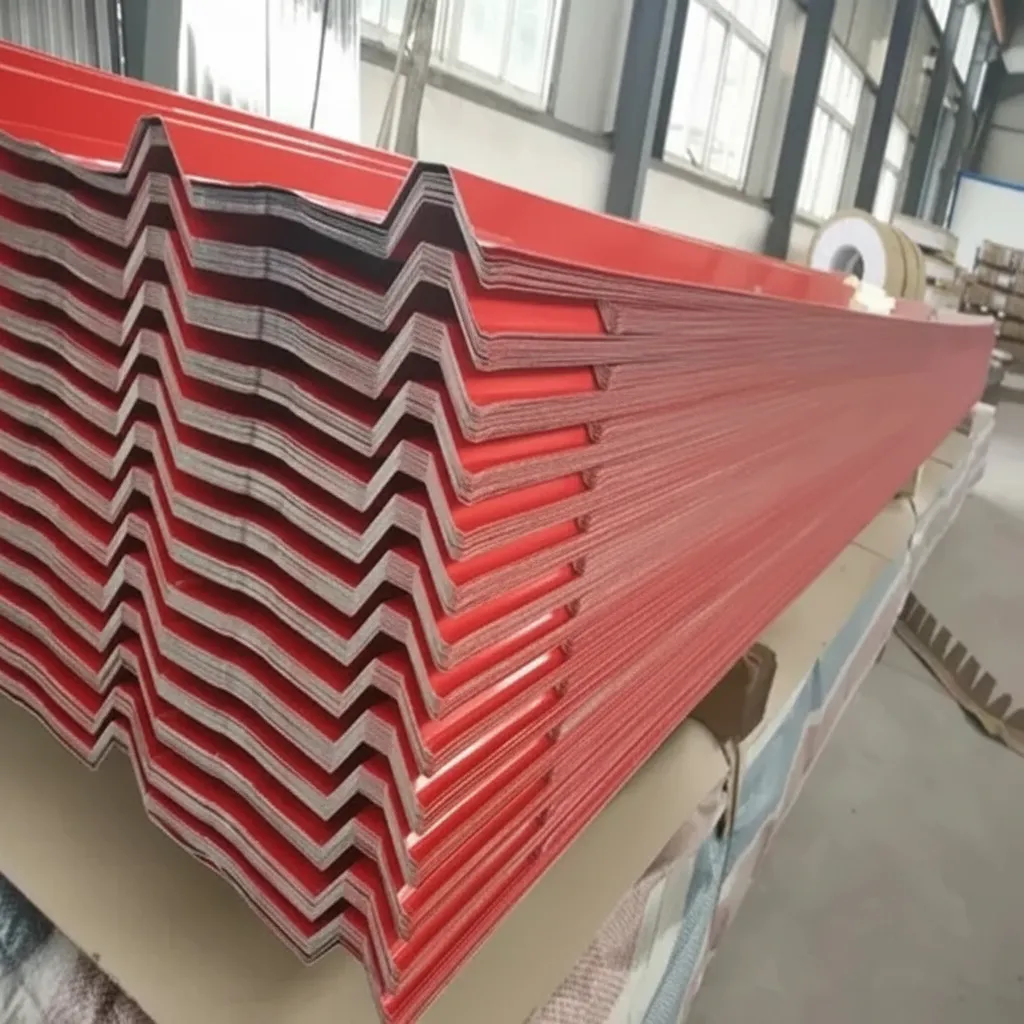

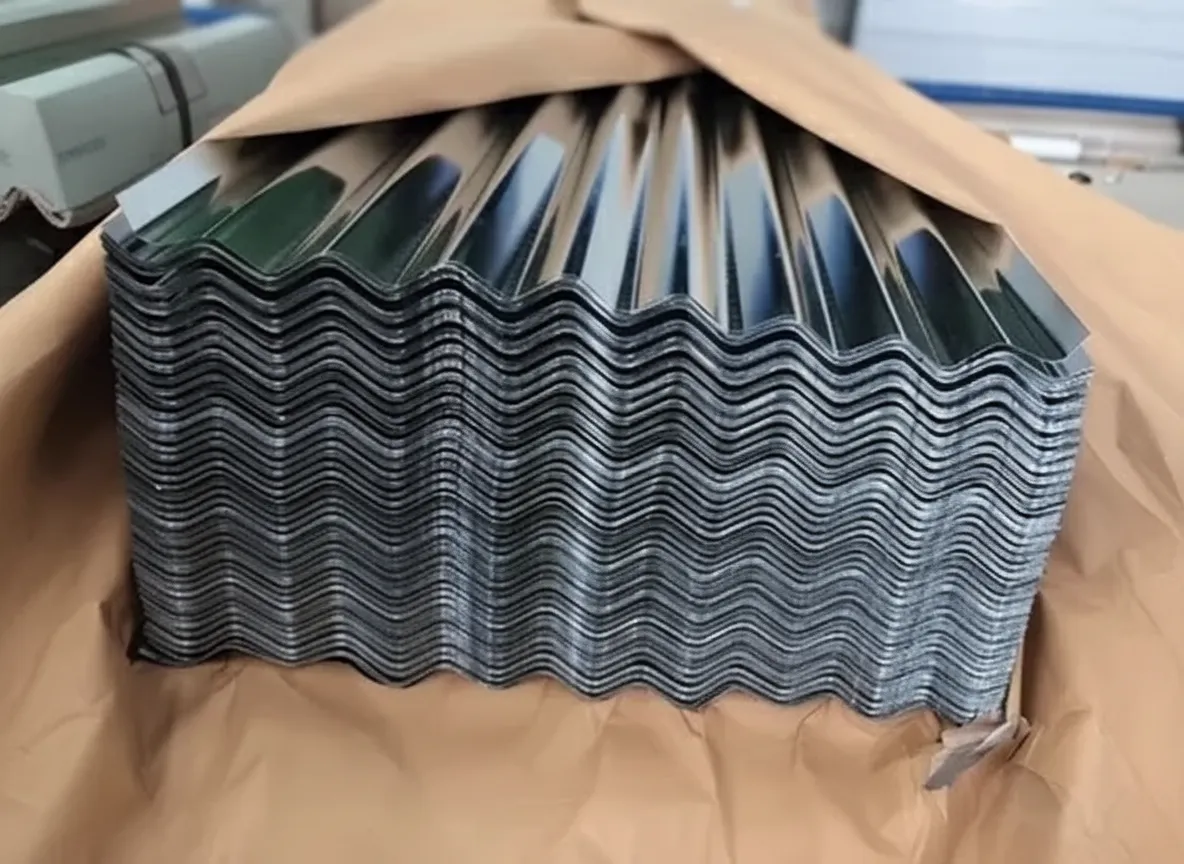

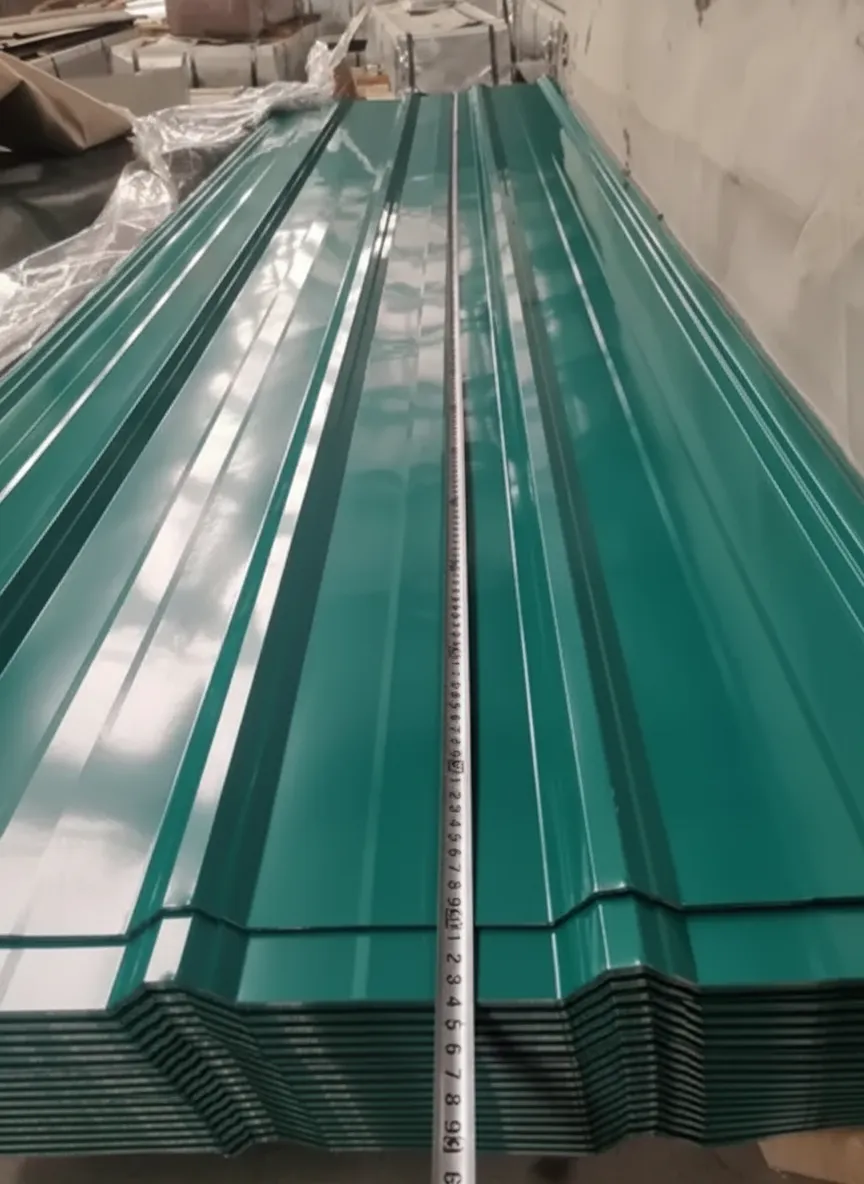

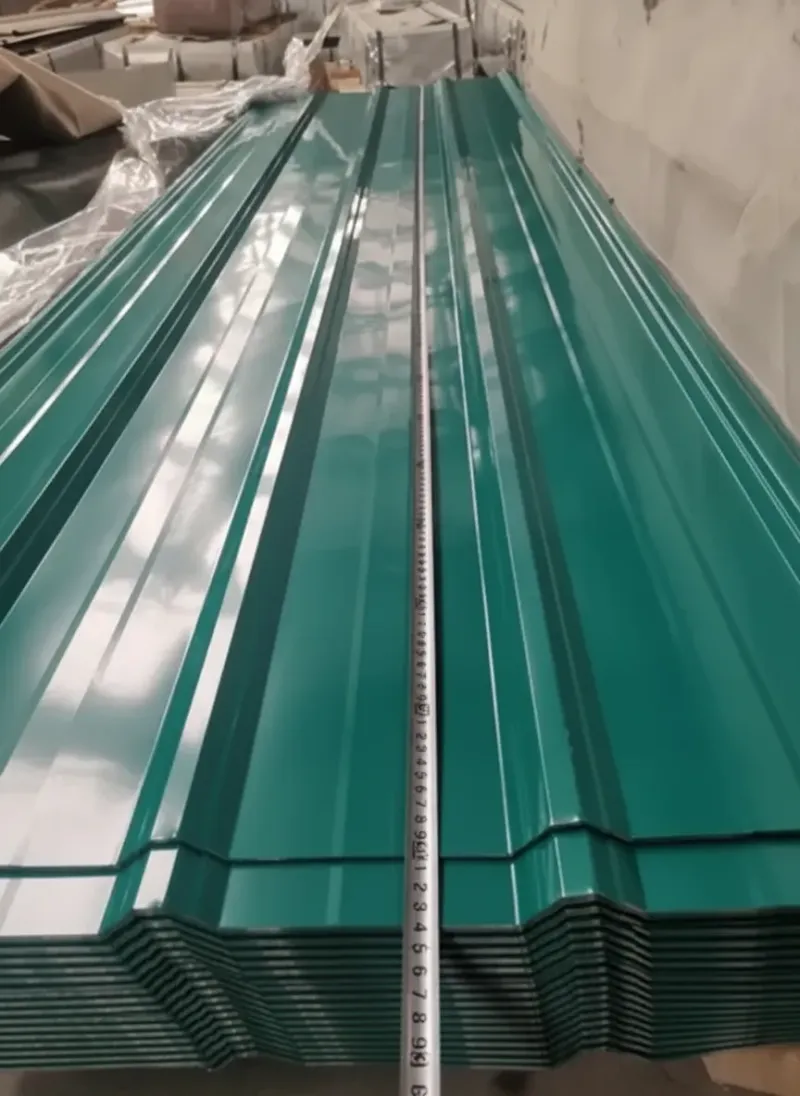

| Product Name | PPGI Roofing Sheet | Pre-Painted Galvanized Iron / Steel Roofing Sheet, color-coated corrugated or trapezoidal profile |
| Material Grade | DX51D+Z / SGCC / S280GD+Z | International equivalents: DX51D (EN 10346), SGCC (JIS G3302), CS Type B (ASTM A653); base metal hot-dip galvanized steel |
| Standard Compliance | ASTM A755 / EN 10169 / JIS G3312 / GB/T 12754 | Covers organic-coated flat-rolled steel for roofing and cladding applications |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base steel chemistry per EN 10346 / ASTM A653; zinc coating: Zn ≥99.7% purity |
| Tensile Strength | 270–500 MPa | Typical range per EN 10346 / ASTM A653; DX51D min. 270 MPa, S280GD min. 360 MPa |
| Yield Strength | 140–420 MPa | DX51D: 140–300 MPa; S280GD: 280–420 MPa per EN 10346 |
| Elongation | ≥16–22% | A80 elongation per EN 10346; DX51D ≥22%, S280GD ≥16% |
| Base Metal Thickness | 0.12–1.50 mm | Common roofing thickness: 0.25–0.80 mm; tolerance per EN 10143 / ASTM A924 |
| Sheet Width | 600–1,250 mm | Effective coverage width after profiling: 750–1,000 mm; custom widths available |
| Sheet Length | 1,000–12,000 mm | Standard lengths 1,800–6,000 mm; custom cut-to-length available per order |
| Zinc Coating Weight | Z60–Z275 g/m² | Both sides combined per EN 10346 / ASTM A653; Z120 (AZ50) standard for roofing |
| Paint Coating | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 7–10 µm | Polyester (PE), High Durability Polyester (HDP), PVDF, SMP; RAL / custom colors available |
| Surface Finish | Smooth / Embossed / Matte / Glossy | Gloss level 10–85 GU (60° angle); pencil hardness ≥2H; T-bend ≤2T per ASTM D4145 |
| Application | Residential & commercial roofing, wall cladding, industrial buildings, warehouses | Suitable for corrugated, IBR, trapezoidal, and standing seam roof profiles |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Factory audit and third-party inspection available; mill test certificate (MTC) provided |
| Packaging | Export seaworthy packaging; steel strapping, waterproof paper, wooden pallet | Bundle weight: 3–5 MT; moisture-proof inner wrapping; corner protectors included |
| MOQ | 25 MT per order | Mixed specifications accepted; FCL (20'/40') shipment; lead time 15–25 days after deposit |
Initial color mismatch resolved — quality otherwise acceptable
Ordered 55 MT of 0.42 mm PPGI roofing coils in Z160 coating with 20 μm polyester topcoat in a custom Pantone 7690C blue for a Melbourne industrial shed project. On arrival, CIE Lab spectrophotometry readings showed a ΔE of 2.8 versus the approved sample — noticeable under direct sunlight. I raised the issue with the sales team, who arranged a replacement production run of the affected 8 coils within 18 days at no additional cost, and the replacement batch measured ΔE 0.9. The resolution process was handled professionally. Zinc coating weight and mechanical properties were correct throughout. Will consider reordering once confidence in color QC is established.
