| Property | Parameter | Description |
|---|---|---|

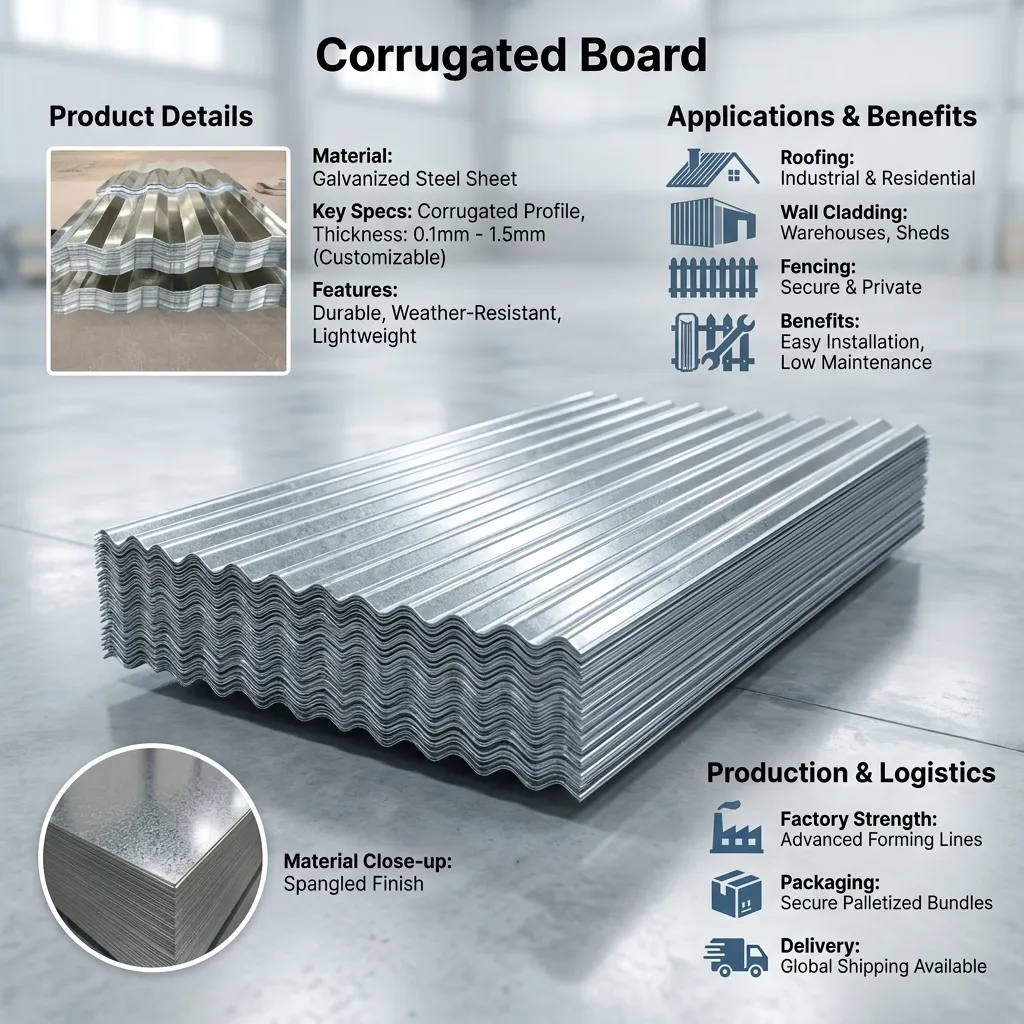

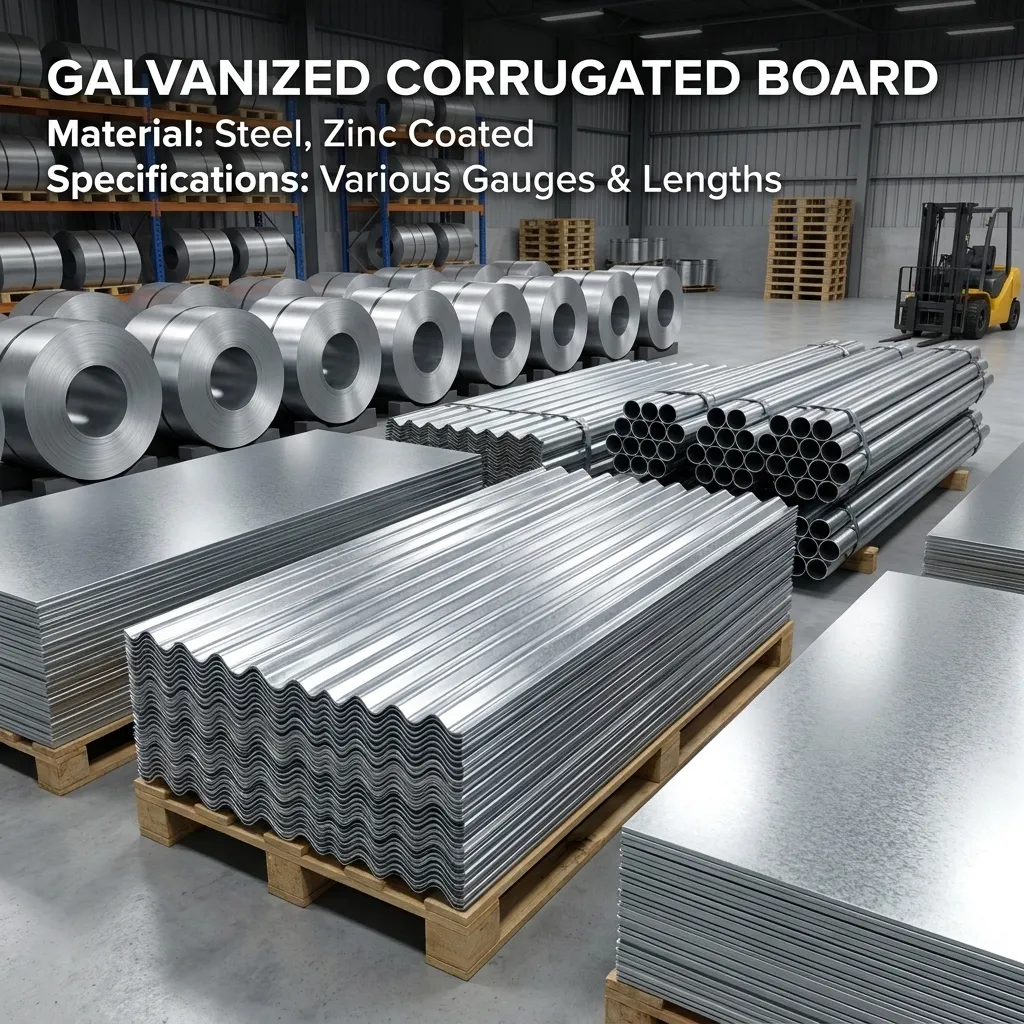

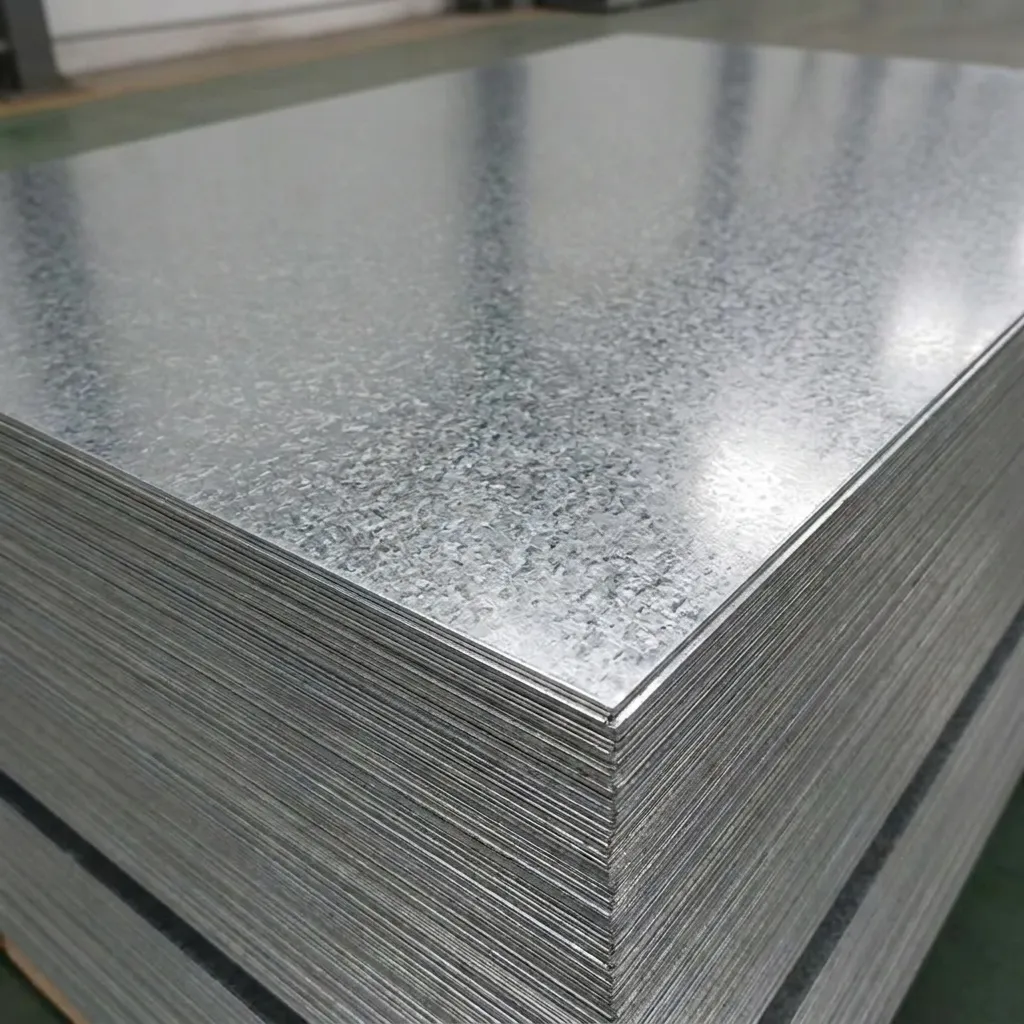

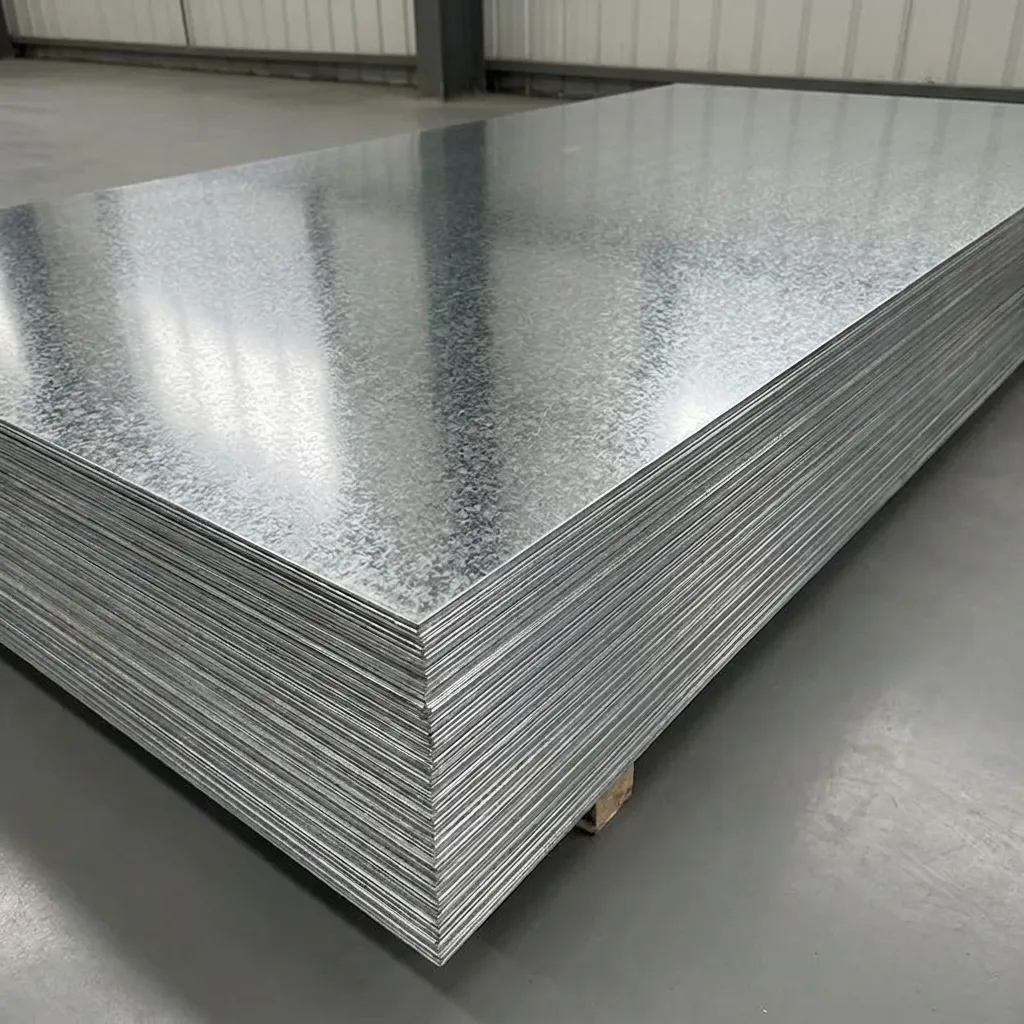

| Product Name | Pre-coated Galvanized Steel Roofing Sheets | Color-coated galvanized steel sheets for roofing applications |
| Material Grade | DX51D+Z / SGCC / S280GD+Z | Equivalent to ASTM A653 CS Type B / EN 10346 / JIS G3302 |
| Standard Compliance | ASTM A755 / EN 10169 / JIS G3312 / GB/T 12754 | Organic-coated flat-rolled steel products for roofing and cladding |
| Chemical Composition | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Base metal composition per EN 10346 / ASTM A653 requirements |
| Zinc Coating Mass | Z60 – Z275 (60–275 g/m²) | Hot-dip galvanized coating; both sides combined per EN 10346 / ASTM A653 |
| Top Coat Thickness | Primer: 5–8 µm; Top coat: 15–25 µm (PE/PVDF/SMP) | Polyester (PE), PVDF or SMP coating system; back coat 5–15 µm |
| Tensile Strength | 270–550 MPa | Per EN 10169 / ASTM A755; varies by grade (DX51D: ≥270 MPa, S280GD: ≥360 MPa) |
| Yield Strength | 140–480 MPa | DX51D: ≥140 MPa; S280GD: ≥280 MPa; S350GD: ≥350 MPa per EN 10346 |
| Elongation | ≥16% – ≥22% | A80 elongation per EN 10346; varies by grade and thickness |
| Thickness Range | 0.20 – 1.20 mm (base metal) | Total thickness including coating; common roofing: 0.35–0.80 mm |
| Width Range | 600 – 1,250 mm | Slit coil or full-width coil; custom widths available on request |
| Sheet / Coil Length | Coil: OD up to 1,500 mm; Sheet: 1,000–6,000 mm | Cut-to-length sheets or coils; inner diameter 508/610 mm |
| Surface Finish | Smooth / Embossed; RAL color range available | Gloss level 10–80 GU; UV-resistant top coat; anti-fingerprint option |

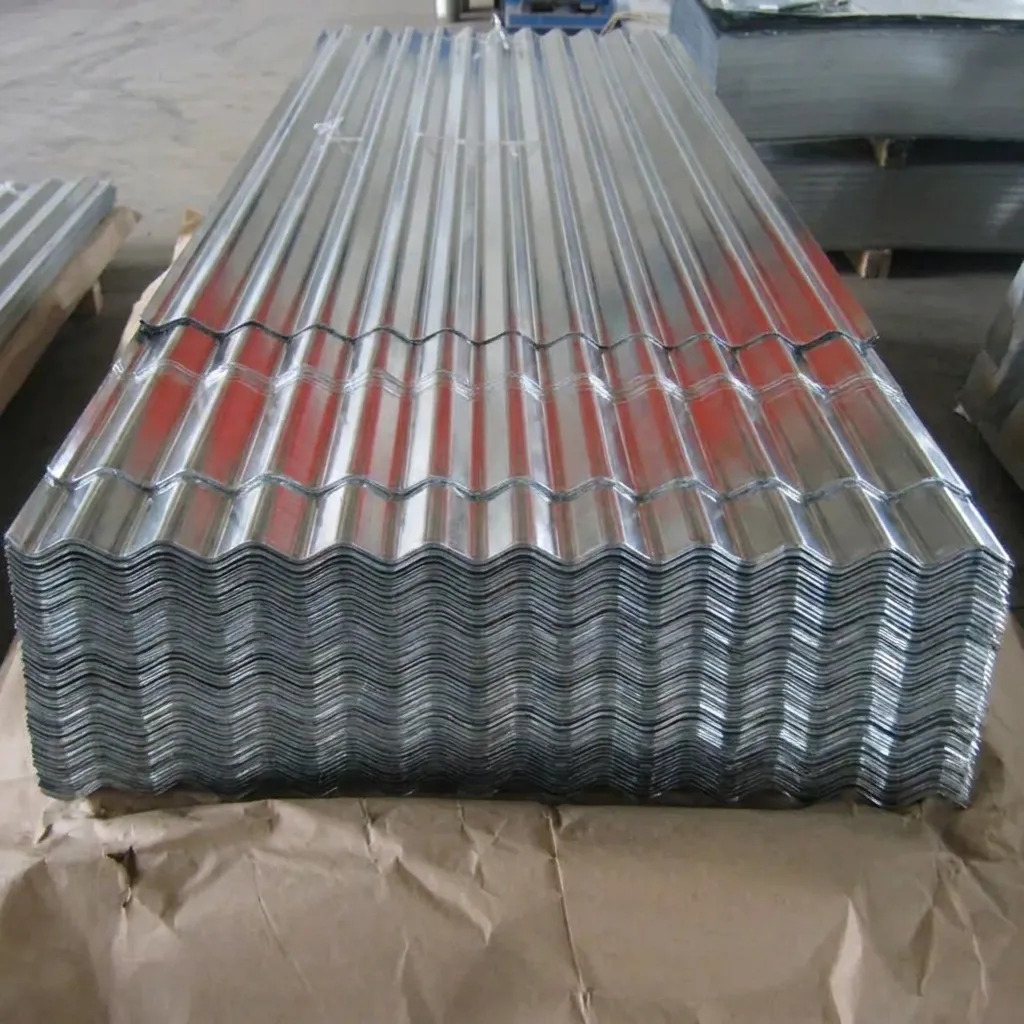

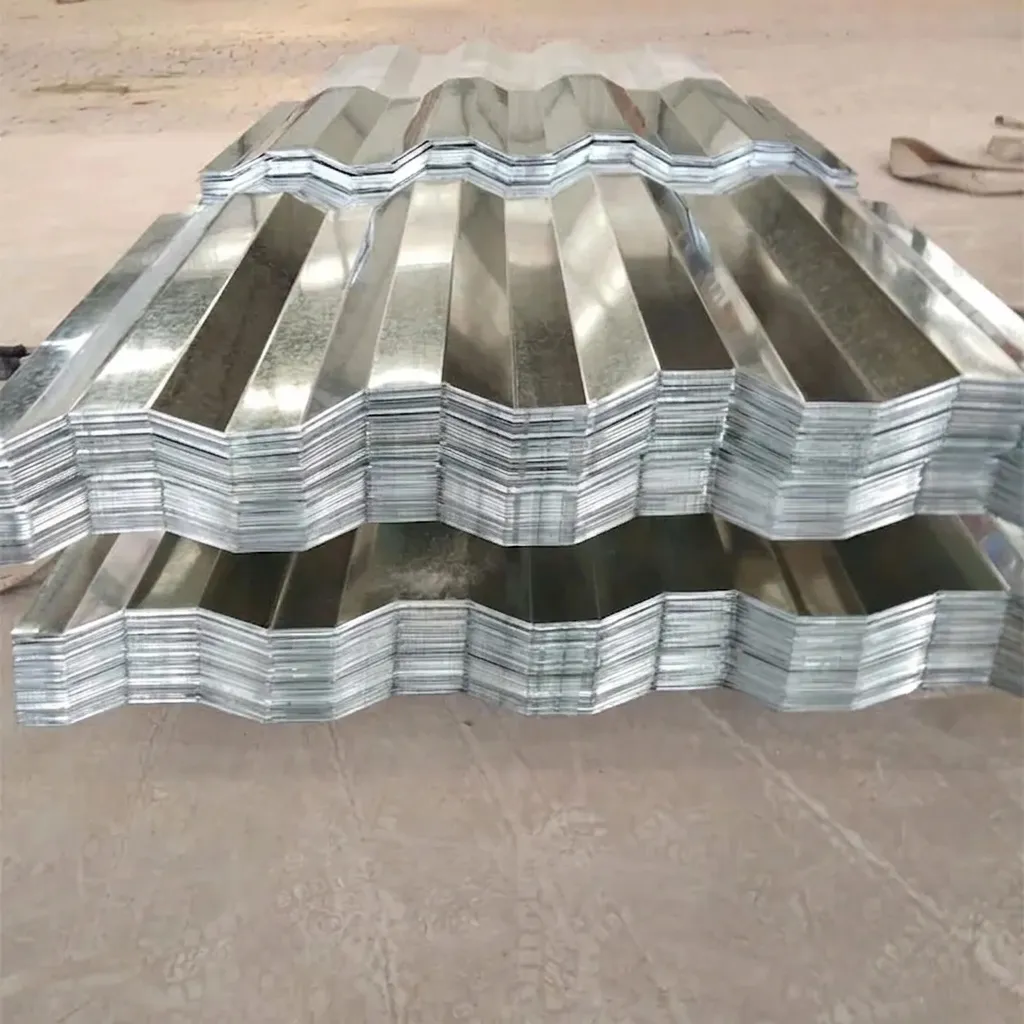

| Application | Roofing, wall cladding, industrial buildings, warehouses, prefab structures | Suitable for corrugated, trapezoidal, and standing seam roof profiles |
| Certification | ISO 9001, CE Marking, SGS, BV | Third-party inspection available; RoHS compliant coatings |

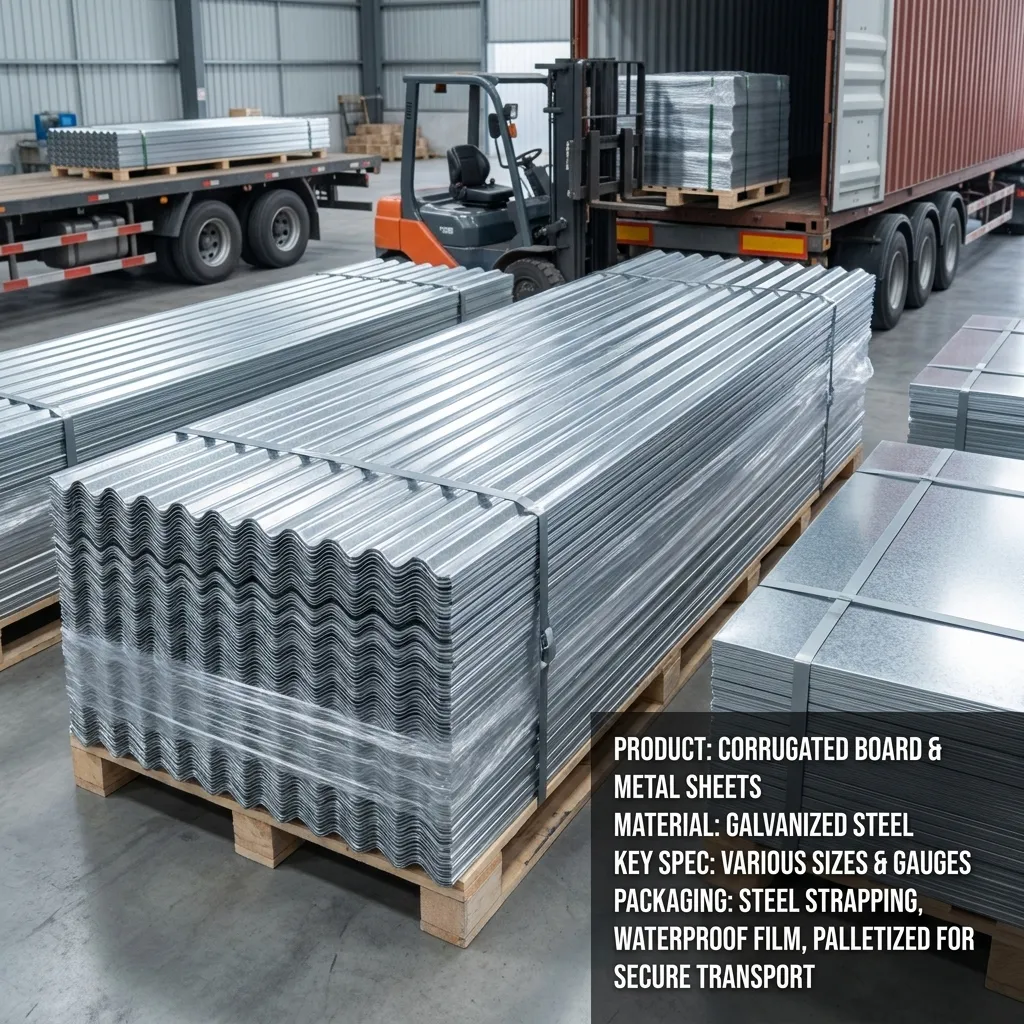

| Packaging | Coils: steel-strapped with waterproof paper & steel outer wrap; Sheets: bundled on wooden pallets | Export seaworthy packaging; moisture-proof inner wrapping |
| MOQ | 5 Metric Tons per specification | Mixed specifications accepted; OEM color and profile available from 25 MT |
Initial Width Tolerance Issue — Resolved Promptly by Supplier
First order of 40 tons of 0.40 mm corrugated PPGI (Z120, PE coat, RAL 7016 anthracite grey, 1,000 mm width) showed width variance of ±0.05 mm on roughly 8% of sheets — outside the ±0.02 mm spec in our PO. I flagged this with the technical team immediately. They reviewed our CMM measurement data, confirmed the non-conformance, and arranged a partial replacement shipment within 12 days at no additional cost. The replacement batch was fully within spec. MTC and ASTM A653 compliance docs were accurate throughout. Issue was resolved professionally. Cautiously optimistic about the second order.
