| Property | Parameter | Description |
|---|---|---|

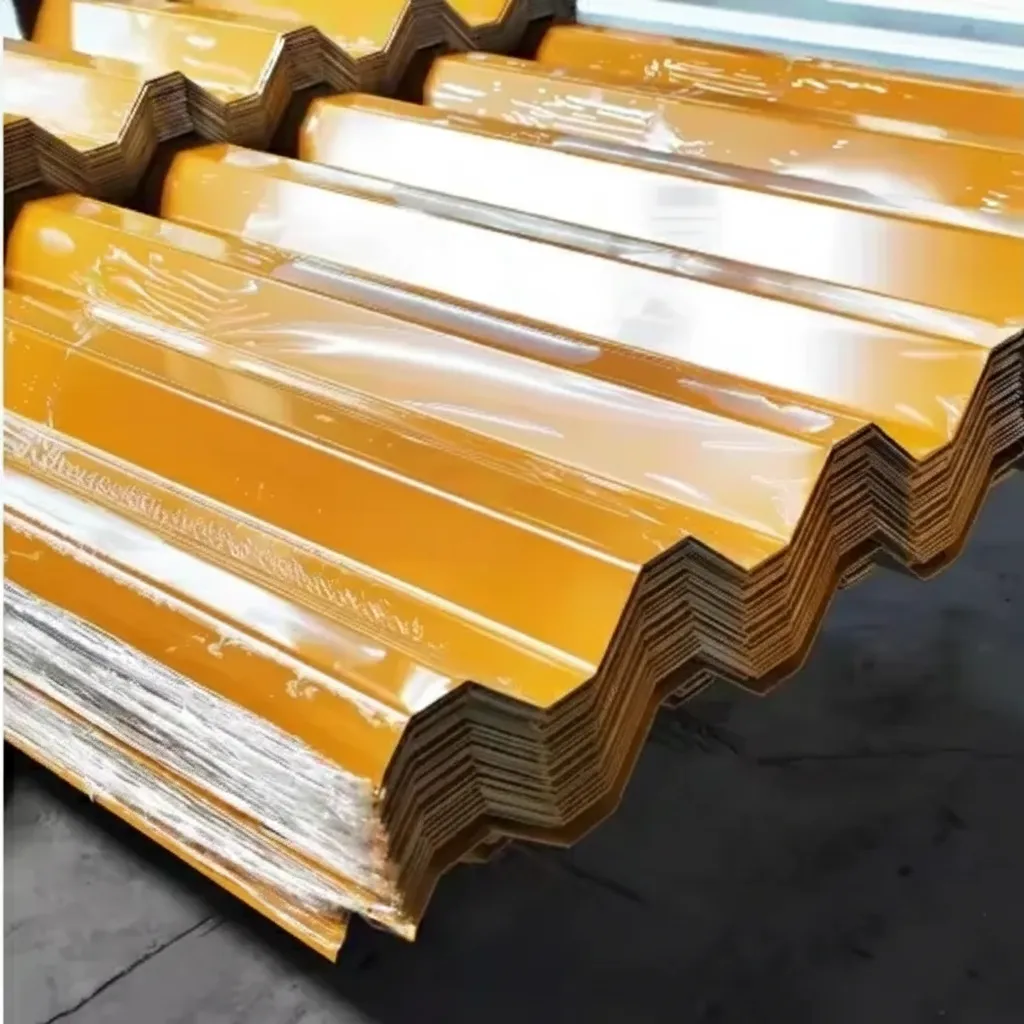

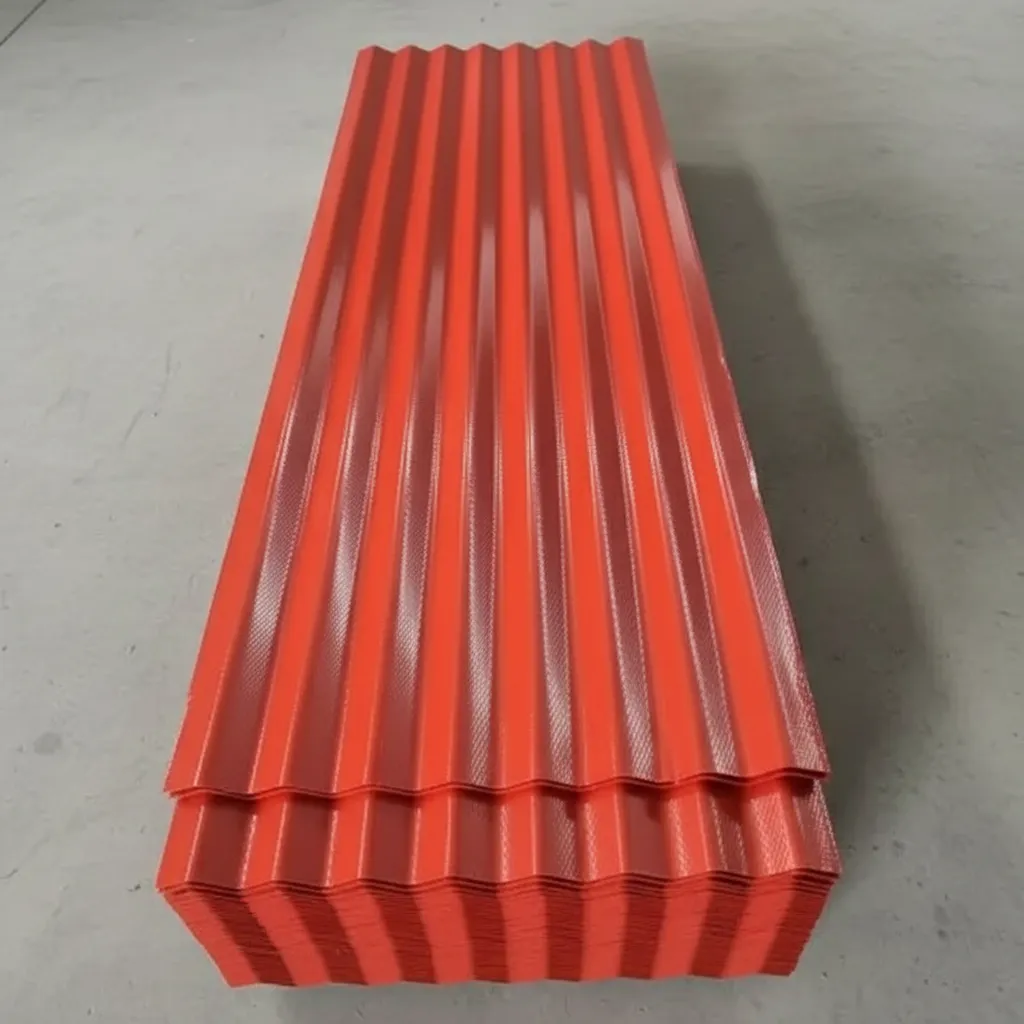

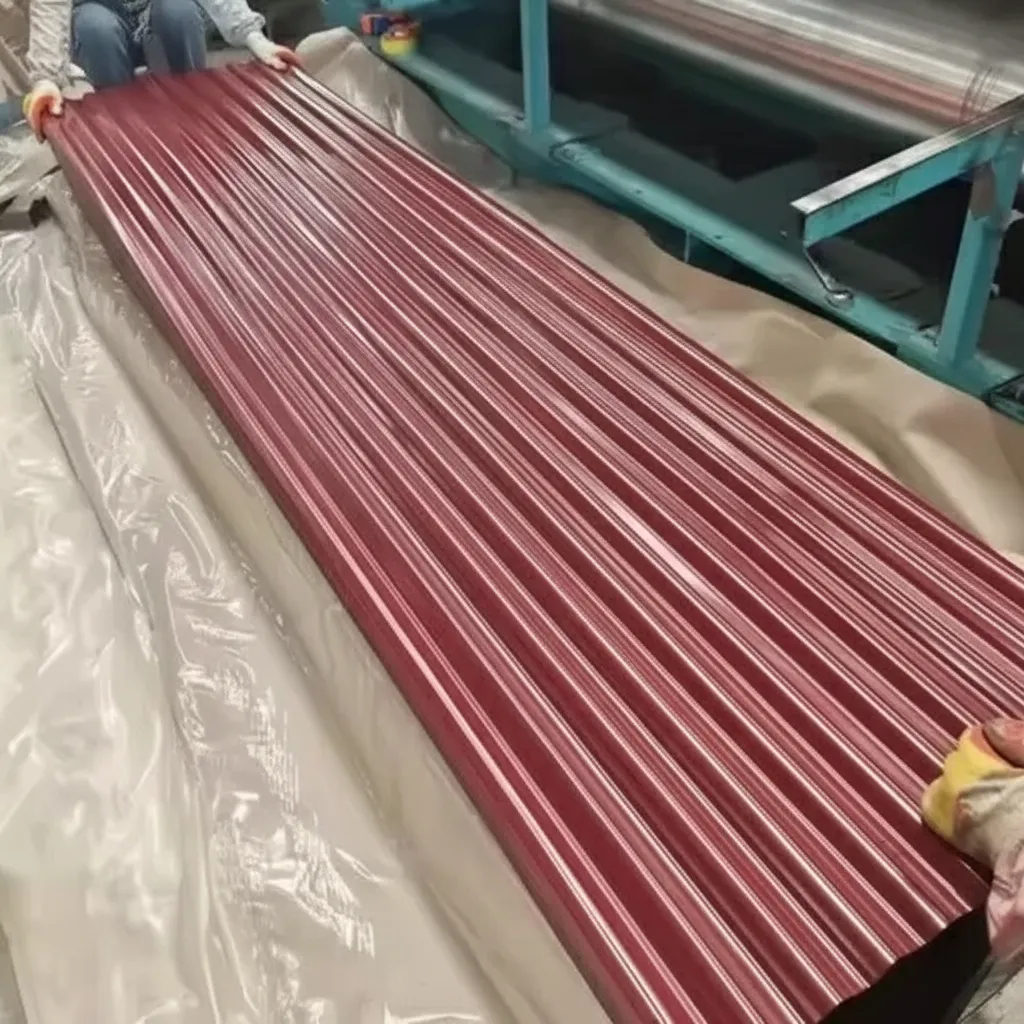

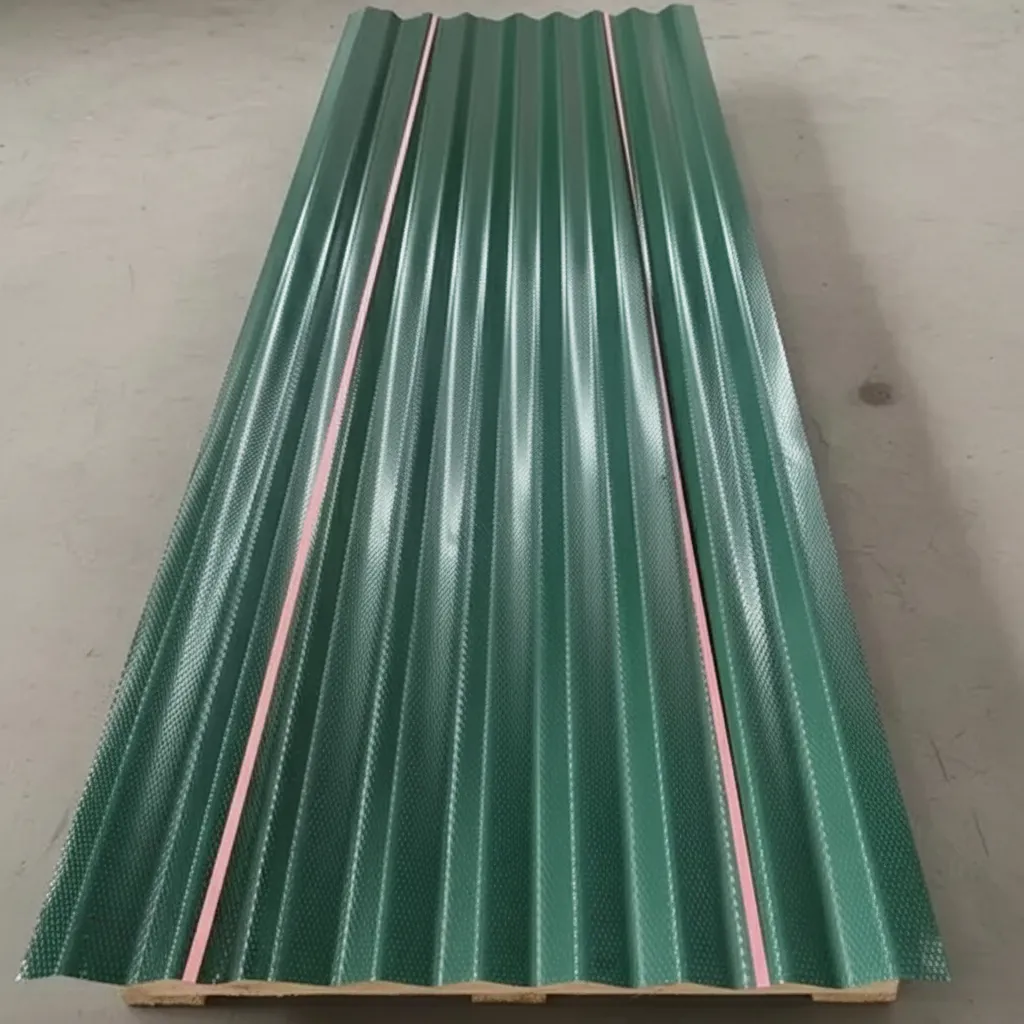

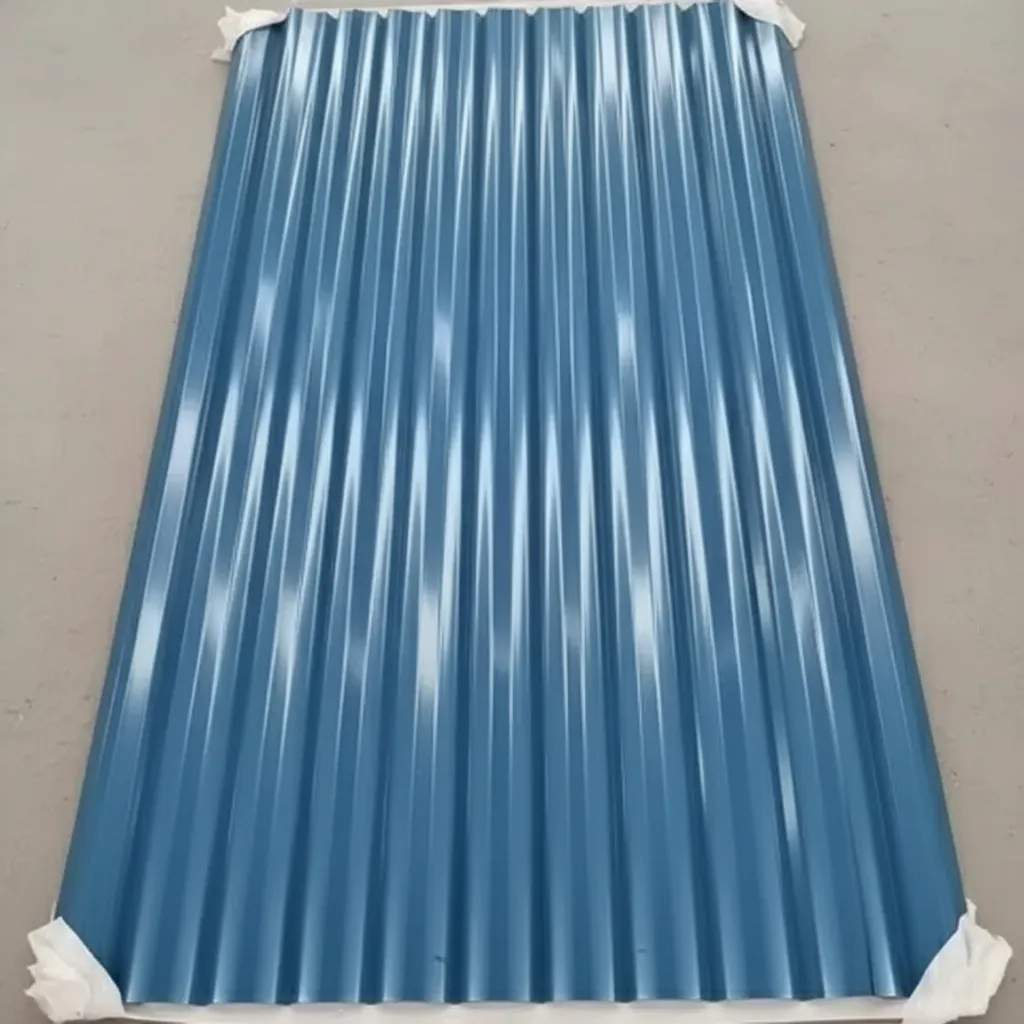

| Product Name | PPGI Color Coated Galvanized Steel Plate | Pre-painted galvanized iron steel sheet with polymer coating on zinc-coated substrate |
| Material Grade | DX51D, DX52D, DX53D / SGCC, SGCD / CS Type B | Equivalent to EN 10346, JIS G3302, ASTM A653 structural grades |
| Standard Compliance | ASTM A755, EN 10169, JIS G3312, GB/T 12754 | Meets international pre-painted steel coil and sheet standards |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base metal composition per EN 10346; zinc coating: Zn ≥99.7% |
| Tensile Strength | 270–500 MPa | Varies by grade; DX51D min. 270 MPa per EN 10346 / ASTM A653 |
| Yield Strength | 140–420 MPa | DX51D: 140–300 MPa; higher grades up to 420 MPa |
| Elongation | ≥16%–28% | DX51D ≥22%; DX53D ≥28% (A80mm, per EN 10346) |
| Zinc Coating Weight | Z60–Z275 (60–275 g/m²) | Double-side coating; AZ (Galvalume) options also available |
| Top Coat Thickness | 15–25 μm (standard); 25–35 μm (thick coat) | Polyester (PE), PVDF, HDP, SMP coating types available |
| Primer Coat Thickness | 5–7 μm | Epoxy or polyester primer for enhanced adhesion and corrosion resistance |
| Thickness Range | 0.14–1.50 mm | Base metal thickness excluding coating layers |
| Width Range | 600–1,500 mm | Custom slit widths available upon request |
| Coil Inner Diameter | 508 mm / 610 mm | Standard coil ID; coil weight 3–10 MT per coil |
| Surface Finish | Smooth, embossed, matte, high-gloss | RAL color system available; T-bend ≤2T, pencil hardness ≥2H |
| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts | Widely used in construction, automotive, and household appliance industries |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Third-party inspection and mill test certificate (MTC) provided |
| Packaging | Eye-to-sky or eye-to-wall coil packaging | Waterproof paper + steel strip bundling; export seaworthy packaging |
| MOQ | 25 MT per order | Mixed colors and specifications accepted above MOQ threshold |
Initial color inconsistency resolved — quality now meeting spec
Our first order of 30 MT of 0.35mm PPGI in a custom RAL color showed slight gloss variation between coils — measured at 28–42 GU against a specified 35 GU target. We raised the issue immediately. The supplier's technical team responded within 24 hours, provided a root cause analysis, and arranged replacement coils at no additional cost within 10 business days. Subsequent delivery was fully on spec. The after-sales response was handled professionally. We've since placed a follow-up order and quality has been consistent. Cautiously confident moving forward.
Our first order of 30 MT of 0.35mm PPGI in a custom RAL color showed slight gloss variation between coils — measured at 28–42 GU against a specified 35 GU target. We raised the issue immediately. The supplier's technical team responded within 24 hours, provided a root cause analysis, and arranged replacement coils at no additional cost within 10 business days. Subsequent delivery was fully on spec. The after-sales response was handled professionally. We've since placed a follow-up order and quality has been consistent. Cautiously confident moving forward.
