| Property | Parameter | Description |
|---|---|---|

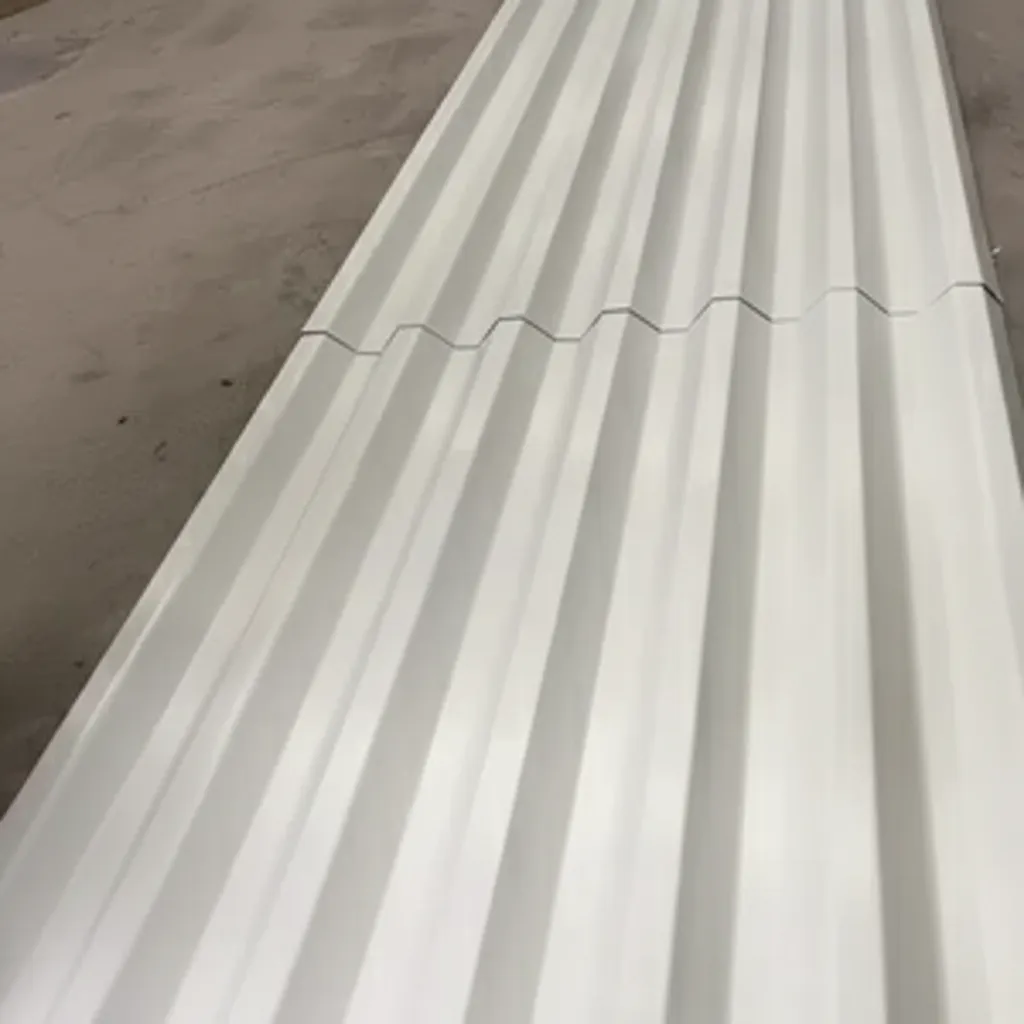

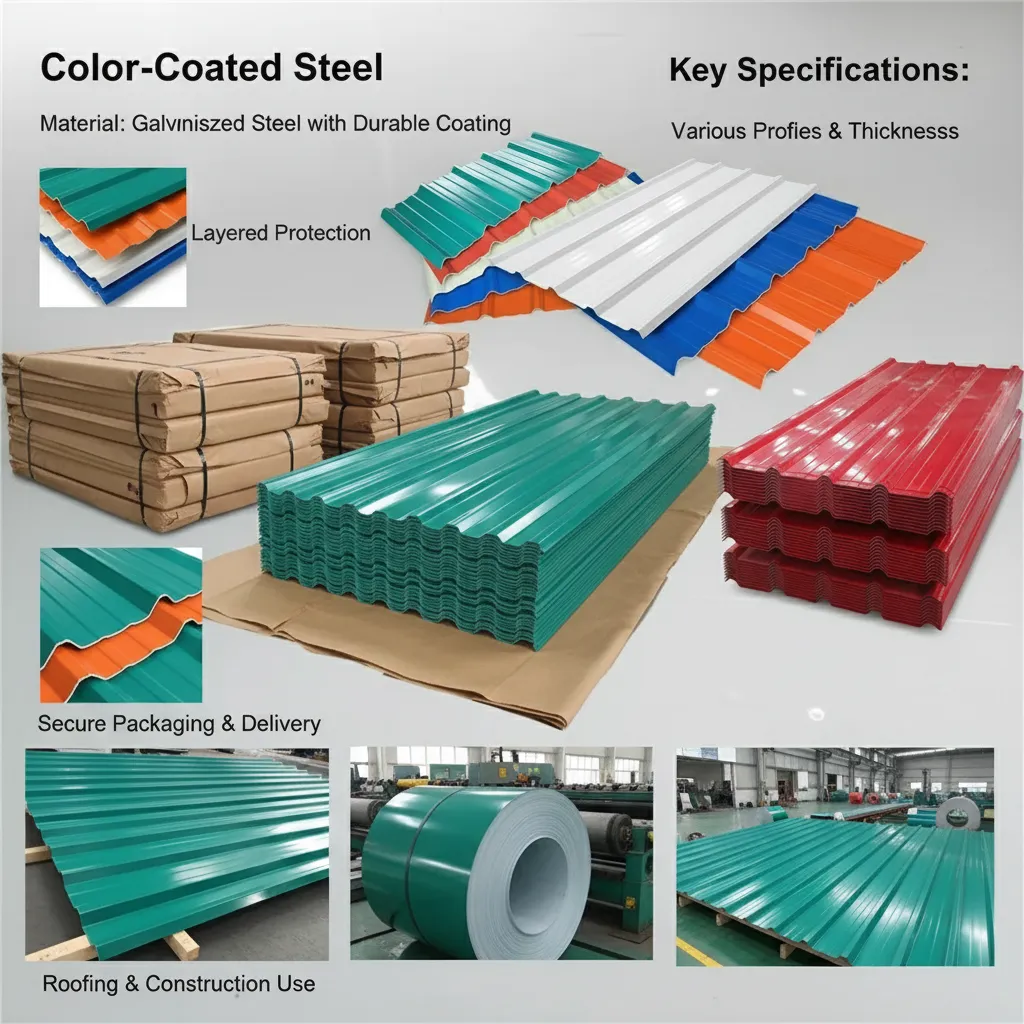

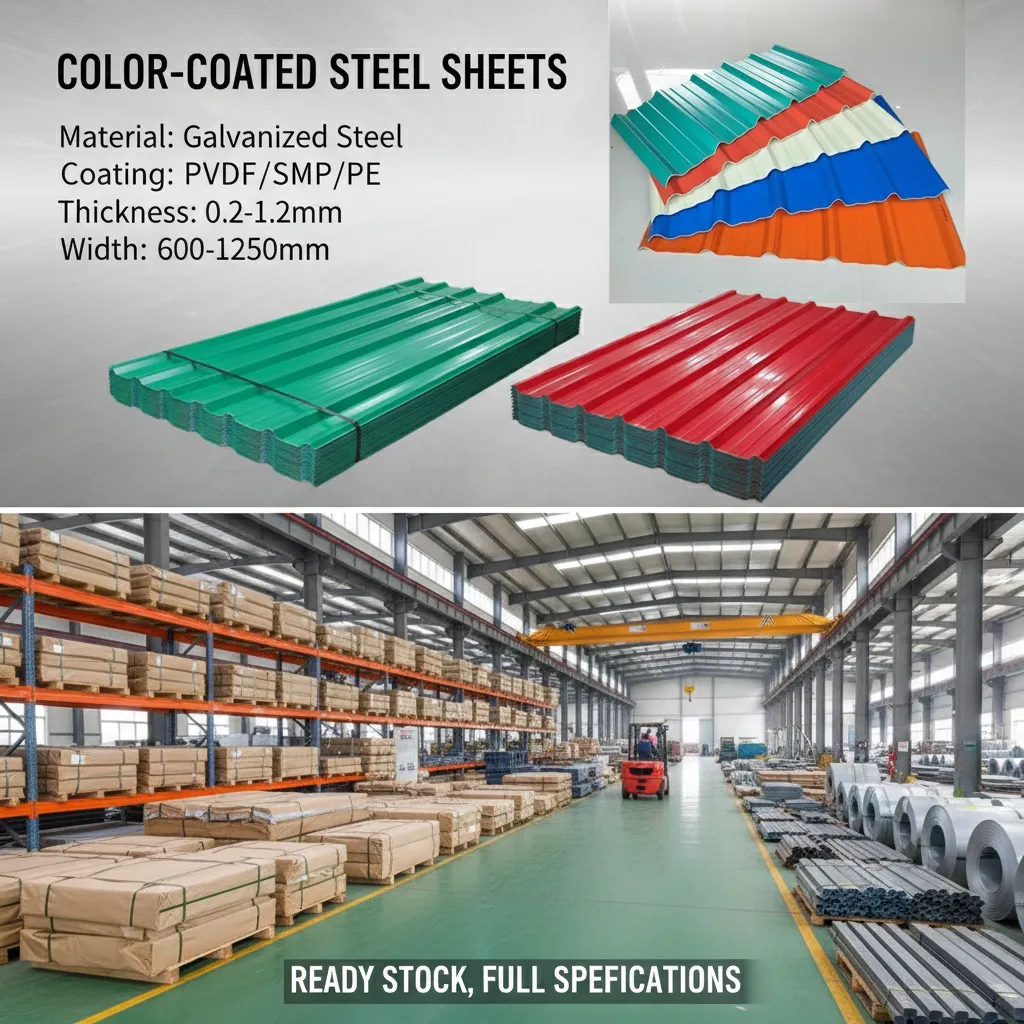

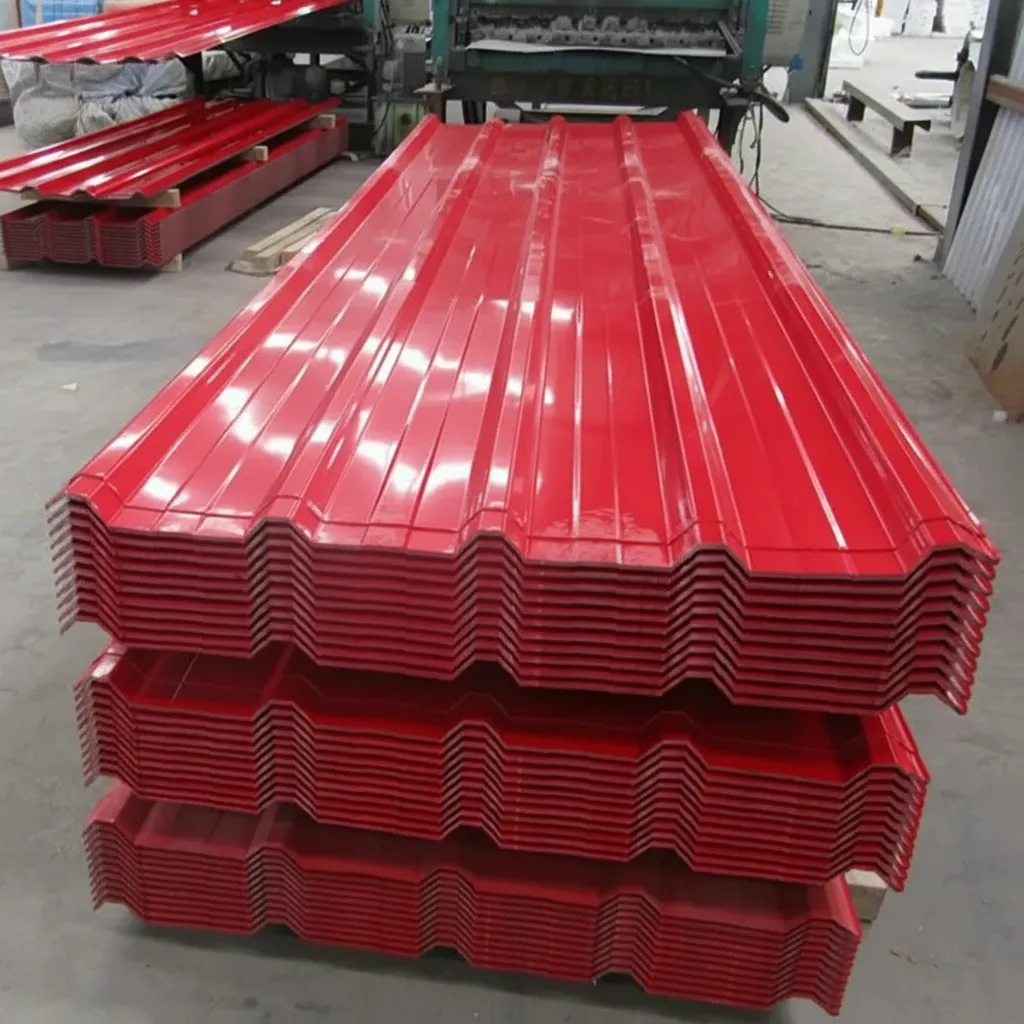

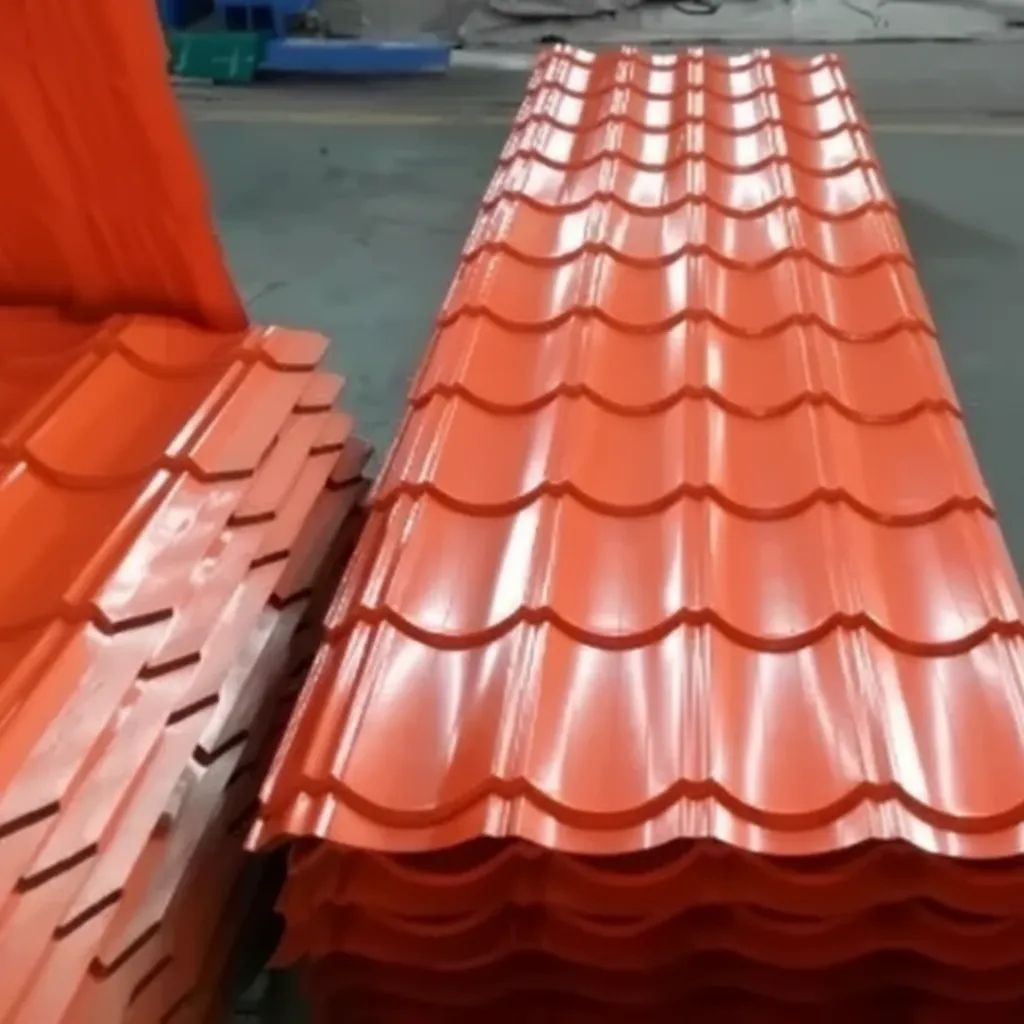

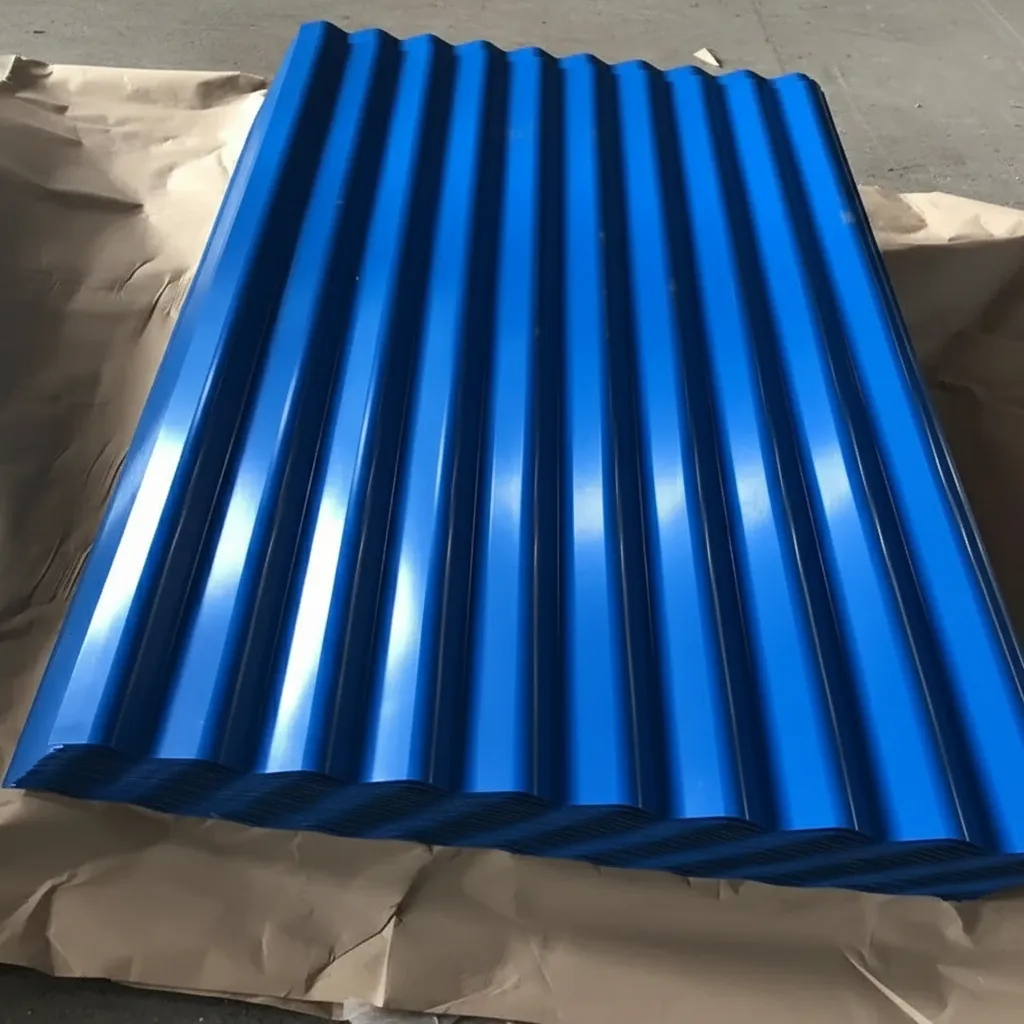

| Product Name | Polyester Coated Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet with polyester (PE) coating |
| Material Grade | SGCC, SGCD, DX51D, DX52D, S280GD, S350GD | Equivalent to JIS G3302, EN 10346, ASTM A653 substrate grades |
| Standard Compliance | GB/T 12754, EN 10169, ASTM A755/A755M, JIS G3312 | International standards for prepainted flat-rolled steel products |
| Chemical Composition (Substrate) | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base metal chemistry per DX51D/SGCC specification |
| Coating Type | Polyester (PE), High Durability Polyester (HDP) | Top coat thickness: 15–25 µm; primer coat: 5–7 µm |
| Zinc/Zinc-Alloy Coating | Z60–Z275 (g/m²), AZ50–AZ150 (g/m²) | Hot-dip galvanized (GI) or Galvalume (GL/Zn-Al-Mg) substrate |
| Tensile Strength | 270–560 MPa | Per EN 10346 / GB/T 12754; varies by substrate grade |
| Yield Strength | 140–420 MPa | ReH/Rp0.2; S280GD: ≥280 MPa, S350GD: ≥350 MPa |
| Elongation | ≥16% (A80mm) | Longitudinal direction per EN 10346 / GB/T 12754 |
| Thickness Range | 0.14–1.50 mm (base metal) | Total thickness including coating; tolerance per EN 10143 |
| Width Range | 600–1,250 mm | Slit coil or full-width coil available; custom widths on request |

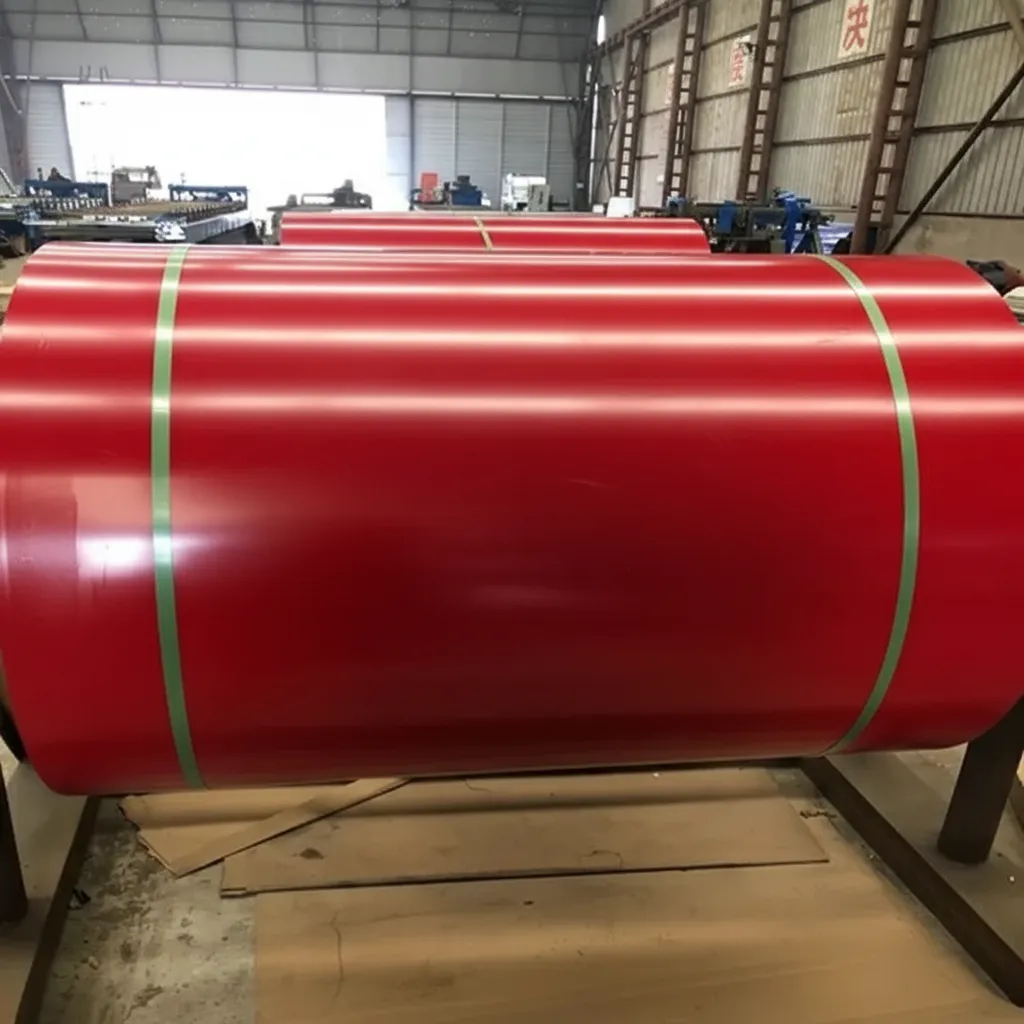

| Length / Coil Weight | Coil: 3–10 MT; Sheet: 1,000–6,000 mm | Inner diameter: 508 mm or 610 mm; outer diameter ≤1,500 mm |

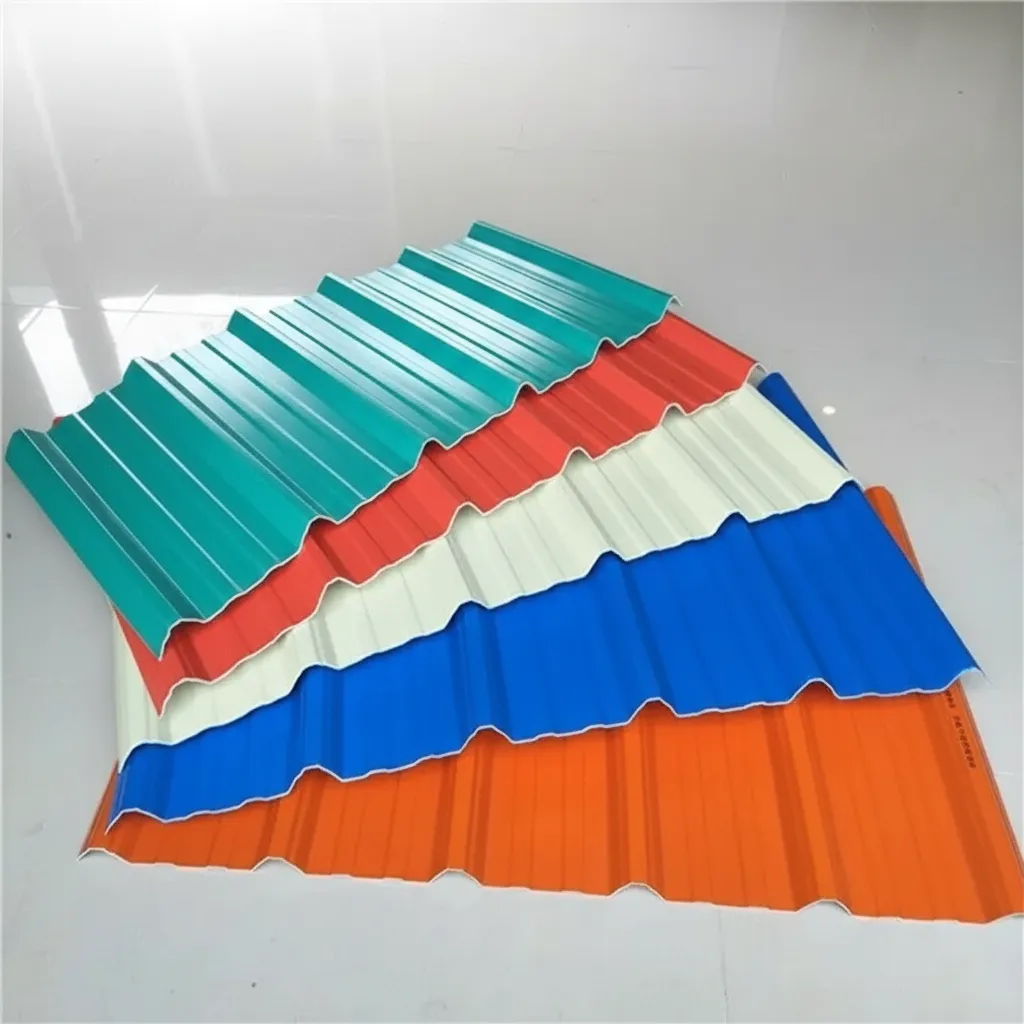

| Surface Finish | Smooth / Embossed / Matte / High Gloss | RAL color system; 60° gloss value 30–80 GU; pencil hardness ≥2H |

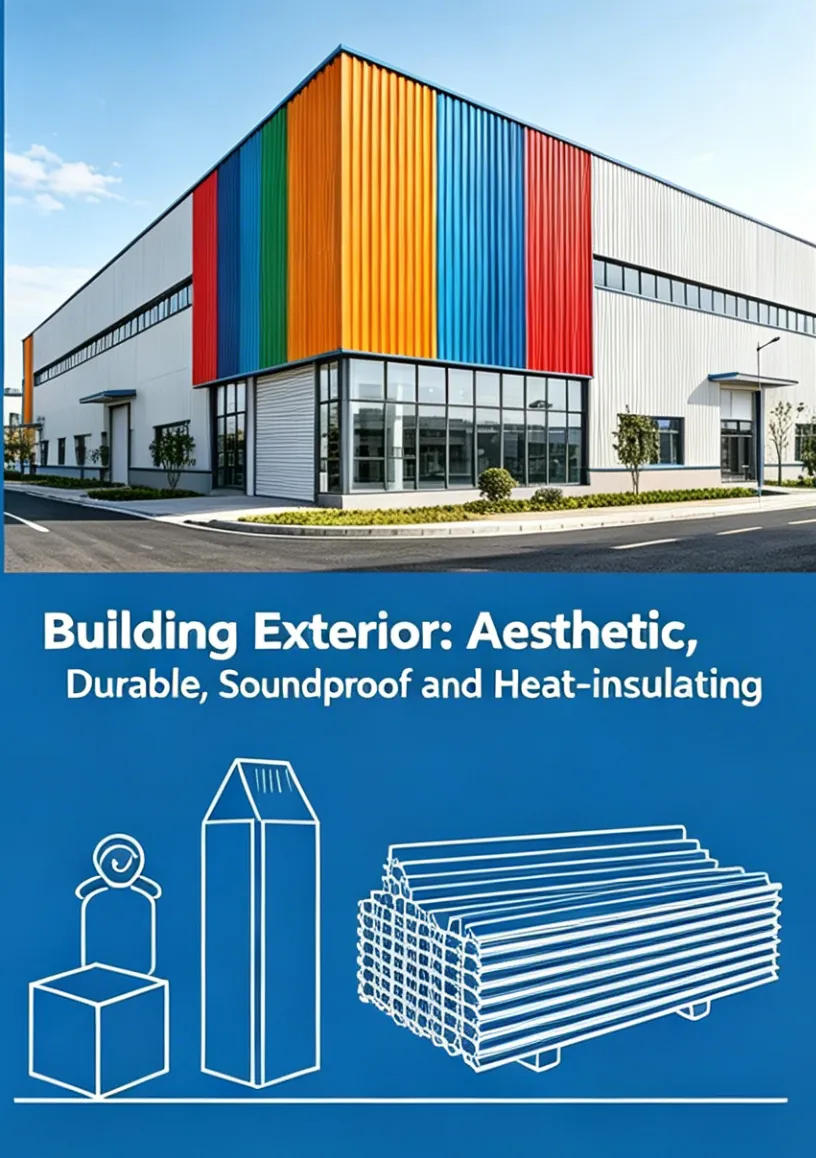

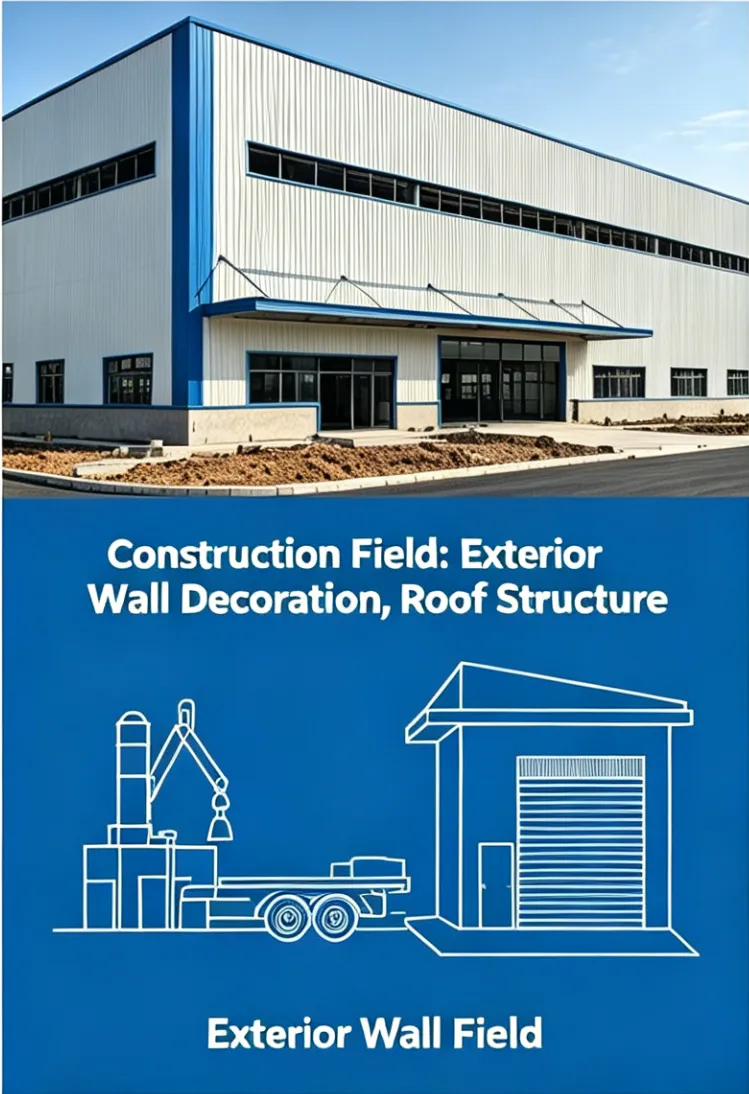

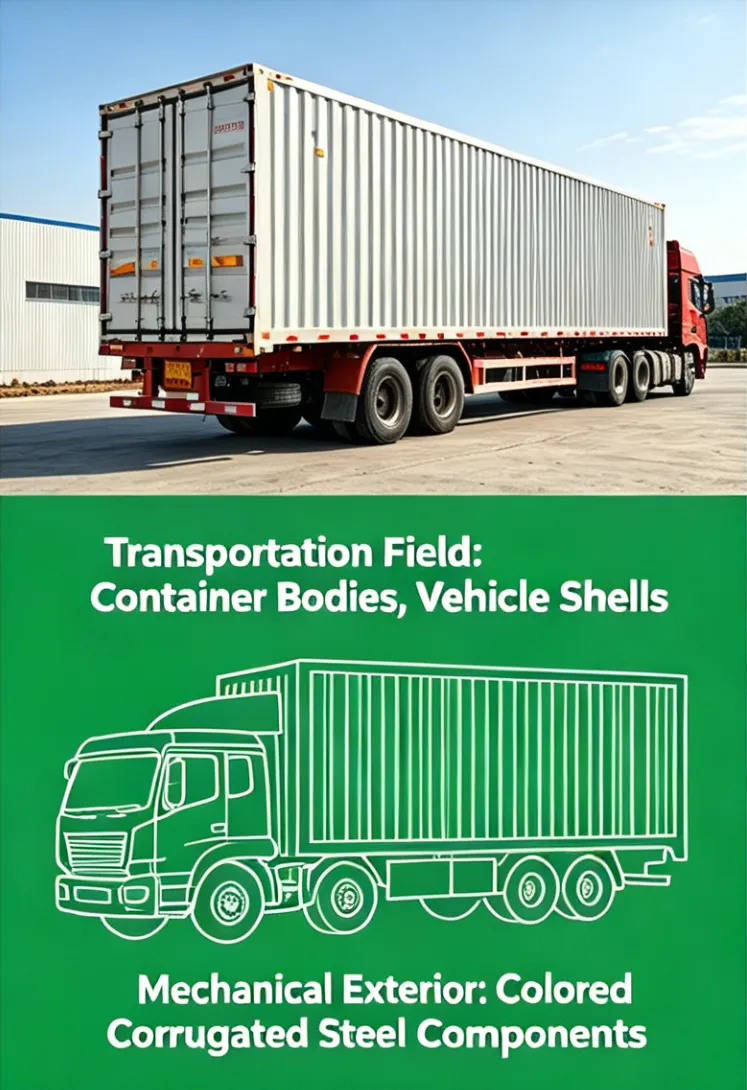

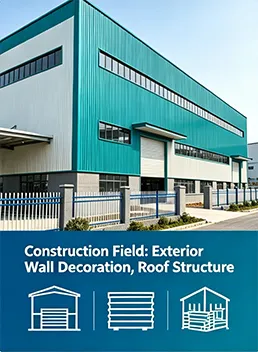

| Application | Roofing, wall cladding, home appliances, garage doors, HVAC ducts | Widely used in construction, automotive, and household sectors |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Mill test certificate (MTC) per EN 10204 3.1 available |

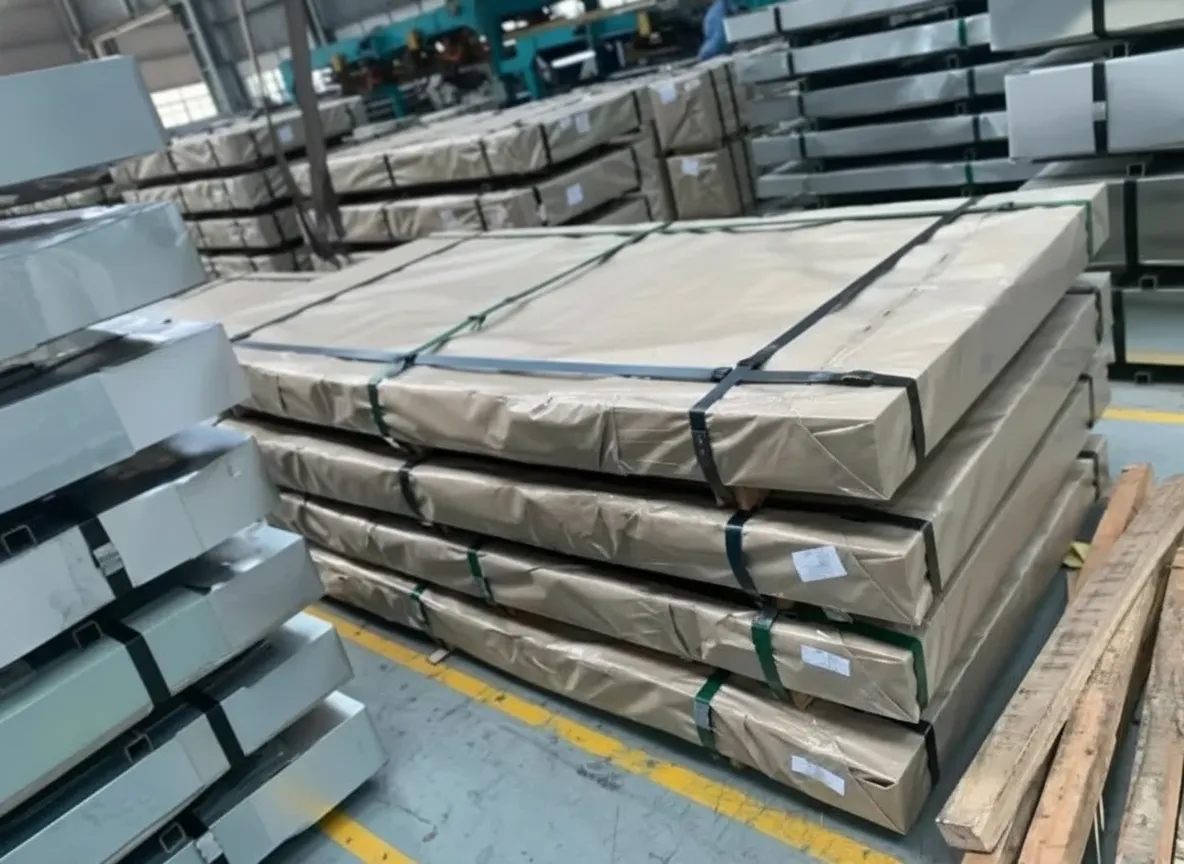

| Packaging | Eye-to-sky or eye-to-wall coil; waterproof paper + steel strip | Sheets packed in wooden pallets with moisture-proof wrapping |
| MOQ | 25 MT per order (coil); 5 MT (sheet) | Mixed colors/specifications accepted above minimum order quantity |
Initial documentation delay — resolved satisfactorily, product quality fine
Ordered 30 MT of 0.60 mm PE coated coils, Grade S350GD per EN 10346, for structural wall panel fabrication. The steel itself tested well — T-bend at T2, pencil hardness 2H, and salt spray at 520 hours. However, the mill test certificates were delayed by four days after shipment departed, which held up our incoming inspection sign-off. After escalating to their sales manager, the documents were expedited and the issue was logged as a process improvement item on their end. No further delays on the follow-up 15 MT order. Product quality is not in question.
Ordered 30 MT of 0.60 mm PE coated coils, Grade S350GD per EN 10346, for structural wall panel fabrication. The steel itself tested well — T-bend at T2, pencil hardness 2H, and salt spray at 520 hours. However, the mill test certificates were delayed by four days after shipment departed, which held up our incoming inspection sign-off. After escalating to their sales manager, the documents were expedited and the issue was logged as a process improvement item on their end. No further delays on the follow-up 15 MT order. Product quality is not in question.
