| Property | Parameter | Description |
|---|---|---|

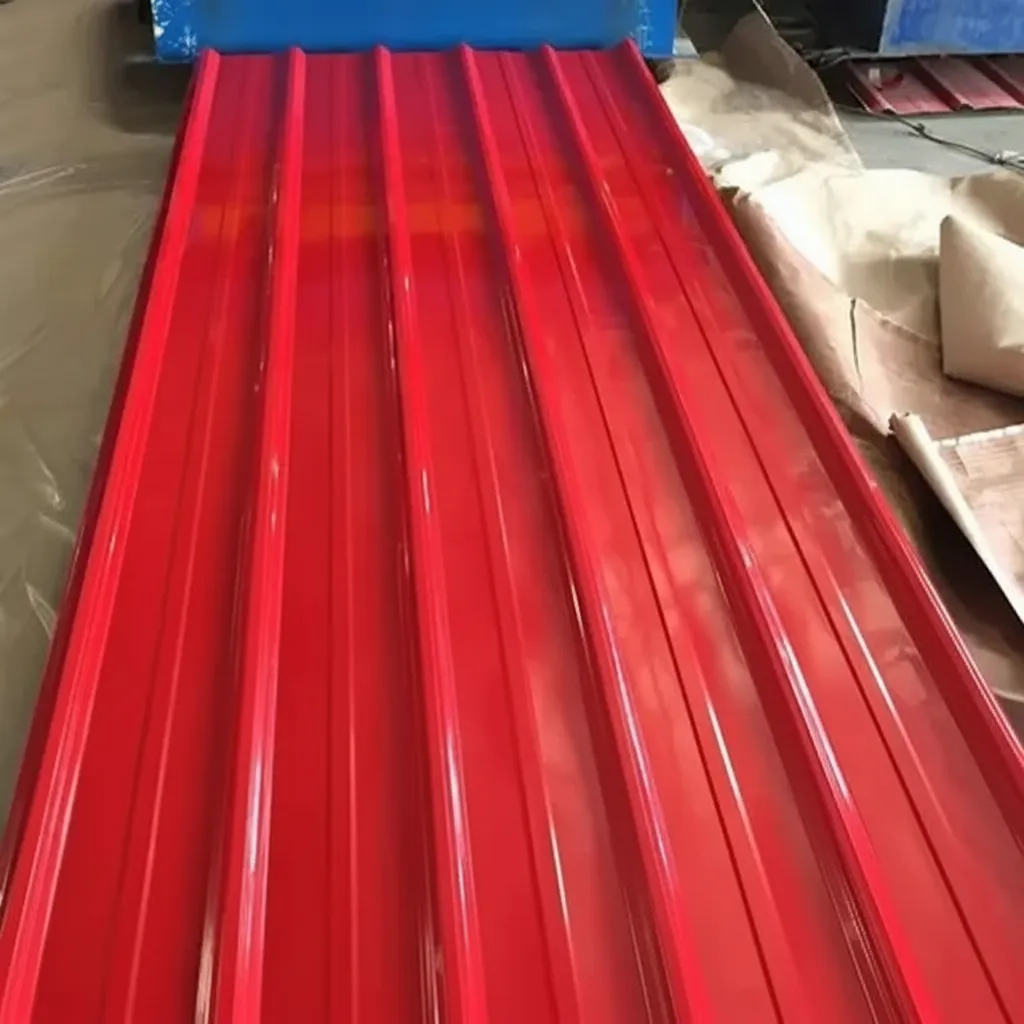

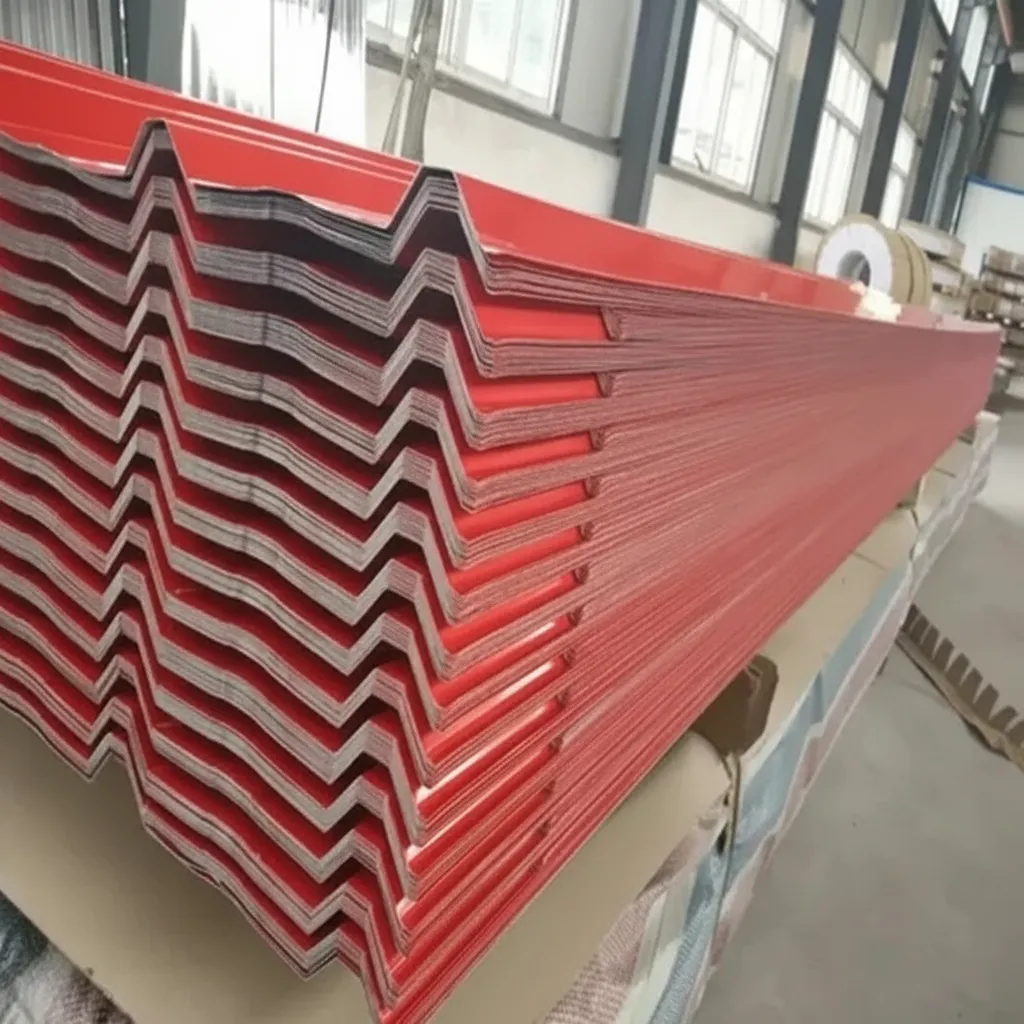

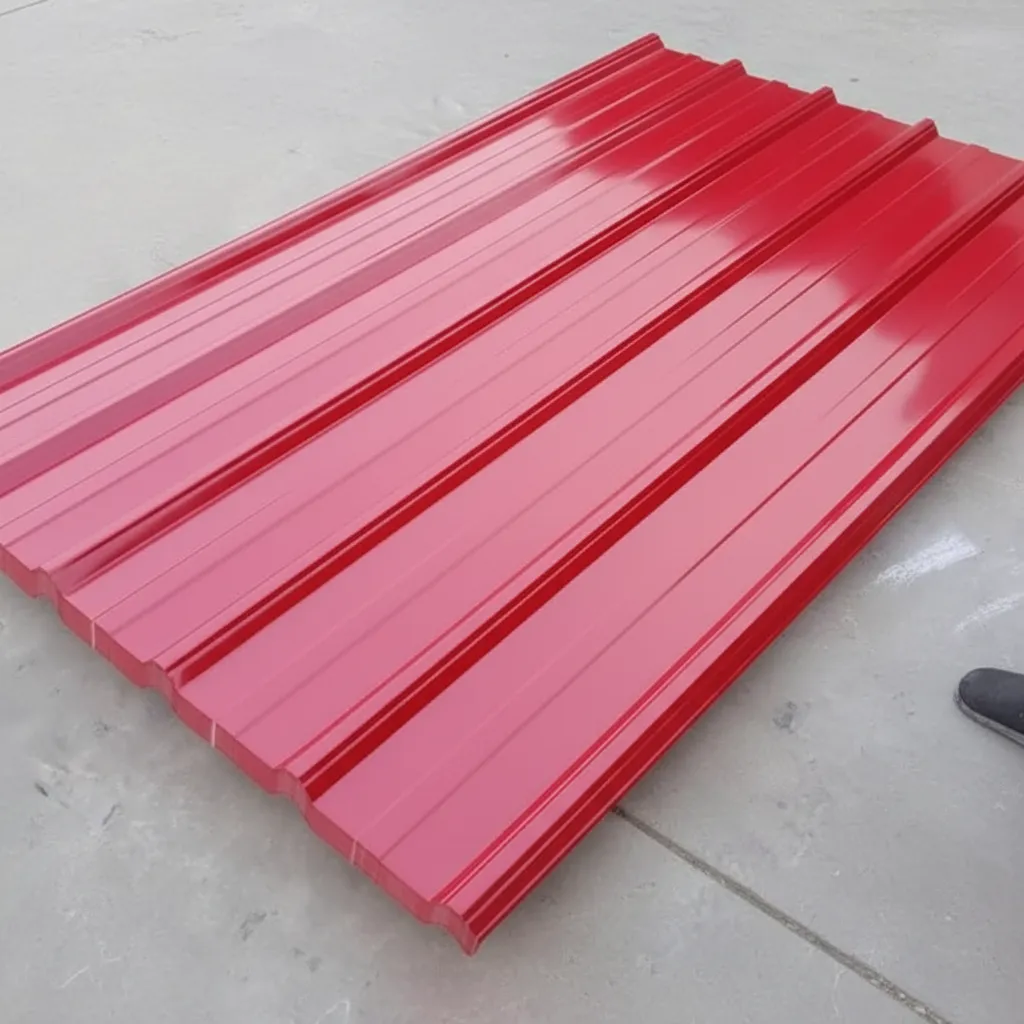

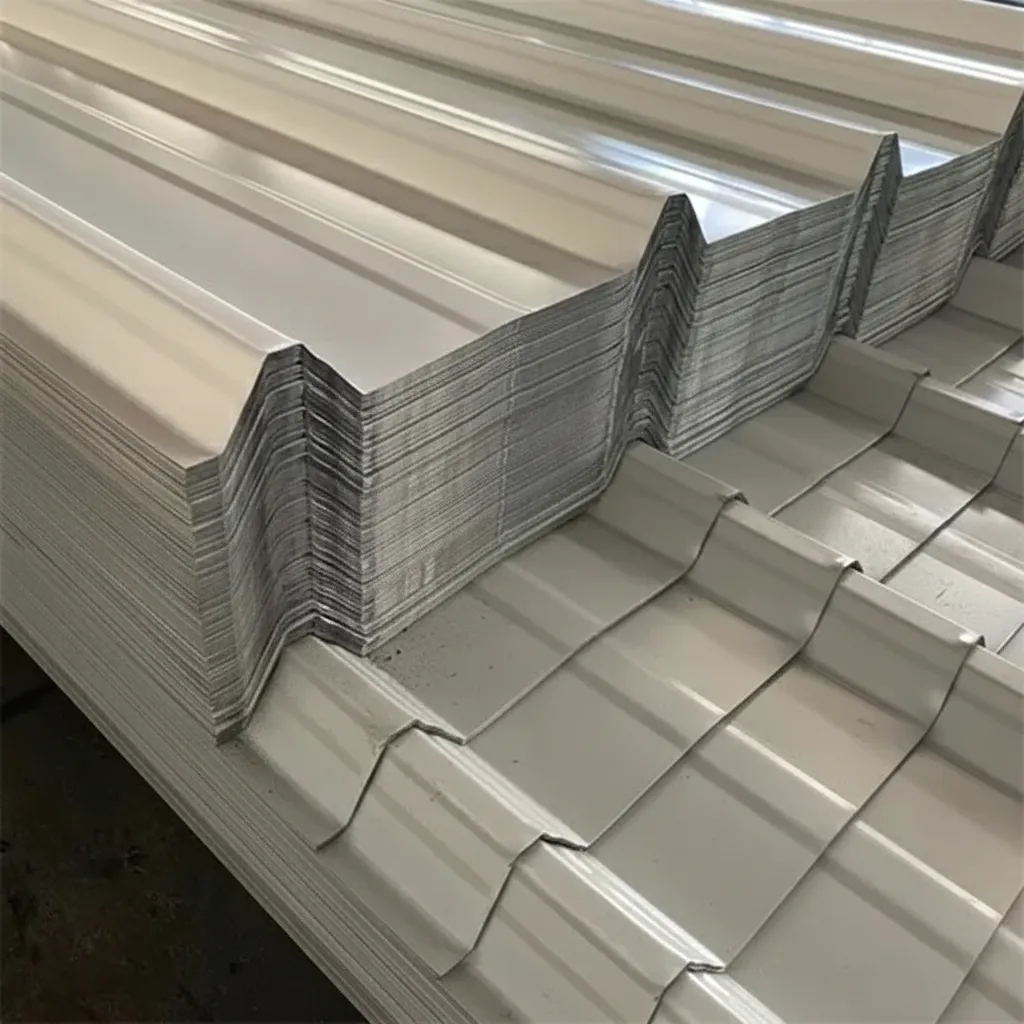

| Product Name | Color-Coated Steel Sheets for Roofing | Pre-painted galvanized/galvalume steel sheets with polymer coating for roofing applications |
| Material Grade | CGCC / DX51D+Z / TDC51D+Z | Equivalent to ASTM A755M, EN 10169, JIS G3312; base metal: hot-dip galvanized or Zn-Al alloy coated steel |
| Standard Compliance | ASTM A755M / EN 10169 / JIS G3312 / GB/T 12754 | Meets international standards for continuously organic-coated flat-rolled steel products |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate ensuring good formability and coating adhesion |
| Coating Type | PVDF / SMP / Polyester (PE) / HDP | PVDF offers superior UV resistance; PE is cost-effective; SMP balances flexibility and durability |
| Coating Thickness | Top coat: 15–25 µm; Back coat: 5–15 µm | Measured per EN ISO 2808 / ASTM D7091; primer layer 5–8 µm included |
| Zinc/Zinc-Alloy Coating Mass | Z100–Z275 g/m² (Galvanized); AZ50–AZ150 g/m² (Galvalume) | Per ASTM A653 / EN 10346; higher coating mass improves corrosion resistance |
| Tensile Strength | 270–560 MPa | Per EN 10169 / ASTM A755M; varies by grade (e.g., DX51D: ≥270 MPa; S350GD: ≥420 MPa) |
| Yield Strength | 140–420 MPa | DX51D: ≥140 MPa; S280GD: ≥280 MPa; S350GD: ≥350 MPa per EN 10169 |
| Elongation | ≥16–22% (A80mm) | Ensures formability for roll-forming and profiling of roofing panels |
| Thickness Range | 0.20–1.50 mm | Common roofing thickness: 0.35–0.80 mm; tolerance per EN 10143 / ASTM A924 |
| Width Range | 600–1,250 mm | Slit coil or sheet; standard widths: 914 mm, 1,000 mm, 1,219 mm available |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | 60° gloss value: matte 10–30 GU, gloss 60–85 GU per ASTM D523; RAL color matching available |
| Application | Roofing, wall cladding, industrial buildings, warehouses, residential housing | Suitable for corrugated sheets, standing seam roofs, sandwich panels, and trapezoidal profiles |
| Certification | ISO 9001, CE Marking, SGS, BV, RoHS Compliant | Third-party inspection available; mill test certificate (MTC) per EN 10204 3.1 provided |
| Packaging | Coil: eye-to-sky or eye-to-wall on steel pallet; Sheet: bundled with steel strapping | Waterproof paper + plastic film wrapping; coil weight 3–8 MT; export seaworthy packaging |
| MOQ | 25 MT per order (coil); 5 MT (cut-to-length sheets) | Mixed colors/specifications accepted above MOQ; sample order available upon request |
Initial colour batch mismatch — resolved promptly, now satisfied
On our first order of 55 MT of 0.45 mm polyester-coated Z275 sheets, two coils arrived with a visible ΔE variance exceeding the stated 0.5 tolerance — noticeable against previously installed panels on the same project. Raised the issue immediately; the supplier acknowledged the batch discrepancy within 24 hours, issued replacement coils at no additional cost, and expedited delivery within 10 days. The replacement material was within spec. The resolution process was handled professionally and the technical team provided updated QC documentation. Cautiously optimistic for our next order.
On our first order of 55 MT of 0.45 mm polyester-coated Z275 sheets, two coils arrived with a visible ΔE variance exceeding the stated 0.5 tolerance — noticeable against previously installed panels on the same project. Raised the issue immediately; the supplier acknowledged the batch discrepancy within 24 hours, issued replacement coils at no additional cost, and expedited delivery within 10 days. The replacement material was within spec. The resolution process was handled professionally and the technical team provided updated QC documentation. Cautiously optimistic for our next order.
