| Property | Parameter | Description |
|---|---|---|
| Product Name | Color Steel Sheet | Pre-painted / color-coated steel sheet with organic coating on substrate |
| Material Grade | TDC51D, TDC52D, TDC53D (EN); CGCC, CGCD (JIS); Q/BQB 440 (GB) | Equivalent to ASTM A755/A755M; base metal: cold-rolled or hot-dip galvanized steel |
| Standard Compliance | EN 10169, JIS G 3312, GB/T 12754, ASTM A755/A755M | International standards for continuously organic-coated flat-rolled steel |
| Chemical Composition | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.045%, S ≤ 0.045%, Si ≤ 0.50% | Base substrate composition; coating layer adds Zn or Zn-Al alloy protection |
| Tensile Strength | 270–550 MPa | Varies by substrate grade; TDC51D: ≥270 MPa; higher-strength grades up to 550 MPa (EN 10169) |
| Yield Strength | 140–420 MPa | TDC51D: ≥140 MPa; structural grades (e.g., TDC53D): ≥280 MPa |
| Elongation | ≥20% (A80mm) | Typical for forming grades; ensures good formability and bending performance |
| Coating Type | Polyester (PE), PVDF, SMP, HDP, Epoxy | Top coat + primer system; PVDF offers superior UV and weather resistance |
| Coating Thickness | Top coat: 15–25 µm; Primer: 5–7 µm; Back coat: 7–15 µm | Total dry film thickness; customizable per application requirement |
| Zinc Coating Mass | Z60–Z275 g/m² (hot-dip); ZF60–ZF120 g/m² (Galfan) | Per EN 10346 / GB/T 2518; determines corrosion resistance level |
| Thickness Range | 0.14 mm – 1.50 mm | Standard commercial thickness; custom thickness available upon request |
| Width Range | 600 mm – 1,250 mm | Slit coil or sheet width; standard widths: 750, 900, 1,000, 1,200 mm |
| Length / Coil Weight | Sheet: 1,000–6,000 mm; Coil: 3–8 MT per coil | Cut-to-length sheets or full coils available; inner diameter 508/610 mm |

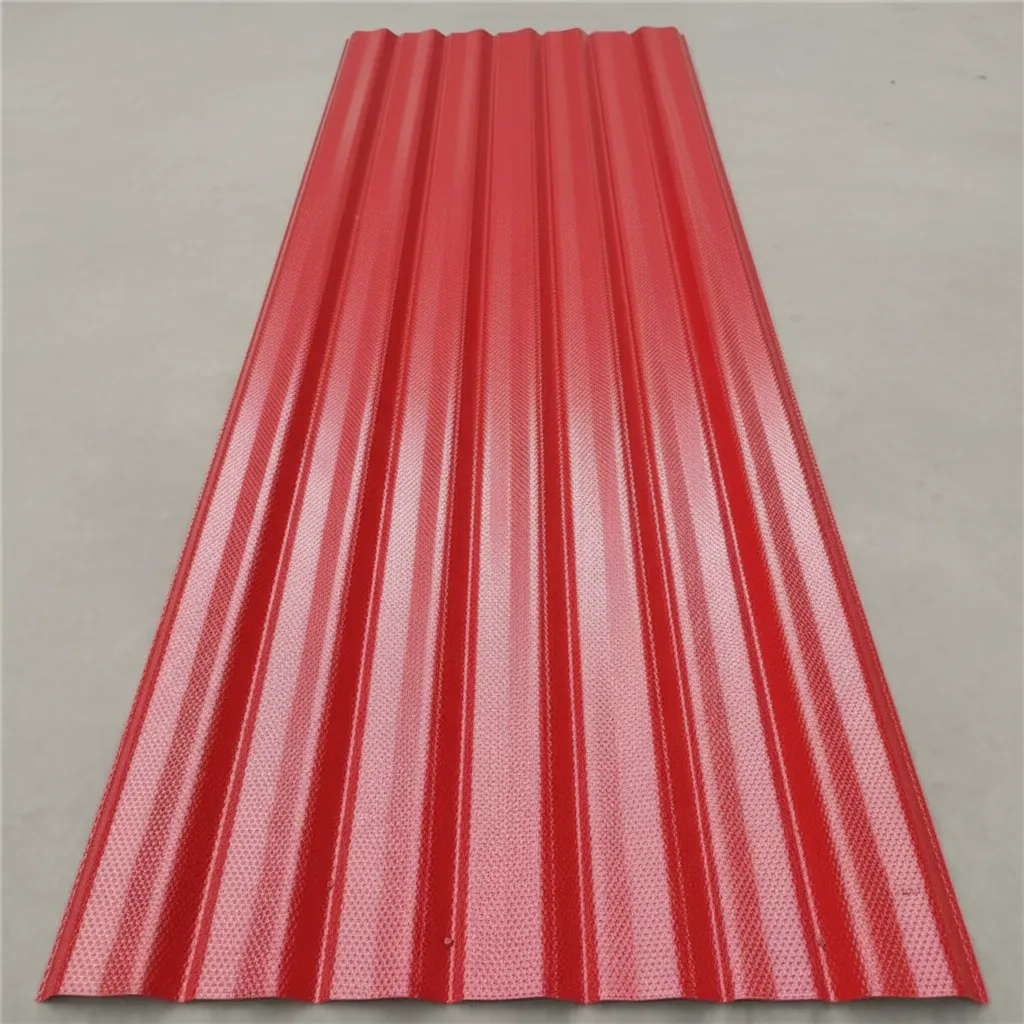

| Surface Finish | Smooth, embossed, matte, high-gloss | RAL color system available; gloss level 10–80 GU (60° geometry) |

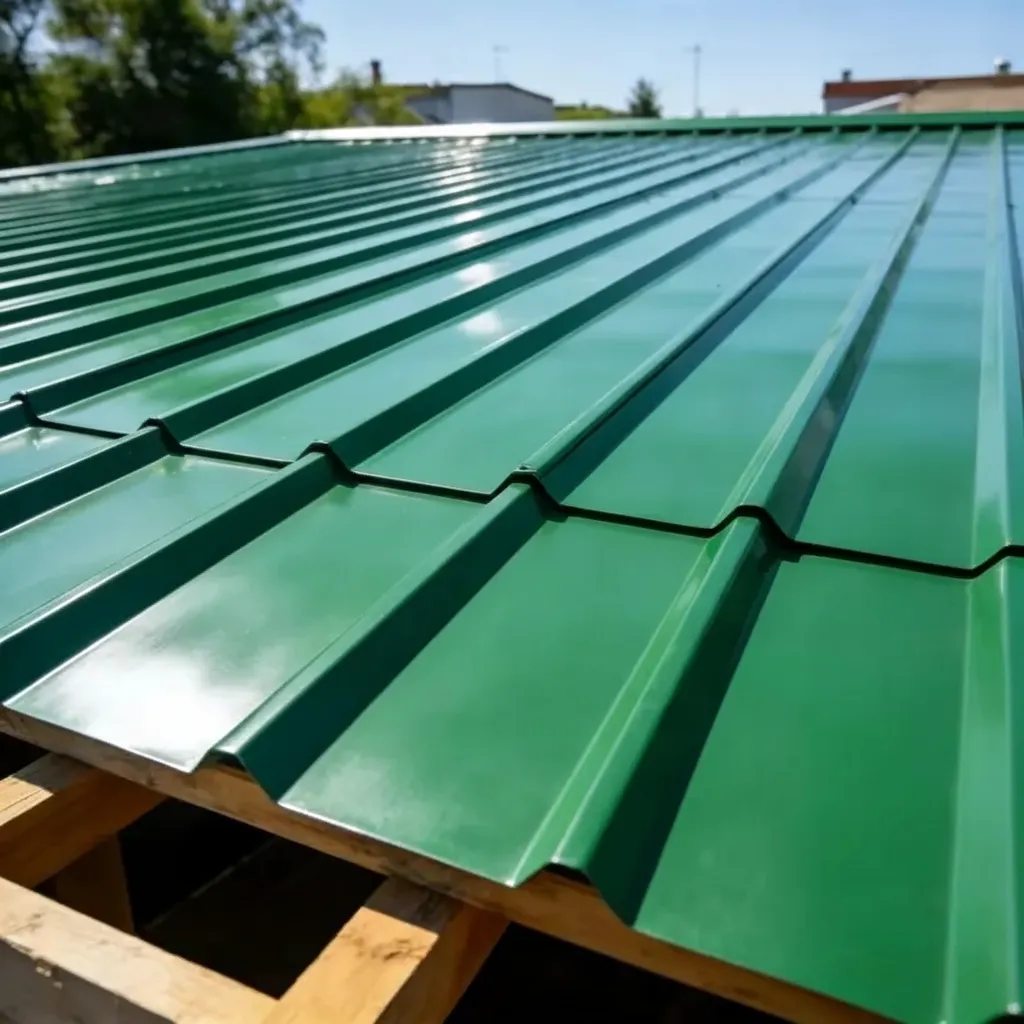

| Application | Roofing, wall cladding, sandwich panels, home appliances, garage doors, HVAC ducts | Widely used in construction, industrial buildings, and household appliance manufacturing |
| Certification | ISO 9001, CE Marking, SGS, BV, TÜV | Mill test certificate (MTC) per EN 10204 3.1 available upon request |
| Packaging | Coils: eye-to-sky or eye-to-wall on wooden pallet; sheets: bundled with steel strapping | Waterproof paper + plastic film wrapping; suitable for sea and land transport |
| MOQ | 25 MT per order (coil); 5 MT per order (sheet) | Mixed specifications accepted; sample order negotiable |
Initial Color Deviation Issue – Resolved Professionally
Ordered 50 tons of HDP-coated sheet, 0.42 mm, RAL 5015 sky blue, Z150 zinc, for a commercial building facade. Upon inspection, 6 coils showed ΔE of 1.4–1.6, exceeding the specified ΔE ≤ 1.0 tolerance per our contract. Raised the issue with their quality team — they responded within 24 hours, acknowledged the deviation with lab data, and arranged replacement coils shipped within 18 days at no additional cost. The replacement batch fully conformed to spec. Resolution was handled professionally and without dispute. Upgrading rating would require this not happening in the first order. Cautiously optimistic for future orders.
