| Property | Parameter | Description |
|---|---|---|

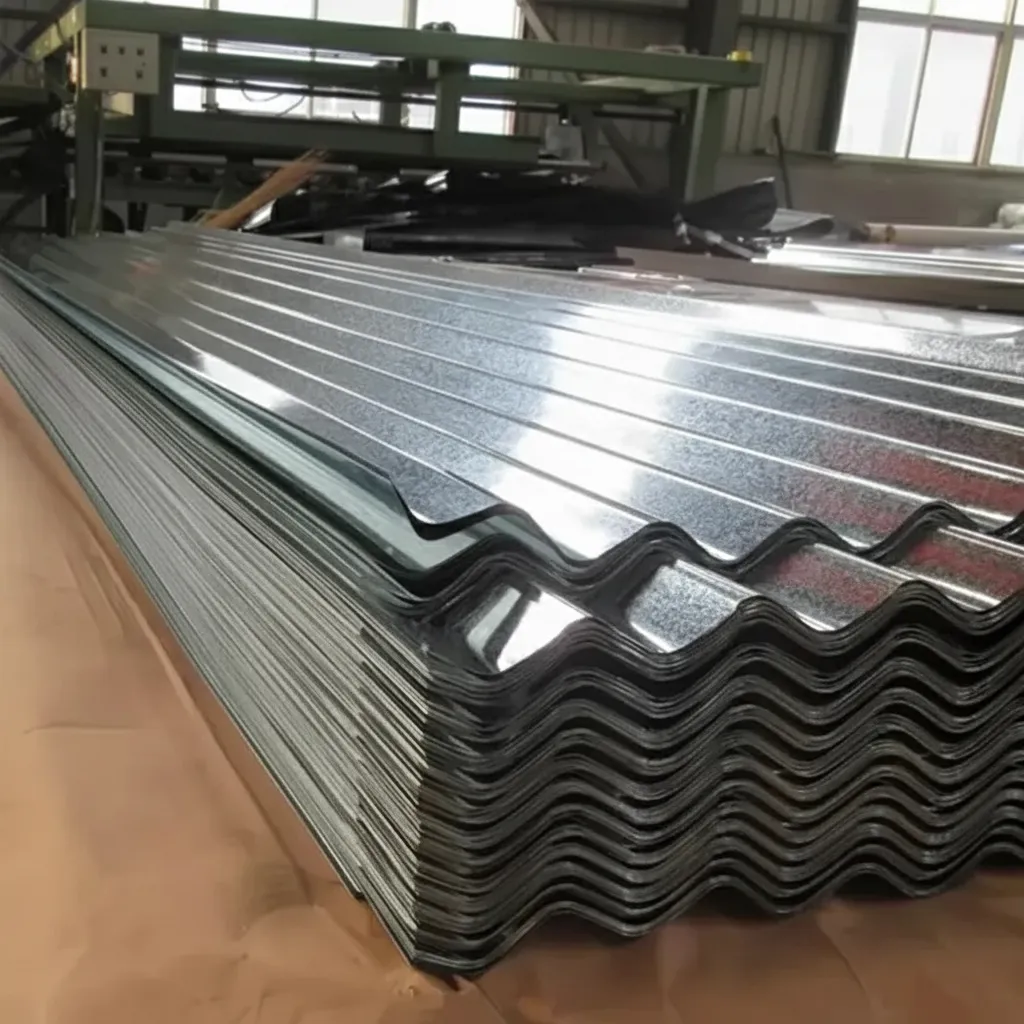

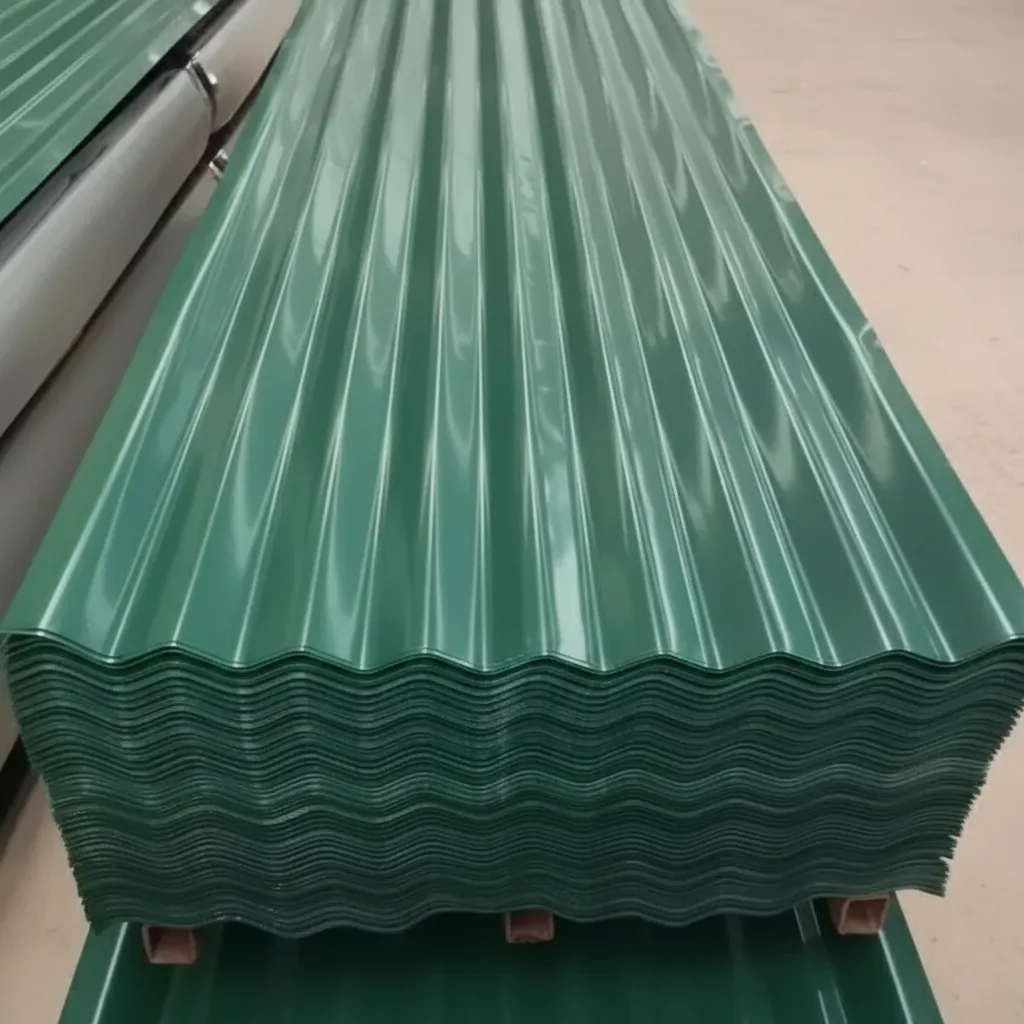

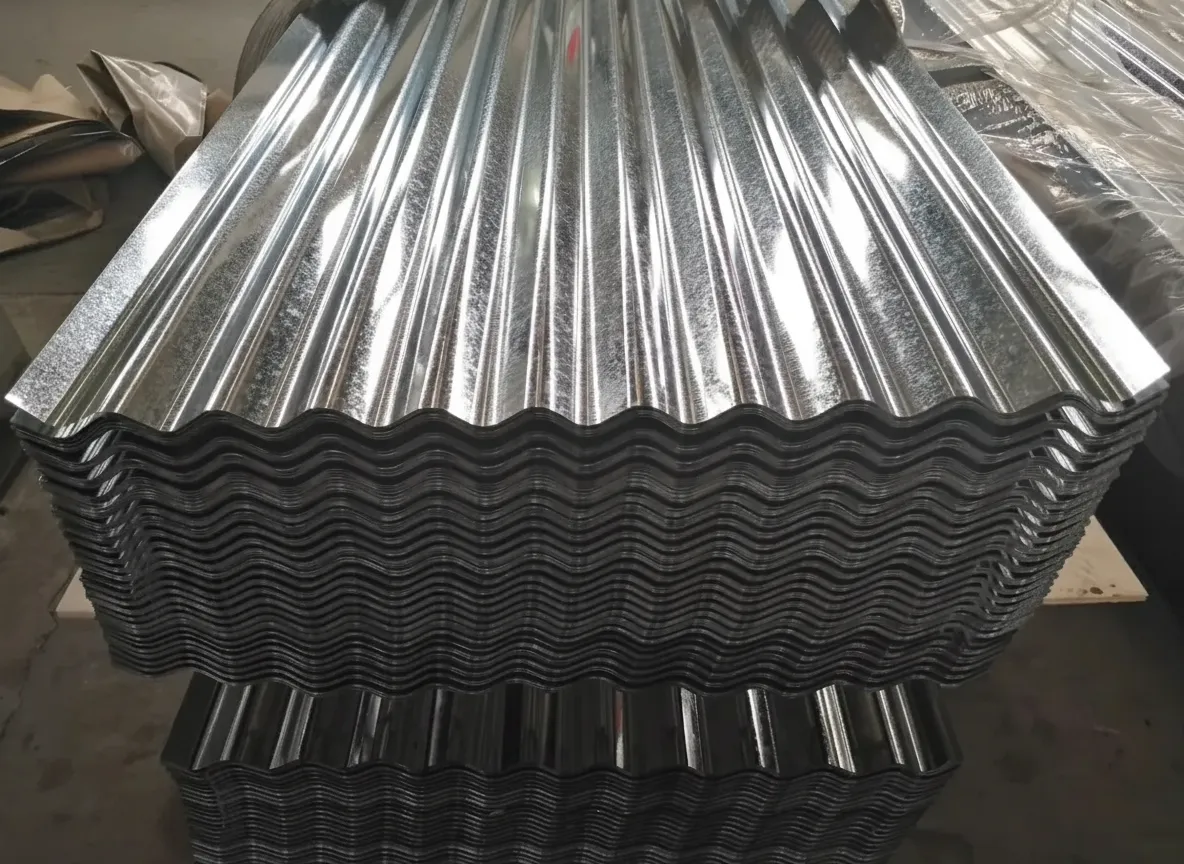

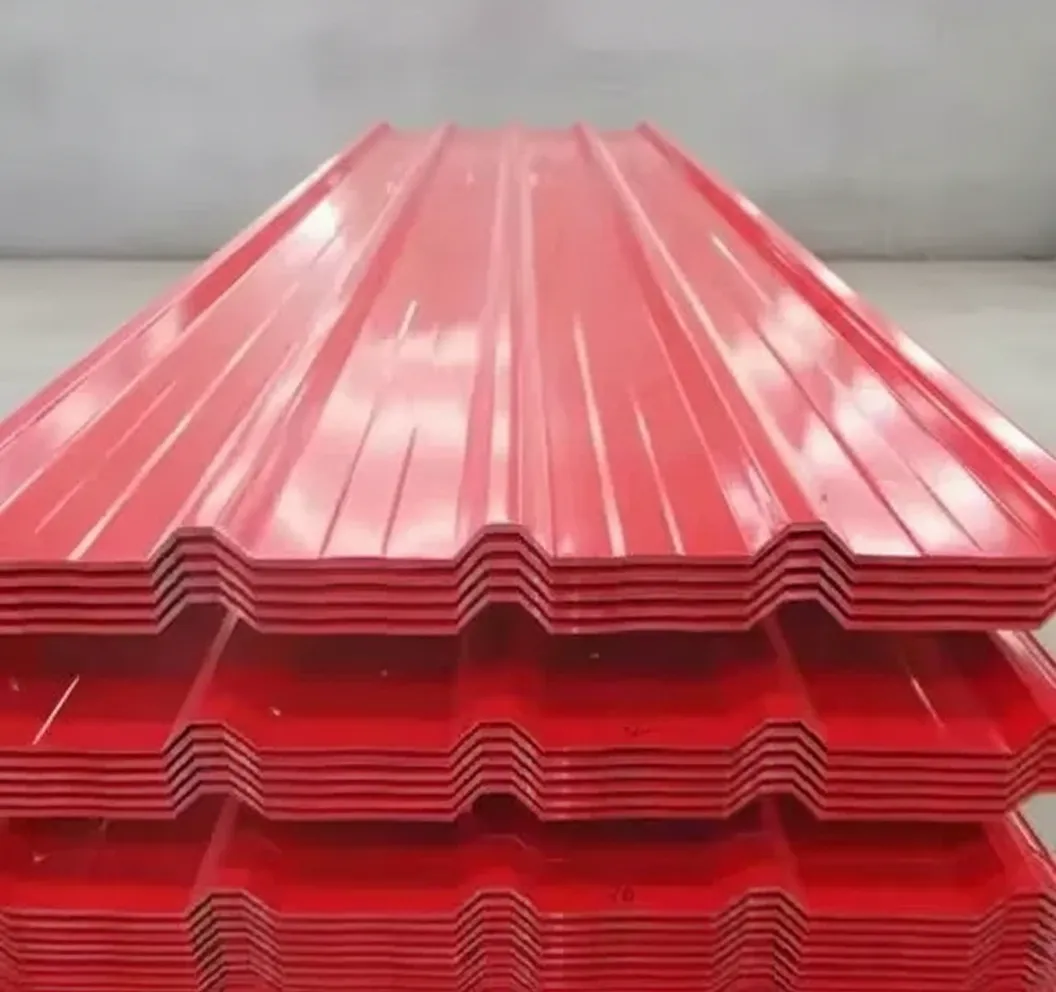

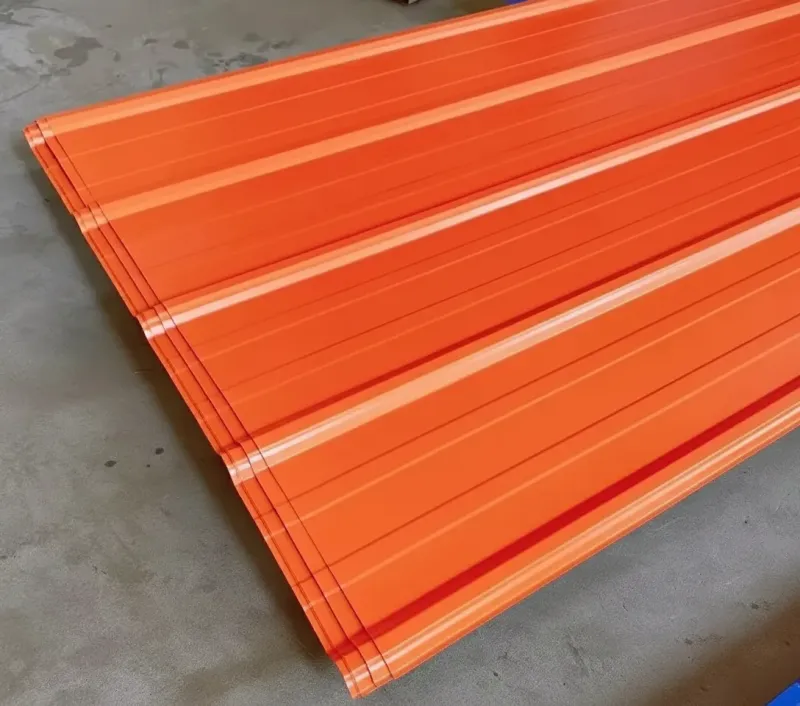

| Product Name | PPGL Color Steel Sheet | Pre-painted Galvalume steel sheet with polymer coating |
| Material Grade | AZ150 / AZ100 / AZ50 | Equivalent to JIS G3322 CGLCC, EN 10169, ASTM A755M |
| Standard Compliance | ASTM A755M / EN 10169 / JIS G3322 / GB/T 14978 | International standards for pre-painted Galvalume steel |
| Chemical Composition (Coating) | Al: 55%, Zn: 43.4%, Si: 1.6% | Galvalume alloy coating composition by weight |
| Chemical Composition (Base Steel) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.04%, S ≤ 0.04% | Low-carbon steel substrate chemical limits |
| Tensile Strength | ≥ 270 MPa (commercial grade); ≥ 340 MPa (structural grade) | Per ASTM A755M / GB/T 14978 |
| Yield Strength | ≥ 240 MPa (commercial); ≥ 280 MPa (structural) | Minimum yield point per standard specification |
| Elongation | ≥ 20% (A80mm) | Measured on 80mm gauge length per EN 10169 |
| Base Metal Thickness | 0.18 mm – 1.20 mm | Excluding coating and paint layer thickness |
| Width Range | 600 mm – 1,250 mm | Coil or sheet width; custom slitting available |
| Coating Mass | AZ50 (150 g/m²) / AZ100 (300 g/m²) / AZ150 (450 g/m²) | Total both-side Galvalume coating weight |
| Paint Coating | Top coat: 15–25 μm (PVDF/PE/SMP); Back coat: 5–10 μm | PVDF offers superior UV and weather resistance |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | RAL color customization available; 60° gloss 30–80 GU |
| Application | Roofing, wall cladding, sandwich panels, home appliances, warehouses | Widely used in construction and industrial sectors |
| Certification | ISO 9001, SGS, BV, CE | Quality management and third-party inspection available |

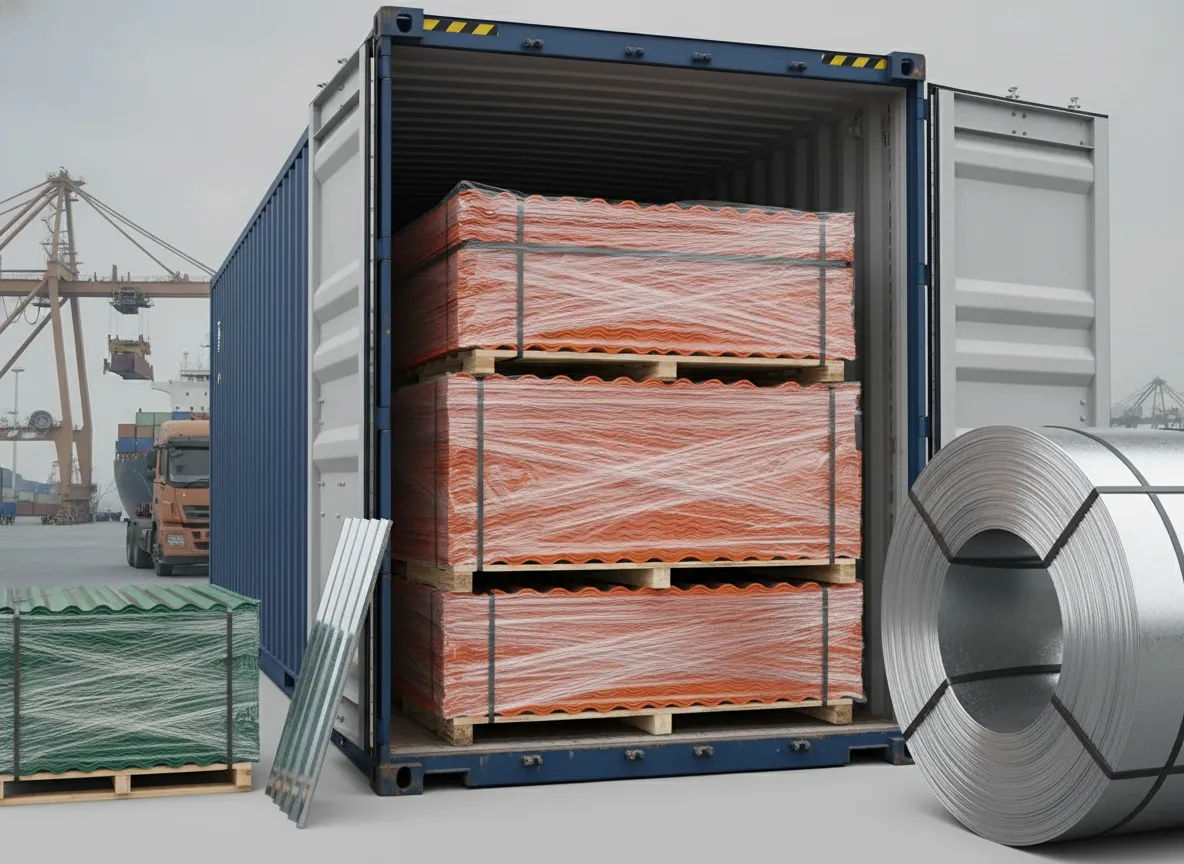

| Packaging | Coil: eye-to-sky or eye-to-wall; Sheet: wooden pallet with steel strapping | Moisture-proof paper and waterproof wrapping included |
| MOQ | 25 MT per order | Mixed specifications accepted; OEM orders welcome |
Initial color variance issue — resolved satisfactorily
We ordered 30 MT of PPGL in 0.50 mm with PE coating in RAL 3009 for appliance panel fabrication. On arrival, around 8% of coils showed a slight color deviation from the approved sample. We raised this immediately, and the supplier's QC team responded within one business day with a root cause explanation related to a batch oven calibration adjustment. Replacement coils for the affected quantity shipped within 10 days at no additional cost. ASTM A755 specs were otherwise met throughout. The resolution was handled professionally, and we're cautiously continuing the relationship.
