| Property | Parameter | Description |
|---|---|---|

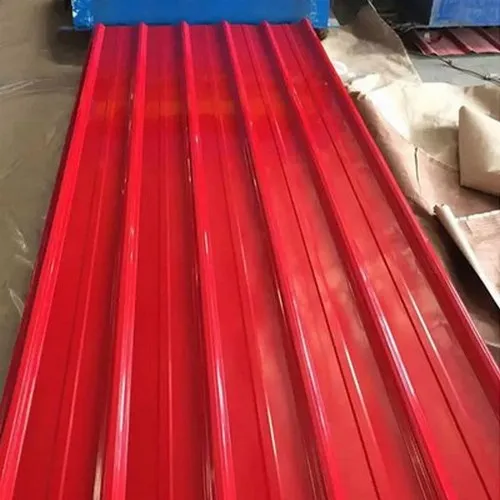

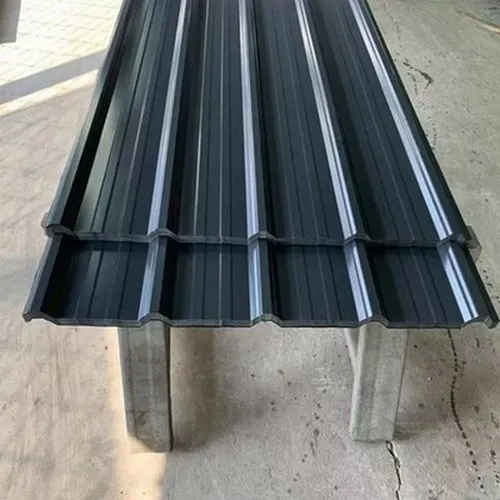

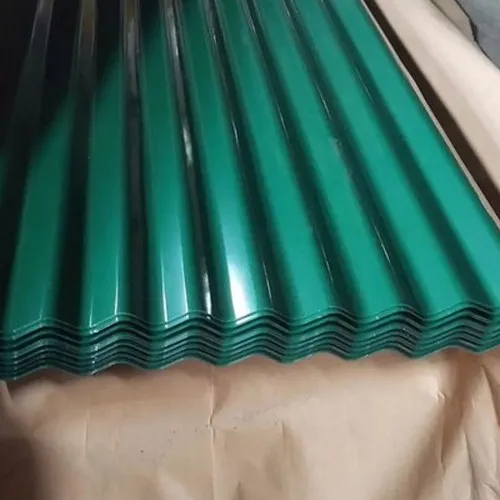

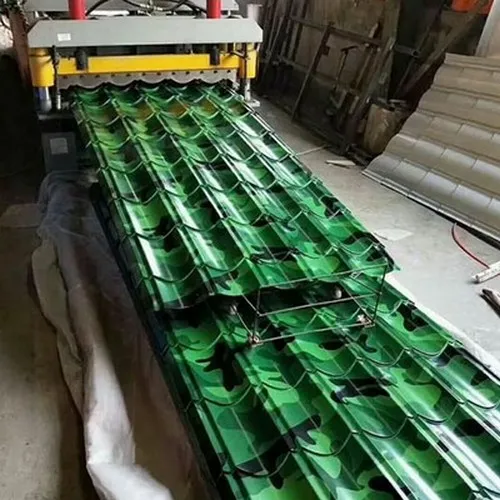

| Product Name | Cladding Use Color Steel Sheet | Pre-painted galvanized/galvalume steel sheet for exterior and interior cladding applications |
| Material Grade | DX51D+Z / DX53D+AZ / SGCC / Q235 | International equivalents: EN 10346 DX51D, JIS G3302 SGCC, ASTM A653 CS Type B |
| Standard Compliance | EN 10169 / ASTM A755 / JIS G3312 / GB/T 12754 | Meets international pre-painted steel coil and sheet standards for building cladding |
| Chemical Composition | C ≤0.12%, Mn ≤0.60%, P ≤0.045%, S ≤0.045%, Si ≤0.50% | Base metal composition per EN 10346; coating layer: Zn or Al-Zn alloy |
| Tensile Strength | 270–500 MPa | Varies by grade; DX51D min. 270 MPa per EN 10346; higher grades available for structural cladding |
| Yield Strength | 140–420 MPa | DX51D min. 140 MPa; structural grades (S280GD+Z) min. 280 MPa per EN 10346 |
| Elongation | ≥22% (A80) | Measured per EN ISO 6892-1; ensures formability for profiling and roll-forming processes |
| Coating Type | Hot-dip Galvanized (Z100–Z275) / Galvalume (AZ150) | Zinc coating mass per EN 10346; Galvalume (55% Al-Zn) offers superior corrosion resistance |
| Paint Coating | PVDF / PE / SMP / HDP | Top coat 20–25 µm (PE), 25 µm (SMP), 25–27 µm (PVDF); primer 5–7 µm; back coat 7–12 µm |
| Thickness Range | 0.30 mm – 1.20 mm | Base metal thickness excluding coating; custom thickness available upon request |
| Width Range | 600 mm – 1,250 mm | Standard slit widths available; custom widths to suit cladding panel profiles |
| Length / Coil Weight | Coil: 3–8 MT; Sheet: 1,000–6,000 mm | Supplied as coils or cut-to-length sheets; coil ID 508/610 mm |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | RAL color matching available; uniform paint adhesion with no peeling or cracking after bending |
| Application | Roof cladding, wall cladding, facade panels, industrial buildings, warehouses, cold storage | Suitable for residential, commercial, and industrial exterior/interior cladding systems |
| Certification | ISO 9001 / CE Marking / SGS / BV | Third-party inspection and mill test certificates (MTC) available per EN 10204 3.1 |
| Packaging | Coils: steel-banded with waterproof paper and wooden pallet; Sheets: bundled with steel strapping | Export-standard seaworthy packaging; moisture-proof inner wrapping for ocean freight |
| MOQ | 25 MT per order | Mixed specifications accepted; smaller trial orders negotiable based on project requirements |
Initial color inconsistency flagged — resolved satisfactorily by supplier
Our first order of 18 MT of 0.50 mm polyester-coated sheet in RAL 9002 showed visible gloss variation between coils — some measured 45 GU and others 55 GU against a specified 50 GU target. We raised the issue immediately. The supplier's QC team acknowledged the batch variance, provided a revised certificate, and offered partial replacement material on the next shipment at no charge. The replacement coils were within ±3 GU of spec. Issue appears to have been an isolated production batch problem. Communication throughout was professional and the resolution was fair. Cautiously continuing the relationship.
Our first order of 18 MT of 0.50 mm polyester-coated sheet in RAL 9002 showed visible gloss variation between coils — some measured 45 GU and others 55 GU against a specified 50 GU target. We raised the issue immediately. The supplier's QC team acknowledged the batch variance, provided a revised certificate, and offered partial replacement material on the next shipment at no charge. The replacement coils were within ±3 GU of spec. Issue appears to have been an isolated production batch problem. Communication throughout was professional and the resolution was fair. Cautiously continuing the relationship.
